Selectable Constant Current 10W LED Driver DALI Dim PUP10D-1WMC-700 , 100VAC-240VAC 350 to 700mA

Selectable Constant Current 10W LED Driver DALI Dim PUP10D-1WMC-700 , 100VAC-240VAC 350 to 700mA

SKU:666561428334

$132.16 CAD
$132.16 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25

Product Description

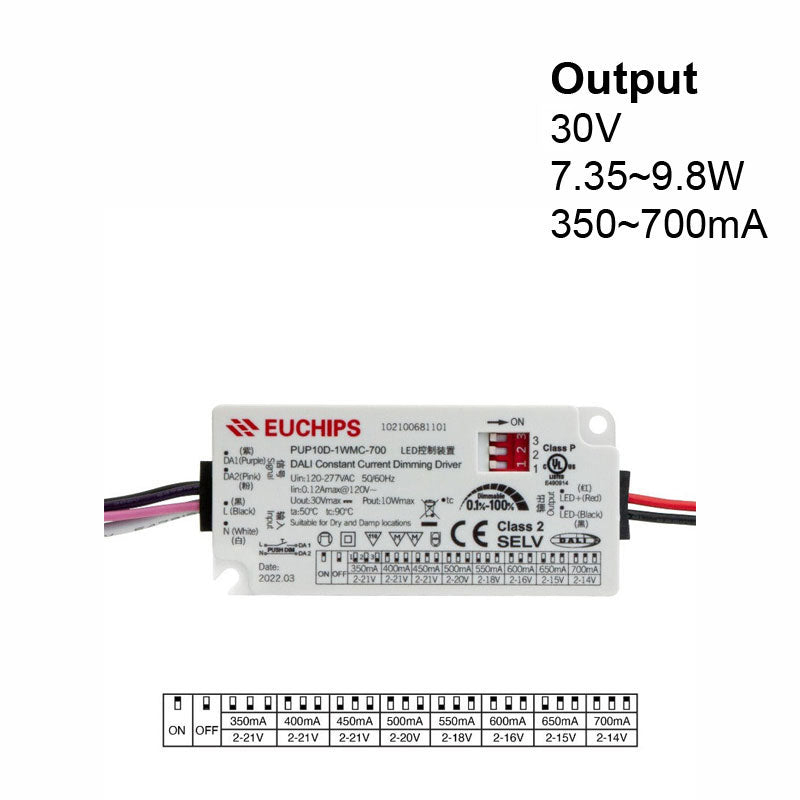

Product Constant Current LED Driver with Selectable Current
Model PUP10D-1WMC-700
Input Voltage 100-240VAC
Input Current 0.12Amax@100VAC
Output Current/Voltage/Power 350mA/2-21V/7.35W
400mA/2-21V/8.4W
450mA/2-21V/9.45W
500mA/2-20V/10W
550mA/2-18V/9.9W
600mA/2-16V/9.6W
650mA/2-15V/9.75W
700mA/2-14V/9.8W
No-load Output Voltage 30V Max
Input Frequency  50/60Hz
Dimming Type DALI/Touch DIM (Push DIM)
Dimming Range 0.1%-100% Dimming to off
IP Rating IP20 (Dry and Damp Locations)
Efficiency 78%@230VAC, Full load
Working Temperature -20℃~50℃
Lifetime 50,000h @ Tc:85℃

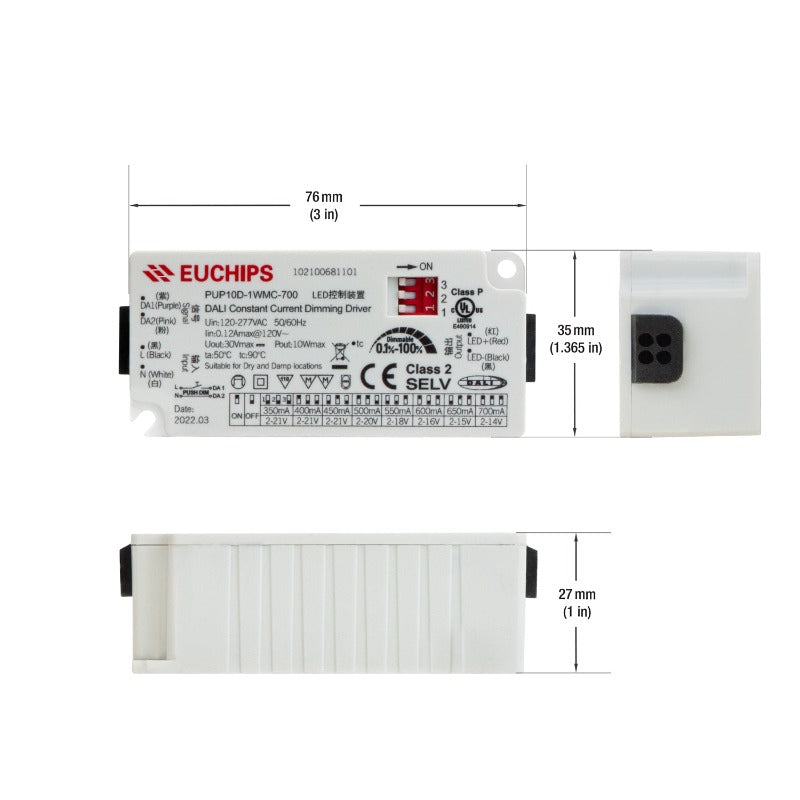

Dimensions 75.23 x 35.29 x 26.67mm (2.96 x 1.39 x 1in)
Certifications


The PUP10D-1WMC-700 is a selectable constant current LED driver capable of outputting 10W of power. It has an input voltage range of 100-240VAC and a maximum input current of 0.12A at 100VAC. The driver has several output current options, ranging from 350mA to 700mA, with corresponding output voltage and power specifications. The no-load output voltage is 30V max, and the input frequency is 50/60Hz.

The driver is dimmable through DALI and Touch DIM (Push DIM) dimming types, with a dimming range of 0.1%-100% and dimming to off capability. It has an IP20 rating for dry and damp locations and has an efficiency of 78% at 230VAC full load. The working temperature range is -20℃~50℃, and it has a lifetime of 50,000 hours at Tc:85℃. The dimensions of the driver are 75.23 x 35.29 x 26.67mm (2.96 x 1.39 x 1in).

Features:

  • The PUP10D-1WMC-700 is a selectable constant current LED driver capable of outputting 10W of power.
  • It has an input voltage range of 100-240VAC and a maximum input current of 0.12A at 100VAC.
  • The driver has several output current options, ranging from 350mA to 700mA, with corresponding output voltage and power specifications.
  • The no-load output voltage is 30V max, and the input frequency is 50/60Hz.
  • The driver is dimmable through DALI and Touch DIM (Push DIM) dimming types, with a dimming range of 0.1%-100% and dimming to off capability.
  • It has an IP20 rating for dry and damp locations and has an efficiency of 78% at 230VAC full load.
  • The working temperature range is -20℃~50℃, and it has a lifetime of 50,000 hours at Tc:85℃.
  • The dimensions of the driver are 75.23 x 35.29 x 26.67mm (2.96 x 1.39 x 1in).
