LD022H-VU18012-Q22P 0-10V Dimmable Constant Voltage LED Driver 12V 22W

LD022H-VU18012-Q22P 0-10V Dimmable Constant Voltage LED Driver 12V 22W

SKU: SKU:666561434939

Regular price $75.60 CAD
Regular price Sale price $75.60 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25

Product Description

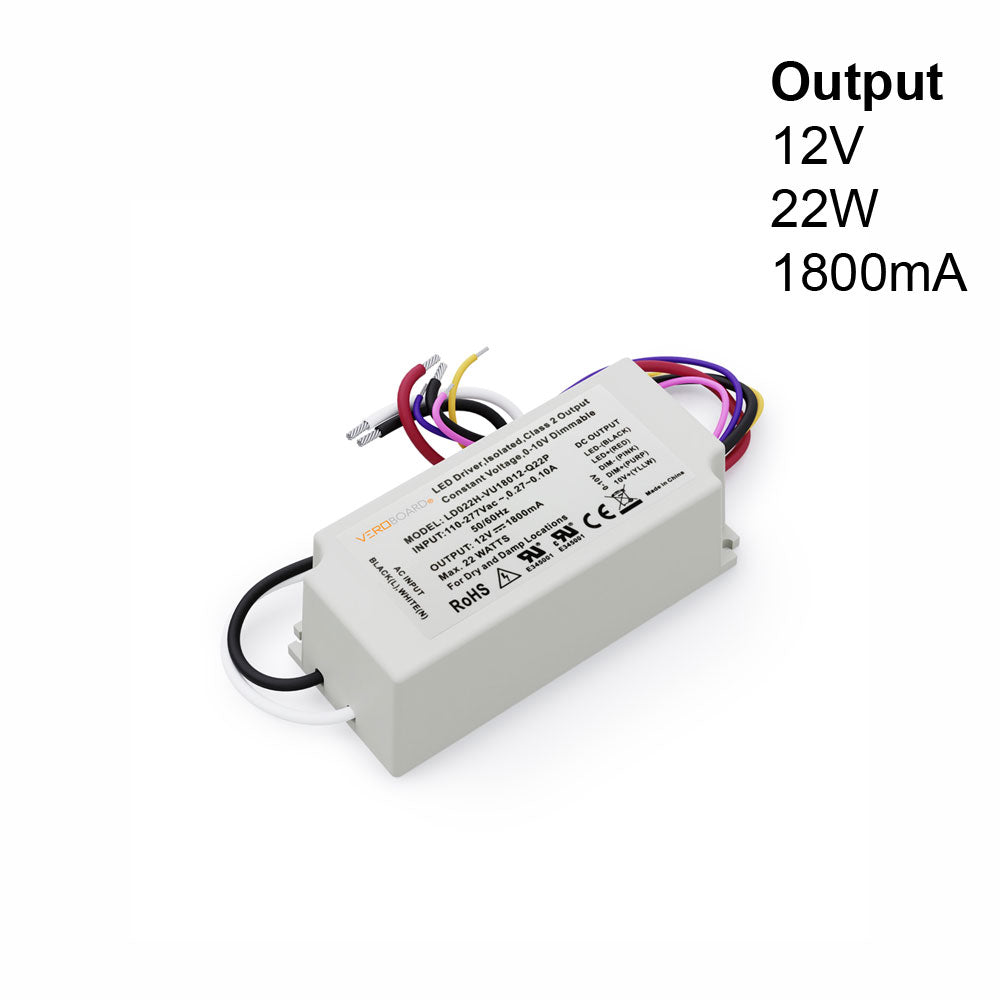

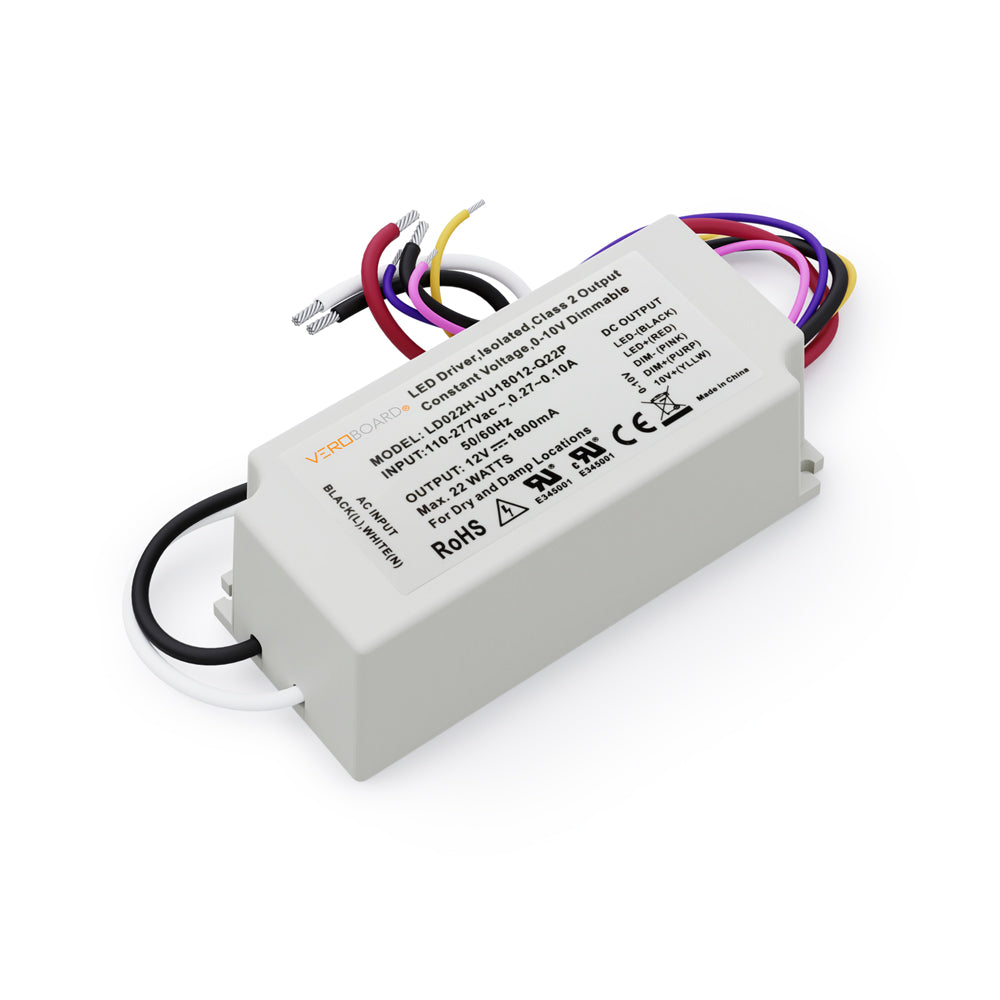

Model LD022H-VU18012-Q22P
Input Voltage 110-277V AC
Input Current 0.27~0.10A
Frequency 50/60 Hz
Output voltage 12V DC
Output regulated current 1800mA
Output Power 22W
Dimmable Yes (0/10V Dimming)
Class Certification Class 2
IP Rating IP20 (Indoor Rated)

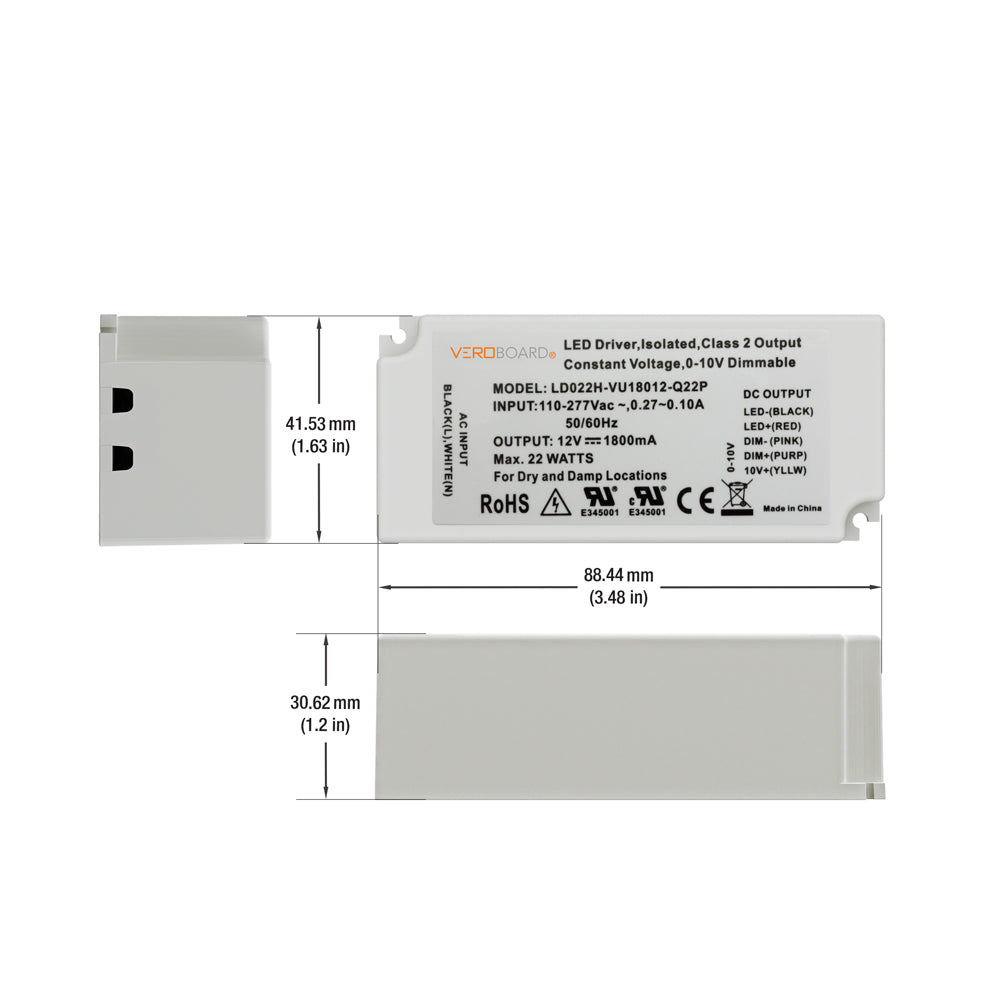

Dimensions 88.4 x 41.5 x 30.6mm (3.4 x 1.6 x 1.2in)
Certifications



The LD022H-VU18012-Q22P is a 0-10V dimmable constant voltage LED driver that operates with an input voltage of 110-277V AC and a frequency of 50-60 Hz. It has an input current of 0.27~0.10A, an output voltage of 12V DC, and a wattage of 22W. The output current is 1800mA, ideal for LED lighting systems needing a constant voltage.

This driver supports 0-10V dimming, offering brightness control, and is rated IP20 for dry and damp locations. The dimmer switch should be on the 110-277V AC side of the driver.

Features:

  • Operates with an input voltage range of 110-277V AC and supports a frequency of 50-60 Hz.
  • Draws an input current between 0.27A and 0.10A.
  • Provides a stable output voltage of 12V DC, ideal for LED lighting systems.
  • Delivers a power output of 22W.
  • Supplies a consistent output current of 1800mA.
  • Features 0-10V dimming functionality for adjustable brightness levels.
  • Rated IP20, making it suitable for dry and damp indoor locations.
  • Compatible with any standard 0-10V dimming switches for flexible lighting control.
