Product Description

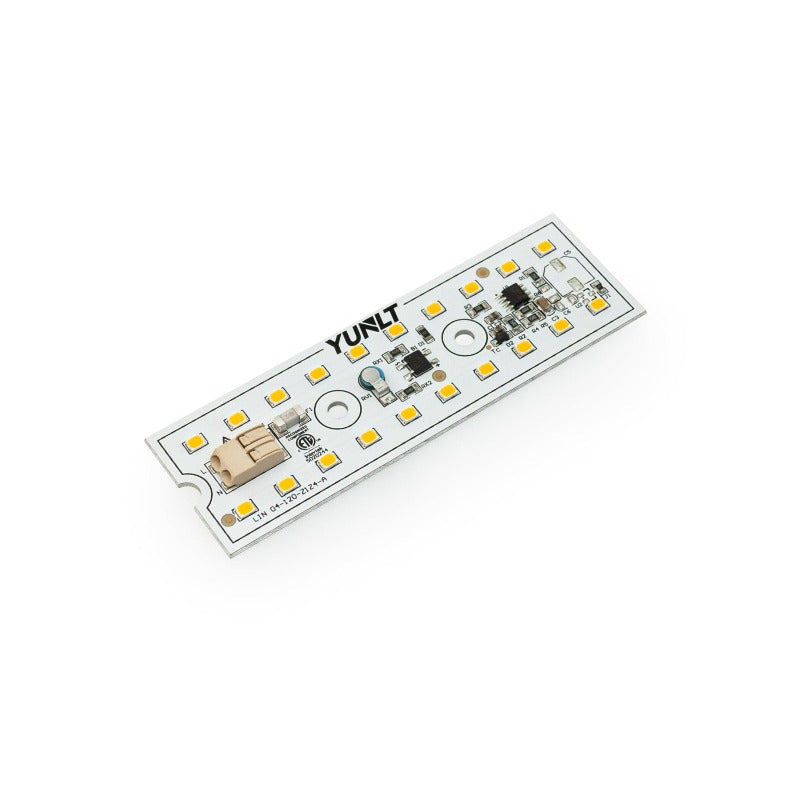

| Product | LED Module |
| Model No | LIN 04-005W-930-120-S1-Z1A |
| No of LEDs | 20 |
| Wattage | 5W |
| Voltage | 120V AC |
| Luminous Flux | 400 lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Weight | 0.015 kg |
| Base Material | Aluminum |
| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |

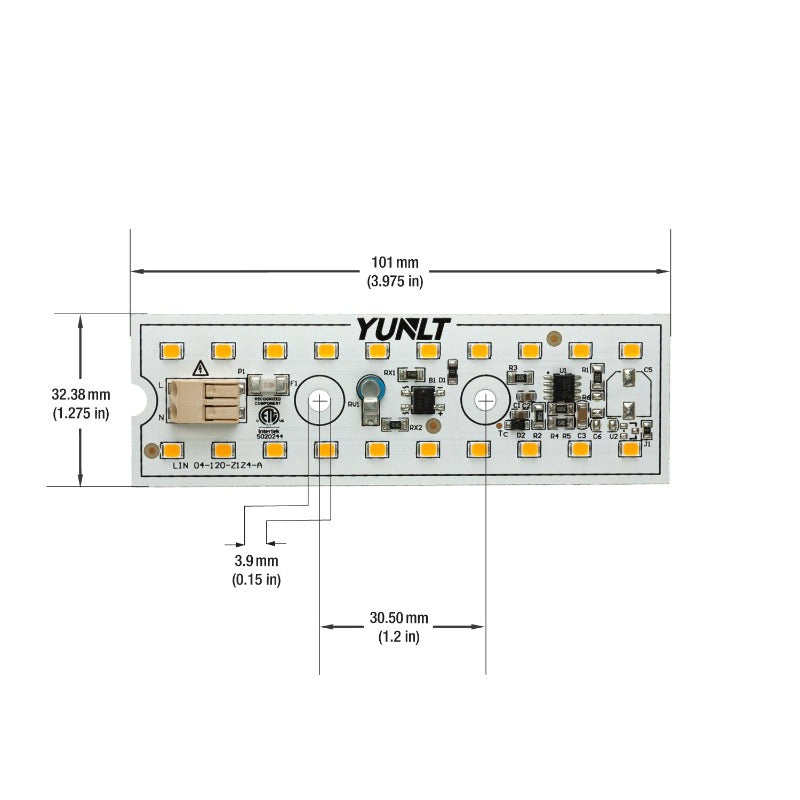

| Dimensions | 101mm (4 inch) x 32.38 mm (1.275 inch) |
| Diameter of the screw hole | 3.9mm (0.15 in) |
| Distance between holes | 30.5mm (1.2 in) |
| Height | 6mm (0.23in) |
| Certification |
 |

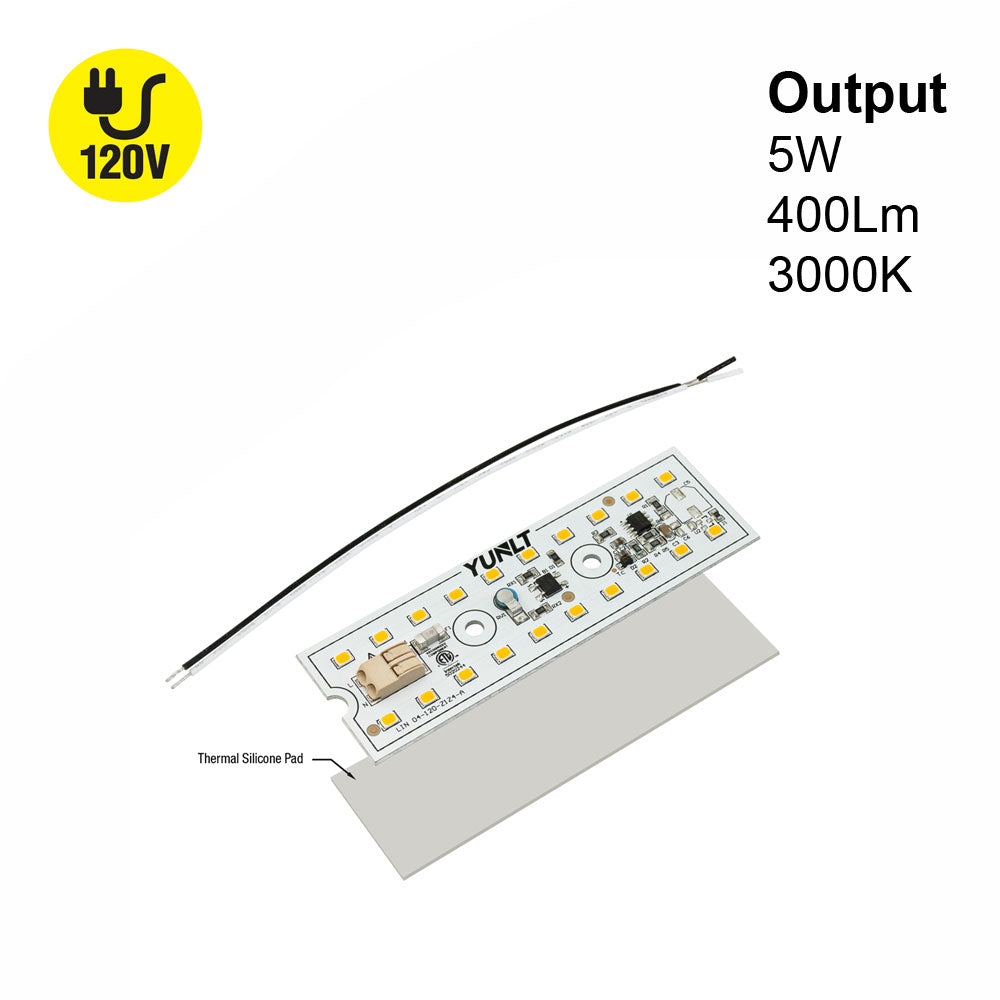

Features:
- Energy-efficient and high-quality lighting solution
- Warm white light with a color temperature of 3000K and CRI>90
- Wattage of 5W and operates on a voltage of 120V AC
- Luminous flux of 400 lumens, providing powerful lighting while remaining energy-efficient
- Dimmable, allowing for greater control over the lighting environment
- Constructed with an aluminum base material for durability
- Compact size of 101mm (4 inch) x 32.38 mm (1.275 inch), making it easy to install in a variety of settings

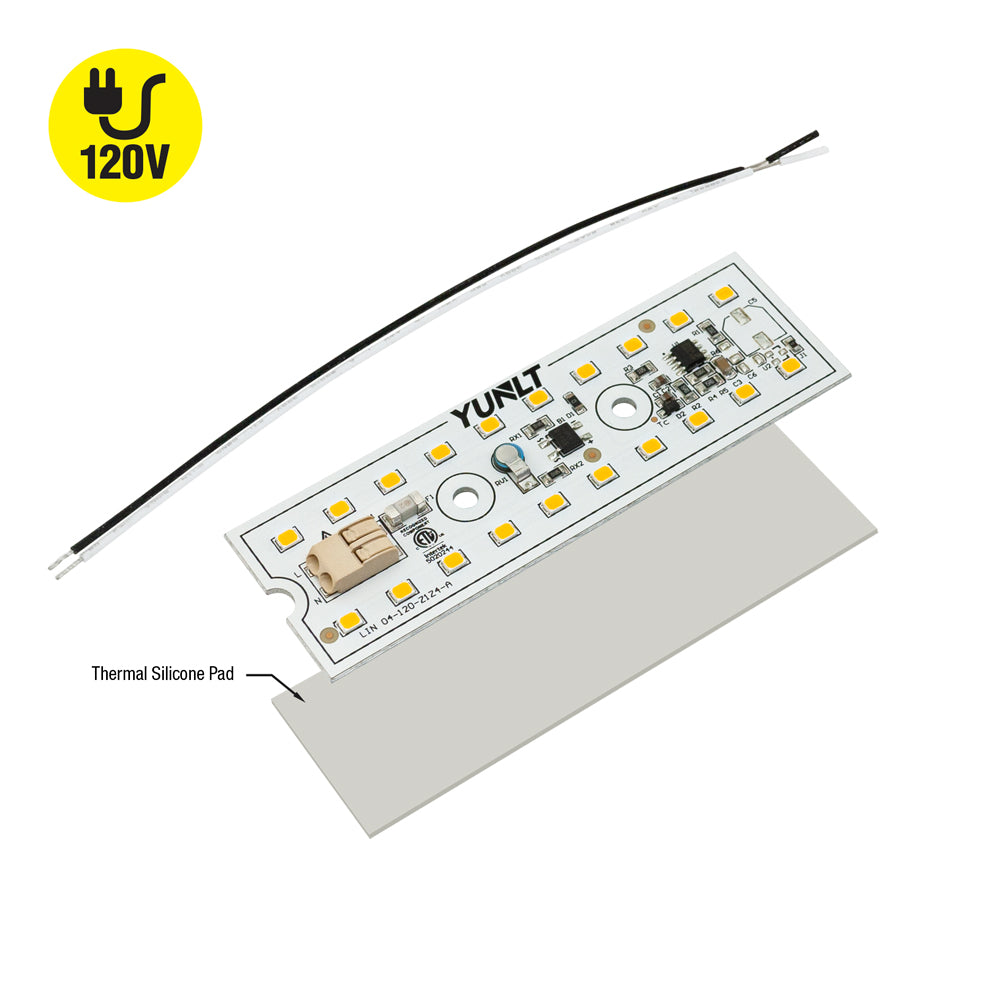

- Includes a thermal silicon pad and a 6-inch black and white power feed for added convenience
- ETL certified, ensuring high safety and quality standards
- Easy to install using screws with a diameter of 3.9mm (0.15 in) and a distance between holes of 30.5mm (1.2 in)
- A premier quality light engine. It produces up to 400 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
