Product Description
| Product | LED Module |
| Model No | LIN 06-008W-930-120-S3-Z1A |
| No of LEDs | 20 |
| Wattage | 8W |
| Voltage | 120V AC |
| Luminous Flux | 700 lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum |
| Weight | 0.03 kg |
| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |
| Dimensions | 152.35mm (6 inch) x 32 mm (1.25 inch) |
| Diameter of the screw hole | 3.5mm (0.13 in) |
| Distance between holes | 80mm (3.14 in) |
| Height | 6mm (0.23in) |
| Certification |
 |
Features:
- Energy-efficient and high-quality LED module
- Produces warm white light with a color temperature of 3000K and a high rendering index of CRI>90
- Wattage of 8W and operating voltage of 120V AC
- Luminous flux of 700 lumens, providing bright and efficient lighting
- Dimmable, allowing for greater control over the lighting environment
- Constructed with an aluminum base material
- Slim and compact size of 152.35mm (6 inch) x 32 mm (1.25 inch)

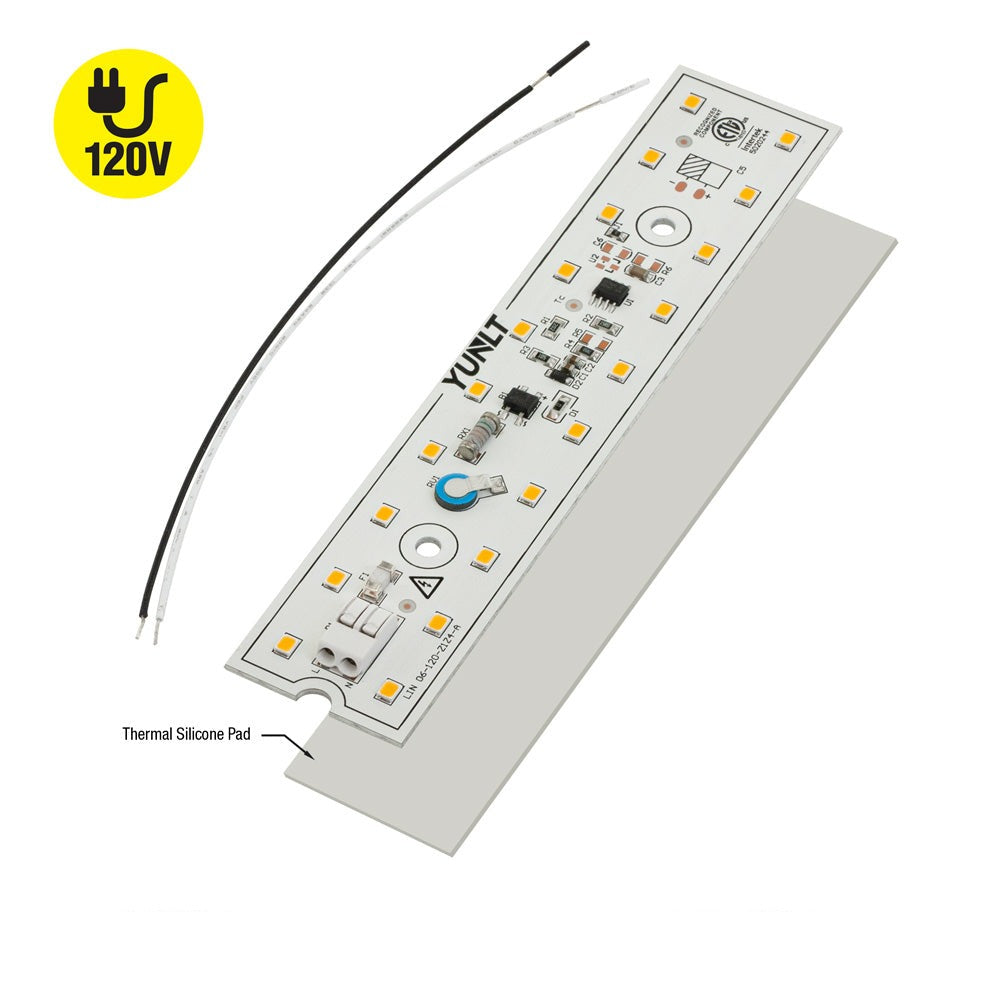

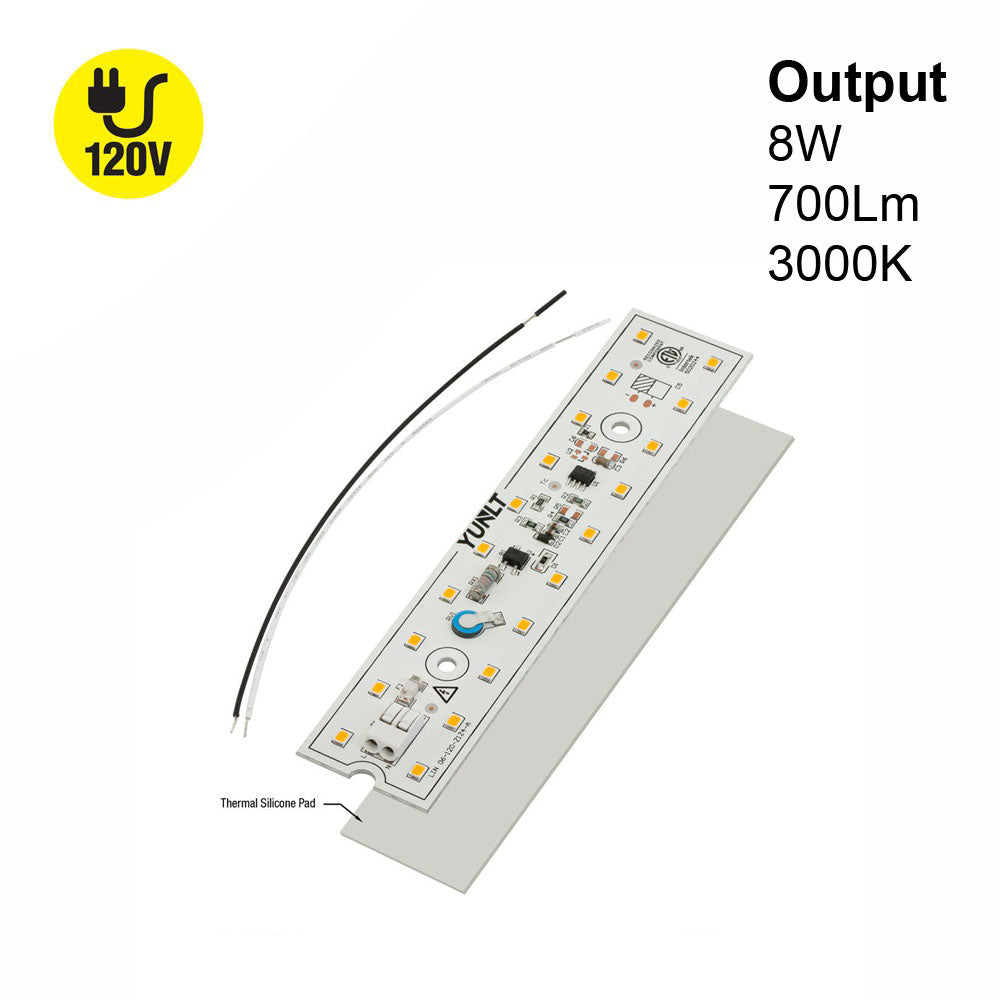

- Includes a thermal silicon pad and a 6-inch black and white power feed for added convenience
- Designed to meet high safety and quality standards and ETL certified
- Diameter of the screw hole is 3.5mm (0.13 in) and a distance between holes of 80mm (3.14 in)
- Suitable for a wide range of lighting applications and an ideal DIY product for replacing ceiling lights or bulb sources.
- A premier quality light engine. It produces up to 700 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
