Product DescriptionÂ
| Product | LED Module |
| Model No | LIN 11-012W-930-120-S3-Z1B |
| No of LEDs | 40 |
| Wattage | 12W |
| Voltage | 120V AC |
| Luminous Flux | 1000 lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum |
| Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |
| Dimensions | 279.4mm (11 inch) x 32 mm (1.25 inch) |
| Diameter of the screw hole | 3.9mm (0.15 in) |
| Distance between holes | 98.7mm (3.9 in) |
| Height | 6mm (0.23in) |
| Certification |
 Â |

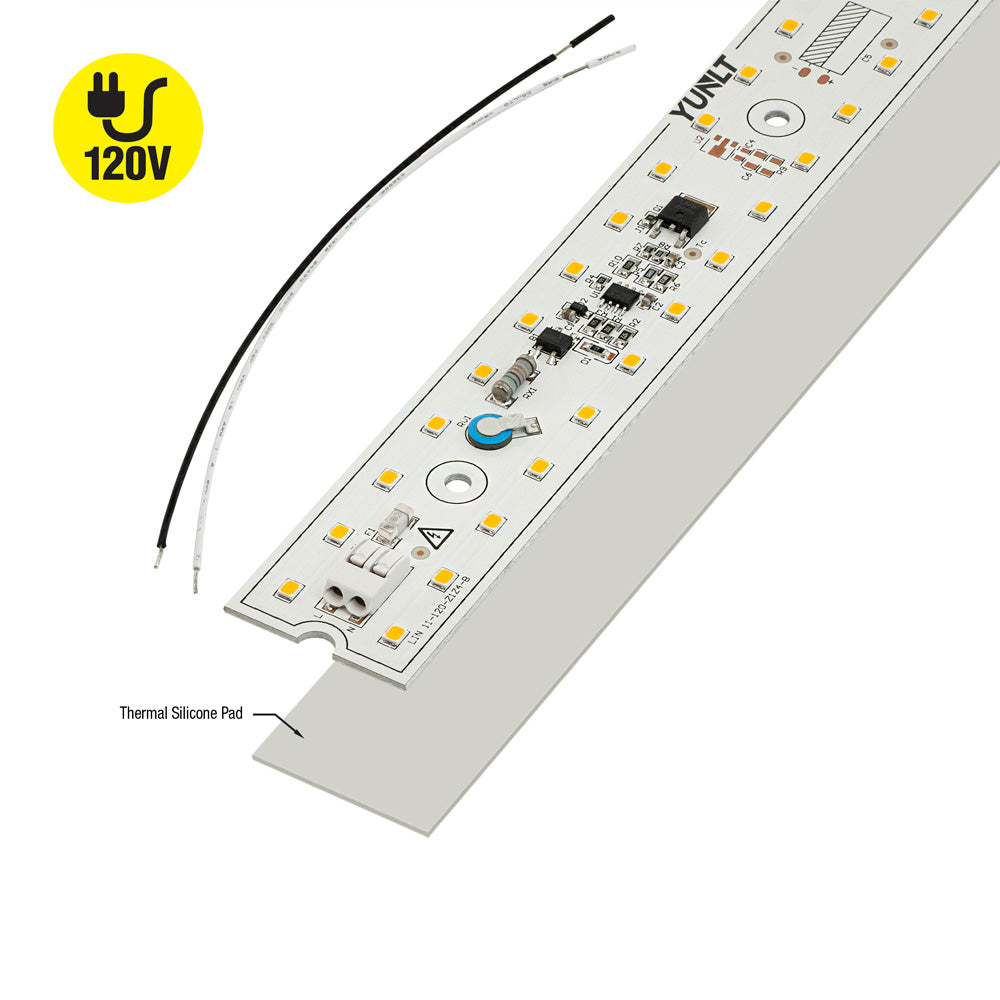

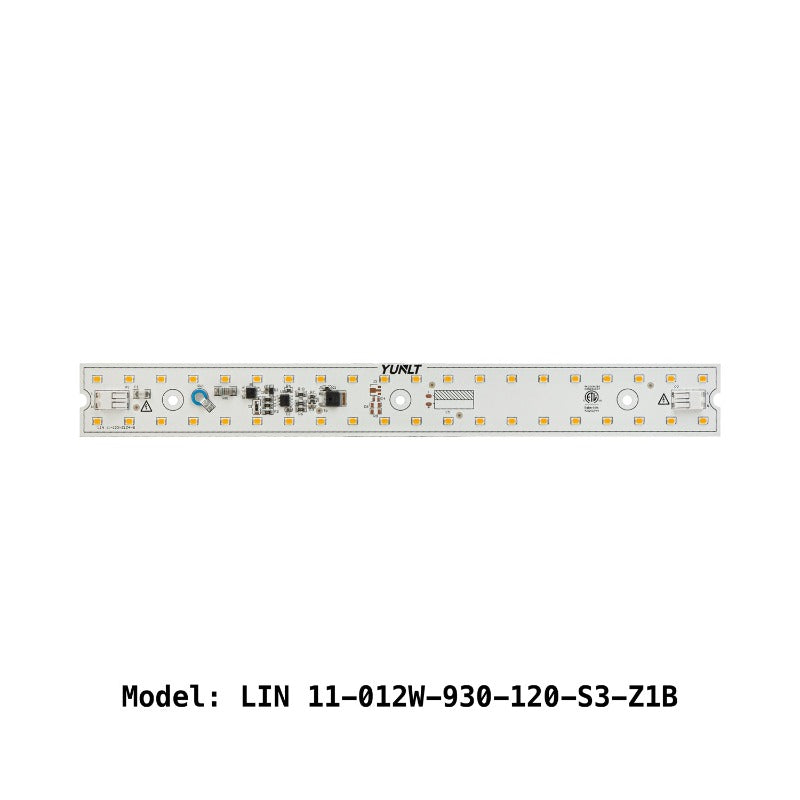

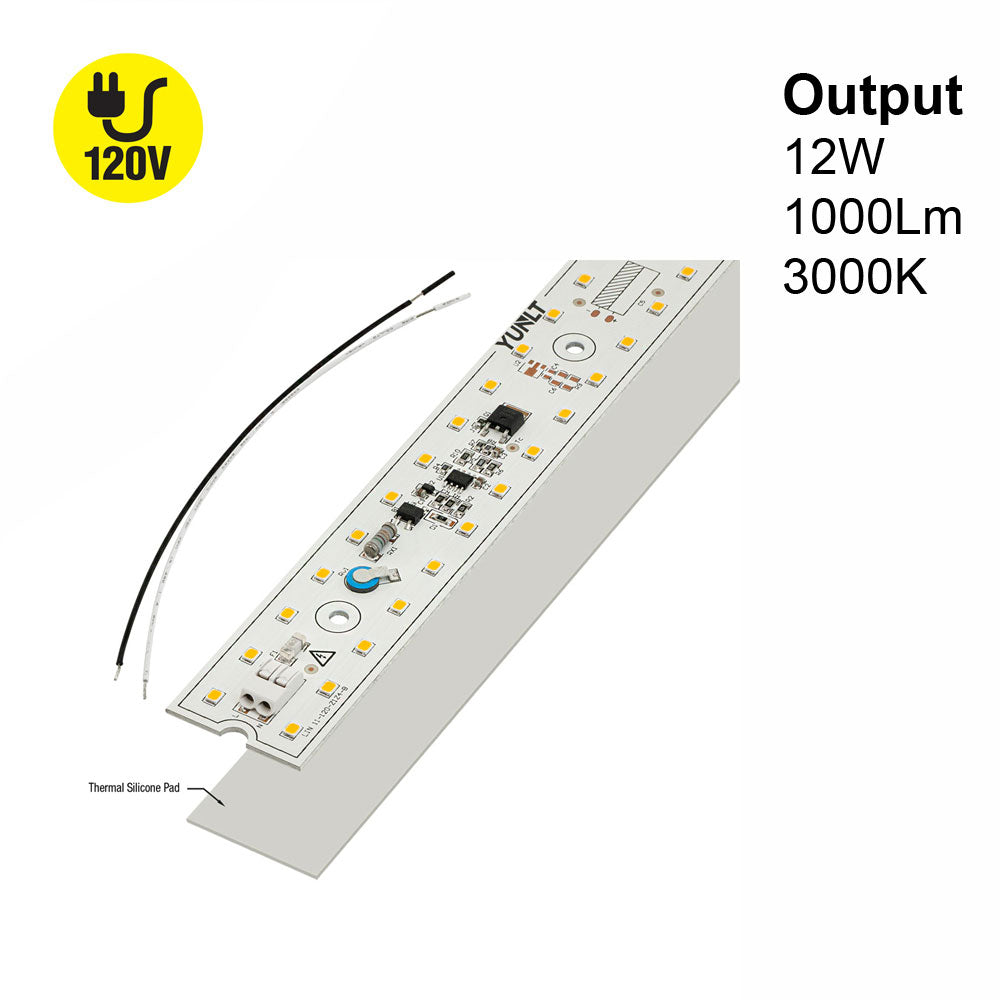

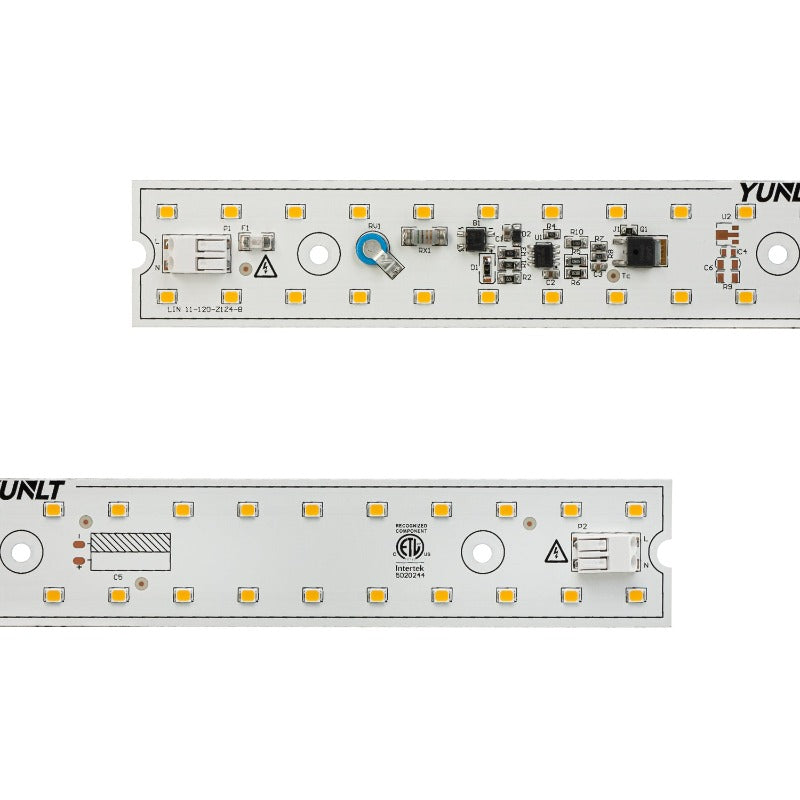

The LIN 11-012W-930-120-S3-Z1B is a driverless linear LED module that measures 11 inches (279.4mm) in length and 1.25 inches (32mm) in width. It contains 40 LEDs and has a wattage of 12W, powered by 120V AC. The module emits warm white light at a color temperature of 3000K, with a high color rendering index (CRI) of over 90, which means colors appear natural and vibrant.
It comes with a thermal silicon pad for even heat distribution, which helps to prolong the life of the module. It also includes a 6-inch black and white power feed. The diameter of the screw hole is 3.9mm (0.15 in), and the distance between the holes is 98.7mm (3.9 in).
With a luminous flux of 1000 lumens, this LED module provides exceptional lighting suitable for various applications such as ceiling lights, task lighting, and display lighting. It has low power consumption and high energy efficiency, which means it is cost-effective to use. This LED module is dimmable and can be used as a DIY product for replacing ceiling lights or bulb sources.
Features:
- Driverless linear LED module
- 11 inches (279.4mm) in length and 1.25 inches (32mm) in width
- Contains 40 LEDs and has a wattage of 12W, powered by 120V AC
- Emits warm white light at a color temperature of 3000K
- High color rendering index (CRI) of over 90 for natural and vibrant colors
- Includes thermal silicon pad for even heat distribution, prolonging the life of the module
- 6-inch black and white power feed included
- Diameter of screw hole is 3.9mm (0.15 in) and distance between holes is 98.7mm (3.9 in)
- Luminous flux of 1000 lumens for exceptional lighting suitable for various applications
- Low power consumption and high energy efficiency for cost-effective use
- Dimmable and can be used as a DIY product for replacing ceiling lights or bulb sources
- A premier quality light engine. It produces up to 1000 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
