Product Description
| Product | LED Module |

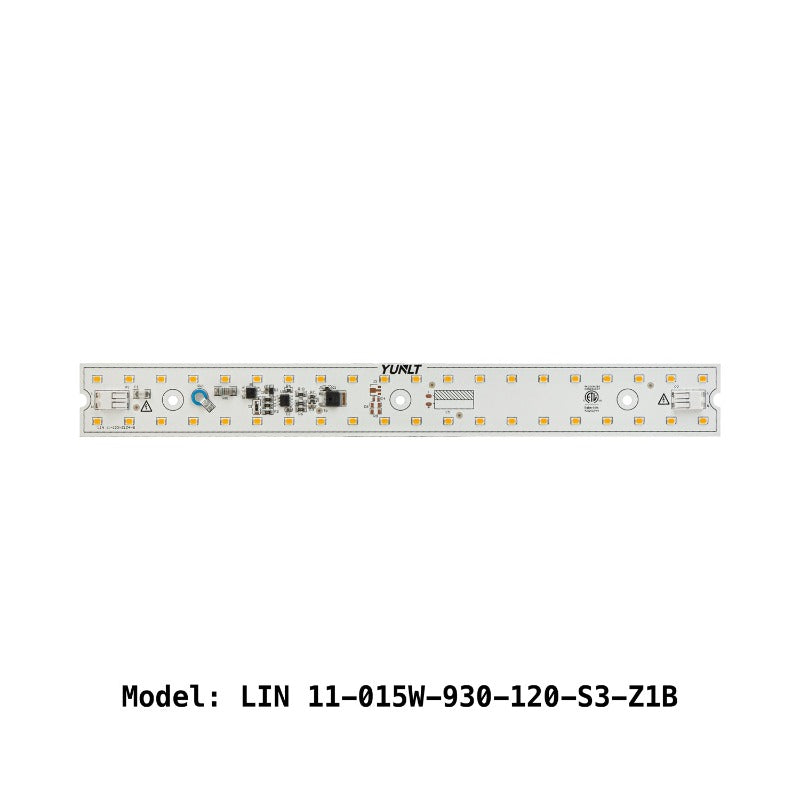

| Model No | LIN 11-015W-930-120-S3-Z1B |
| No of LEDs | 40 |
| Wattage | 15W |
| Voltage | 120V AC |
| Luminous Flux | 1300 lumens |
| Color Temperature | 3000K (Warm White) |
| Rendering Index | CRI>90 |
| Power Source | AC |
| Dimmable | Yes |
| Base Material | Aluminum |
| Weight | 0.06 kg |
| Package Components | ED Module Thermal Silicon Pad 6inch Black and White power feed |

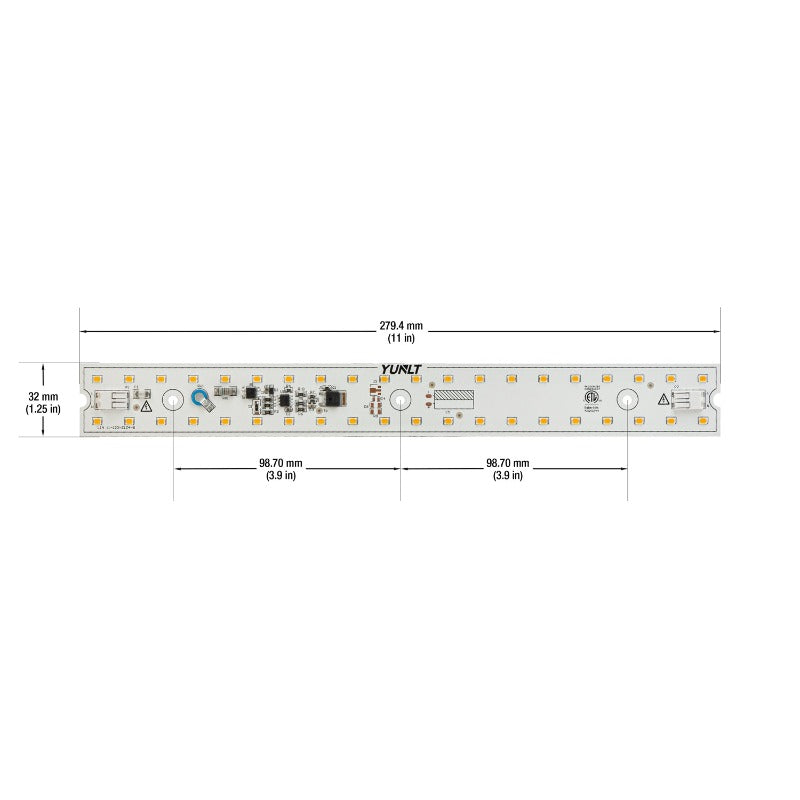

| Dimensions | 279.4mm (11 inch) x 32 mm (1.25 inch) |
| Diameter of the screw hole | 3.9mm (0.15 in) |
| Distance between holes | 98.7mm (3.9 in) |
| Height | 6mm (0.23in) |
| Certification |
 |
Features:

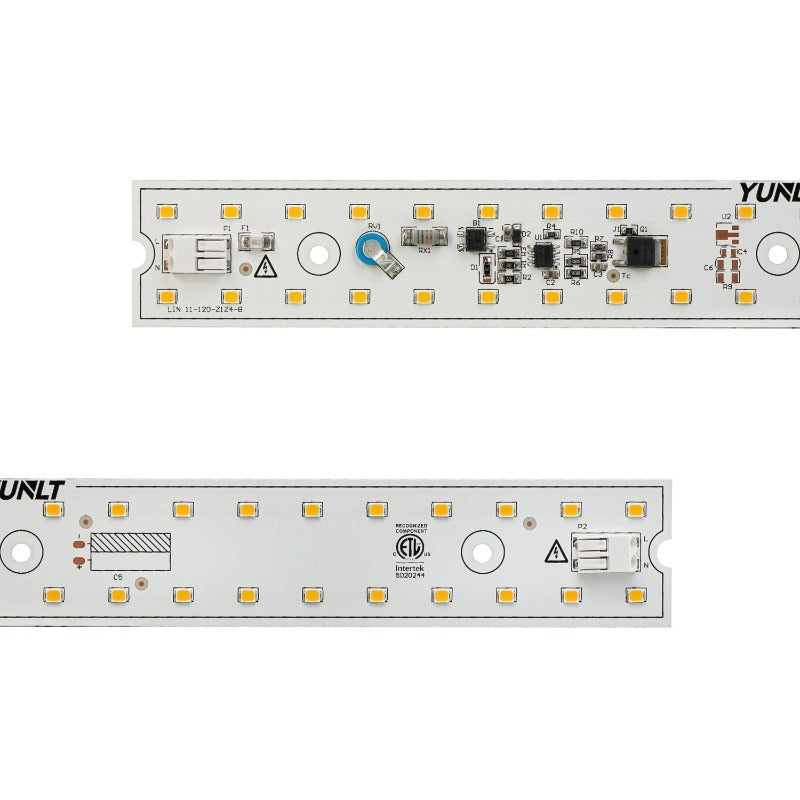

- 11-inch linear LED module driverless engine with 40 LEDs
- 15W wattage and 120V AC power source for high-performance lighting
- Emits warm white light at 3000K with CRI>90 for natural and vibrant colors

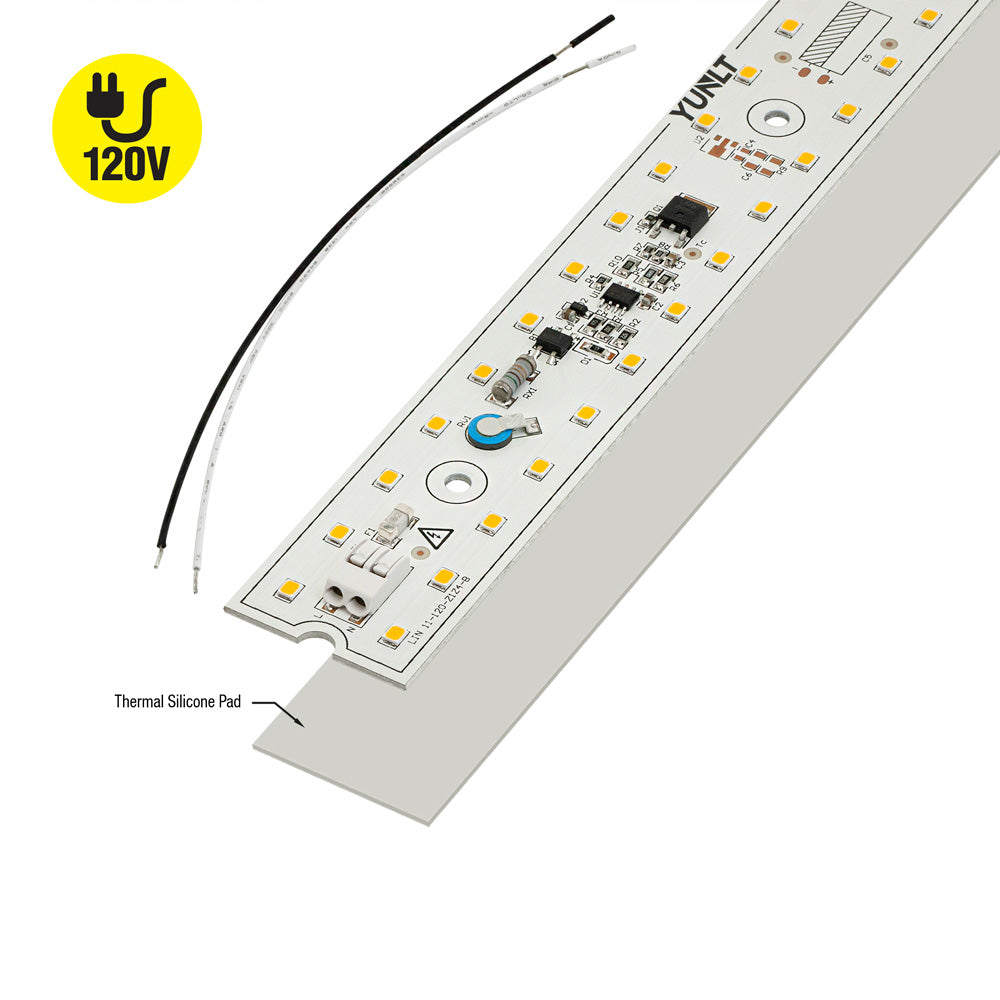

- Made of aluminum for excellent heat dissipation and comes with thermal silicon pad for even heat distribution
- 6-inch black and white power feed included for easy installation
- Dimensions of 279.4mm (11 inch) length and 32 mm (1.25 inch) width with 3.9mm (0.15 in) screw hole diameter and 98.7mm (3.9 in) distance between holes
- Luminous flux of 1300 lumens suitable for various applications such as ceiling lights, task lighting, and display lighting
- Low power consumption and high energy efficiency for cost-effective use
- Dimmable and can be used as a DIY product for replacing ceiling lights or bulb sources
- Certified by ETL for safe and reliable use
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
