Product Description

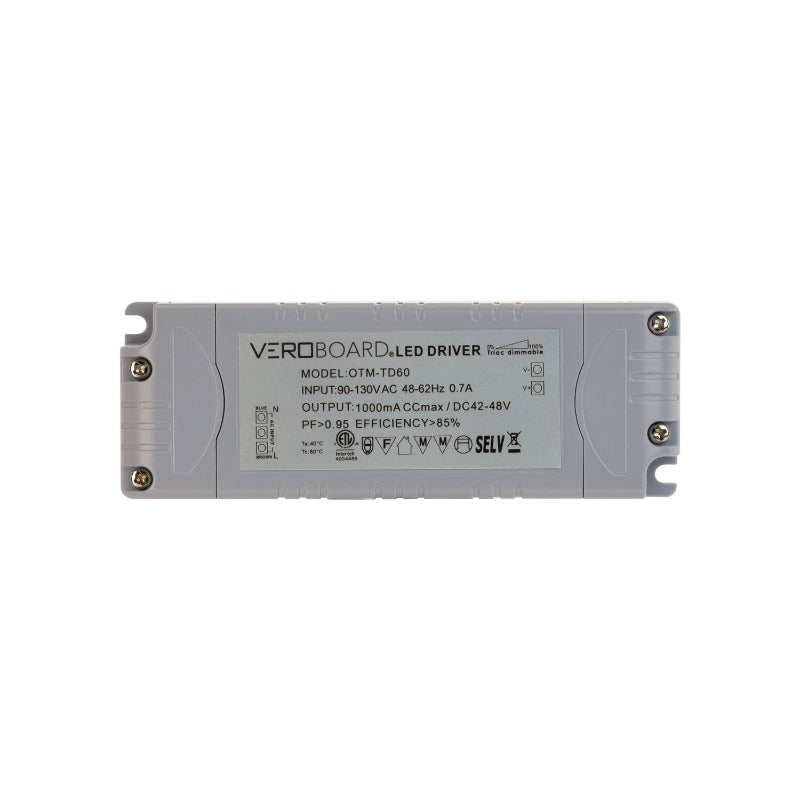

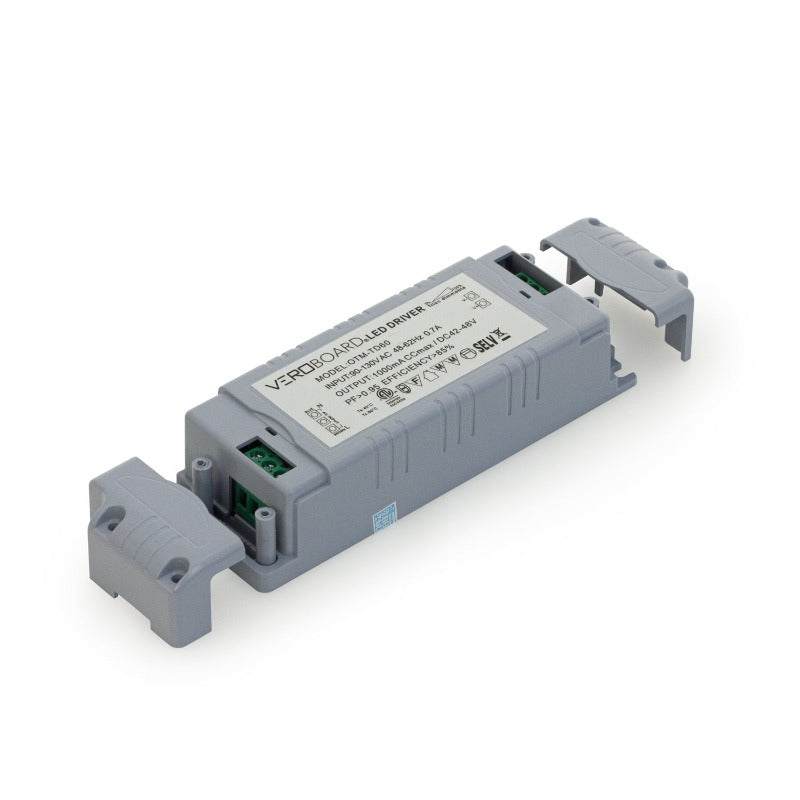

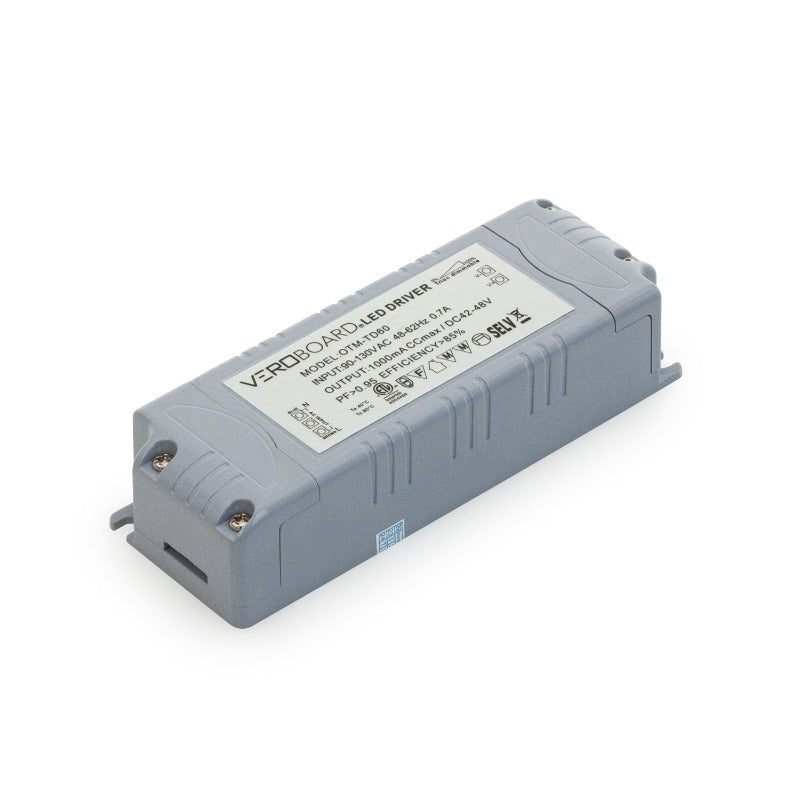

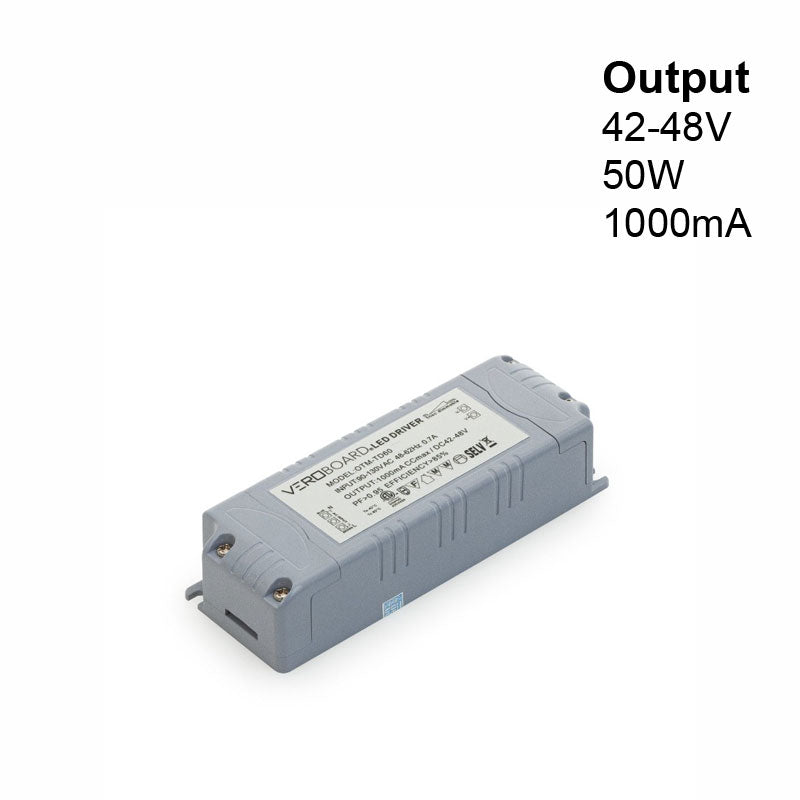

Product | Constant Current LED Driver |
Model | OTM-TD60-1000 |
Input Voltage | 90-130V AC |
Input Current | 0.7A |
Input Frequency | 48-62Hz |
Power Factor | PF>0.95 |
Efficiency | >85% |
Output Regulated Current | 1000mA |
Output Power | 50W |
Output Voltage | 42-48V DC |
Dimmable | Yes (Triac Dimming) |
Ambient Temperature (Ta) | 40°C |
Case Temperature (Tc) | 80°C |
IP Rating | IP20 (Indoor use only) |

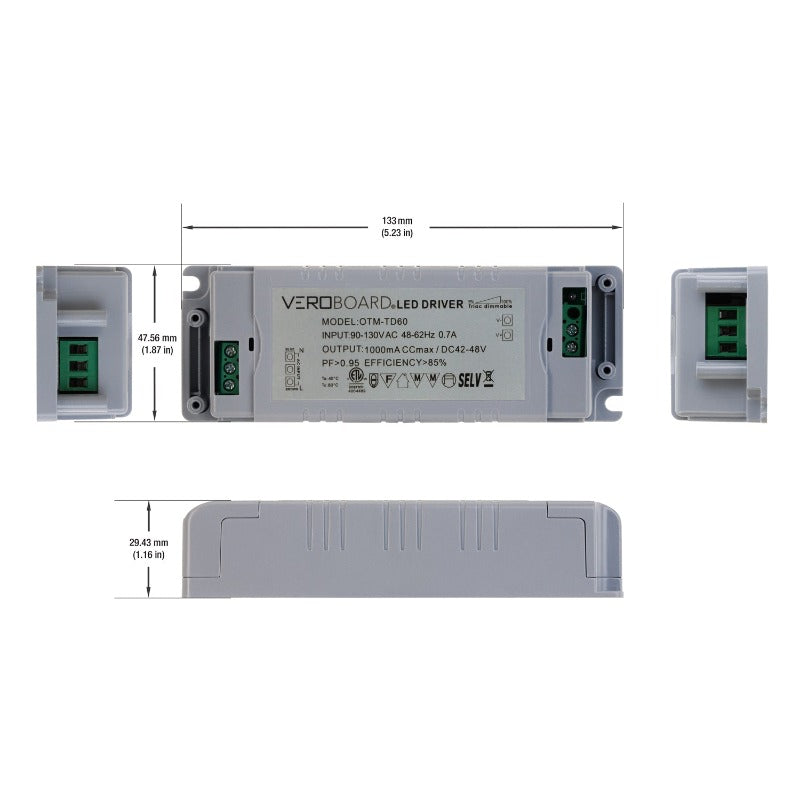

Dimensions | 133 x 47.5 x 29.4 mm (5.2 x 1.8 x 1.1 in) |
Class Certification | Class II |
Certification |
Â
|
Â
The OTM-TD60-1000 is a constant current LED driver that provides a regulated current of 1000mA and an output power of 50W. It has an input voltage range of 90-130V AC and an input current of 0.7A. The input frequency ranges from 48-62Hz, and the driver has a power factor greater than 0.95, ensuring high efficiency.
The output voltage range is 42-48V DC, and the driver is dimmable with Triac dimming, allowing users to adjust the brightness of the LEDs as desired. The driver has an efficiency rating greater than 85%, ensuring that it operates at maximum efficiency, reducing energy consumption and costs.
The driver has an IP20 rating, indicating that it is suitable for indoor use only, and it operates at an ambient temperature of up to 40°C, with a maximum case temperature of 80°C. The driver has a compact size of 133 x 47.5 x 29.4 mm, making it easy to install and integrate into LED lighting fixtures.
Features:
- The OTM-TD60-1000 is a constant current LED driver
- Provides a regulated current of 1000mA and an output power of 50W
- Input voltage range of 90-130V AC and an input current of 0.7A
- Input frequency ranges from 48-62Hz, and the driver has a power factor greater than 0.95
- Output voltage range is 42-48V DC
- Dimmable with Triac dimming, allowing users to adjust the brightness of the LEDs as desired
- Efficiency rating greater than 85%, ensuring that it operates at maximum efficiency, reducing energy consumption and costs
- IP20 rating, suitable for indoor use only
- Operates at an ambient temperature of up to 40°C, with a maximum case temperature of 80°C
- Compact size of 133 x 47.5 x 29.4 mm, making it easy to install and integrate into LED lighting fixtures
- Classified as Class II, suitable for use in applications where protection against electric shock is necessary
