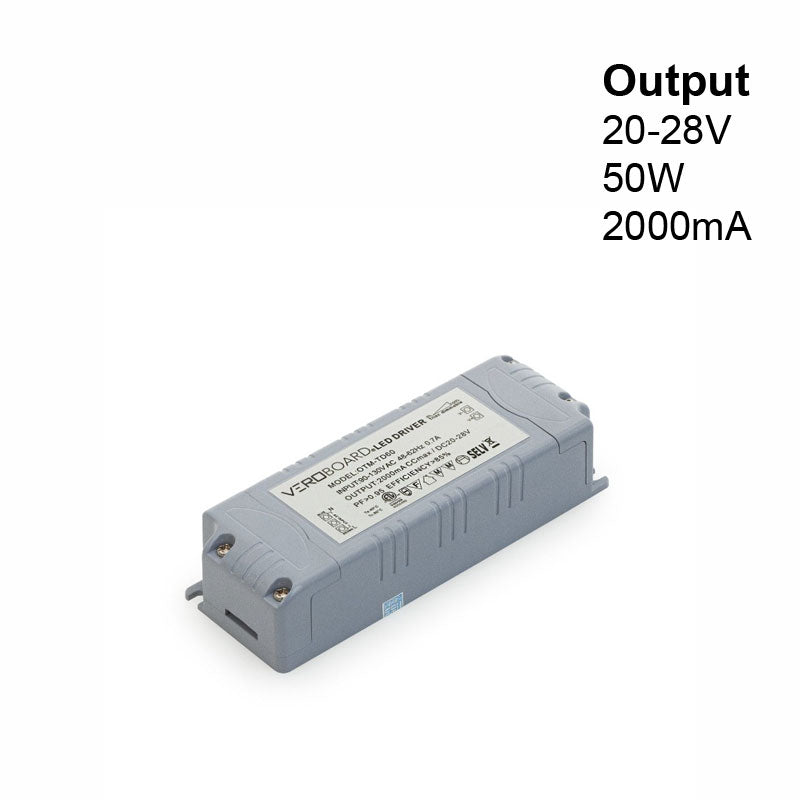

OTM-TD60-2000 Constant Current LED Driver, 2000mA 20-28VDC = LD048H-CU20024-M48E

OTM-TD60-2000 Constant Current LED Driver, 2000mA 20-28VDC = LD048H-CU20024-M48E

SKU:666561428624

$68.60 CAD
$68.60 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25

Product Description

Product Constant Current LED Driver
Model OTM-TD60-2000
Input Voltage 90-130V AC
Input Current 0.7A
Input Frequency 48-62Hz
Power Factor PF>0.95
Efficiency >85%
Output Regulated Current 2000mA
Output Power 50W
Output Voltage 20-28V DC
Dimmable Yes (Triac Dimming)
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 80°C
IP Rating IP20 (Indoor use only)

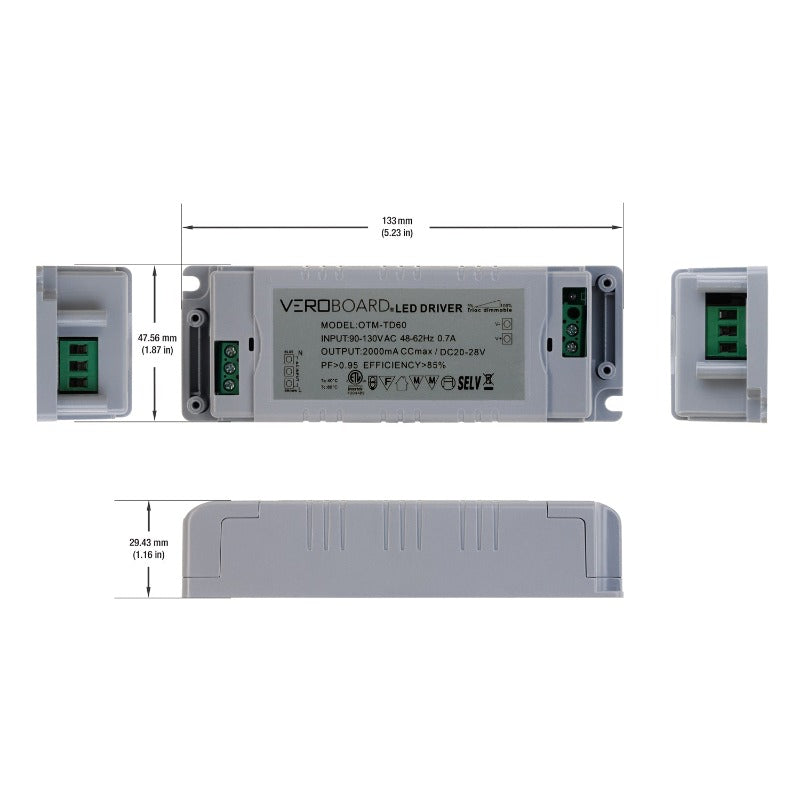

Dimensions 133 x 47.5 x 29.4 mm (5.2 x 1.8 x 1.1 in)
Class Certification Class II
Certification




The OTM-TD60-2000 Constant Current LED Driver is a product designed to regulate and power LED lighting systems. Its model number is OTM-TD60-2000, and it is capable of providing a regulated current output of 2000mA with a power output of 50W.

The input voltage range of the driver is 90-130V AC, and it can operate with an input current of 0.7A and an input frequency of 48-62Hz. The power factor of the driver is greater than 0.95, and its efficiency is greater than 85%.

The output voltage range of the driver is 20-28V DC, which is ideal for LED lighting systems. The driver is dimmable, and it can be controlled using Triac dimming. The ambient temperature range (Ta) for the driver is 40°C, and the case temperature (Tc) can reach up to 80°C.

Features:

  • OTM-TD60-2000 Constant Current LED Driver designed to regulate and power LED lighting systems
  • Model number is OTM-TD60-2000, capable of providing a regulated current output of 2000mA with a power output of 50W
  • Input voltage range of 90-130V AC, input current of 0.7A, and an input frequency of 48-62Hz
  • Power factor of the driver is greater than 0.95, and its efficiency is greater than 85%
  • Output voltage range of the driver is 20-28V DC, ideal for LED lighting systems
  • Dimmable and controllable using Triac dimming
  • Ambient temperature range (Ta) for the driver is 40°C, and the case temperature (Tc) can reach up to 80°C
  • Rated IP20, suitable for indoor use only
