Product Description
| Product | Constant Current LED Driver with Selectable Current |
| Model | OTM-VPA40-DIP |
| Input Voltage | 120-277V AC |
| Input Wattage | 49W |
| Input Current | 0.52A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 3-65V |
| Output Power | 40W max |
| Weight | 0.2 kg |
| Output Regulated Current | 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA, 700mA, 800mA, 900mA, 1000mA, 1100mA, 1200mA, 1300mA, 1400mA |
| Dimmable | Yes (Triac/Phase, 0-10V, 1-10V, Potentiometer, 10V PWM 5 in 1 Dimming) |
| IP Rating | IP20 (Indoor Rated) |

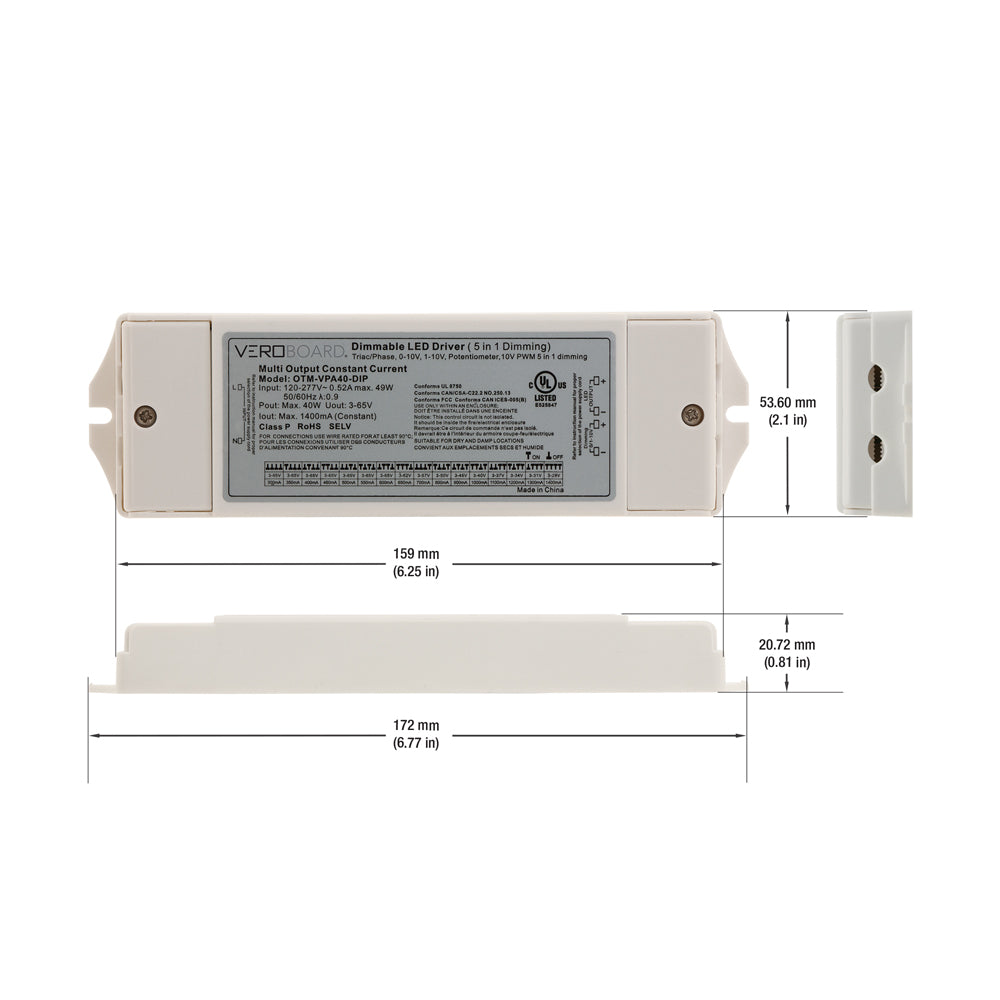

| Dimensions | 159 x 53.6 x 20.7mm (6.2 x 2.1 x 0.8in) |
| Class Certification | Class P |
| Certification |
  |
Features:
- Operates on a wide input voltage range of 120-277V AC, ensuring compatibility with diverse electrical systems.
- Low input current of 0.52A and a frequency of 50/60 Hz optimize energy consumption while maintaining a stable power supply.
- Offers a versatile output voltage range from 3-65V, accommodating various LED configurations for customized lighting solutions.
- Boasts a maximum output power of 40W, suitable for a broad spectrum of lighting applications.
- Provides adaptability with a selectable regulated current ranging from 300mA to 1400mA, allowing precise control over connected LED luminosity.
- Enhances control with dimmable options supporting Triac/Phase, 0-10V, 1-10V, Potentiometer, and 10V PWM 5 in 1 dimming choices.
- Designed for indoor use with an IP20 rating, ensuring reliability in various indoor environments.
- With dimensions of 159 x 53.6 x 20.7mm, it is easy to integrate into different lighting fixtures, facilitating convenient installation.
- Certified with Class P, ensuring adherence to industry standards for safety and reliability.
