Product Description
| Product | Constant Current LED Driver with Selectable Current |
| Model | OTM-VPA60-DIP |
| Input Voltage | 120-277V AC |
| Input Wattage | 78W |
| Input Current | 0.78A |
| Input Frequency | 50/60 Hz |

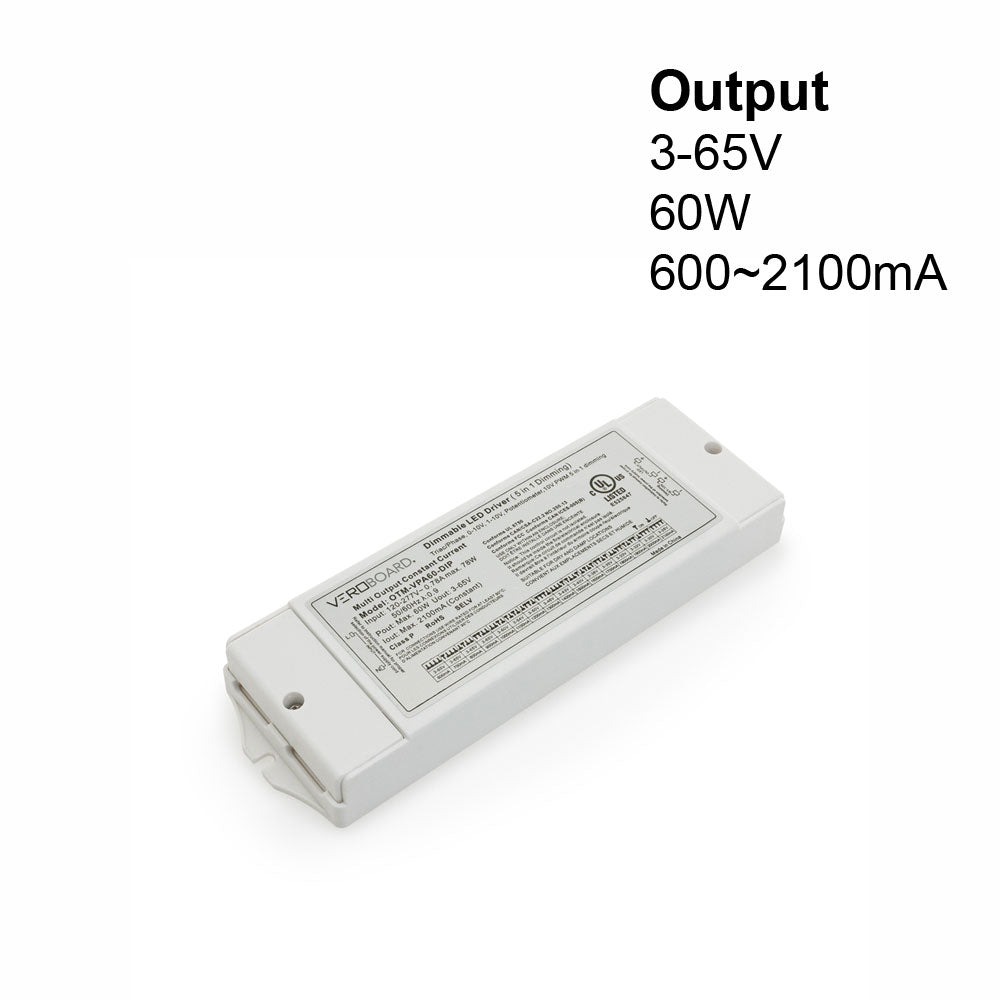

| Output Voltage | 3-65V |
| Output Power | 60W max |

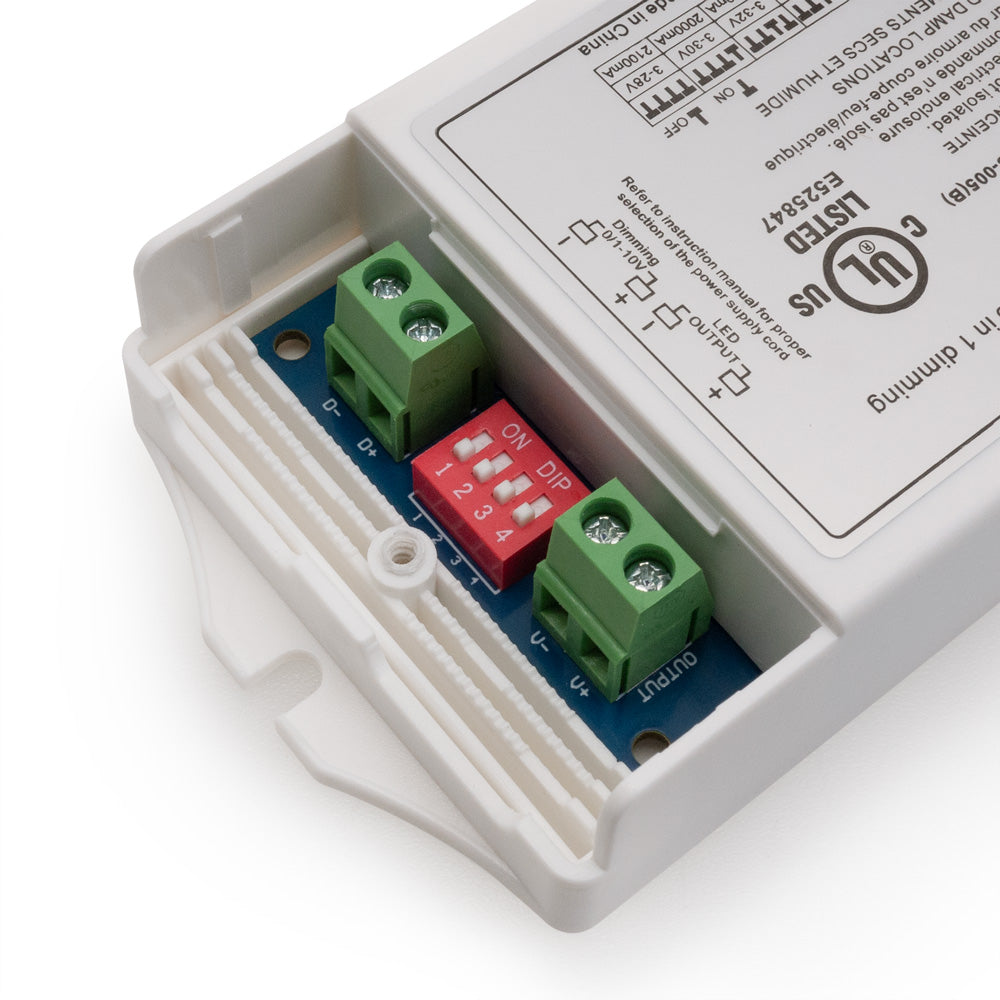

| Output Regulated Current | 600mA, 700mA, 800mA, 900mA, 1000mA, 1100mA, 1200mA, 1300mA, 1400mA, 1500mA, 1600mA, 1700mA, 1800mA, 1900mA, 2000mA, 2100mA |
| Dimmable | Yes (Triac/Phase, 0-10V, 1-10V, Potentiometer, 10V PWM 5 in 1 Dimming) |
| IP Rating | IP20 (Indoor Rated) |
| Weight | 0.4 kg |

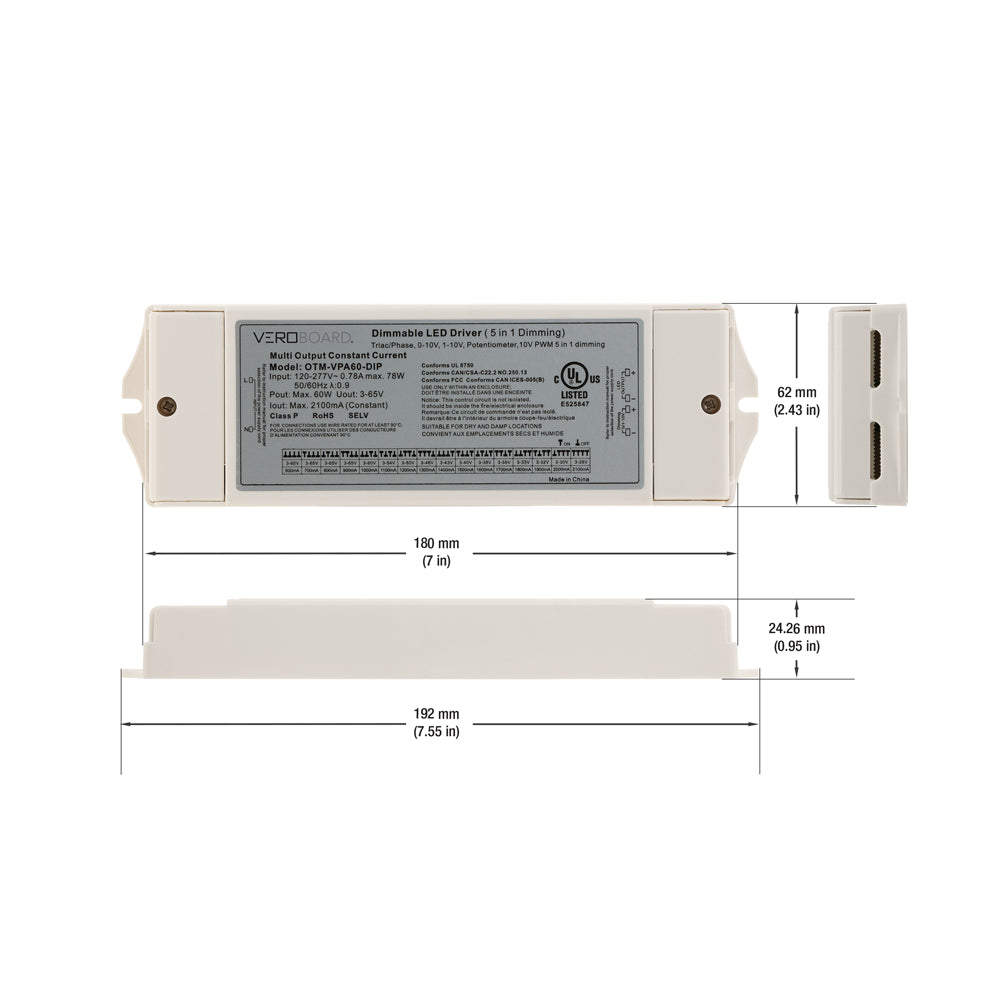

| Dimensions | 180 x 62 x 24.2mm (7 x 2.4 x 0.9in) |
| Class Certification | Class P |
| Certification |
  |
Features:
- Operates on a wide input voltage range of 120-277 V AC, ensuring compatibility with diverse electrical systems.
- Low input current of 0.78A and a frequency of 50/60 Hz optimize energy consumption while maintaining a stable power supply.
- Offers a versatile output voltage range from 3-65V, accommodating various LED configurations for customized lighting solutions.
- Boasts a maximum output power of 60W, suitable for a broad spectrum of lighting applications.
- Provides adaptability with a selectable regulated current ranging from 600mA to 2100mA, allowing precise control over connected LED luminosity.
- Enhances control with dimmable options supporting Triac/Phase, 0-10V, 1-10V, Potentiometer, and 10V PWM 5 in 1 dimming choices.
- Designed for indoor use with an IP20 rating, ensuring reliability in various indoor environments.
- With dimensions of 180 x 62 x 24.2mm, it is easy to integrate into different lighting fixtures, facilitating convenient installation.
- Certified with Class P, ensuring adherence to industry standards for safety and reliability.
