Mean Well OWA-90U-12 Non-Dimmable Constant Current + Constant Voltage LED Driver with Universal Input Voltage

Mean Well OWA-90U-12 Non-Dimmable Constant Current + Constant Voltage LED Driver with Universal Input Voltage

SKU:666561414627

$133.00 CAD
$133.00 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25




Product Description

Model OWA-90U-12
Input Voltage 100-240V AC
Input Current 1.1A
Efficiency 91%
Output Voltage (CV Mode) 12V
Output  Current (CC Mode) 7.5A
Output Power 90W
IP Rating IP67
Dimmable No

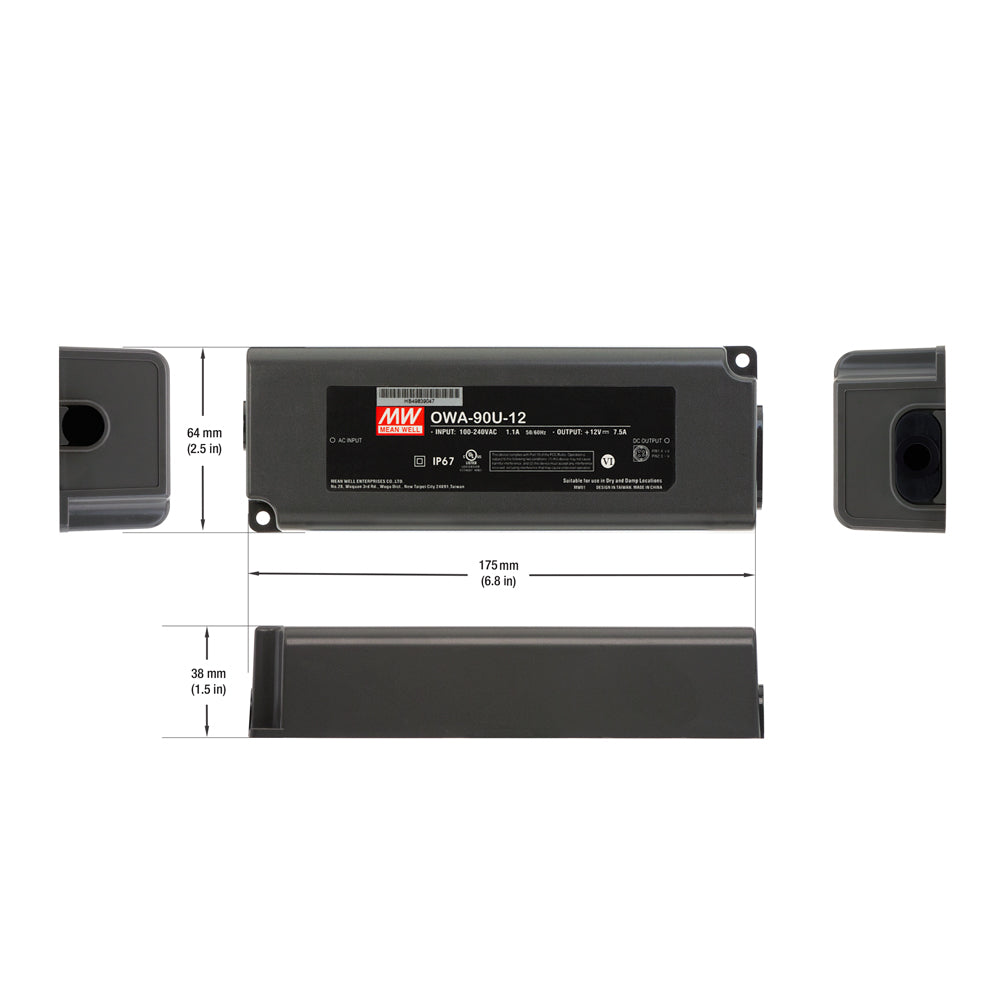

Dimensions 175 x 64 x 38mm (6.8 x 2.5 x 1.5 in)
Class Certification Class 2/ Class II
Certifications

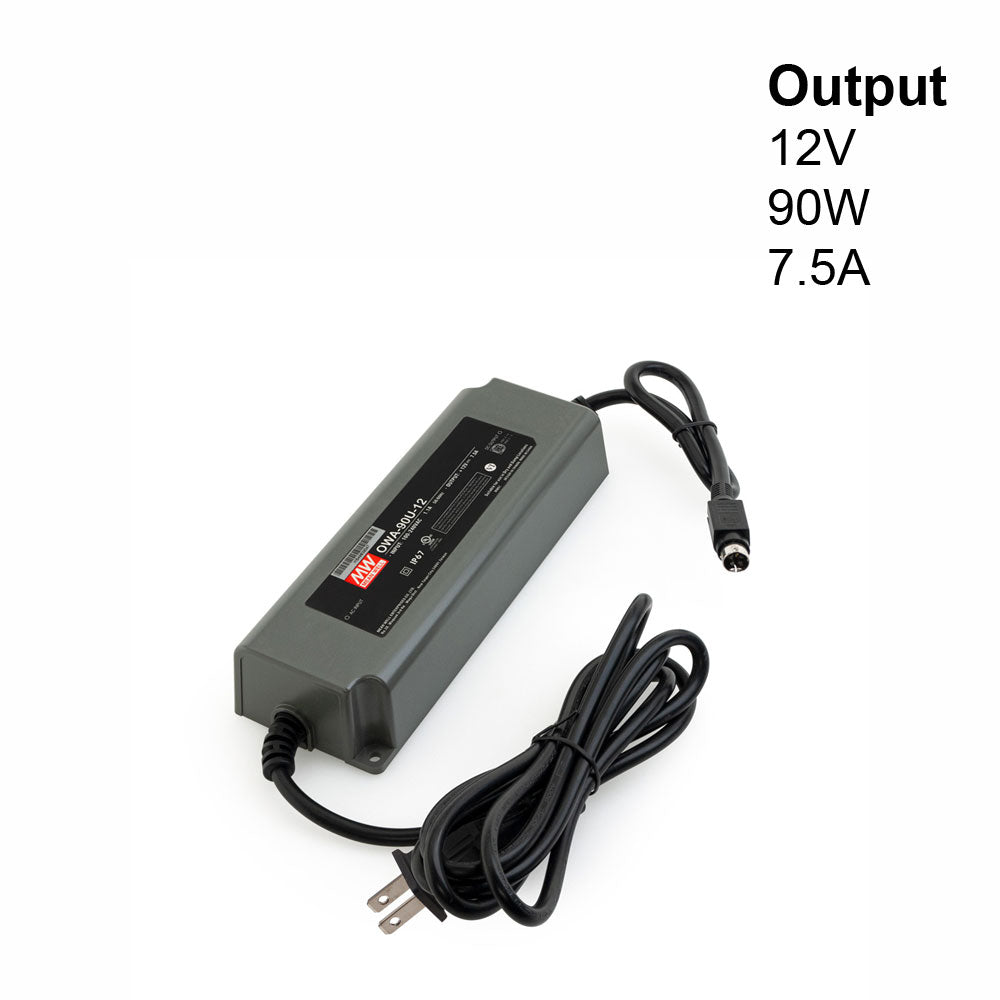

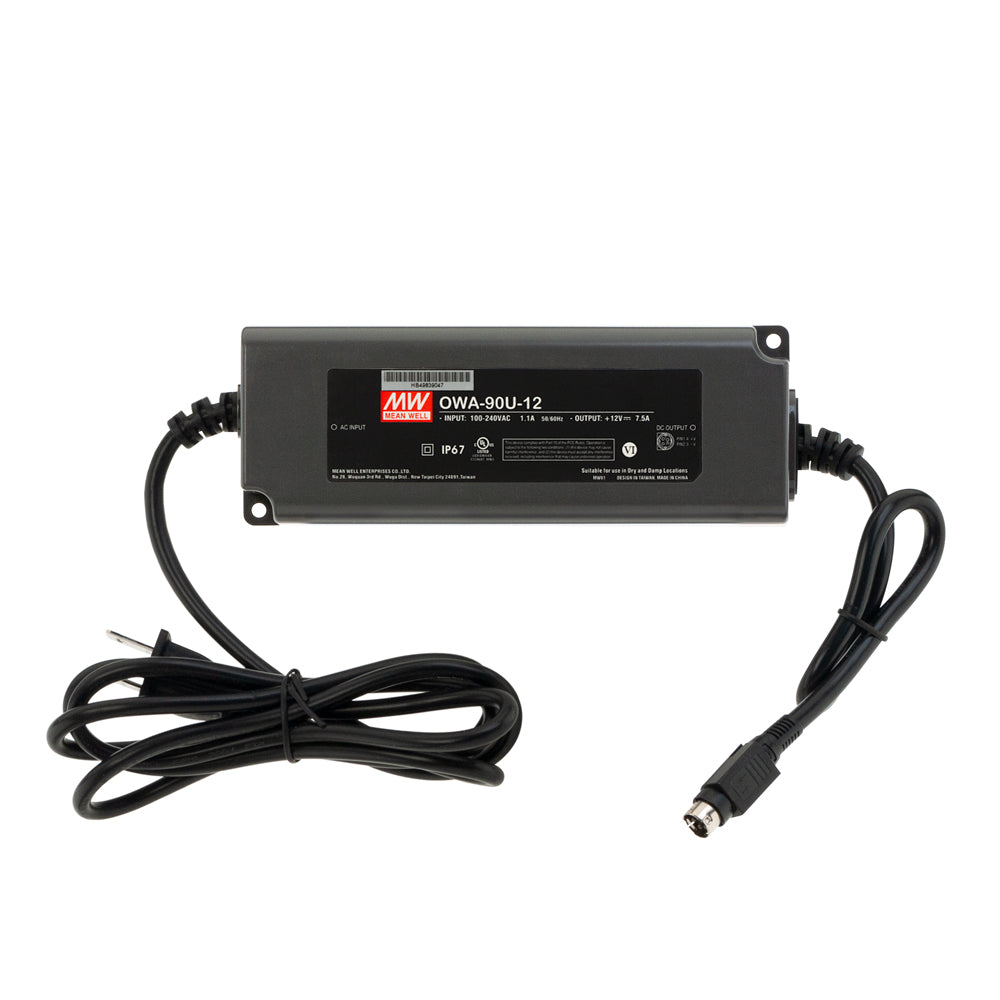

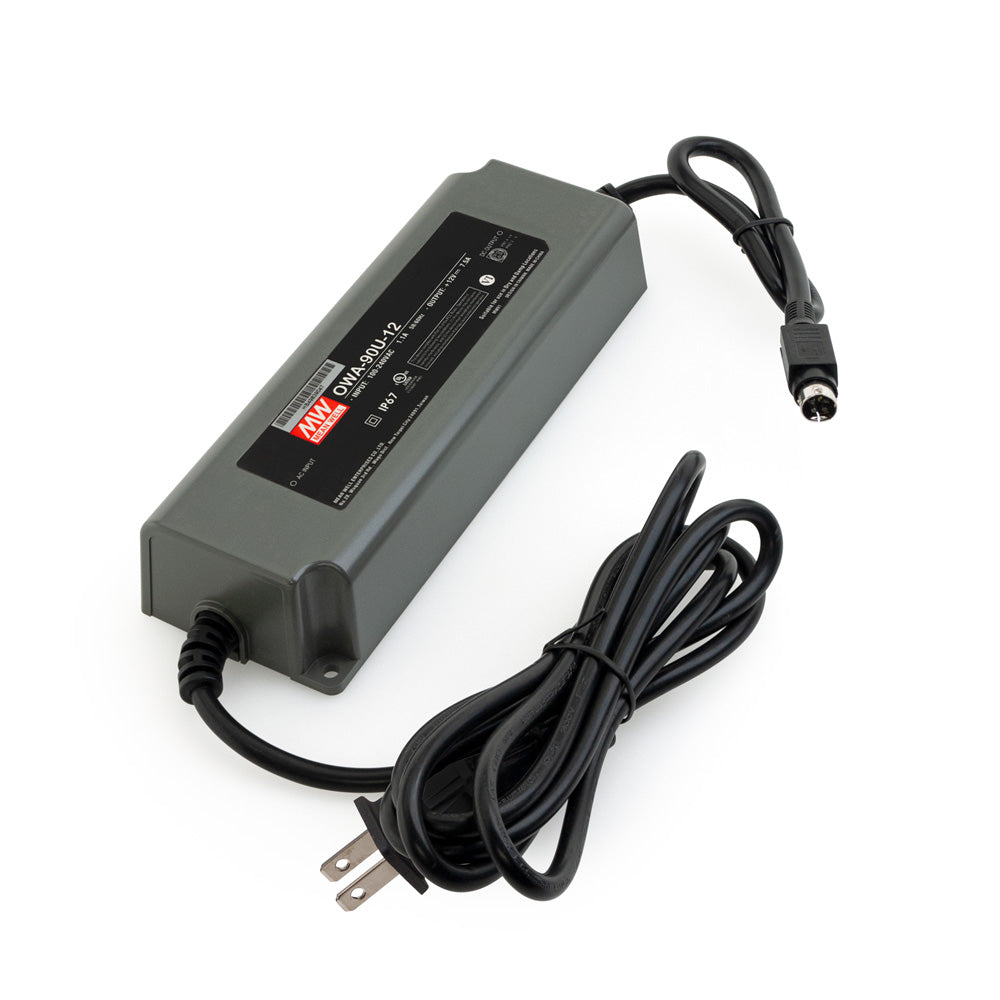

The Mean Well OWA-90U-12 is an LED driver that operates on both constant current and constant voltage modes. It has a universal input voltage range of 100-240V AC and an input current rated at 1.1A. The driver has an output power of 90W and an efficiency of up to 91%.

In constant voltage (CV) mode, the OWA-90U-12 provides an output voltage of 12V. In constant current (CC) mode, it can deliver an output current of 7.5A. The driver is rated as Class 2/Class II and has an IP67 rating, making it suitable for use in various environments.

The OWA-90U-12 LED driver is equipped with protection features against short circuit, over current, over voltage, and over temperature. It is also designed as a class â…¡ power unit without FG and comes in a fully isolated plastic case.

Features:

  • LED driver operating on both constant current and constant voltage modes
  • Universal input voltage range of 100-240V AC and input current rated at 1.1A
  • Output power of 90W and efficiency of up to 91%
  • Provides an output voltage of 12V in constant voltage (CV) mode
  • Can deliver an output current of 7.5A in constant current (CC) mode
  • Rated as Class 2/Class II and has an IP67 rating for various environment use
  • Equipped with protection features against short circuit, over current, over voltage, and over temperature
  • Designed as a class â…¡ power unit without FG and comes in a fully isolated plastic case
  • Certified by various safety and compliance organizations
  • Not dimmable, ideal for applications where dimming is not necessary
