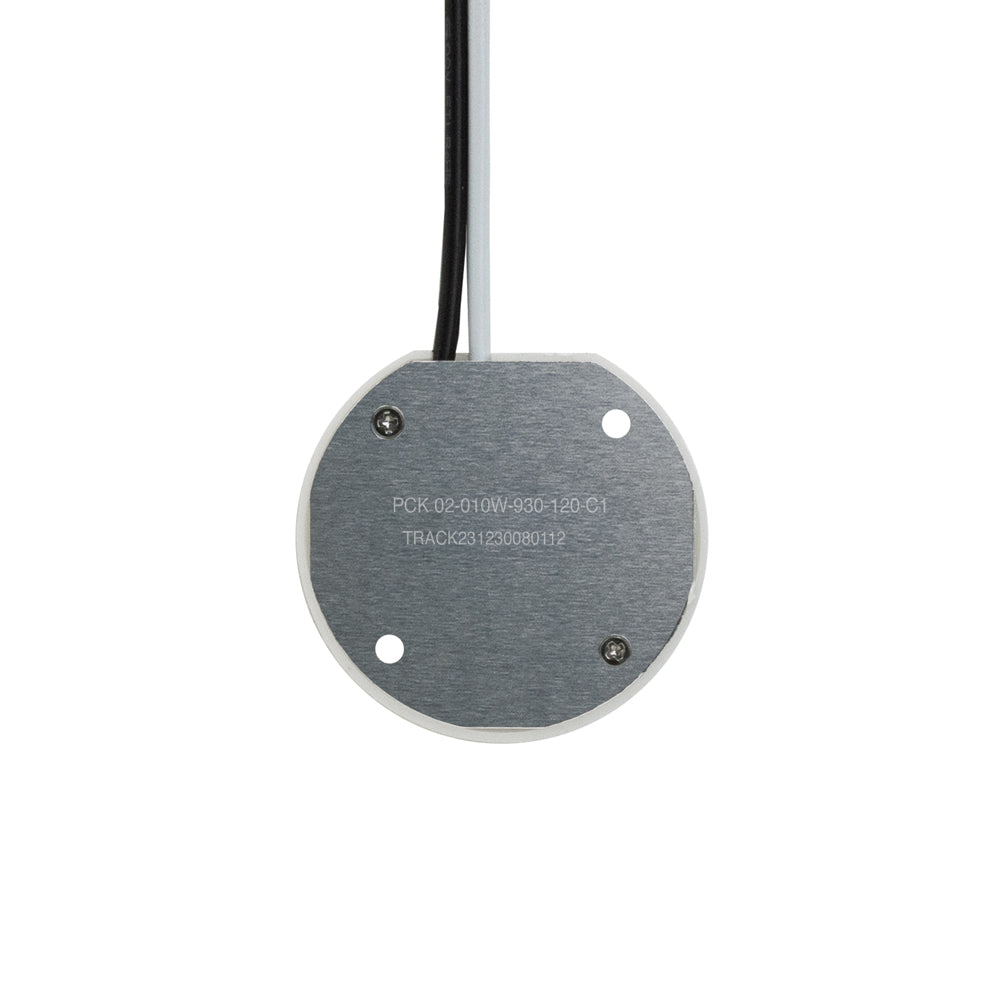

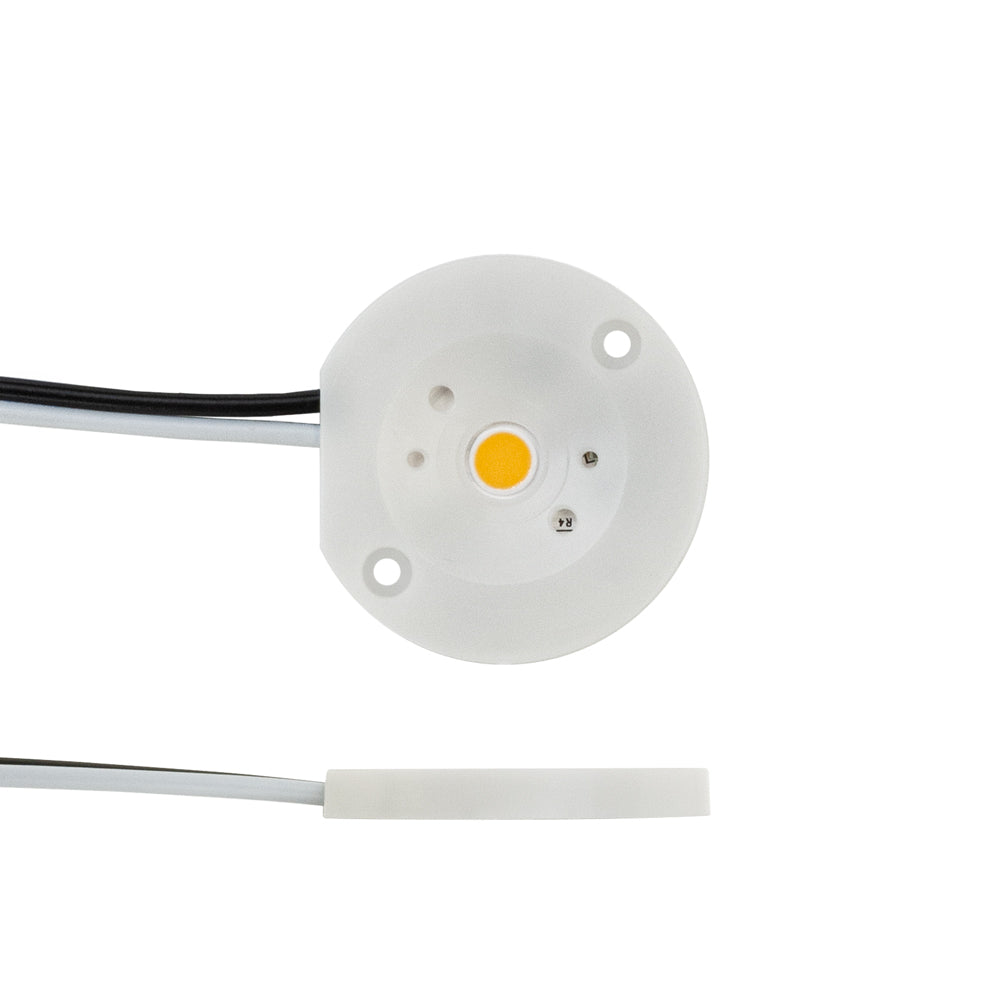

PCK 02-010-930-120-C1 YUNLT LED Module, 120V 10W 3000K(Warm White) Equivalent with CBAC-042-36185-120-3000
PCK 02-010-930-120-C1 YUNLT LED Module, 120V 10W 3000K(Warm White) Equivalent with CBAC-042-36185-120-3000
SKU: SKU:666561433833
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25Â
Product Description
Product | YUNLTÂ LED Module |
Model No | PCK 02-010-930-120-C1 Equivalent with CBAC-042-36185-120-3000 |

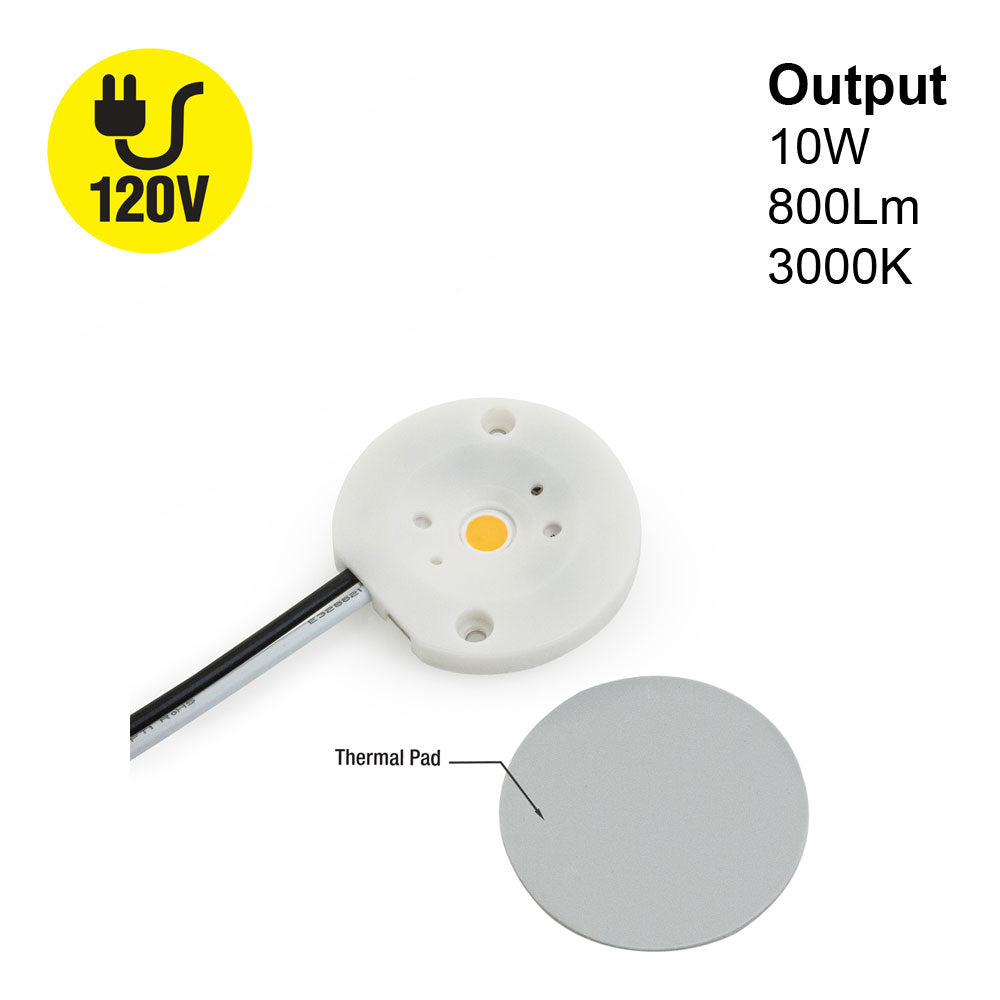

Wattage | 10W |
Voltage | 120V AC |
Luminous Intensity | 800 lumens |
Color Temperature | 3000K (Warm White) |
Dimmable | Yes |
Rendering Index | CRI>90 |
IP Rating | IP20 (Indoor rated) |

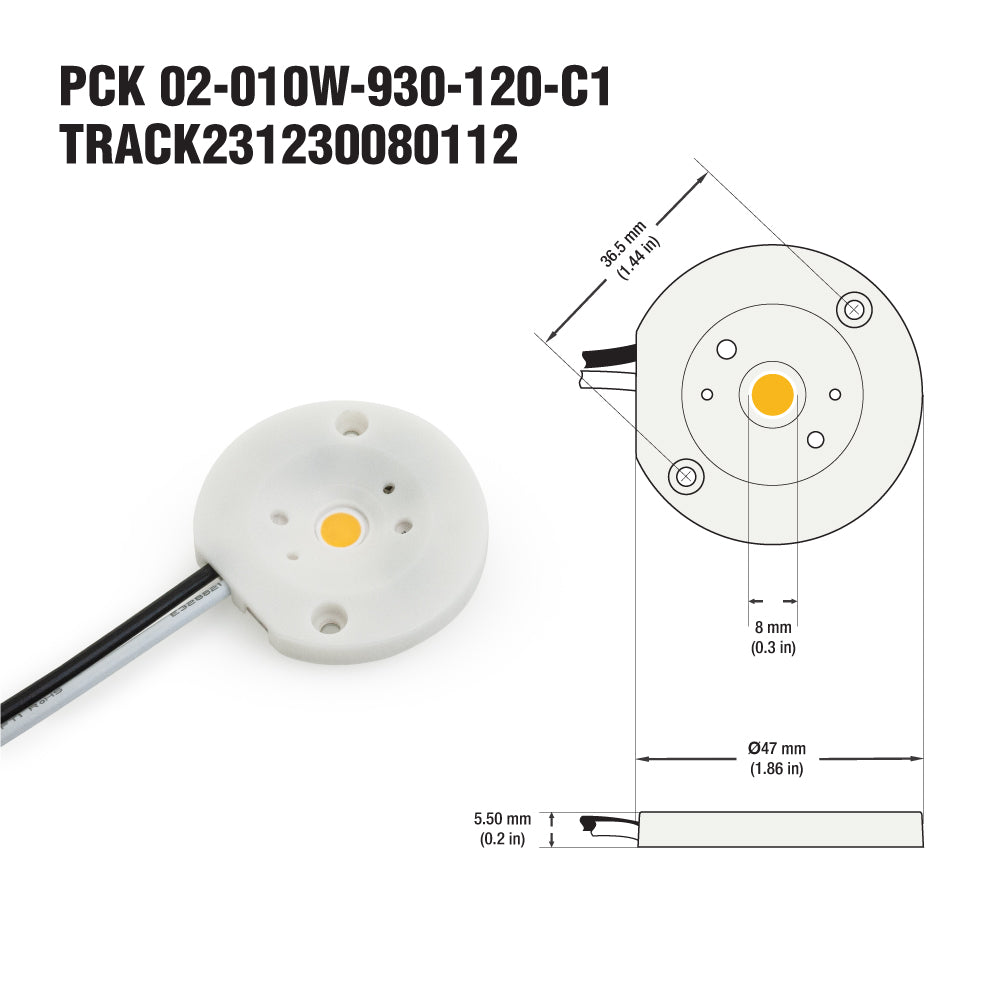

COB Holder Dimensions | ∅47 x H5.5 mm (1.8 x 0.2 in) |
COB Module Outer Diameter | ∅8mm (0.4 in) |

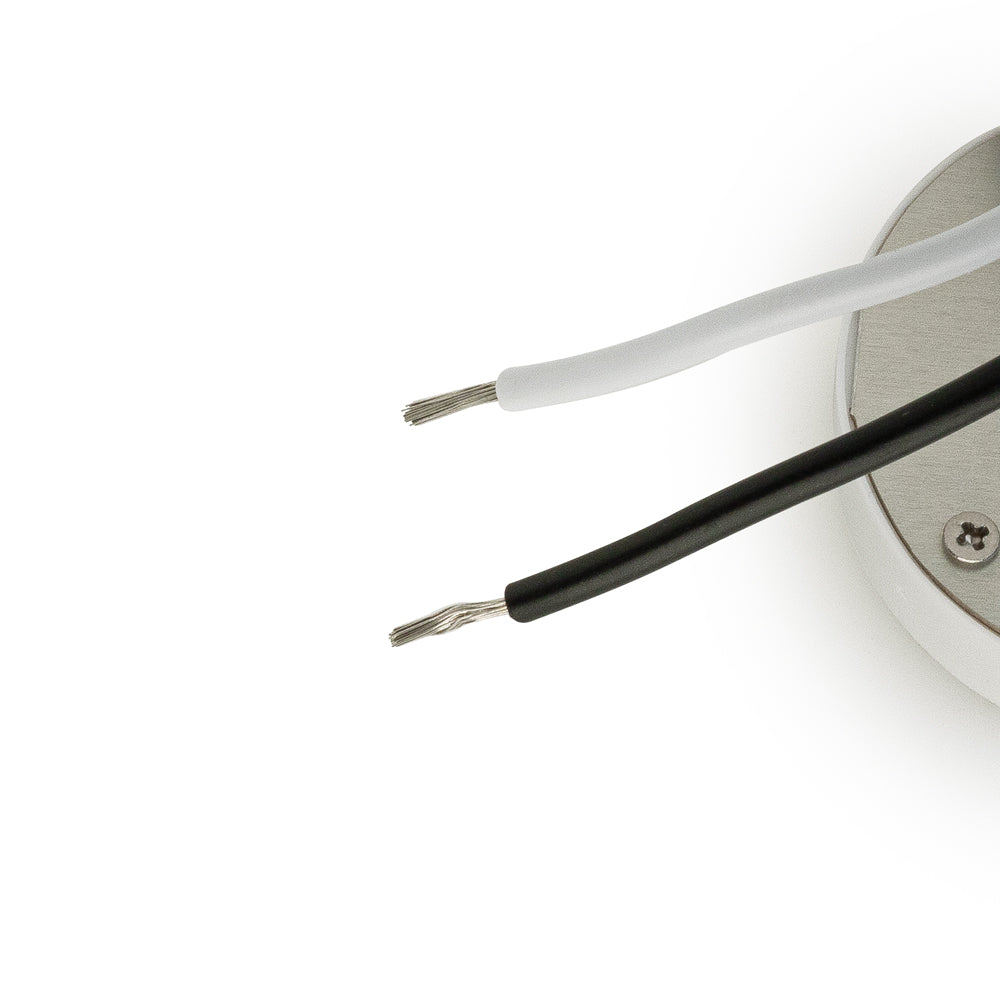

Wire Size | 30cm (11.8in) 18AWG |
Operating Temperature | -60 ~ +105℃ |
Storage Temperature | -60 ~ +105℃ |
Assembly process Temperature | <300℃ |
Solder joint point | <105℃ |
Dielectric Breakdown Voltage of Thermal Pad | >4KV |

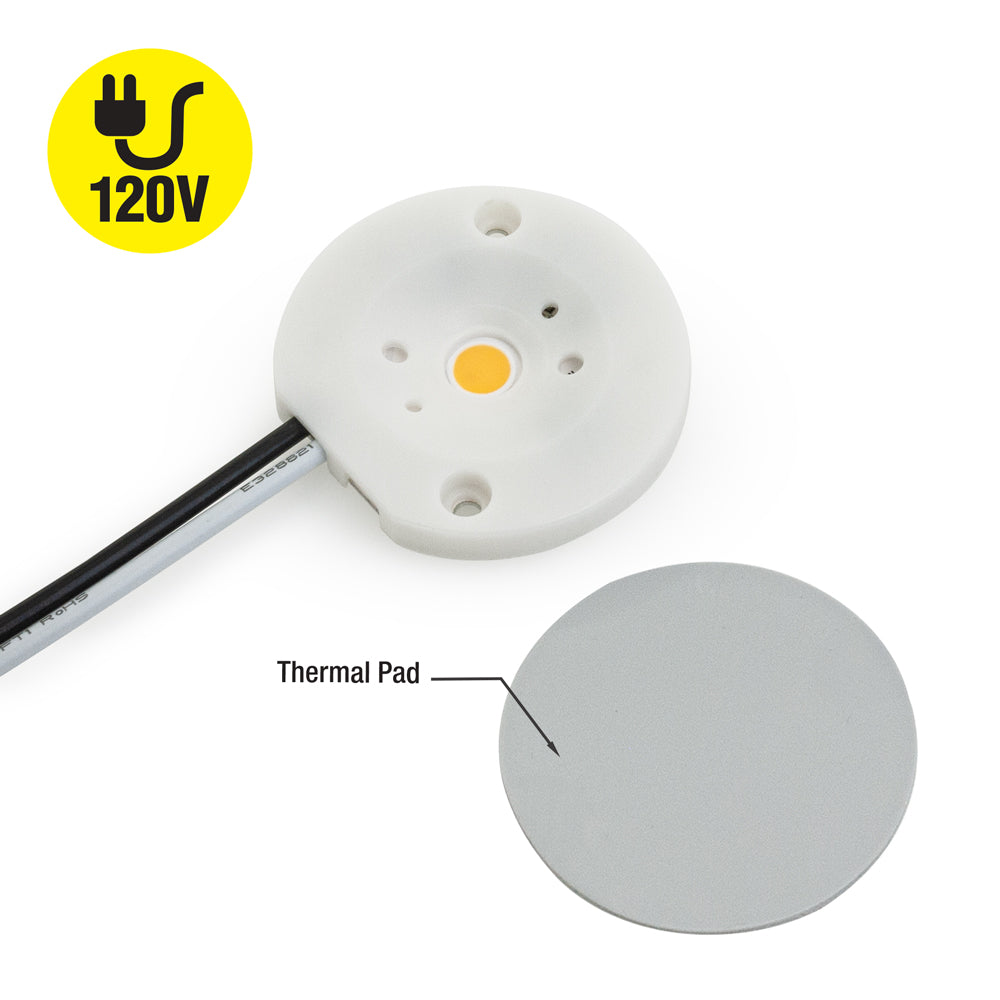

Included Content | COB Module, COB Holder, Thermal Pad |
Certifications | ![]() |
Â
Features:
- Operates on 120V DC with a power consumption of 10W
- Produces warm white light with color temperature of 3000K and CRI>90
- Dimmable and suitable for use in damp locations (IP20 rating)
- Requires aluminum heat sink to prevent overheating and luminous decay
- More energy-efficient and produces brighter and higher quality beam output than older LED technologies
- Suitable for use in almost every kind of luminaire
- Grounding light fixtures is essential for safe and efficient operation
- Silicone grease thermal pad provides heat sink and better heat dissipation
- Operates at temperatures ranging from -60 ~ +105℃, and solder joint point should be kept below 105℃
