Product Description
| Product | Cabinet Lighting/ Cabinet Puck Lights |
| Model | RD15 |
| Voltage | 12V DC |
| Wattage | 3W |
| LED Type | 3 x 5730 SMD |
| Fixture Color Finish | Black |
| Luminous Flux | 220-250 Lm |

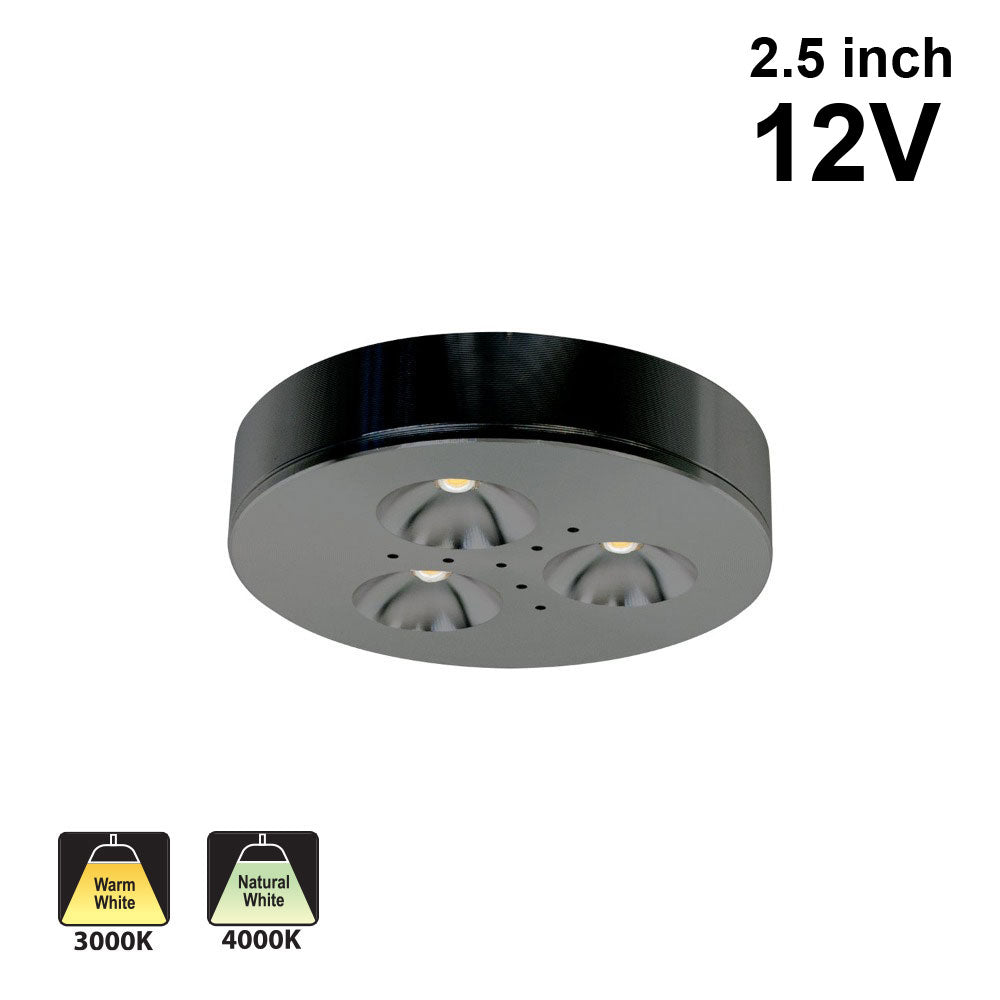

| Temperature Colors | 3000K (Warm White) 4000K (Natural White) |
| Beam Angle | 120° |
| Material | Aluminum |
| IP Rating | IP20 |
| Rendering Index | CRI>80 |
| Dimmable | Yes |
| Weight | 0.2 kg |
| Wire Length | 95cm (37.5in) 20AWG |

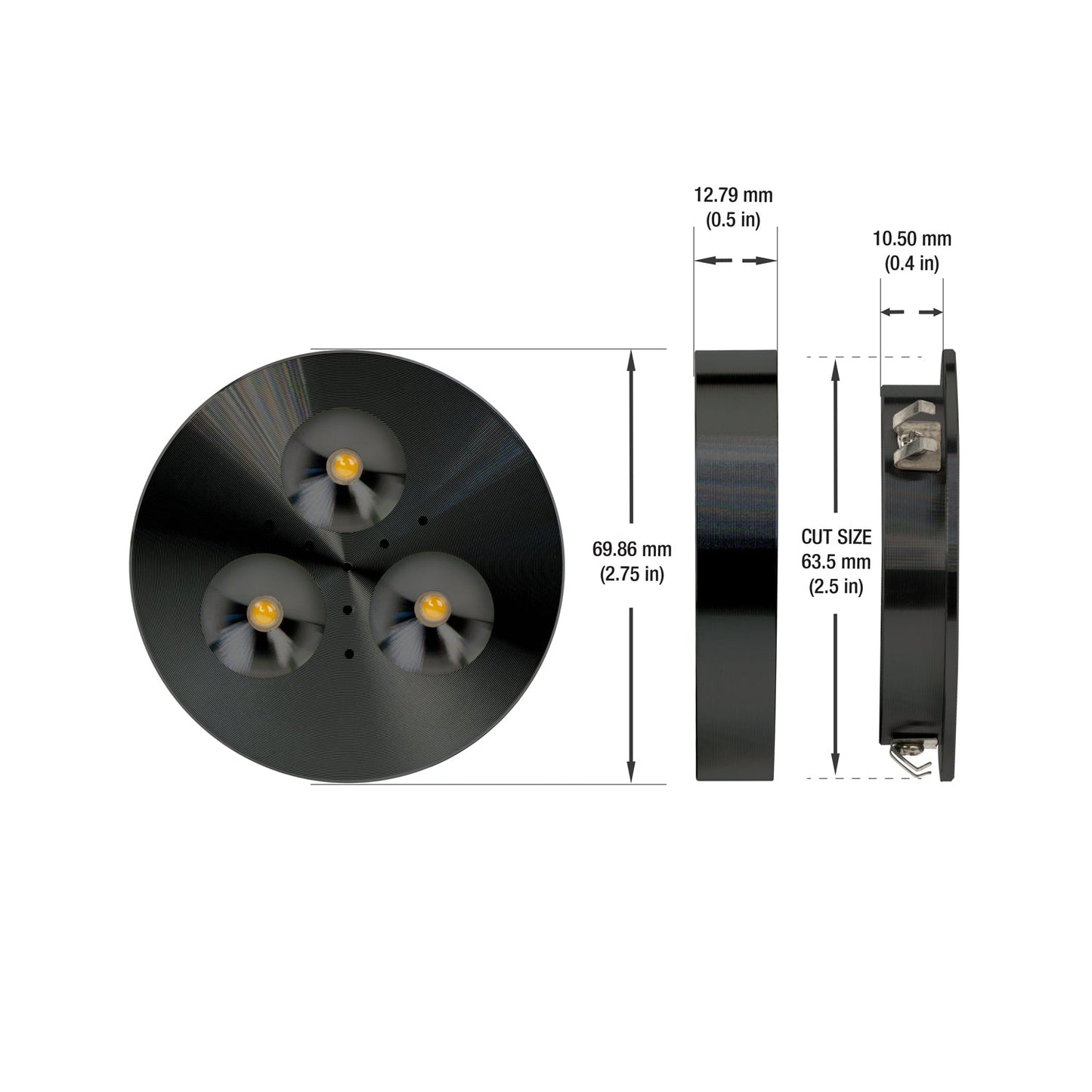

| Dimensions | 69.8 mm (2.75 in)Dia x 12.79 mm (0.5 in) Depth |
| Cut Size | 63.5 mm (2.5 in) |
| Certification |
 |
Features:
- Aluminum housing for heat dissipation and long lifespan
- Low light decay
- Voltage rating of 12V DC and wattage of 3W
- 3 x 5730 SMD LED type
- Luminous flux of 220-250 Lm
- Beam angle of 120°
- Color temperature of either 3000K (Warm White) or 4000K (Natural White)
- CRI>80
- Dimmable
- 95cm (37.5in) 20AWG wire for flush mount or surface mount installation
- IP20 rating for dust resistance and protection from large objects
- RoHS compliant and low power consumption with high energy efficiency
- Meet Canadian and United States standards with UL STD. C22.2
- Applicable only on DRY locations
- Push springs for easy flush mount installation or can be screwed onto surfaces
- Step-down transformer available for line voltage in hardwire or plugin options
- Other low voltage dimmers compatible
- Any number of lights can be connected to a single switch depending on transformer wattage
- Available in black, silver grey, and white color trims
- 3 feet of wire AWG 20
- Can be made into daylight for an extra charge
- Cut size of 63.5 mm (2.5 in)
- Good replacement for halogen light fixture
