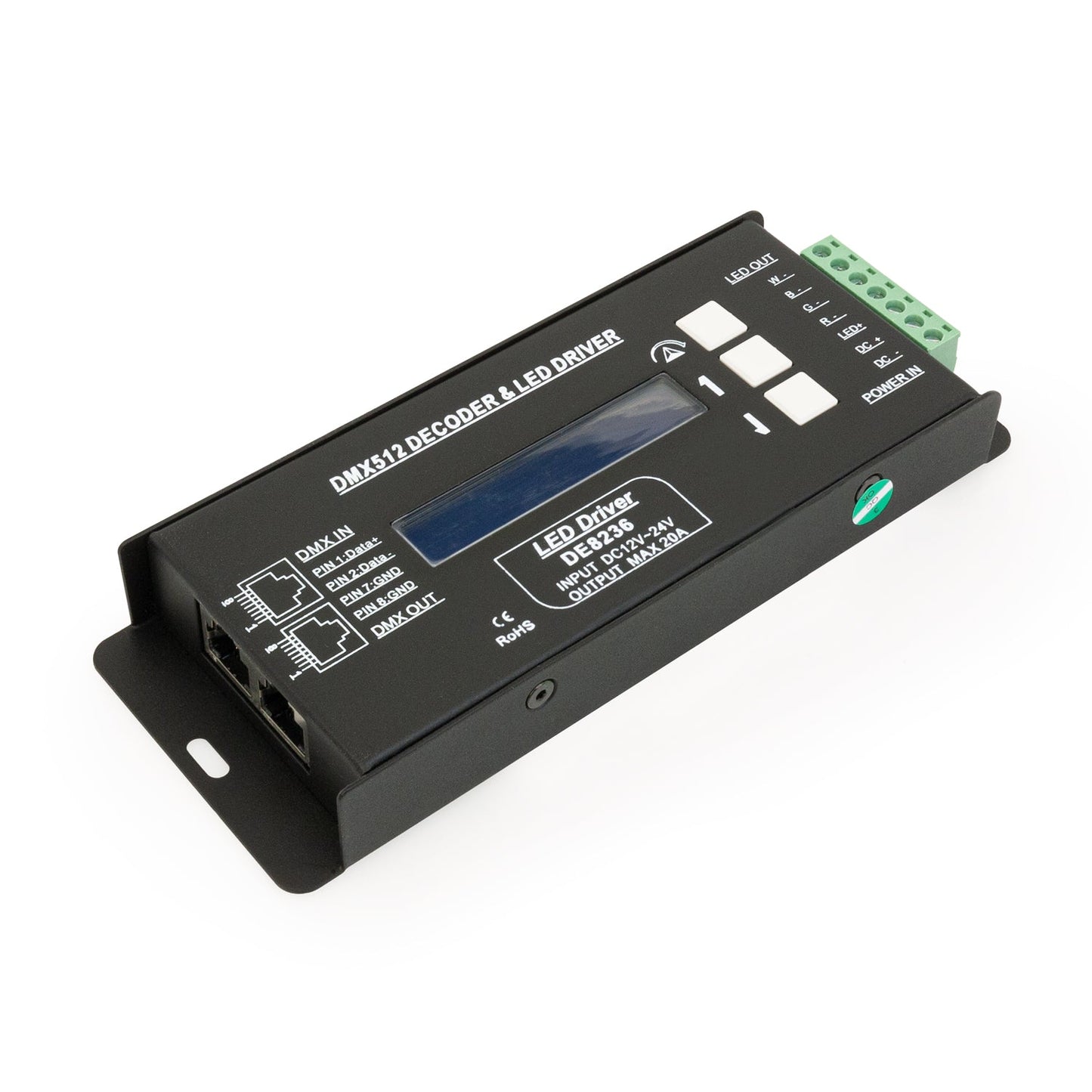

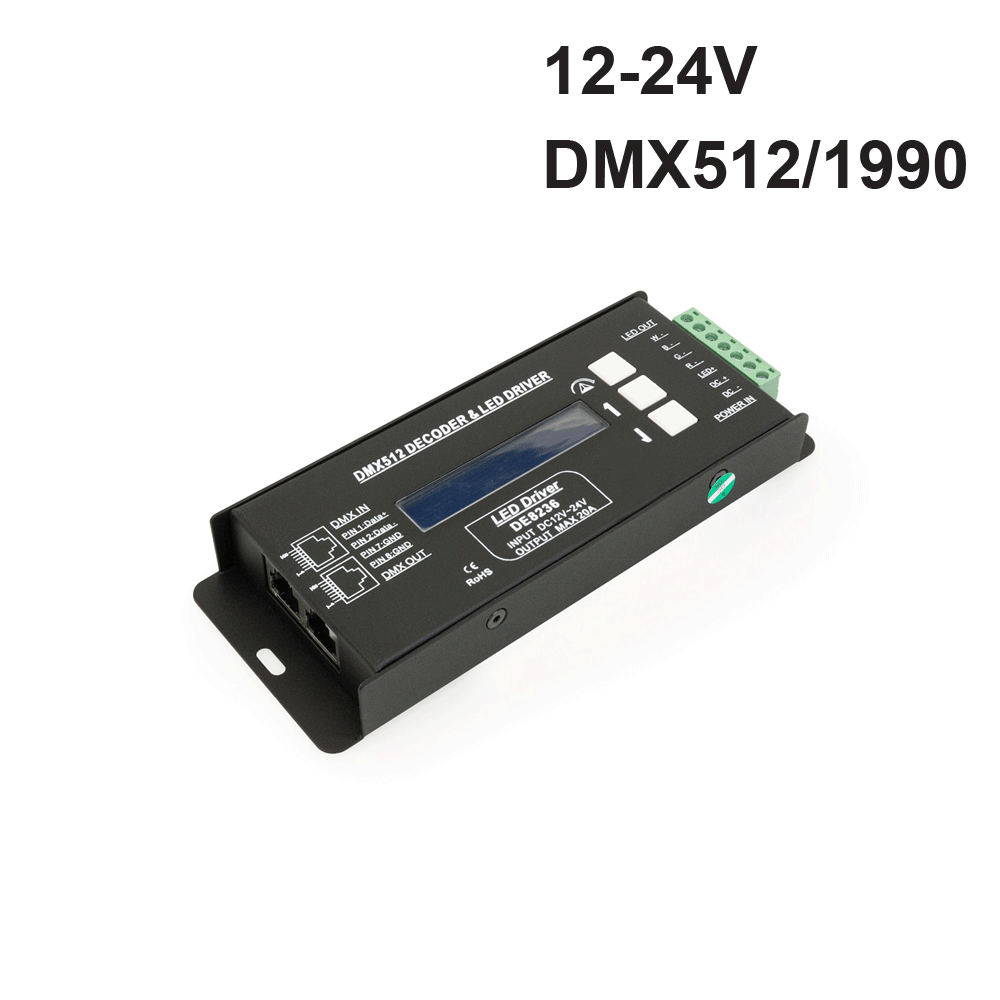

DE8236 RGBW DMX512 Decoder, LED Controller

DE8236 RGBW DMX512 Decoder, LED Controller

Ask Question!

SKU: SKU:666561412616

Regular price $119.26 CAD
Regular price Sale price $119.26 CAD
Sale Sold out
Shipping calculated at checkout.

BUY MORE, SAVE MORE

The more you buy, the more you save!

MIX & MATCH — ALL PRODUCTS COUNT!

Combine different products in your cart to unlock bigger discounts.

5 LED modules + 5 LED drivers = 10 items → 15% off your order (preview only).

Proposed cart-wide discounts · preview only

Estimated cart subtotal after adding—
Bulk-tier savings estimate—

Estimates only; other offers may give a better price. Your cart and checkout confirm the final discount.

Checking your cart quantity…

Free Shipping

Free shipping on eligible orders of $99 CAD or more. Some products are excluded; checkout confirms eligibility and any shipping charges.

Available Discounts

Buy more, save more across your cart:

  • 10–24 items: 15% off
  • 25–49 items: 18% off
  • 50+ items: 20% off

Shipping & Return Policy

Orders ship within one business day, Monday–Friday, excluding Canadian statutory holidays. Weekend orders ship the following week. Delivery timing depends on the courier and service selected at checkout.

Eligible orders of $99 CAD or more qualify for free shipping. Product exclusions and oversized-item surcharges may apply; checkout confirms shipping charges.

Eligible returns and exchanges are accepted within 30 days of purchase. Items must be new, resellable and in their original packaging. A 30% restocking fee and shipping charges apply; product exclusions apply.

View full shipping, return and exclusion policies

View full details

Downloadable DMX512 Manual

Product Description

Product  LED Controller/ Decoder
Model
DE8236
Voltage
12-24V DC
Load Power 480W for 24V and 240W for 12V
Control channels 4 channels (4 CH)
Output Current 20A Max (5A/CH)
Signal Input DMX512/1990
Color Black
Working temperature -30~70°
IP Rating IP20
Weight 0.4 kg

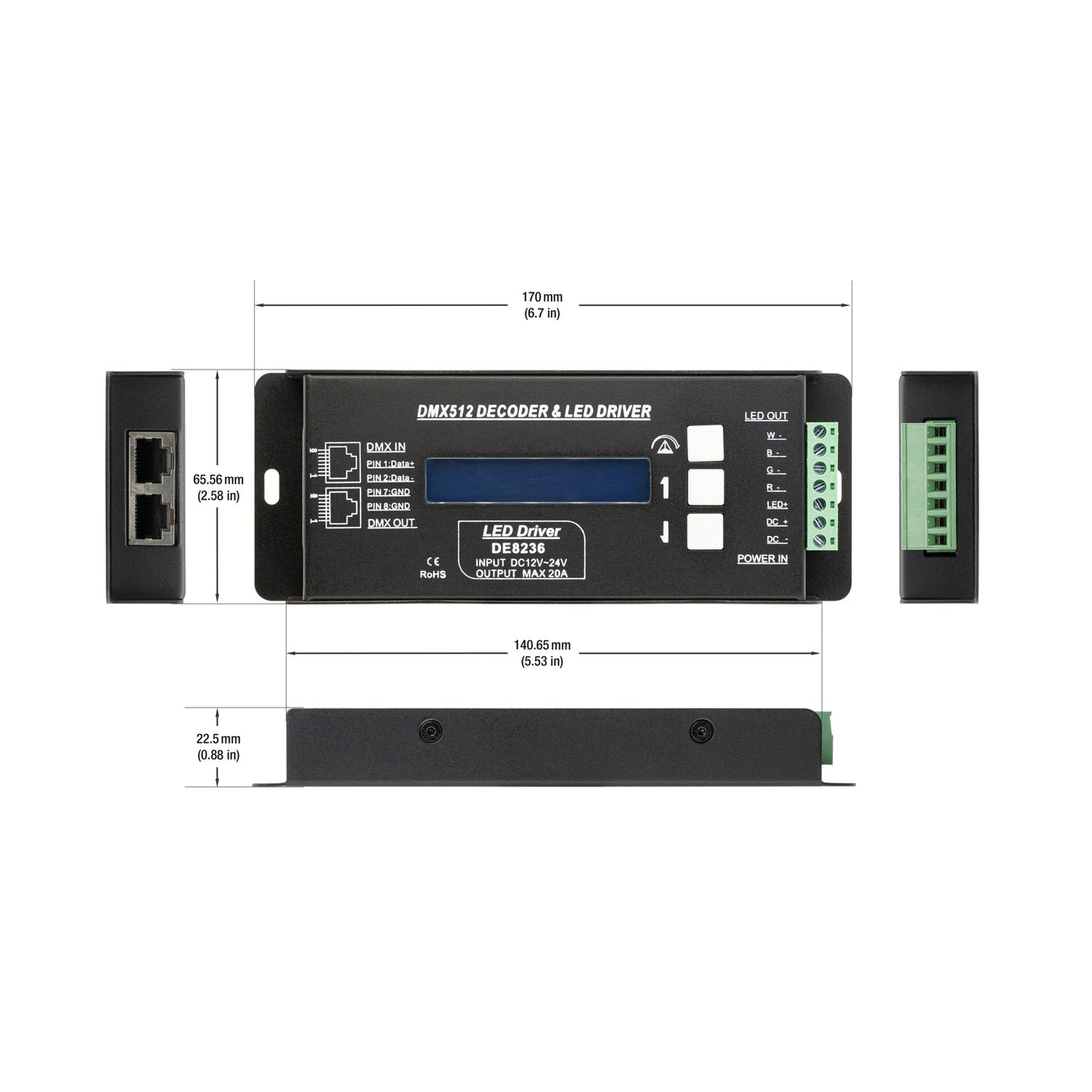

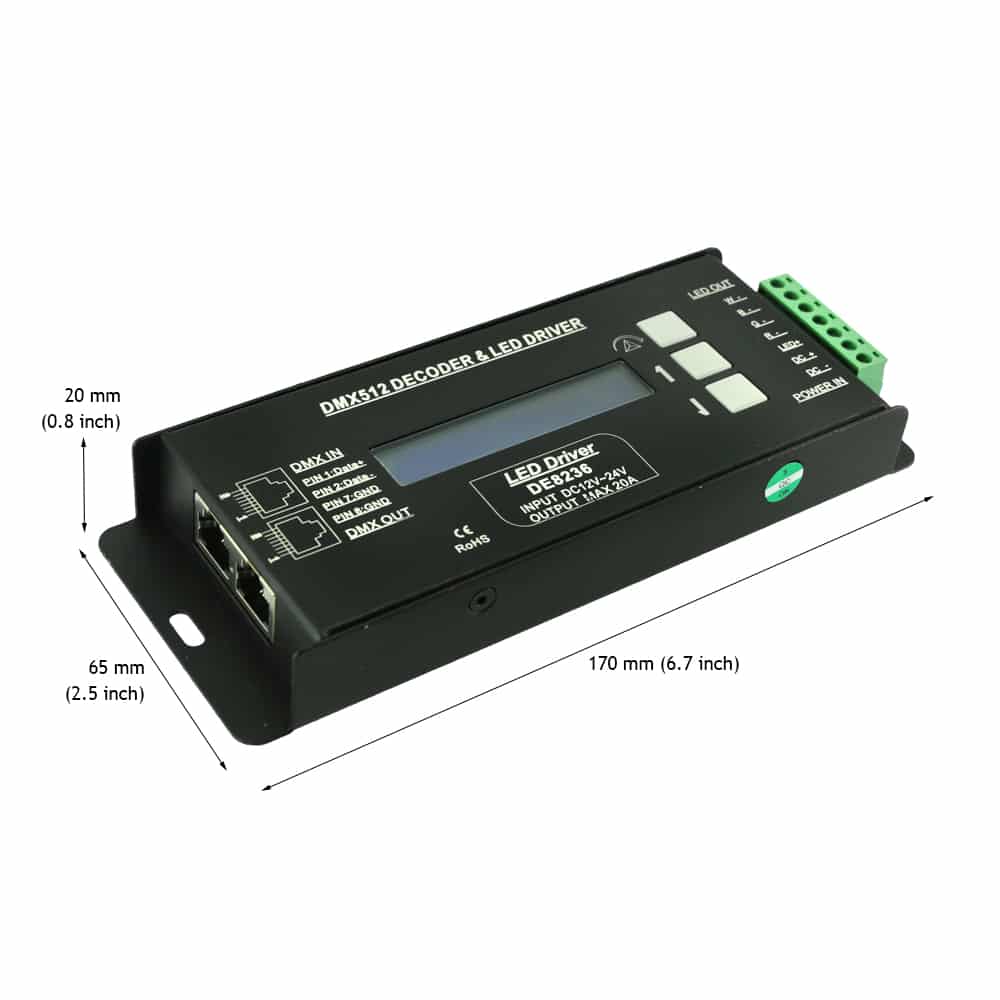

Dimensions 170mm x 65mm x 22mm (6.69in x 2.56in x 0.86 in)
Suitable lamps LED Strips, Geographic lights, light bar, Wall washing lamp, AR111
Certification







Features:

  • DMX512/1990, with RJ45 interface
  • 256-levels brightness,full-color with driver controls
  • Power without flashing, low jitter-free
  • Can achieve asynchronous color changes effect under working with controller
  • With the light color selected mechanism, it enables to control of the light with 1-4 colors
  • Setting the DMX address freely by LCD screen display
  • Modularizing and can be matched with different LED modules neatly
  • LCD1602 screen displays menu
