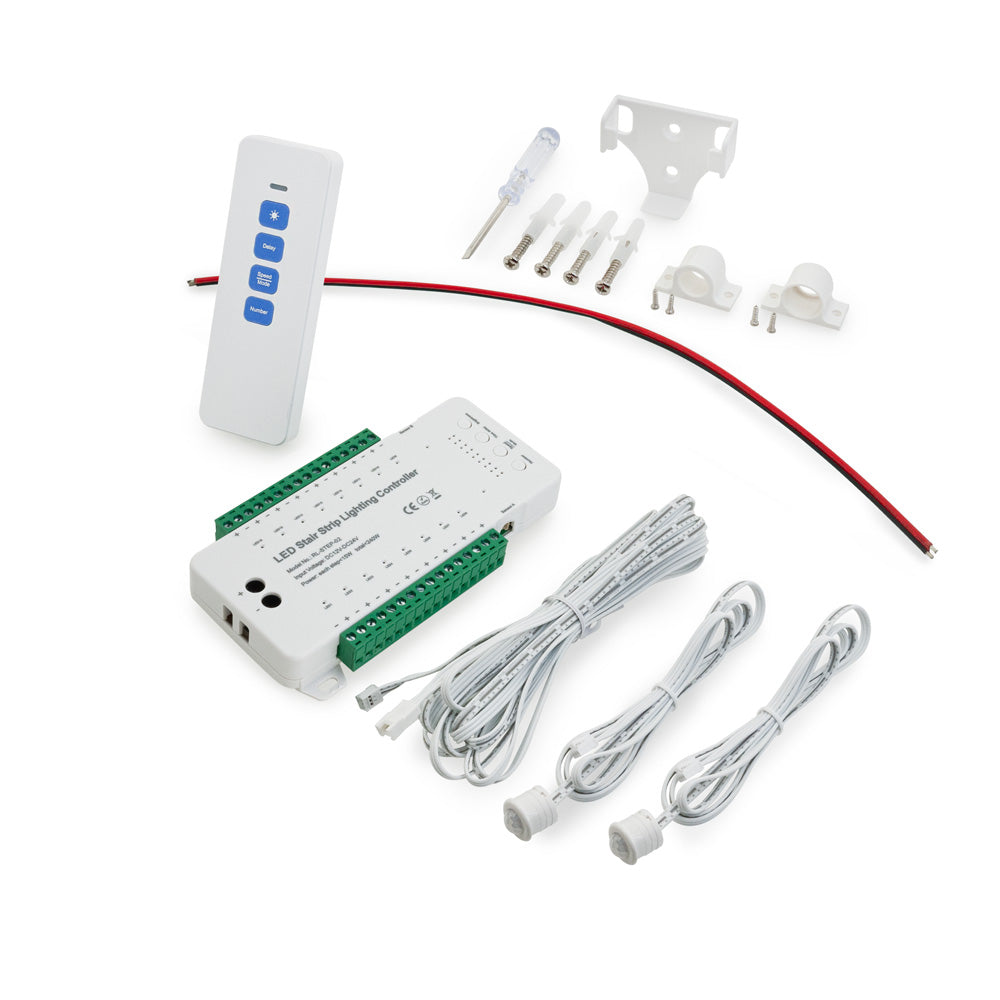

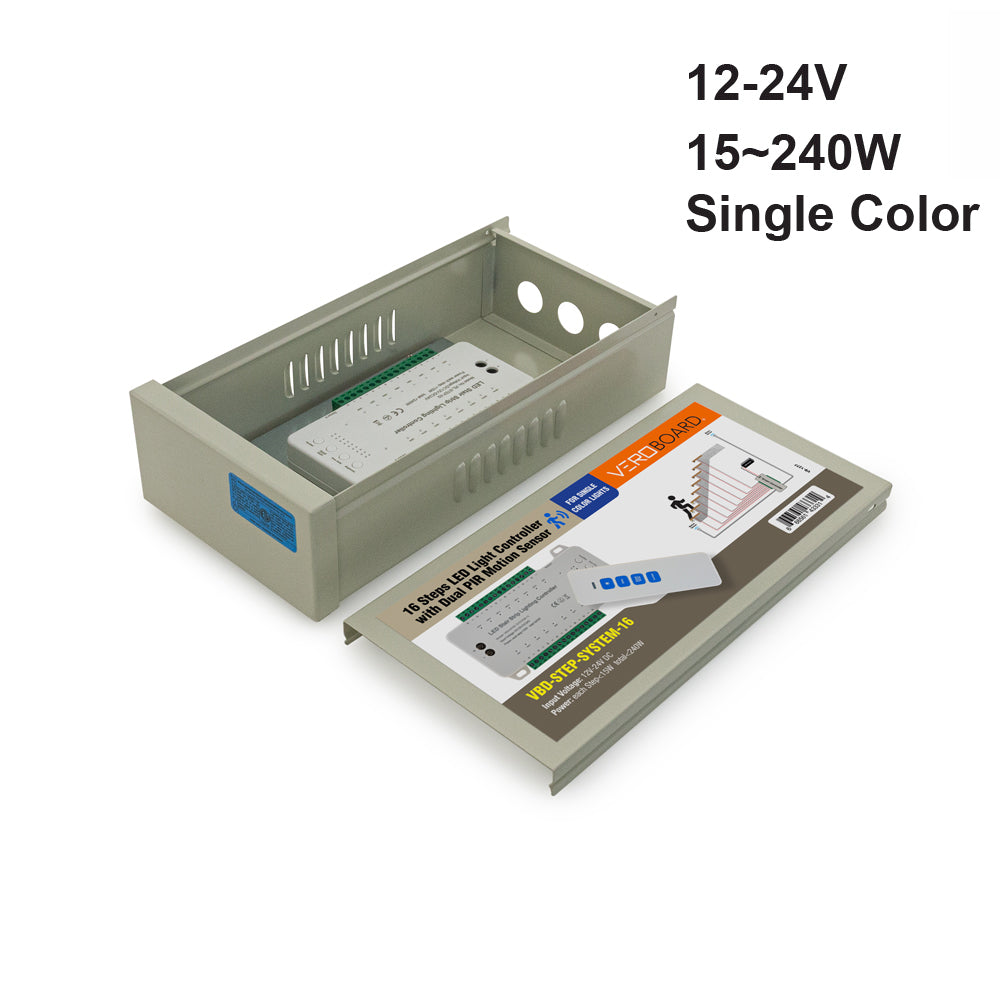

Product Description
| Product | LED Light Controller |
| Model | VBD-STEP-SYSTEM-16 |

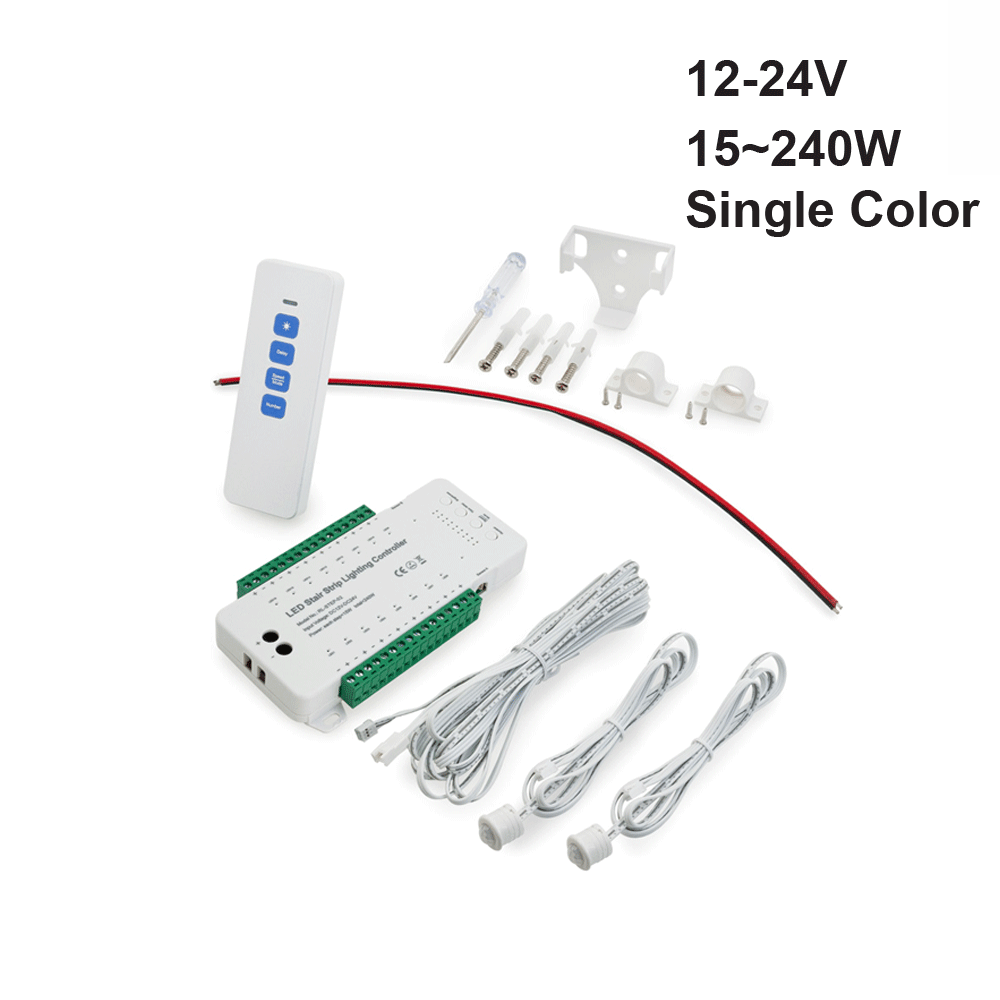

| Voltage | 12V-24V DC |
| Wattage | Each Step<15W - Total<240W |
| Connection Mode | RF remote |
| Material | Plastic |
| Color | White |
| Weight | 1.8 kg |

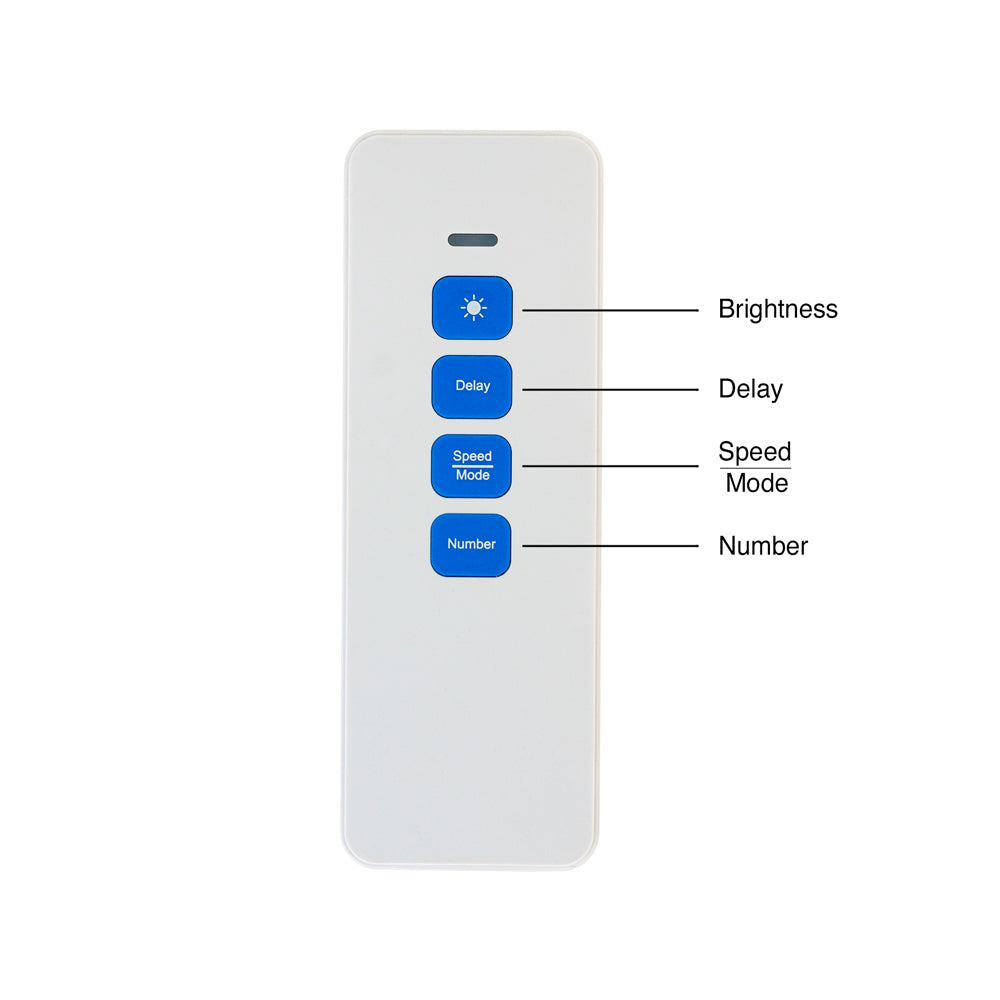

| Function | Adjust Mode Brightness Delay Time Speed |

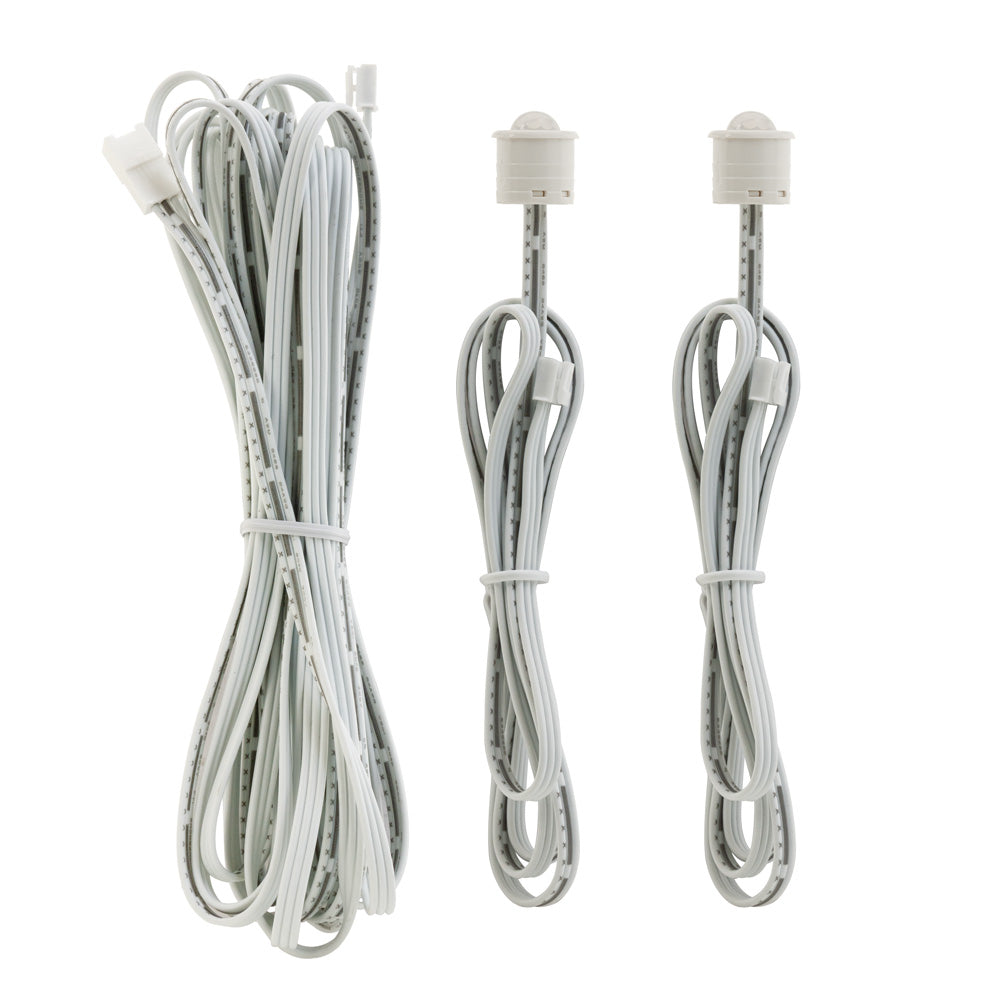

| Wire Length | 1 x 5m (16.4ft) (Connector) 2 x 1m (3.2ft) (Sensors Wire) 24AWG |

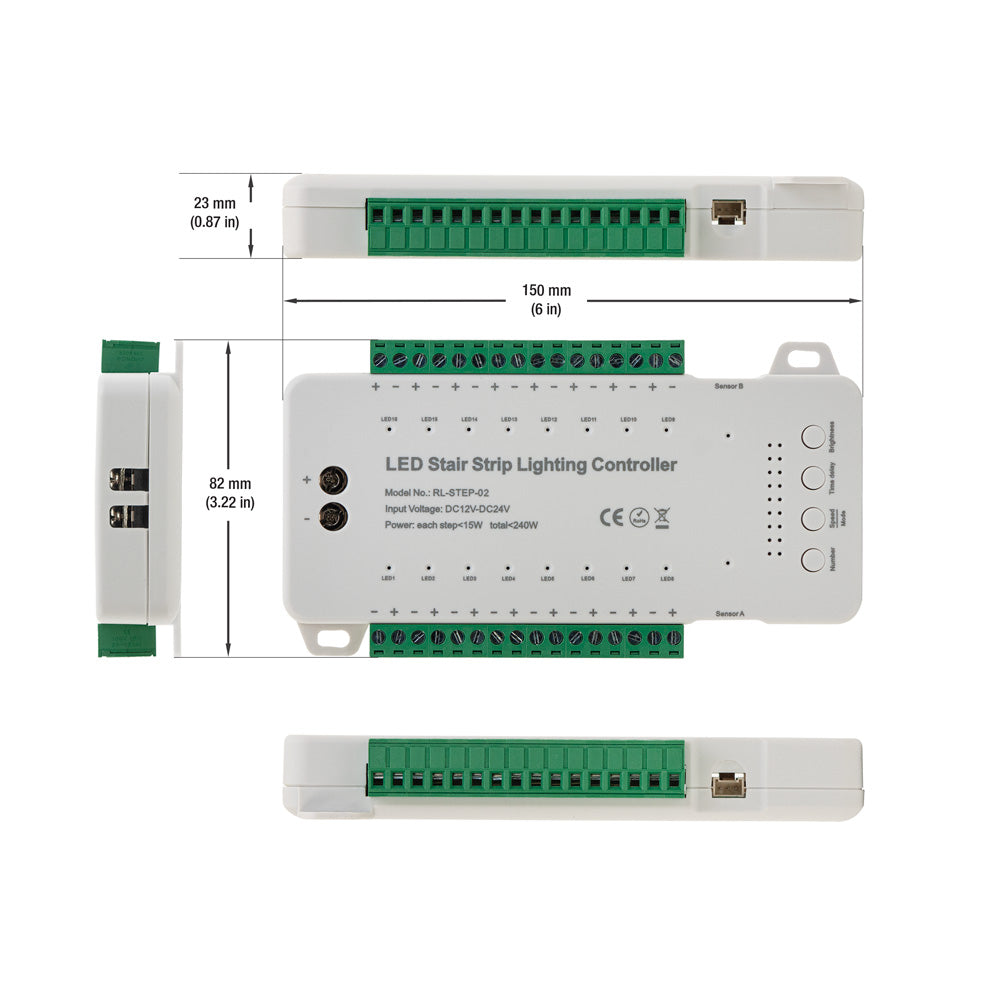

| Controller Dimensions | 150 x 82 x 22mm (4.9 x 2.6 x 0.7in) |

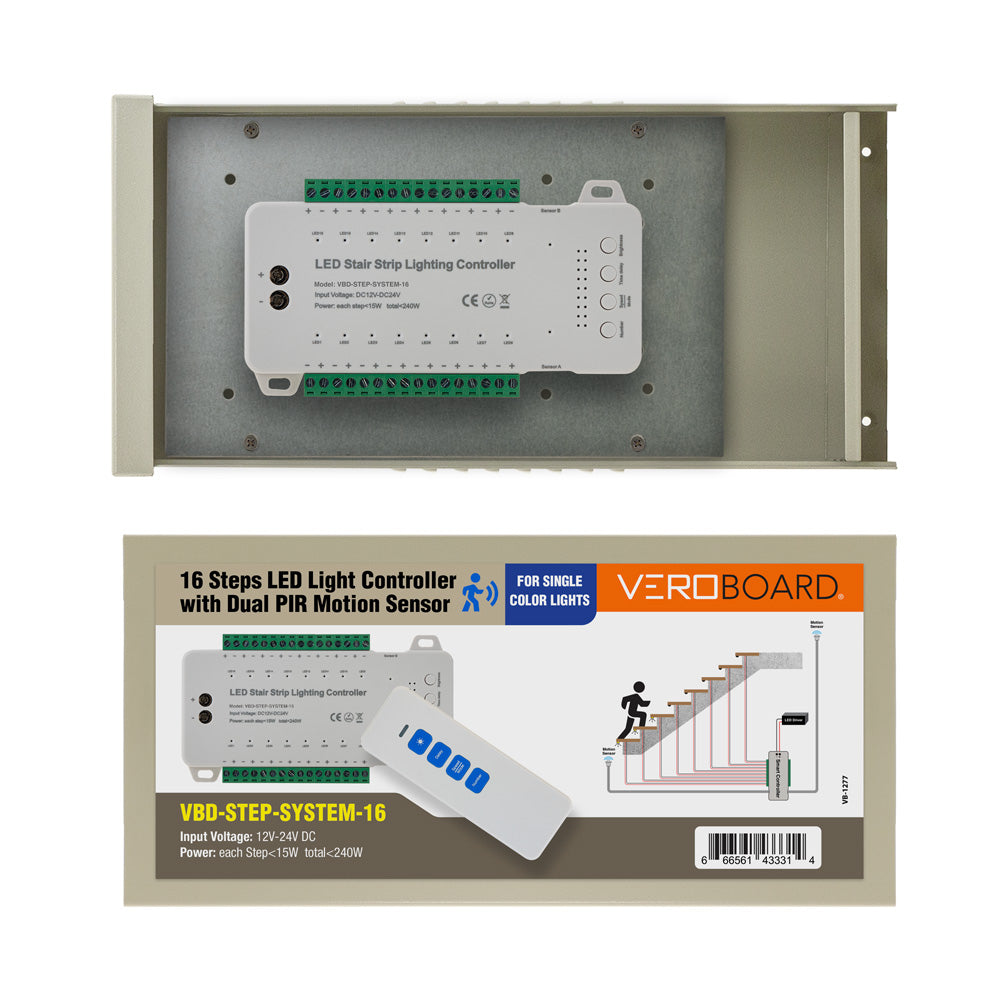

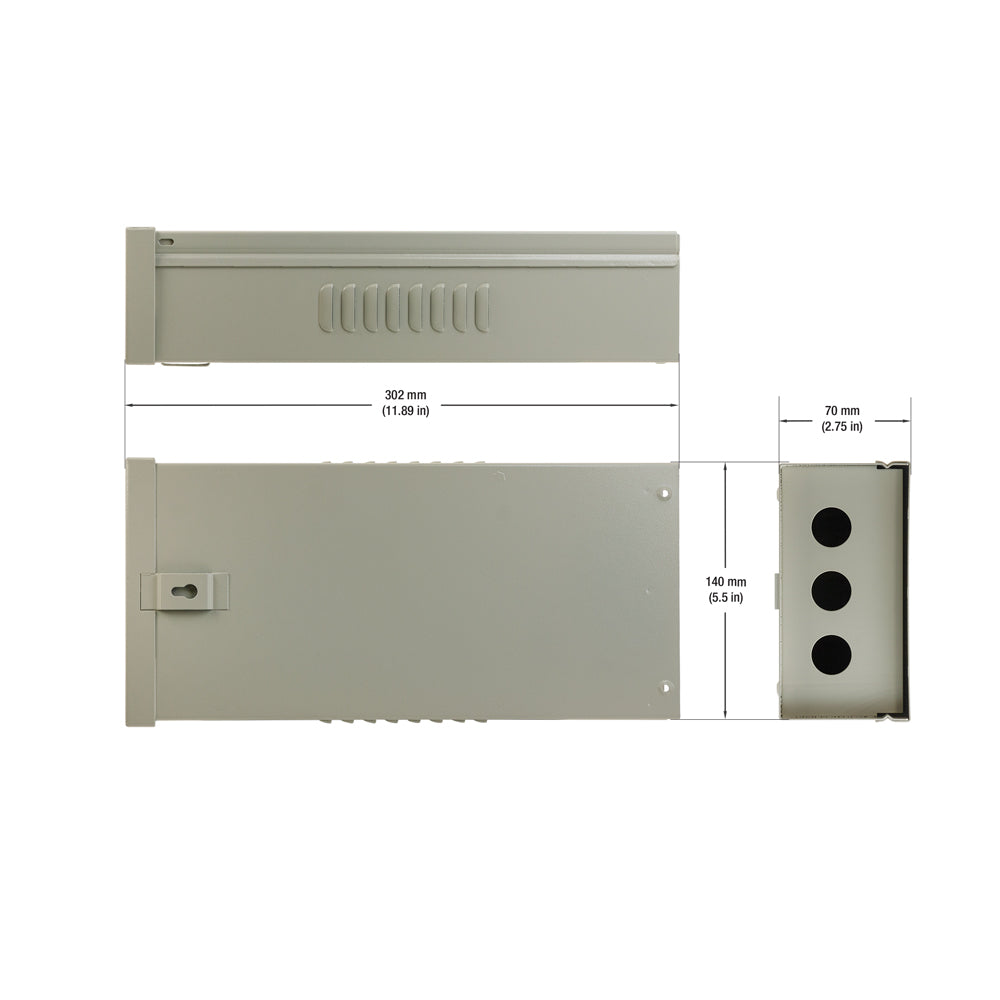

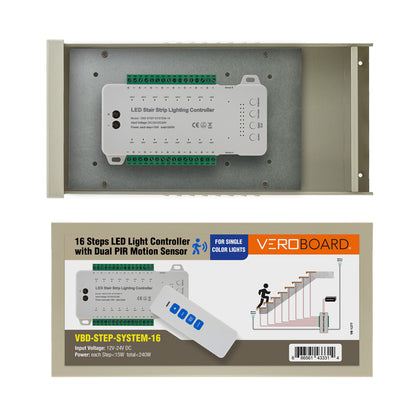

| Metal box Dimensions | 302 x 140 x 70mm (11.8 x 5.5 x 2.7in) |

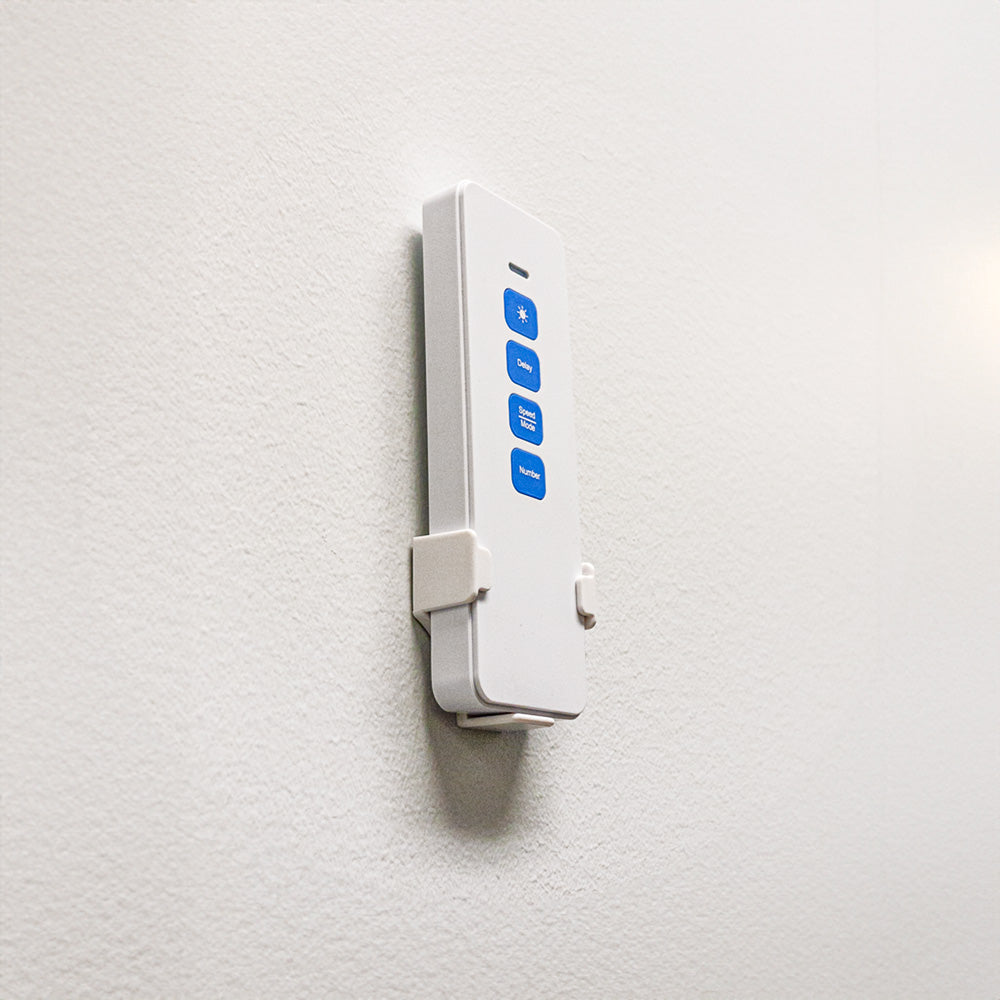

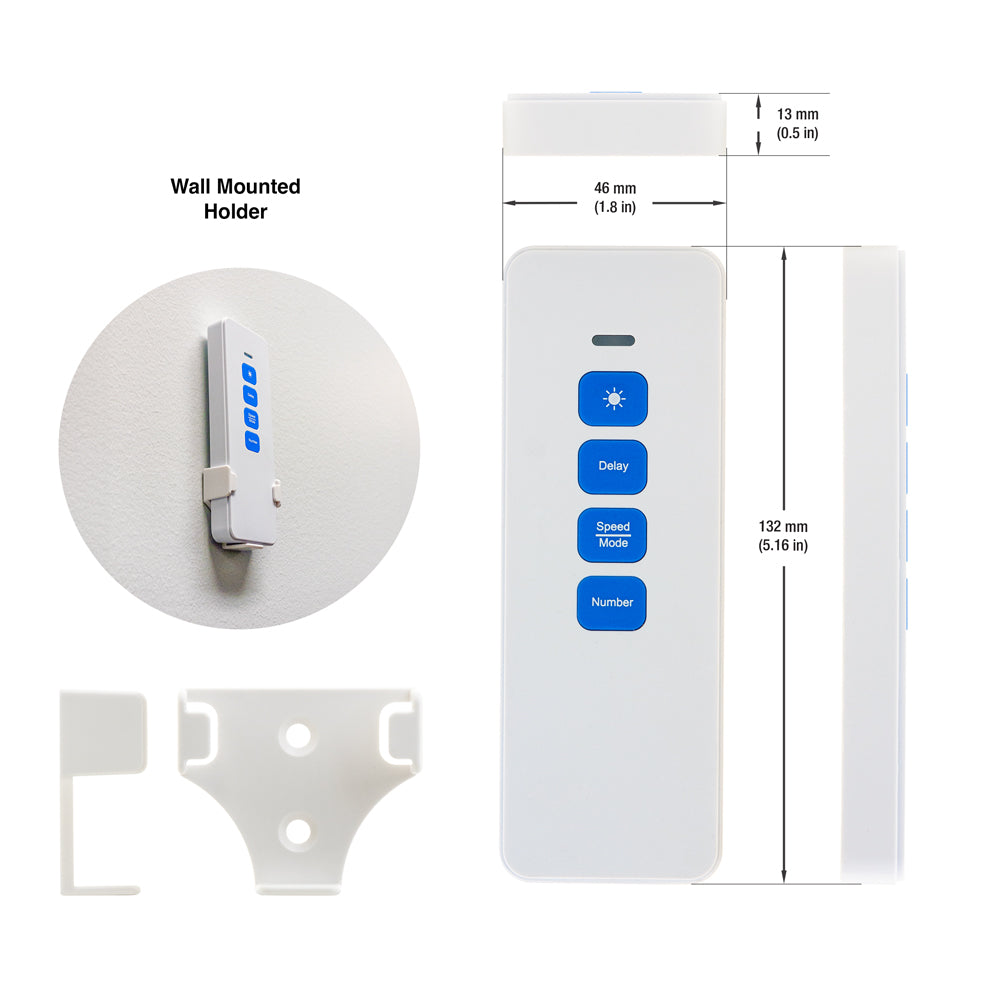

| Remote Control Dimensions | 131.25 x 46 x 13mm (5.1 x 1.8 x 0.5in) |

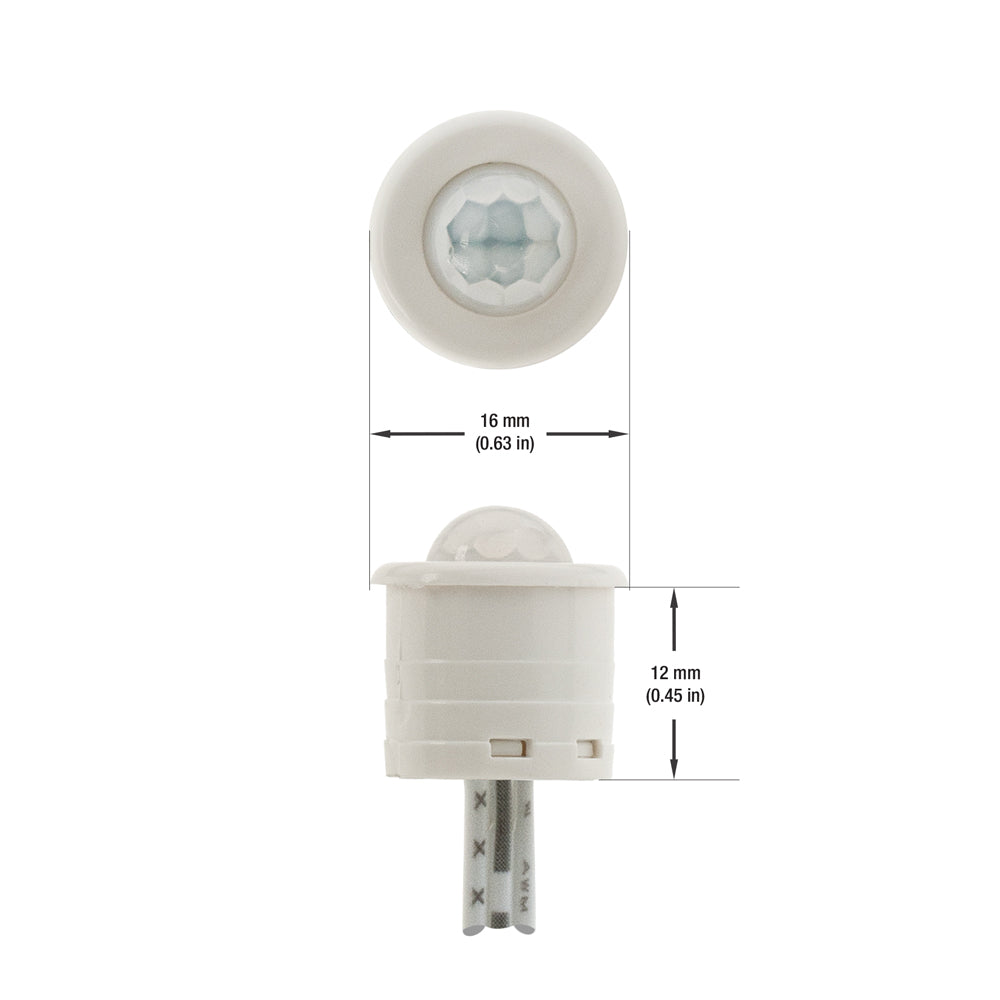

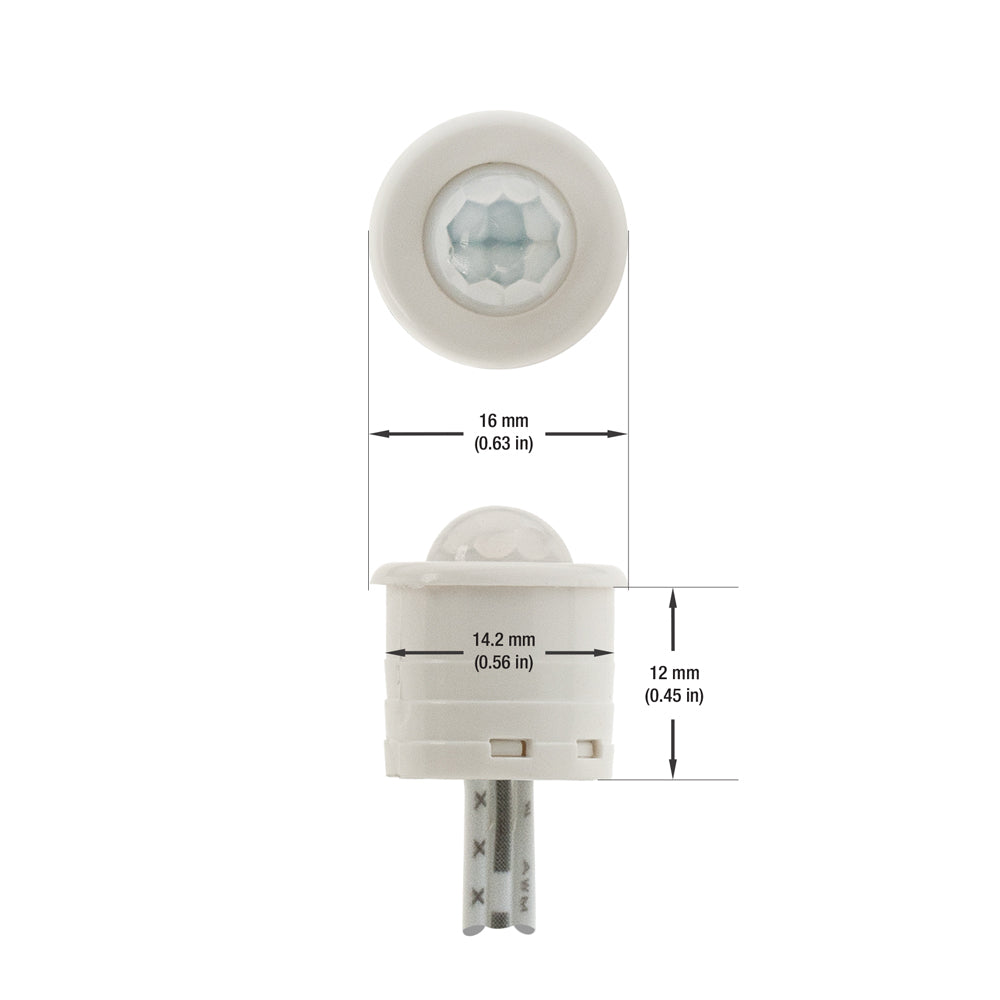

| PIR Sensor Dimensions | Outer Trim - Ø16mm (0.6in) Cut size - Ø14.2mm (0.5in) Depth - 12mm (0.47in) |
| Certification |  |
Features:
- Voltage Compatibility: Works with 12V-24V DC, suitable for various LED step lighting setups.
- Energy Efficiency: Each step consumes less than 15W, with a total capacity of up to 240W, saving energy.
- RF Remote Control: Utilizes RF remote technology for easy customization of lighting preferences.
- Durable Build: Made from sturdy plastic for long-lasting performance in various environments.
- Adjustable Settings: Offers adjustable brightness, delay time, and speed for creating the ideal lighting atmosphere.

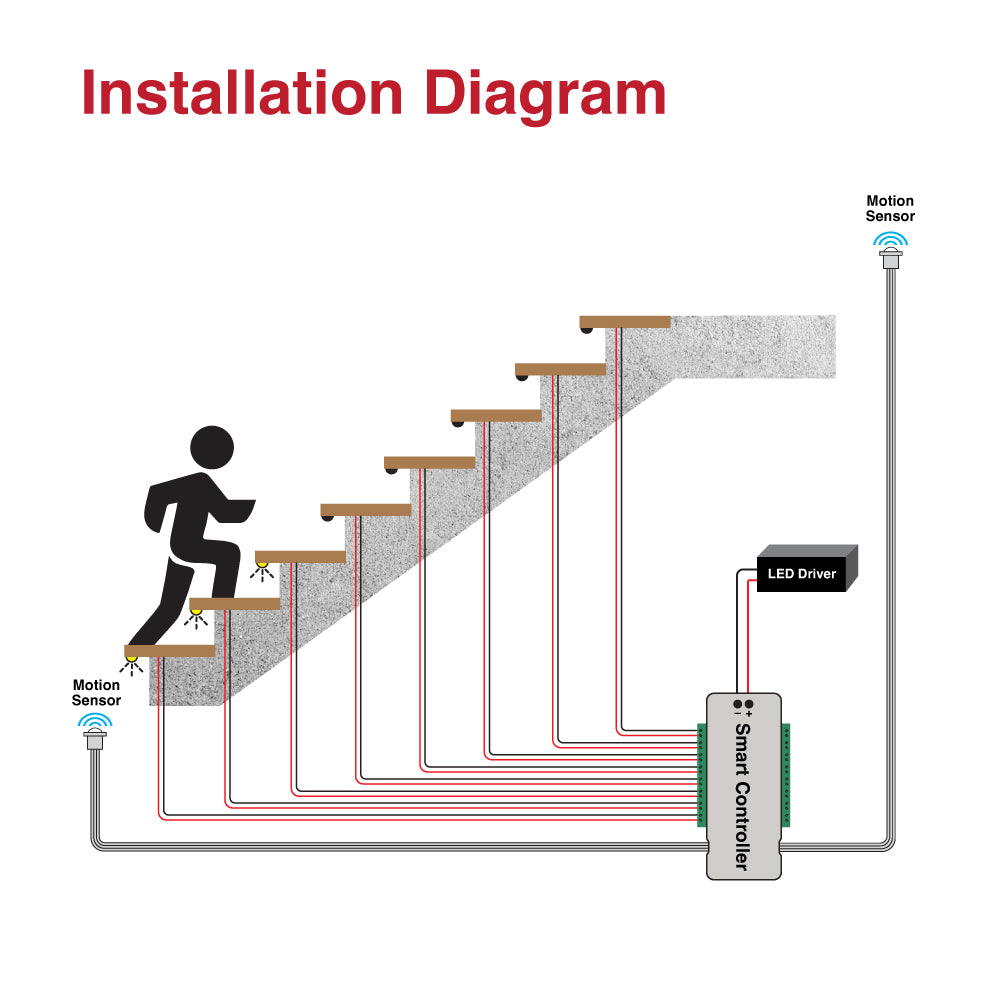

- Dual PIR Motion Sensors: Automatically activates LED strips when motion is detected, enhancing safety and energy efficiency.
- Compact Design: Measuring 150 x 82 x 22mm, it seamlessly integrates into staircases for unobtrusive lighting control.
