Product Description
| Product | Cabinet Lighting/ Cabinet Puck Lights |
| Model |
VBUN-R25-12V-Gold |
| Voltage | 12V DC |
| Wattage | 2.5W |
| LED Type | 3 x 5730 SMD |
| Trim Color Finish | Copper Gold |
| Luminous Flux | 230-250 Lumens |
| Beam Angle | 120° |

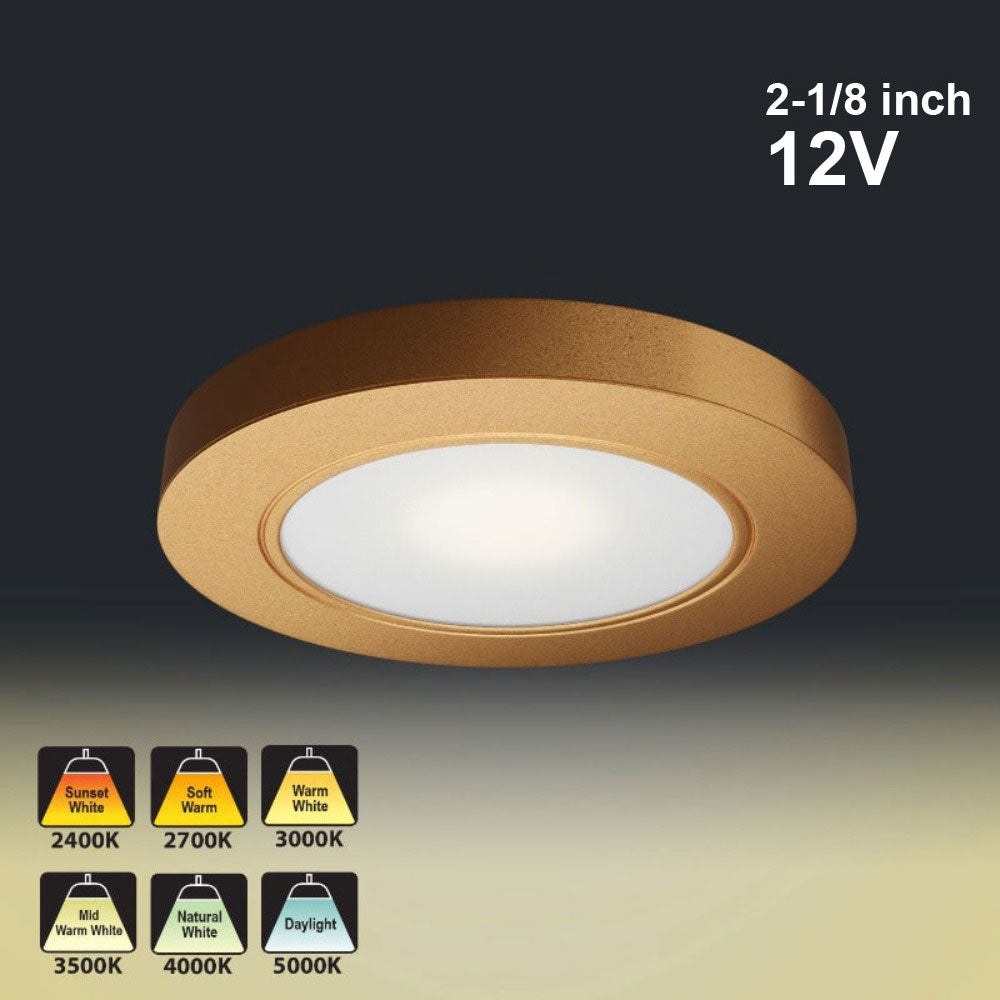

| Available Color Temperature |
2400K (Sunset White) 2700K (Soft White) 3000K (Warm White) 3500K (Mid-Warm White) 4000K (Natural White) 5000K (Daylight) |
| Material | Aluminum |
| IP Rating | IP20 (Dry and Damp Locations) |
| Rendering Index | CRI>90 |
| Dimmable | Yes |
| Wire length | 39 inches (1 meter) |
| Installation Type | Both Flush Mount/ Recessed and Surface Mount Installation |
| Weight | 0.07 kg |

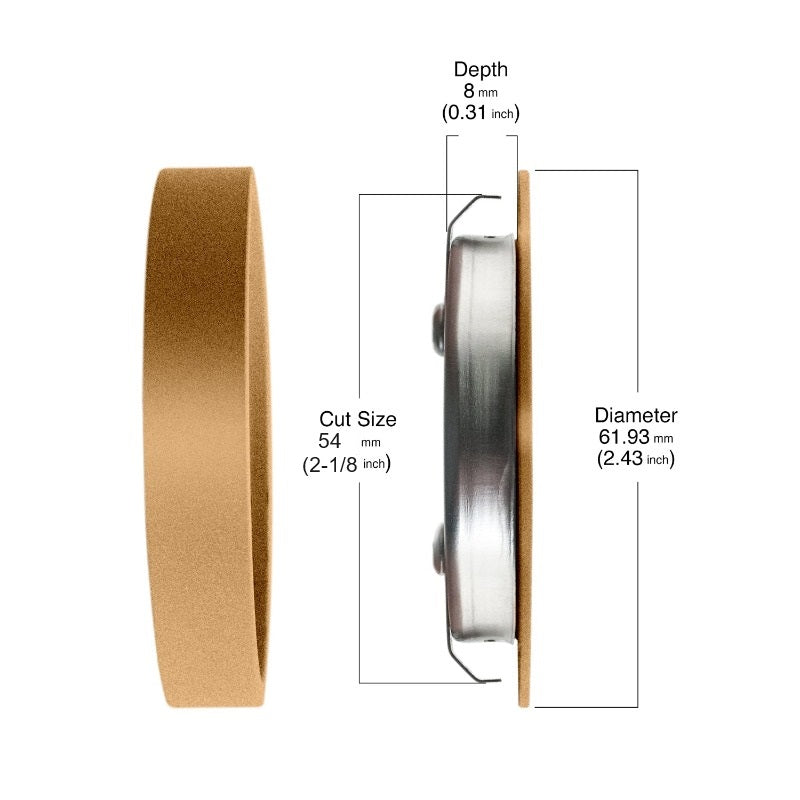

| Dimensions | 62 mm (2.43 in) Dia x 8 mm (0.31 in) Depth |
| Cut Size | 54 mm (2-1/8 inch) |
| Certification |  |
Features:
- Cabinet Lighting/Puck Light with a copper gold trim finish
- Operates at 12V DC and consumes 2.5 watts of power
- Provides a luminous flux of 230-250 lumens with a 120-degree beam angle
- Features 3 x 5730 SMD LEDs and available in different color temperatures from 2400K to 5000K
- CRI>90 and meets Canadian and US standards with UL STD. C22.2
- Made of aluminum for efficient heat dissipation, long lifespan, and low light decay
- Environmentally friendly and RoHS compliant with high energy efficiency
- Suitable for use in dry and damp locations with an IP20 rating
- Applicable for both flush mount/recessed and surface mount installations
- Good replacement for halogen light fixture with a cut size of 54 mm (2 1/8 inch)

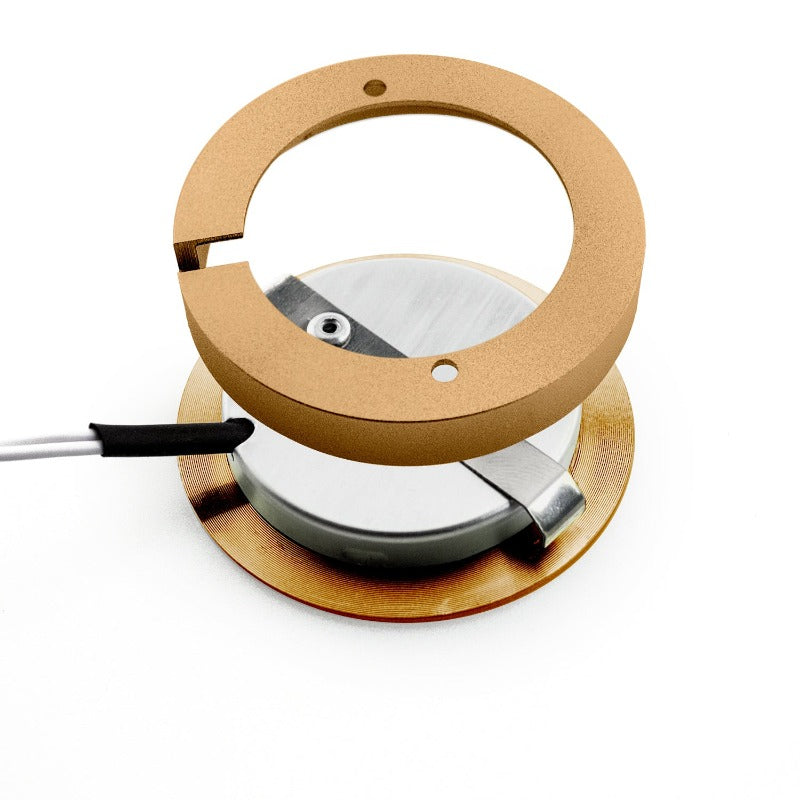

- Easy to install with push springs or direct screw onto the surface
- Dimmable and compatible with low voltage dimmers
- Comes with 3 feet of wire AWG 22
- Customizable with any number of lights able to go on one switch depending on the wattage of the transformer
- Applicable only for DRY locations, and a step-down transformer to line voltage is available in both hardwire and plugin.
