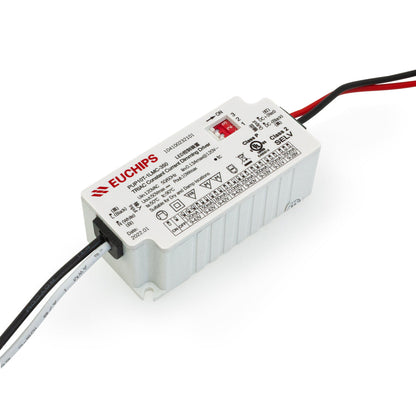

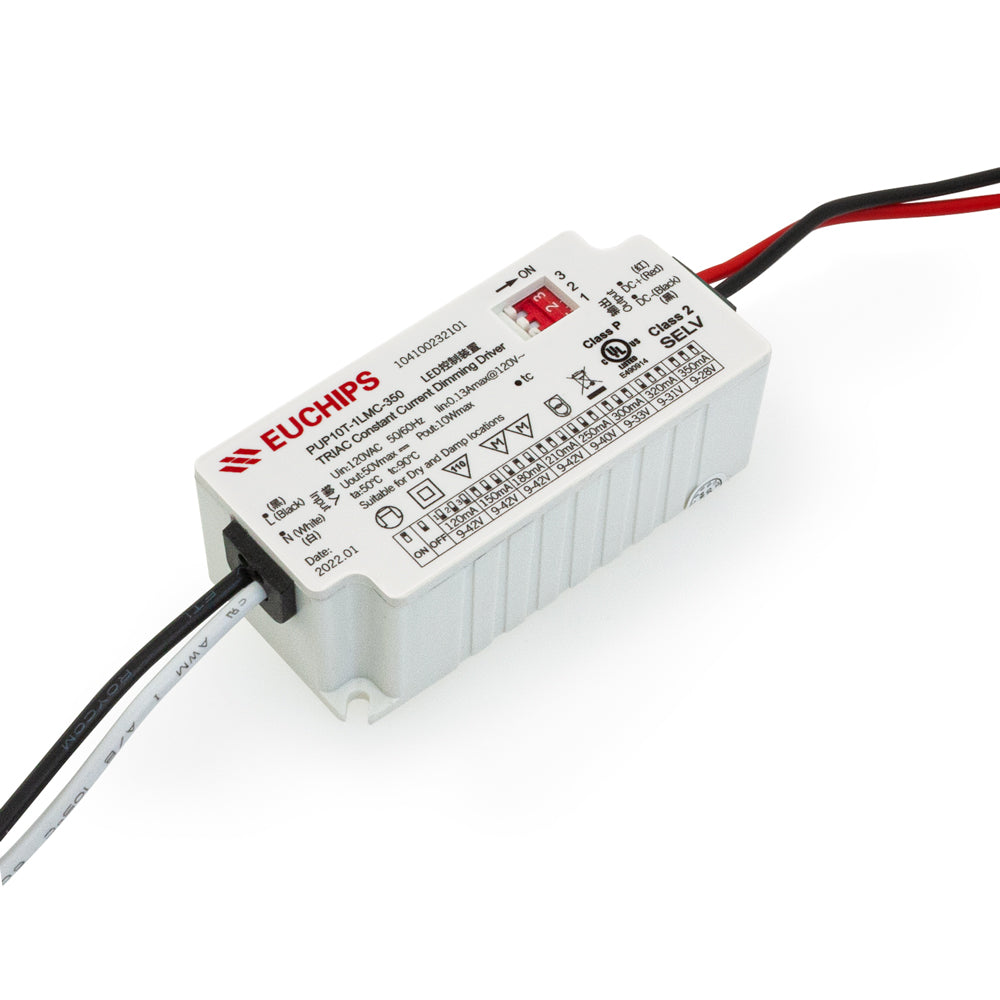

Selectable Constant Current LED Driver Triac Dim 50V 10W max 120 to 350mA, PUP10T-1LMC-350

Selectable Constant Current LED Driver Triac Dim 50V 10W max 120 to 350mA, PUP10T-1LMC-350

Ask Question!

SKU:666561428327

$71.30 CAD
$71.30 CAD
Sale Sold out
Shipping calculated at checkout.

BUY MORE, SAVE MORE

The more you buy, the more you save!

MIX & MATCH — ALL PRODUCTS COUNT!

Combine different products in your cart to unlock bigger discounts.

5 LED modules + 5 LED drivers = 10 items → 15% off your order (preview only).

Proposed cart-wide discounts · preview only

Estimated cart subtotal after adding—
Bulk-tier savings estimate—

Estimates only; other offers may give a better price. Your cart and checkout confirm the final discount.

Checking your cart quantity…

Free Shipping

Free shipping on eligible orders of $99 CAD or more. Some products are excluded; checkout confirms eligibility and any shipping charges.

Available Discounts

  • 10% off on purchases over $300

Shipping & Return Policy

Orders ship within one business day, Monday–Friday, excluding Canadian statutory holidays. Weekend orders ship the following week. Delivery timing depends on the courier and service selected at checkout.

Eligible orders of $99 CAD or more qualify for free shipping. Product exclusions and oversized-item surcharges may apply; checkout confirms shipping charges.

Eligible returns and exchanges are accepted within 30 days of purchase. Items must be new, resellable and in their original packaging. A 30% restocking fee and shipping charges apply; product exclusions apply.

View full shipping, return and exclusion policies

View full details


Product Description

Product Constant Current LED Driver with Selectable Current
Model PUP10T-1LMC-350
Input Voltage 120VAC
Input Current 0.13Amax@120VAC

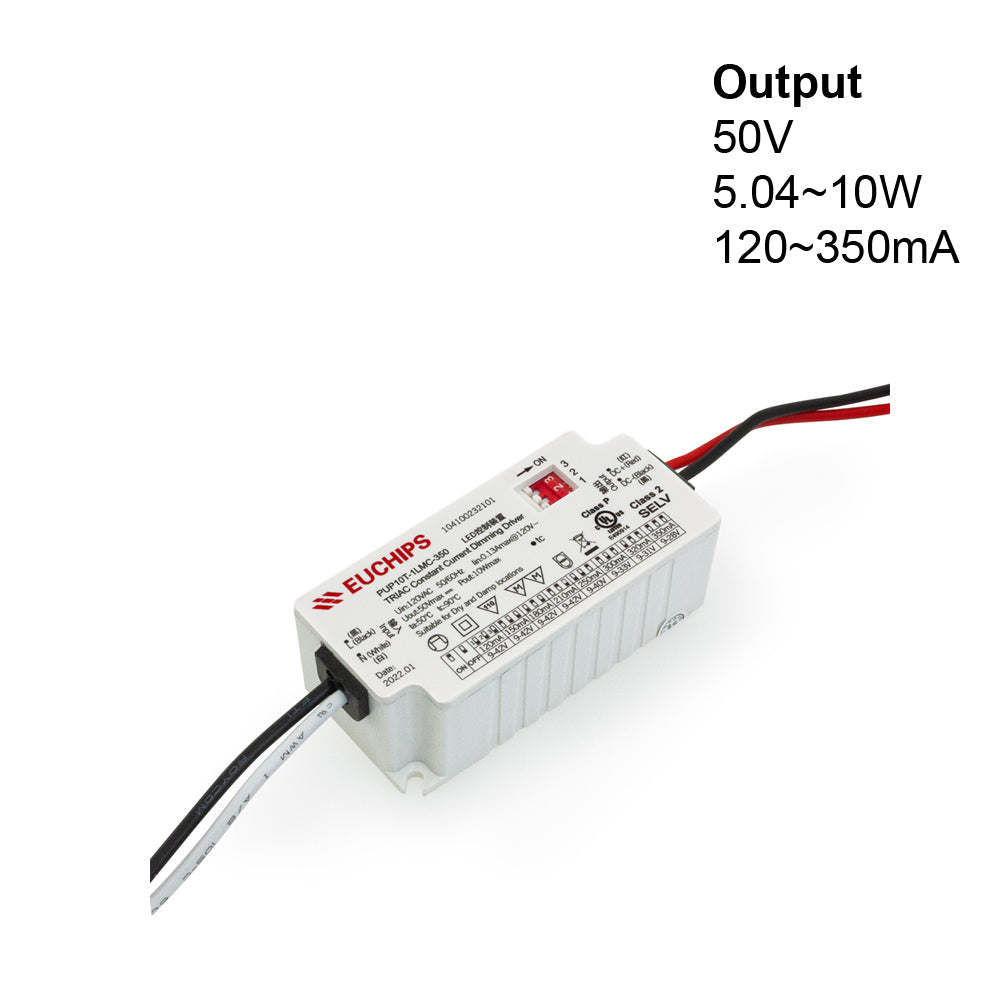

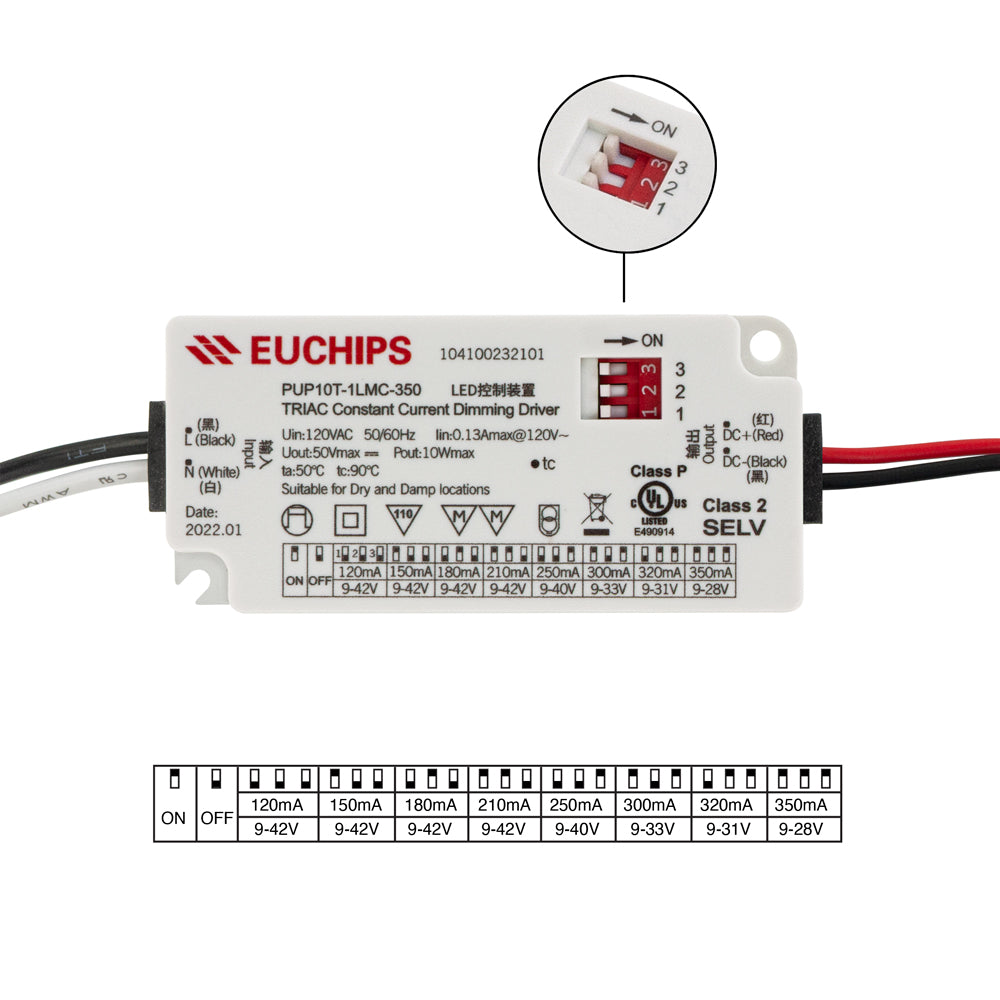

Output Current/Voltage/Power 120mA/9-42V/5.04W
150mA/9-42V/6.3W
180mA/9-42V/7.56W
210mA/9-42V/6.3W
250mA/9-40V/10W
300mA/9-33V/9.99W
320mA/9-31V/9.92W
350mA/9-28V/9.8W
No-load Output Voltage 50V Max
Input Frequency  50/60Hz
Dimming Type Triac
Dimming Range 3%-100%
IP Rating IP20 (Dry and Damp Locations)
Efficiency 70%@120VAC, Full load
Working Temperature -20℃~50℃
Weight 0.2 kg
Lifetime 50,000h @ Tc:90℃

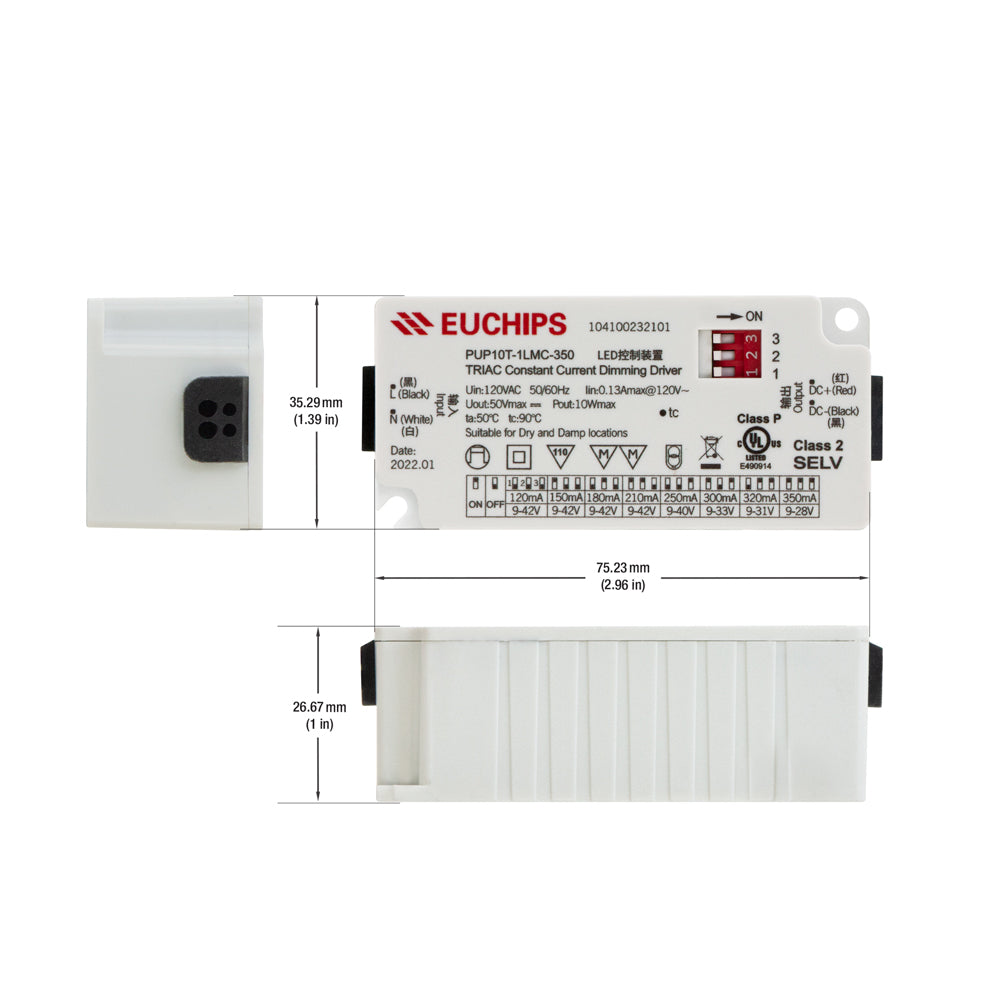

Dimensions 75.23 x 35.29 x 26.67mm (2.96 x 1.39 x 1in)
Certifications



Features:

  • The PUP10T-1LMC-350 is a selectable constant current LED driver
  • Operates on an input voltage of 120VAC
  • Input current of 0.13A maximum
  • Provides a constant current output ranging from 120 to 350mA
  • Maximum power output of 10W
  • Designed with Triac dimming technology
  • Smooth dimming from 3% to 100%
  • Rated for use in dry and damp locations with an IP20 rating
  • Efficiency greater than 70% at full load
  • Selectable Constant Current LED Driver Triac Dim 50V 10W max 120 to 350mA, PUP10T-1LMC-350
