8 inch Slim ZEGA LED Module SLM 08-008W-930-120-S3-Z1A, 120V 8W 3000K(Warm White)
8 inch Slim ZEGA LED Module SLM 08-008W-930-120-S3-Z1A, 120V 8W 3000K(Warm White)
SKU: SKU:666561427979
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25Â
Â
Product DescriptionÂ
Product | LED Module |
Model No | SLM 08-008W-930-120-S3-Z1A |
No of LEDs | 40 |
Wattage | 8W |
Voltage | 120V AC |
Luminous Flux | 700 lumens |
Color Temperature | 3000K (Warm White) |
Rendering Index | CRI>90 |
Power Source | AC |
Dimmable | Yes |
Base Material | Aluminum |
Package Components | LED Module Thermal Silicon Pad 6inch Black and White power feed |
Dimensions | 203mm (8 inch) x 25.2 mm (1 inch) |
Diameter of the screw hole | 3.9mm (0.15 in) |
Distance between holes | 128mm (5 in) |
Height | 6mm (0.23in) |
Certification |
 |

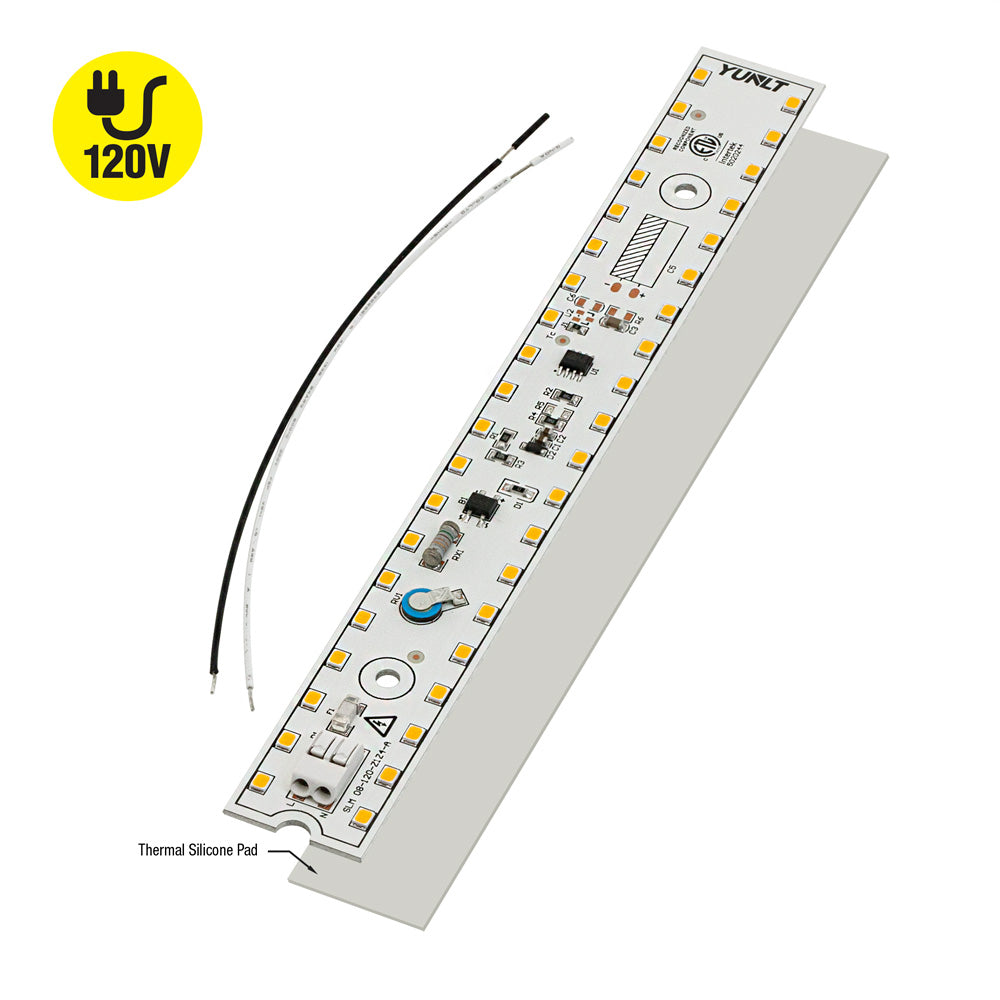

The SLM 08-008W-930-120-S3-Z1A is an 8 inch slim LED module driverless engine that contains 40 LED bulbs. It has a voltage rating of 120V AC and a wattage of 8W, producing a luminous flux of 700 lumens. The color temperature of the LED module is 3000K, which is considered warm white. The color rendering index (CRI) of the module is greater than 90, indicating that it accurately reproduces colors. The module is powered by AC and is dimmable. It has an aluminum base material and comes with a thermal silicon pad, a 6 inch black and white power feed, and the required mounting hardware.
The dimensions of the module are 203mm (8 inch) x 25.2 mm (1 inch), with a diameter of the screw hole of 3.9mm (0.15 in) and a distance between holes of 128mm (5 in). The module is certified by etl, indicating that it meets industry safety standards.
Features:
- 8 inch slim LED module driverless engine with 40 LED bulbs
- Voltage rating of 120V AC and wattage of 8W
- Produces a luminous flux of 700 lumens
- Color temperature of 3000K (warm white)
- Color rendering index (CRI) of >90 for accurate color reproduction
- Powered by AC and is dimmable
- Made with an aluminum base material and comes with a thermal silicon pad, a 6 inch black and white power feed, and the required mounting hardware
- Dimensions of the module are 203mm (8 inch) x 25.2 mm (1 inch), with a diameter of the screw hole of 3.9mm (0.15 in) and a distance between holes of 128mm (5 in)
- Certified by etl for meeting industry safety standards
- A premier quality light engine. It produces up to 700 lumens of exceptional light.
- Low power consumption, high energy efficiency.
- It is a good DIY product for the replacement of a ceiling light/ Bulb source.
- Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
