Product Description
| Product | Cabinet Lighting/ Cabinet Puck Lights |
| Model | AD-107T-2.2W-12V |
| Trim Model | PKL-TRB-WH-SQ |
| Input Voltage | 12V DC |
| Input Current | 180mA |
| Power | 2.2W |
| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Brightness | 170 lumens |
| Rendering Index | CRI>90 |
| Beam Angle | 115° |
| Engine Material | PVC |
| Trim Material | Die-cast Aluminum |
| Trim Color Finish | White |
| IP Rating | IP20 (Dry and Damp locations) |
| Wire length | 39 inches (1 meter) |
| Installation | Surface Mount |

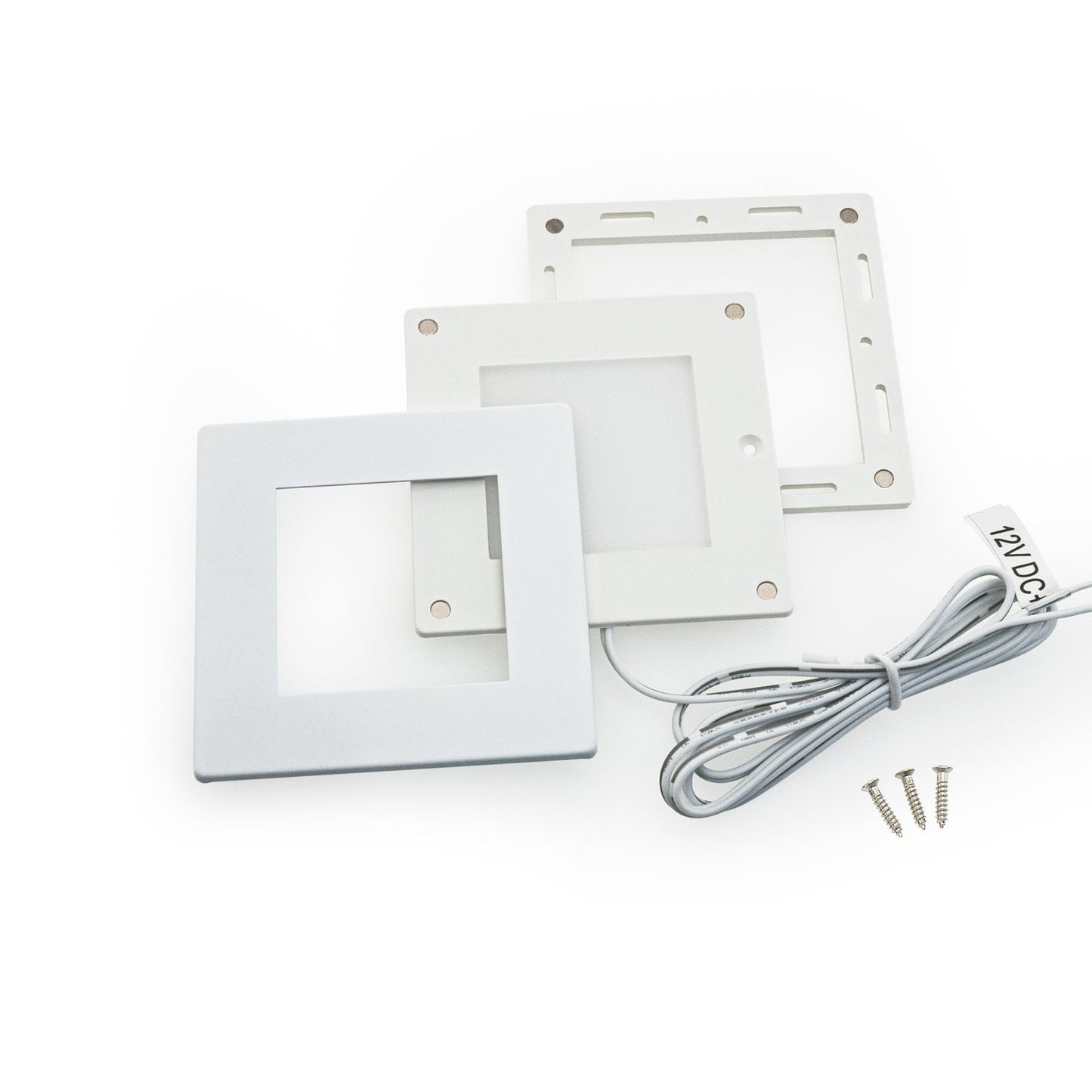

| Product Content | Square engine, Magnetic-Base with screws, Interchangeable trim |

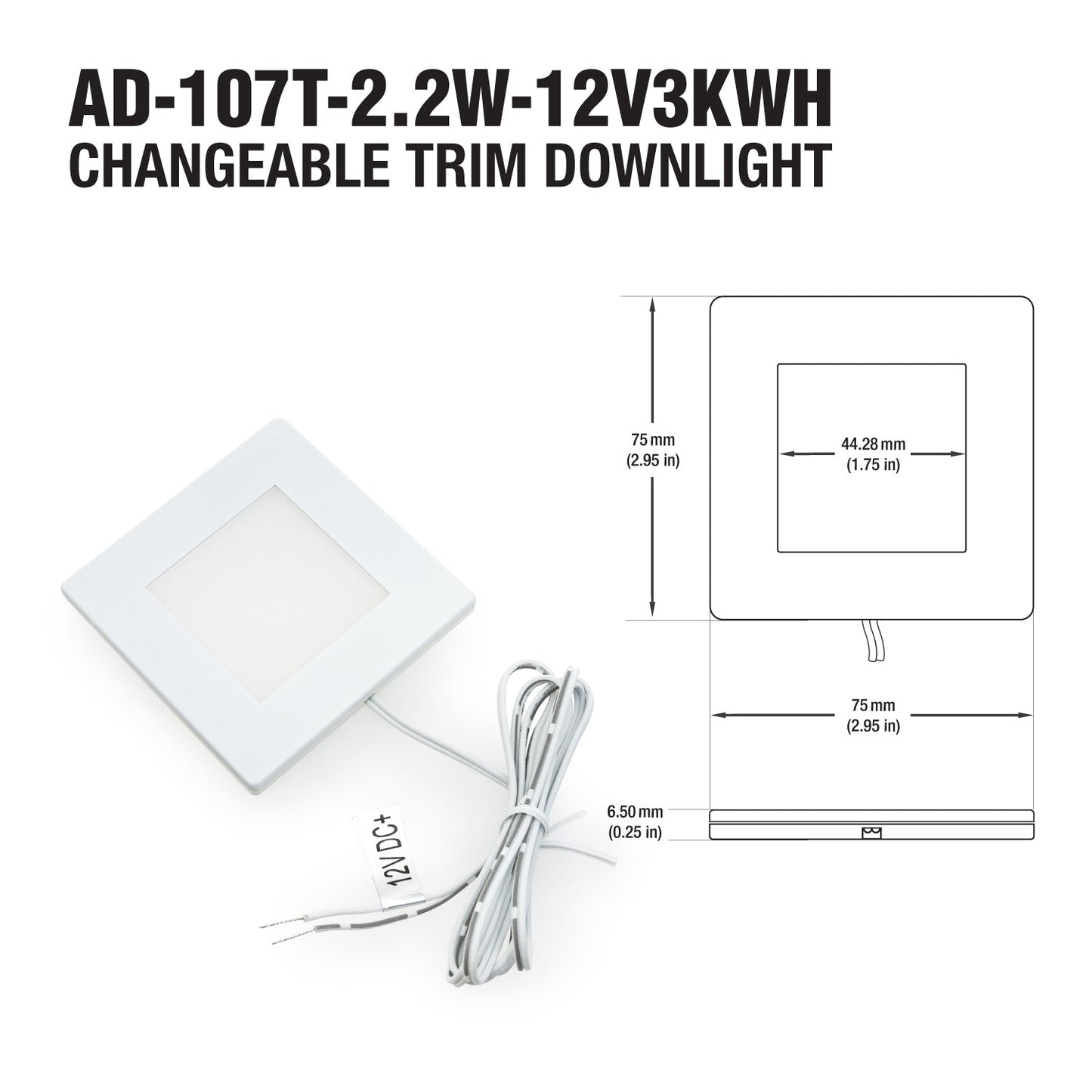

| Dimensions | 75 x 75 x 6.50 mm (2.95 x 2.95 x 0.25 in) |
| Certification |  |
Features:
- Square-shaped PVC engine with a white die-cast aluminum trim measuring 75 x 75 x 6.50 mm
- 12V DC input voltage and low power consumption of 2.2W for high energy efficiency
- Warm white color temperature of 3000K and high CRI of over 90 for accurate color rendering
- Brightness of 170 lumens and a wide 115° beam angle for even distribution of light
- Dimmable with a compatible low voltage dimmer with the same input rating as the dimmable power supply driver

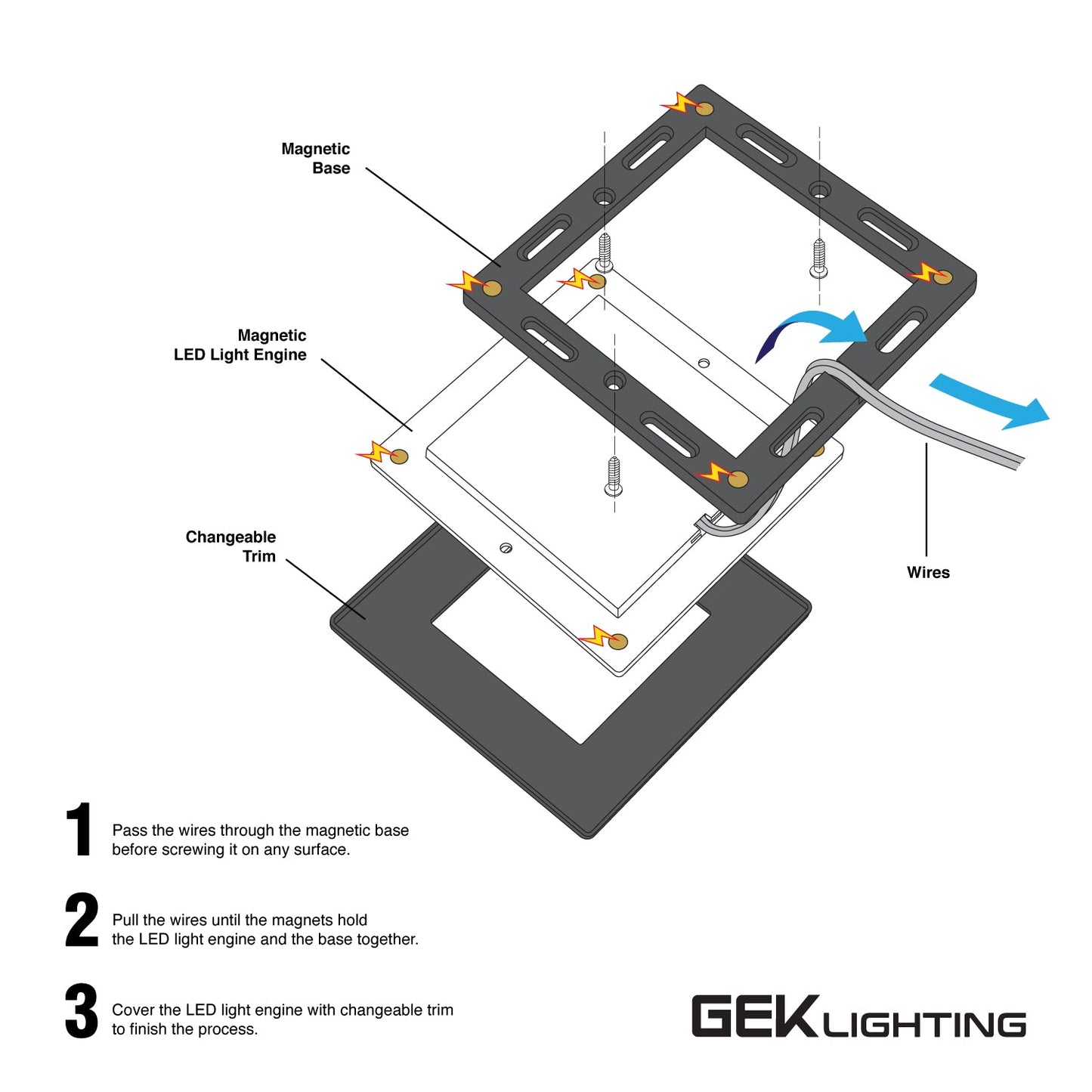

- Comes with a 39-inch wire length and magnetic base with screws for easy installation

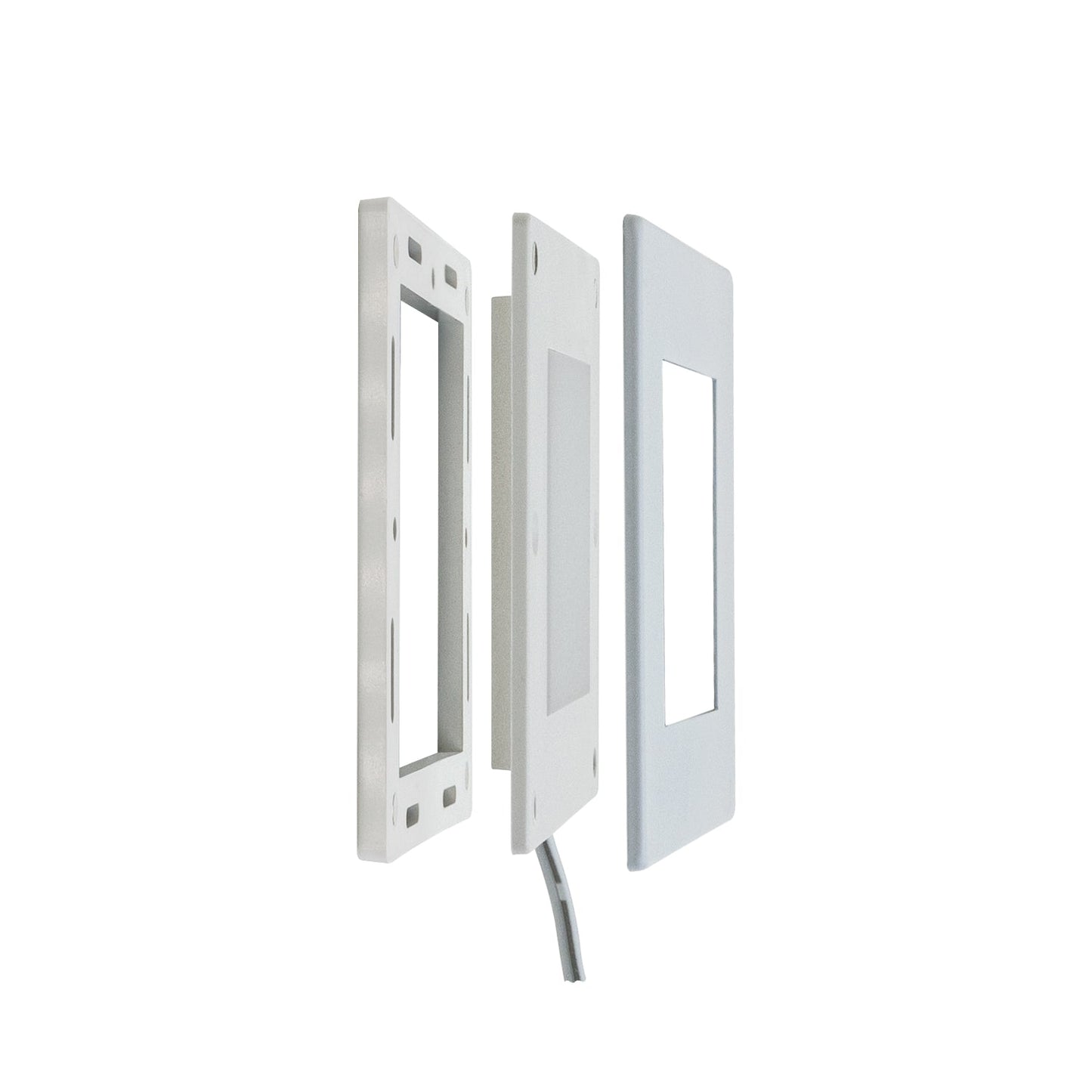

- Interchangeable trim allows for customization with black and brushed nickel finish trims available in addition to white
- IP20 rating makes them suitable for use in dry and damp locations
- Widely applied in wardrobes, cabinets, and shelves of modern kitchens
- Certified by ETL and meets Canadian and United States standards
