Product	Inground Light
Model	UL-1022-0300-A

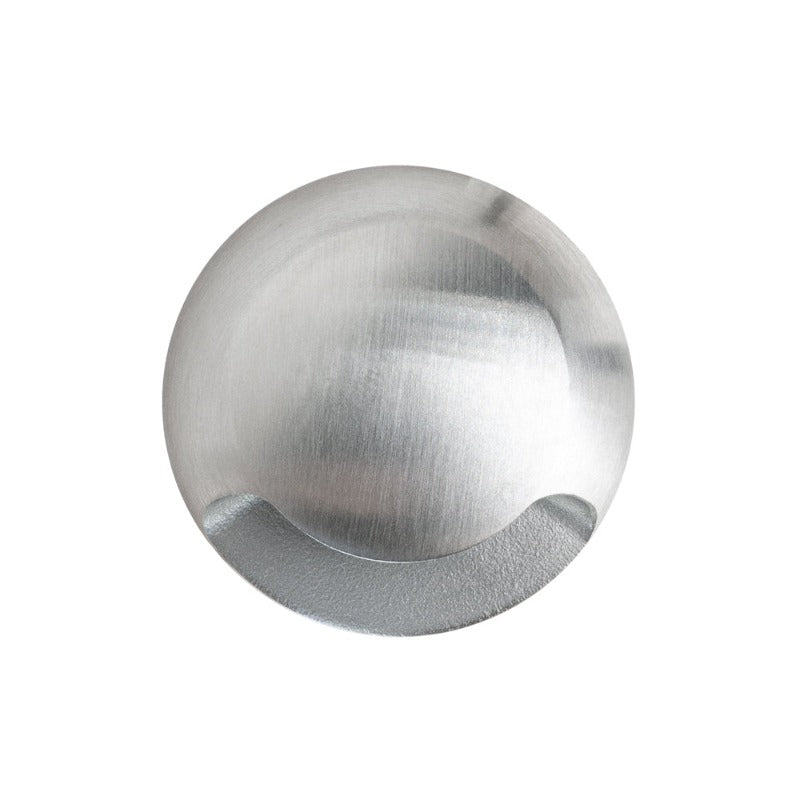

Trim	One-Way Trim
Operating Voltage	12-24V DC
Total Power Consumption	3W
Color Temperature	3000K (Warm White) or RGBW
Brightness	240-300Lm
Bulb Type	Integrated LED
Housing Material	Die-cast Aluminum body
Cap Color Finish	315 Stainless Steel
Beam Angle	45°
IP Rating	IP67

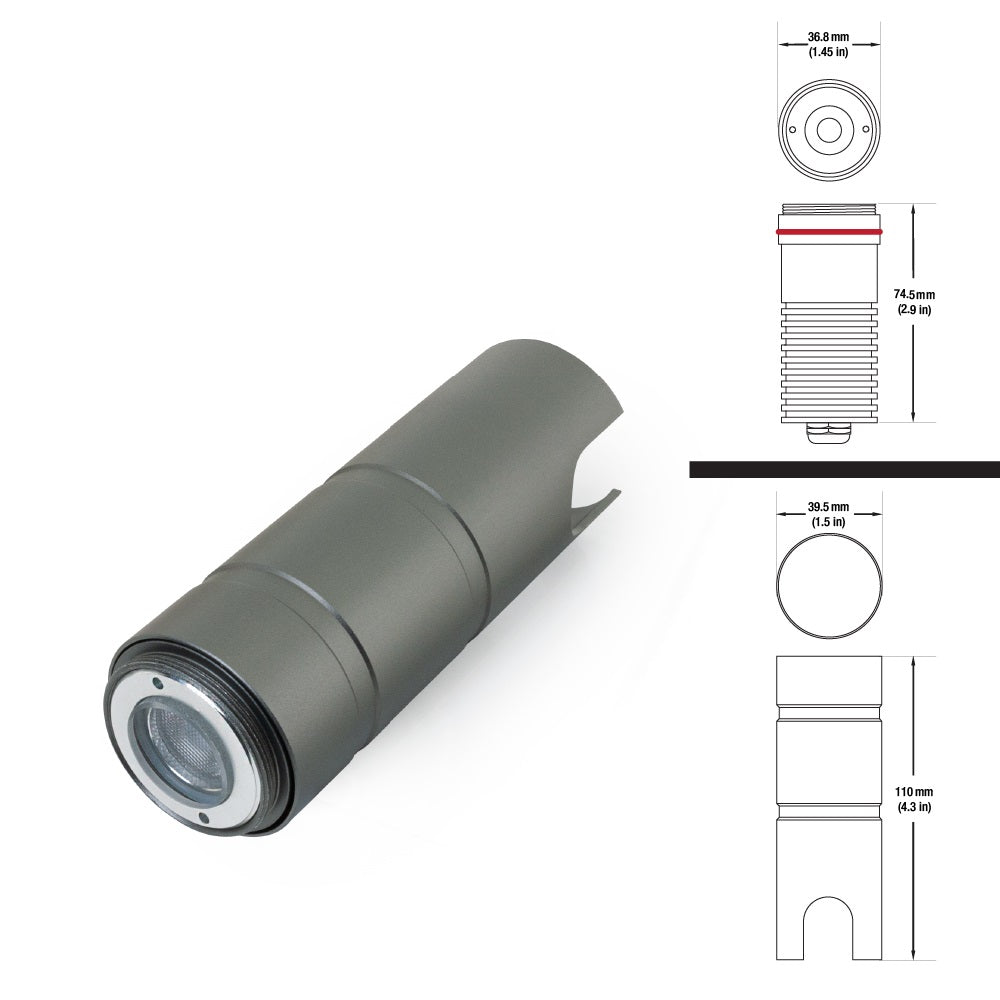

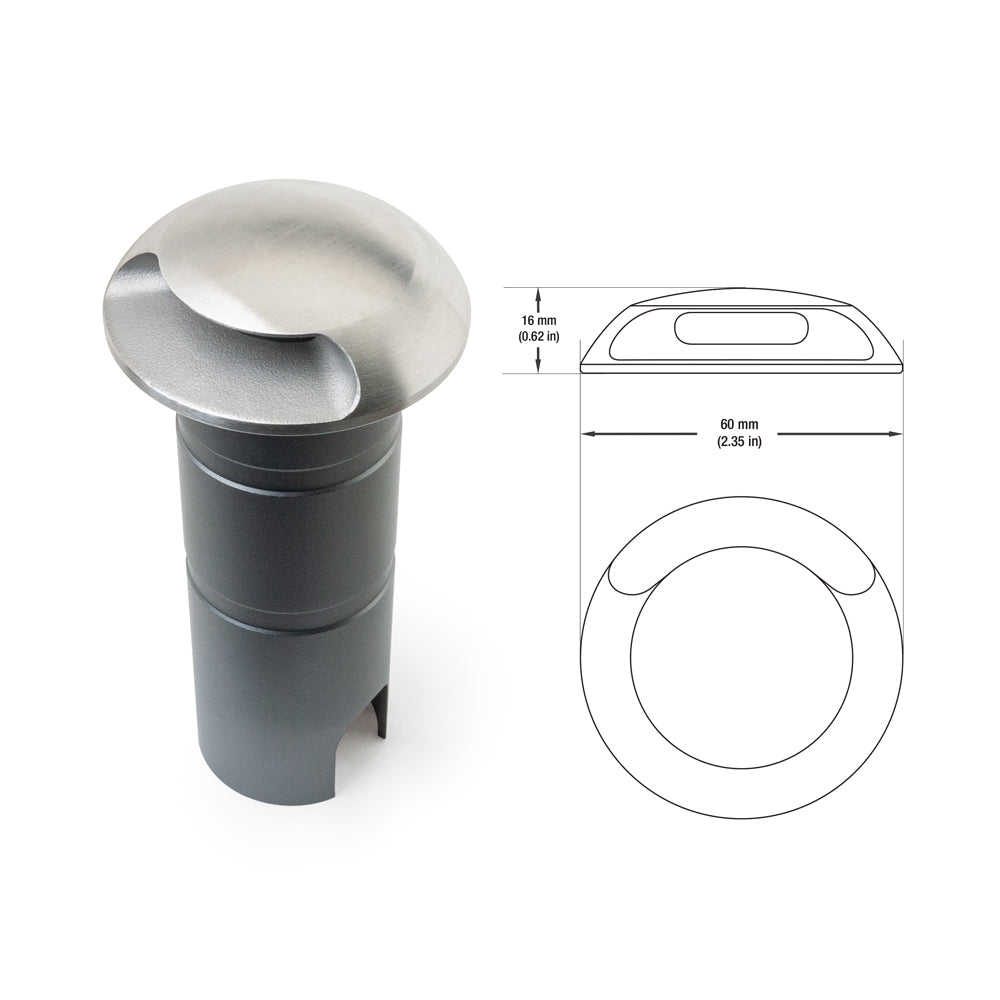

Dimensions with Housing	Diameter – 60 mm (2.3 inches) Height – 100 mm (3.95 inches)
Cable Size	Length 100cm (39.3in) Ø 7.7mm (0.3in) 18AWG FT2
Certification

Features:

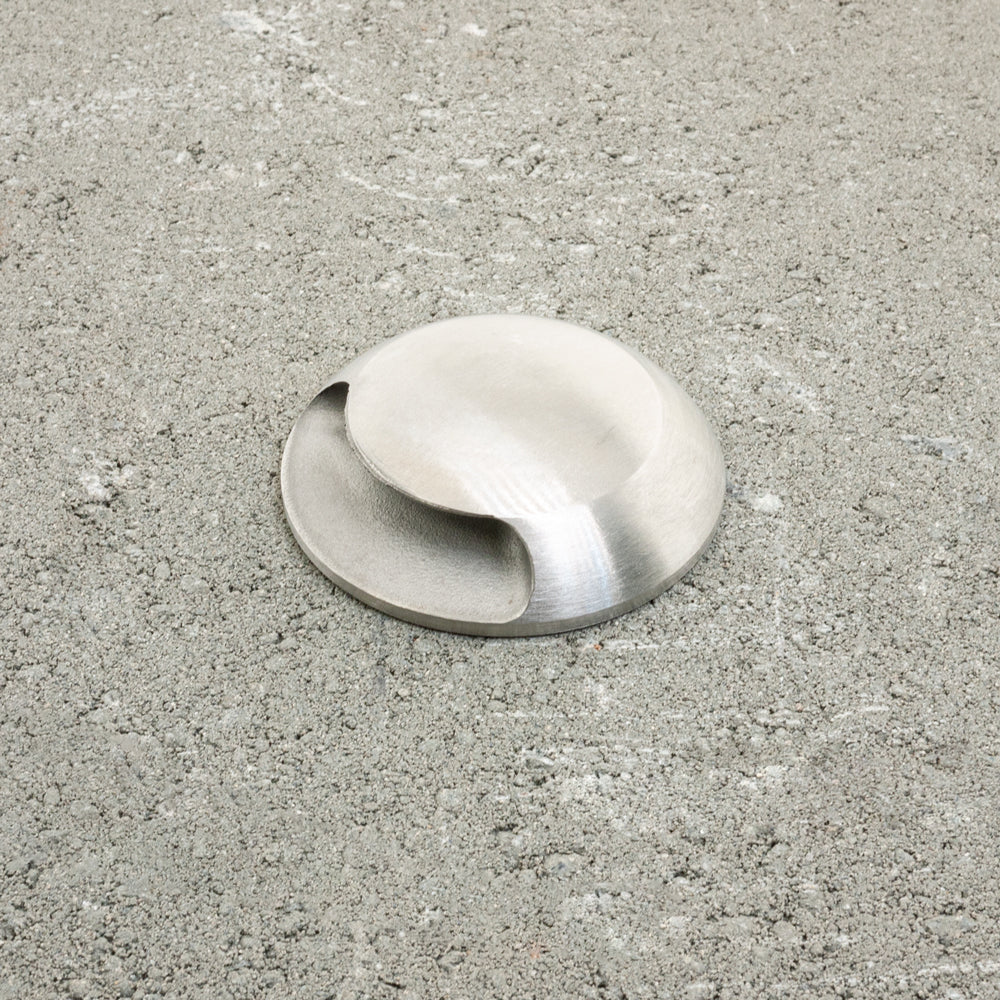

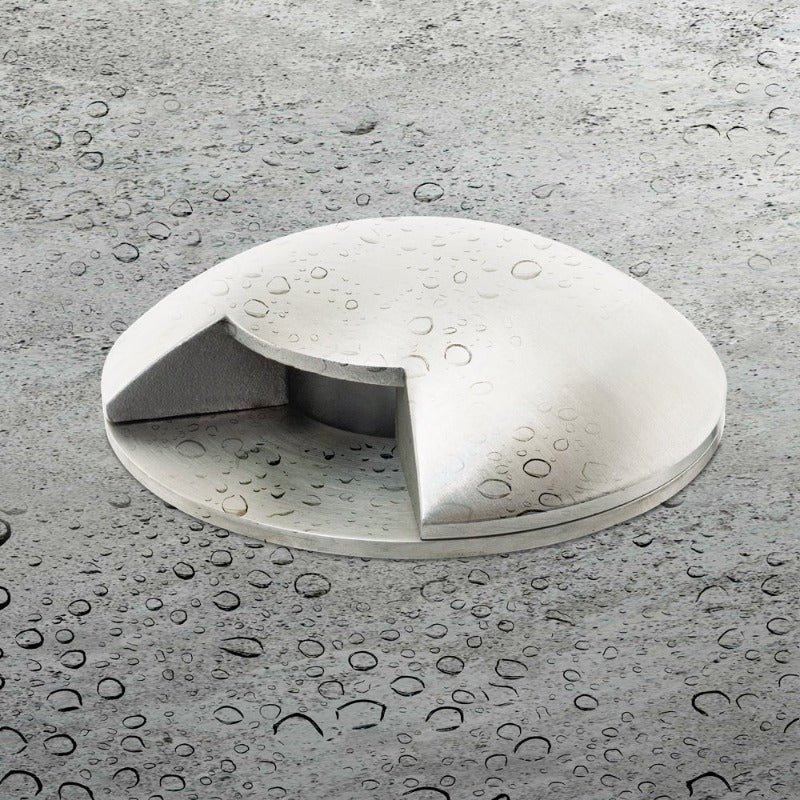

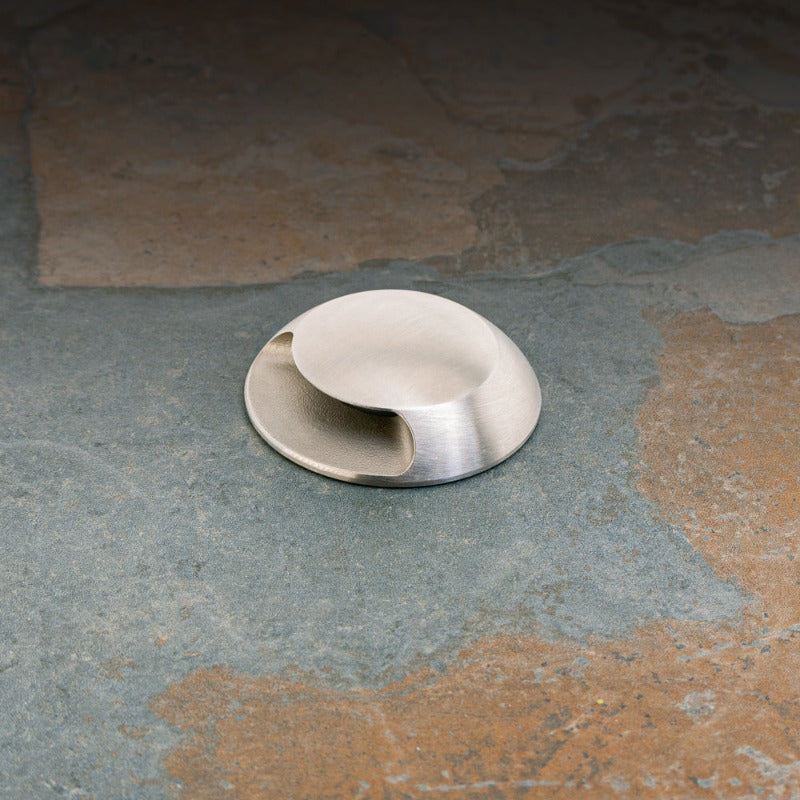

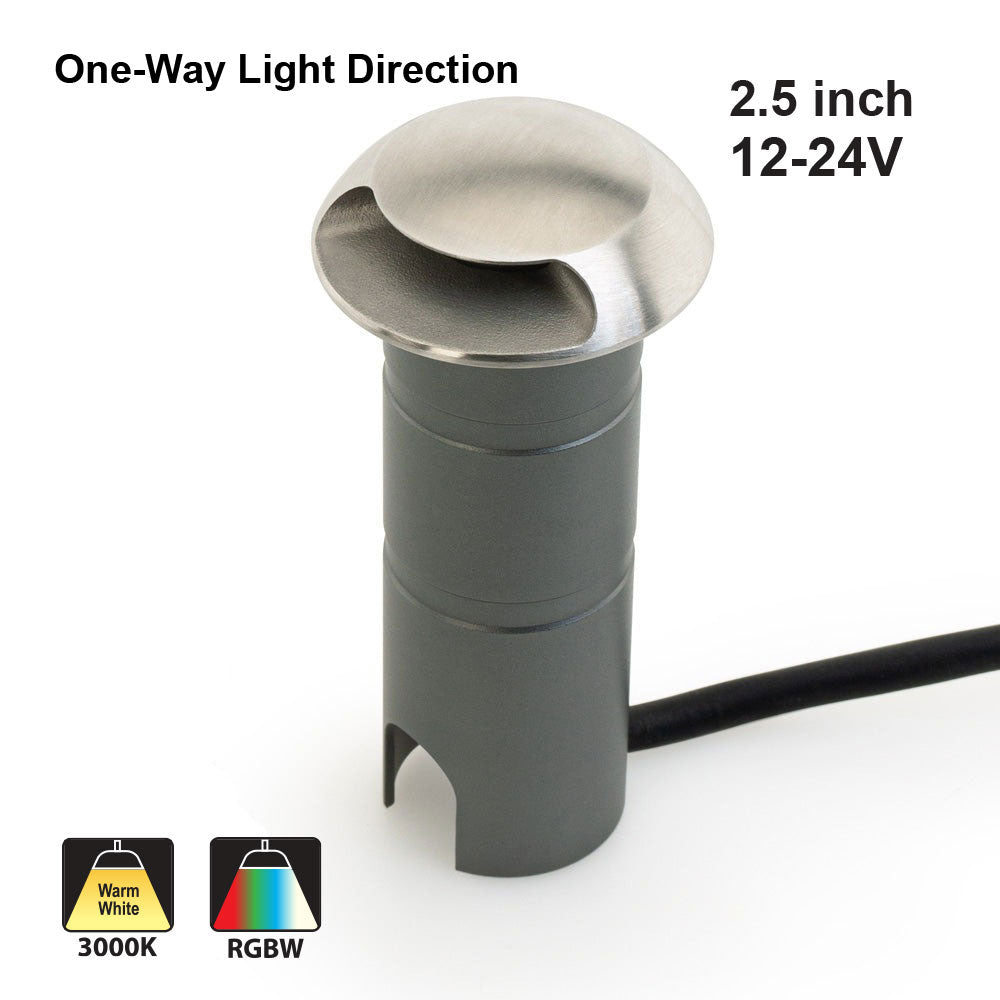

• Recessed LED in-ground driveway light with one-way trim
• Operates on 12-24V DC power supply with a total power consumption of 1W
• Available in Warm White (3000K) or RGBW color temperature options with a brightness of 240-300Lm
• Die-cast aluminum body housing with cap color finish of 315 stainless steel
• Beam angle of 45° and IP67 rating, suitable for all weather conditions and being stepped upon

• Dimensions of 60mm diameter and 100mm height with 100cm cable length and 7.7mm diameter 18AWG FT2
• Suitable for various applications such as LED pathways, pool deck lights, patio light, or low-level wall lighting
• Can be used with different caps such as 1-way trim, 2-way trim, 4-way trim, and Round Flat trim
• Multiple fixtures can be connected to a single switch based on transformer wattage
• Certified and meets safety standards for lighting fixtures.
• We carry UL-1022-0300-A engine in both changing color (RGBW) and single color (3000K/Warm White). Choose the engine based on your desired needs,
• UL-1022-0300-A In-Ground engine can be used with different caps (1-way trim, 2-way trim, 4-way trim, and Round Flat trim) based on your desired application.
• Depending upon the wattage of the transformer, any number of lights can go on 1 switch.
