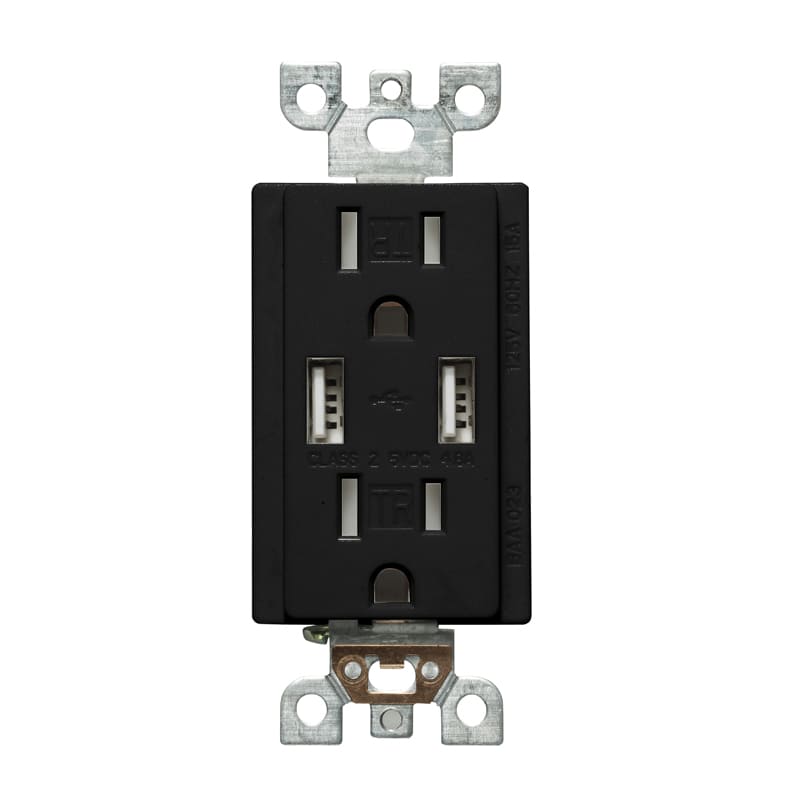

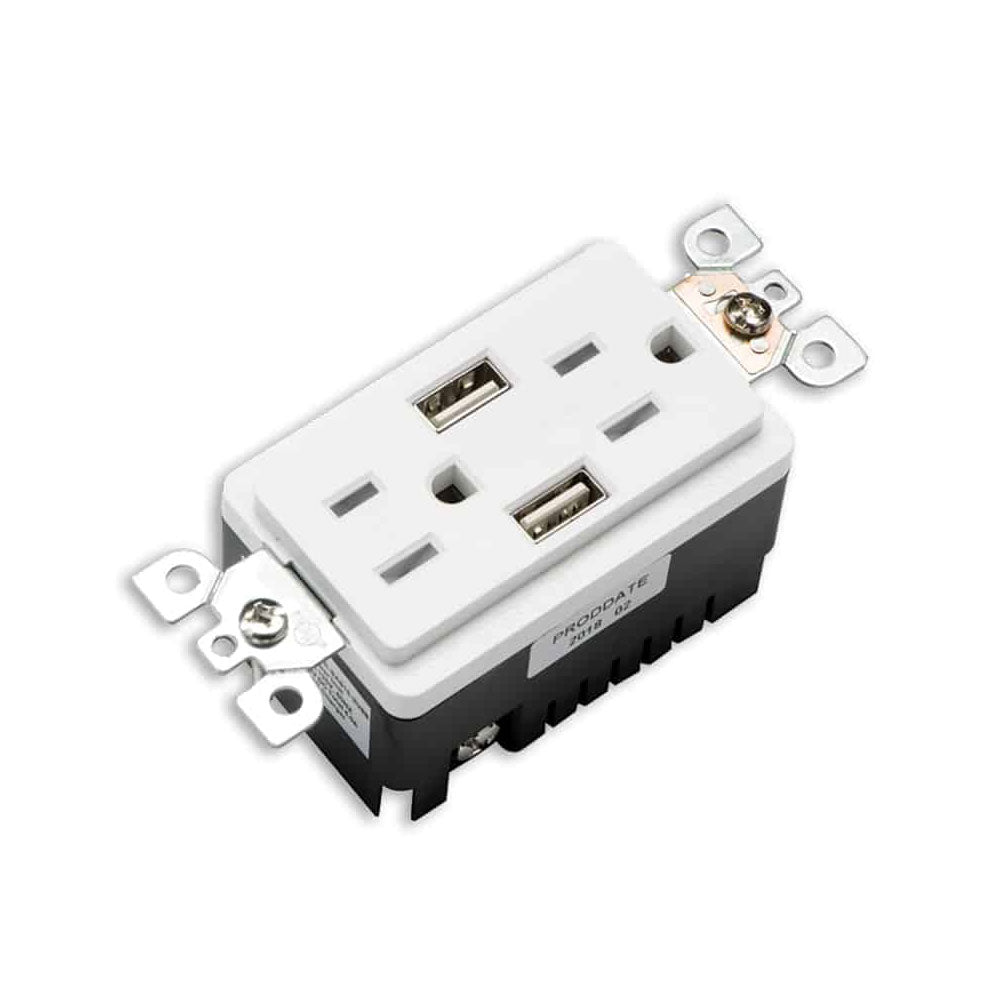

Votatec USB Charger & Duplex Receptacle (TR) TYPE A BAA-023 125V 15A/20A
Votatec USB Charger & Duplex Receptacle (TR) TYPE A BAA-023 125V 15A/20A
SKU: SKU:628068642712
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- Customers are responsible for return shipping fees. Additionally, if an order is returned, the original shipping cost must also be reimbursed.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25
| Model No. | BAA-023 |
| Insulation Resistance | >50MΩ (DC500V) |
| Temperature | -20°C~60°C |
| Electric strength | Pressure resistance 1500V 50Hz Duration 1 Min |
| Wire Specifications | #14- #10AWG |
| USB Voltage & Current | 5VDC 4A |
| Rated Voltage | 125V/60Hz |
| Rated Current | 15A/20A |
| Available colors | White, Black |
| Housing material | flame retardant grades UL94-V2 |
| Standard | UL498 UL943 CSA-C22.2 No.42 USB1.0/2.0/3.0 |
| Unloaded plug | ≥5000Sec Loop detection |
| Type | Tamper Resistance |
| Certification |
|
Features:
- Dual-function design combining a tamper-resistant duplex receptacle with USB charging ports for enhanced convenience.
- USB ports provide a reliable 5VDC output with a total current of 4A, suitable for fast charging of multiple devices.
- Rated for 125V/60Hz with a current capacity of 15A/20A, ideal for residential and commercial applications.
- Supports a wide temperature range from -20°C to 60°C, ensuring consistent performance in diverse environments.
- Built with high insulation resistance of >50MΩ (DC500V) for improved electrical safety and reliability.
- Designed to withstand 1500V pressure at 50Hz for 1 minute, ensuring robust electric strength.
- Compatible with wire specifications ranging from #14 to #10AWG for versatile installation options.
- Certified under UL498, UL943, CSA-C22.2 No.42, and supports USB1.0, USB2.0, and USB3.0 standards.
- Constructed with flame-retardant housing material rated UL94-V2 for enhanced fire safety.
- Tamper-resistant design protects against accidental contact with live parts, ensuring child safety.
- Offers durability with an unloaded plug lifecycle of ≥5000 seconds in loop detection.
- Available in sleek white and black finishes to match a variety of interior styles.
