Product Description

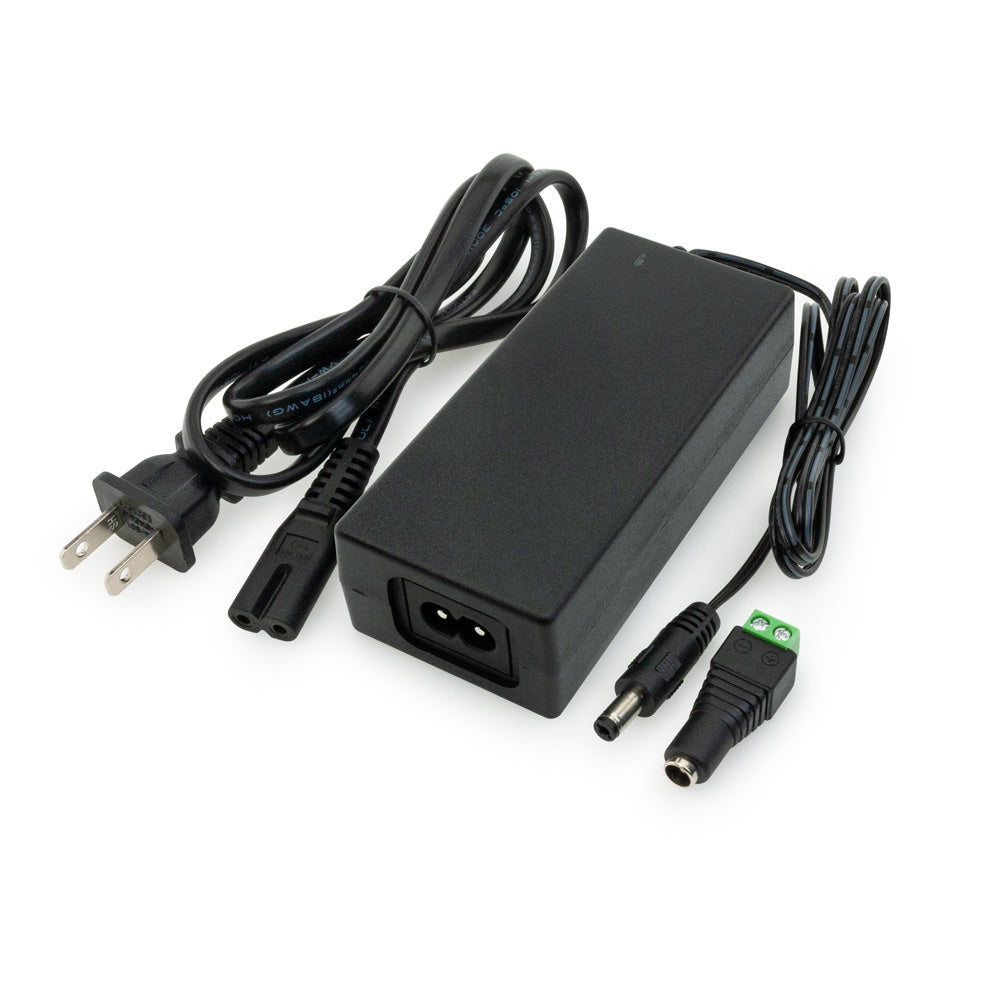

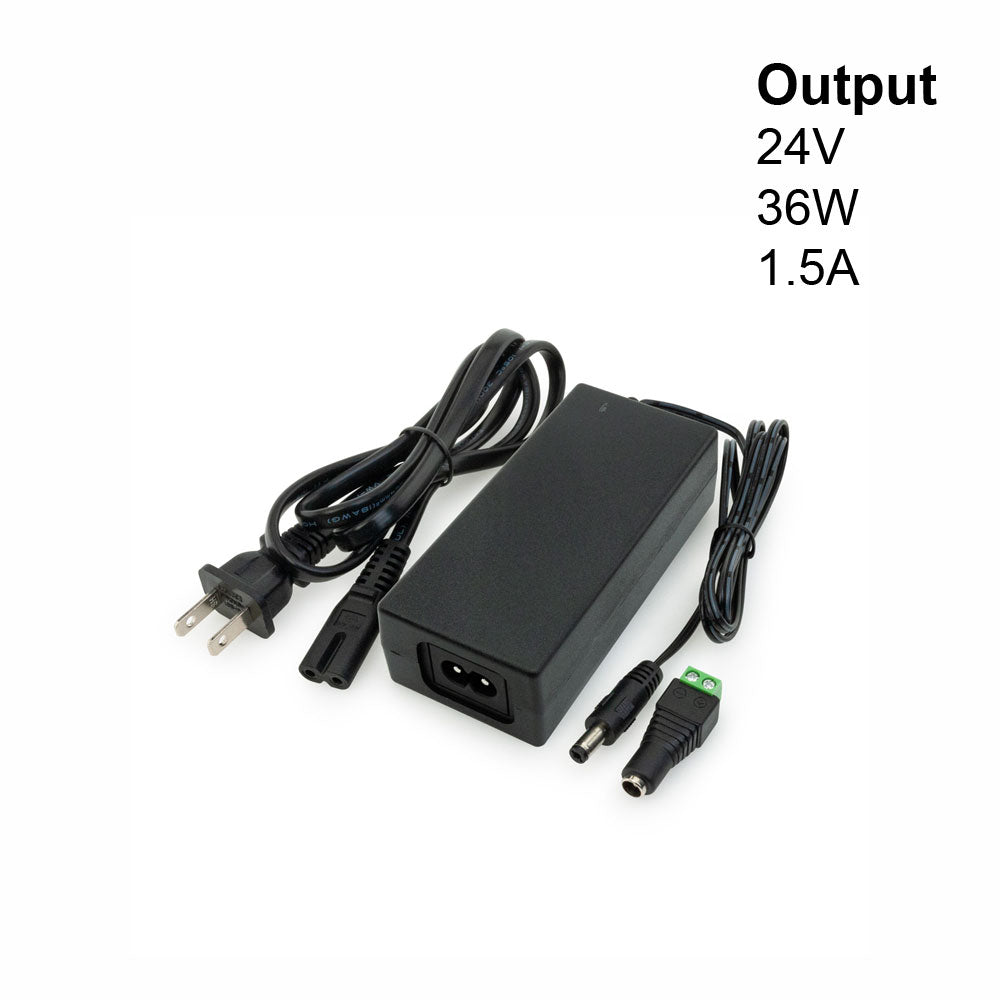

| Product | Plug-In LED Driver |
| Model | VBDA-024-036P1J |
| Input voltage | 100 - 240V AC |
| Input Current | 0.2A |
| Frequency | 47/63Hz |
| Output voltage | 24V DC |
| Output Current | 1.5A |
| Output max Power | 36W max |
| Dimmable | No |
| IP Rating | IP20 (Indoor use only) |
| Wire Length | Power Cord: 43inch Low Voltage Wire: 43inch |
| Product Content | Power cord & 2.1mm connector to wire |
| Weight | 0.3 kg |
| Class Certification | Class 2/ Class II |

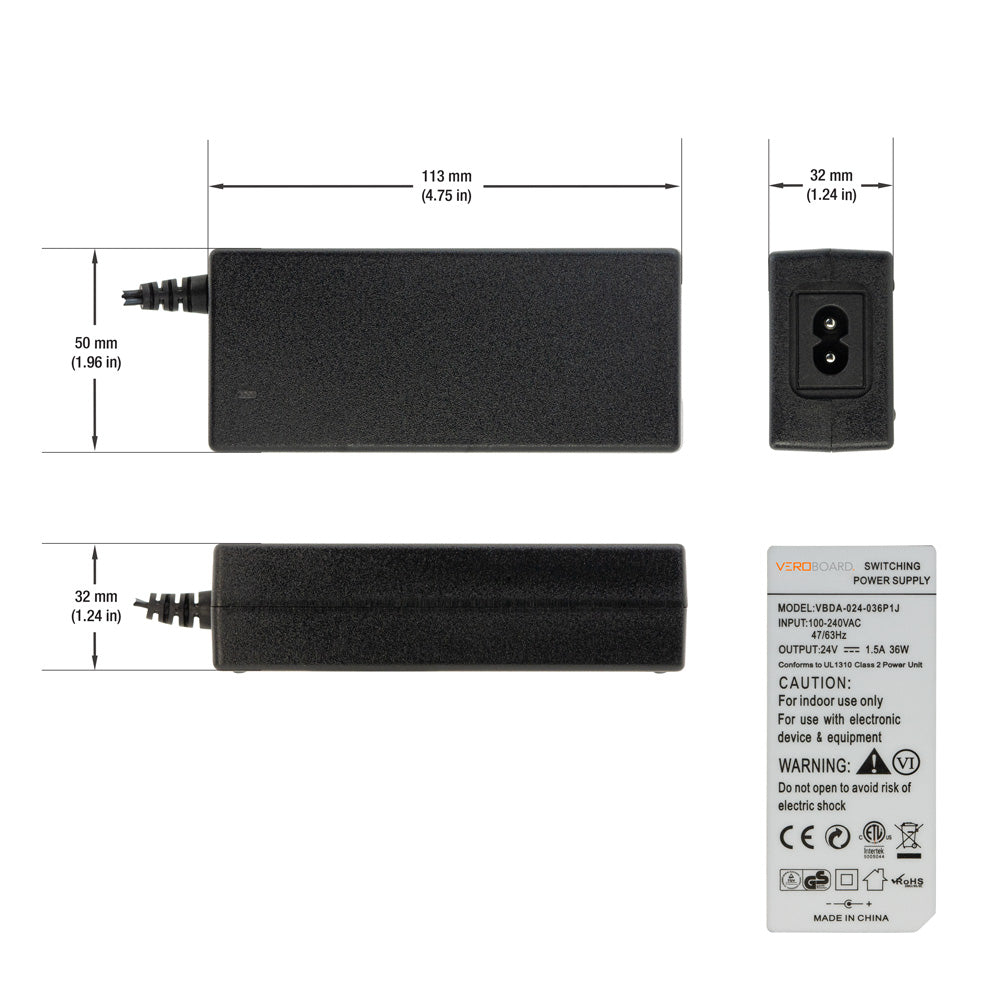

| Dimensions | 113 x 50 x 32mm (4.7 x 1.9 x 1.2in) |
| Certification |

|
Feature:
- Reliable constant voltage plug-in adaptor
- Converts input voltage ranging from 100-240V AC to a 24V DC output voltage
- Output current of 1.5A and a maximum output power of 36W
- Not dimmable and has an IP20 rating, suitable for indoor use only

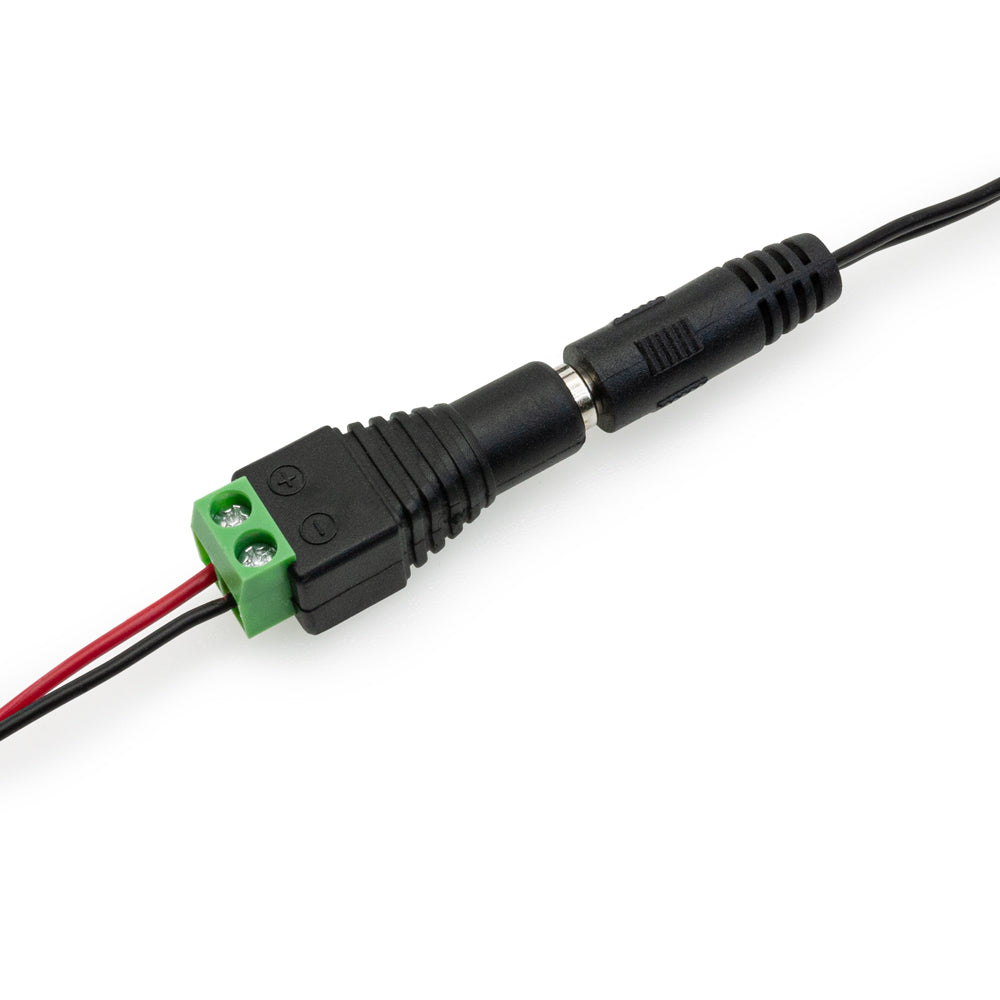

- Comes with a power cord and a 2.1mm connector to wire
- Wire length of 43 inches for both power cord and low voltage wire, providing flexibility in placement
- Class 2/Class II certification, providing double insulation and no reliance on an earth connection for safety
- Compact dimensions measuring 113 x 50 x 32mm (4.7 x 1.9 x 1.2in), making it easy to install
- Certified with ETL certification, indicating it meets certain safety and performance standards
