Product Description
| Product | Plug-In LED Driver |
| Model | VBDA-024-060P1J |
| Input voltage | 100 - 240V AC |
| Frequency | 50/60Hz |
| Output voltage | 24V DC |
| Output Current | 2.5A |
| Output max Power | 60W max |
| Dimmable | No |
| Weight | 0.3 kg |
| IP Rating | IP20 (Indoor use only) |
| Wire Length | Power Cord: 43inch Low Voltage Wire: 47inch |
| Product Content | Power cord & 2.1mm connector to wire |
| Class Certification | Class 2/ Class II |

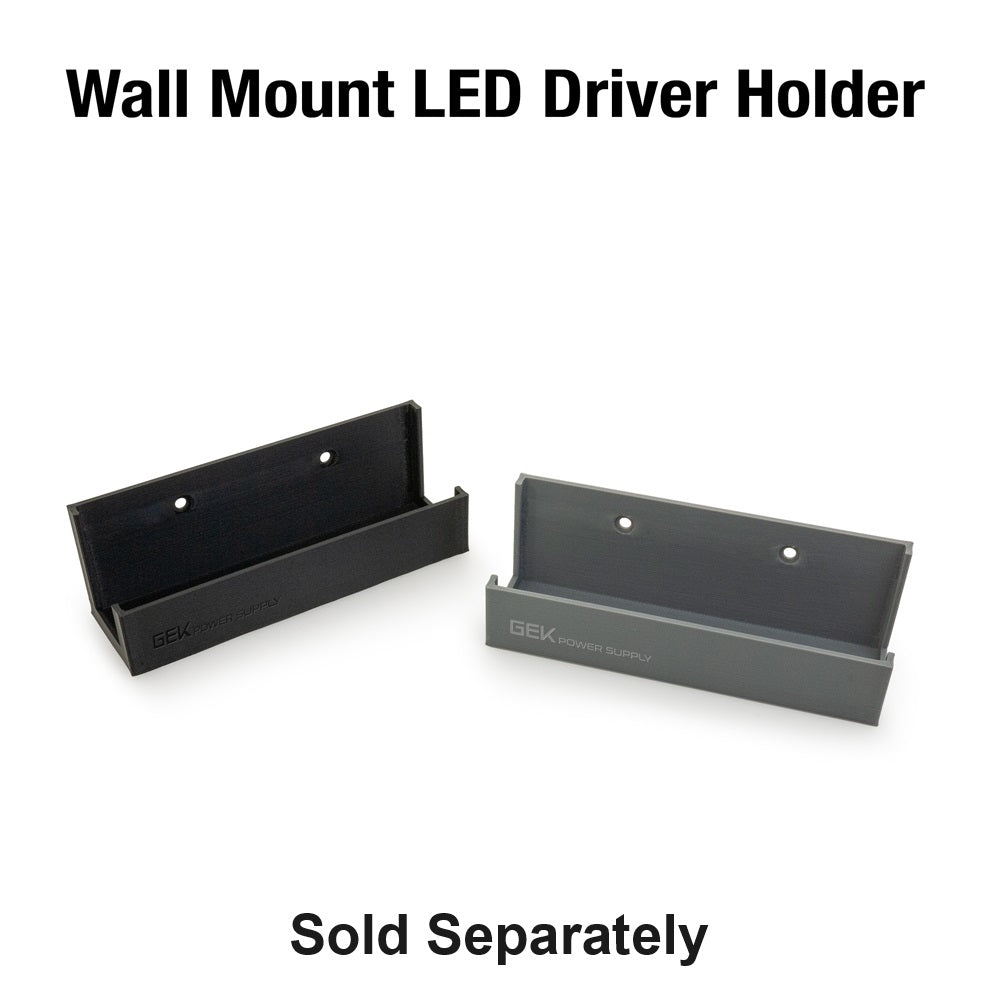

| Accessories(Sold Separately) | 60W Plug-In Driver Holder |

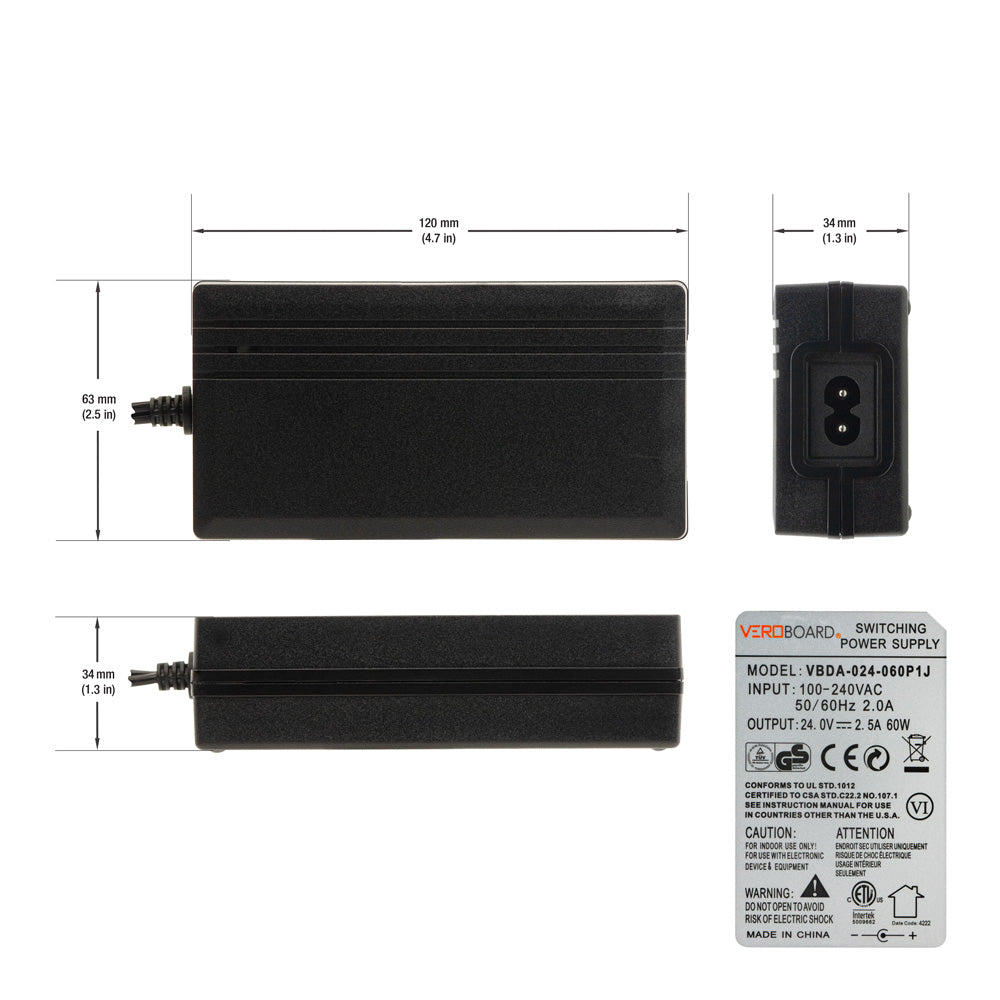

| Dimensions | 120 x 63 x 34mm (4.7 x 2.5 x 1.3in) |
| Certification |

|
Features:
- Converts input voltage range of 100-240V AC to a 24V DC output voltage
- Operates at a frequency of 50/60Hz and provides a maximum output power of 60W
- Suitable for powering low voltage devices such as LED lighting systems and CCTV cameras
- Output current of 2.5A
- Not dimmable and designed for indoor use only with an IP20 rating

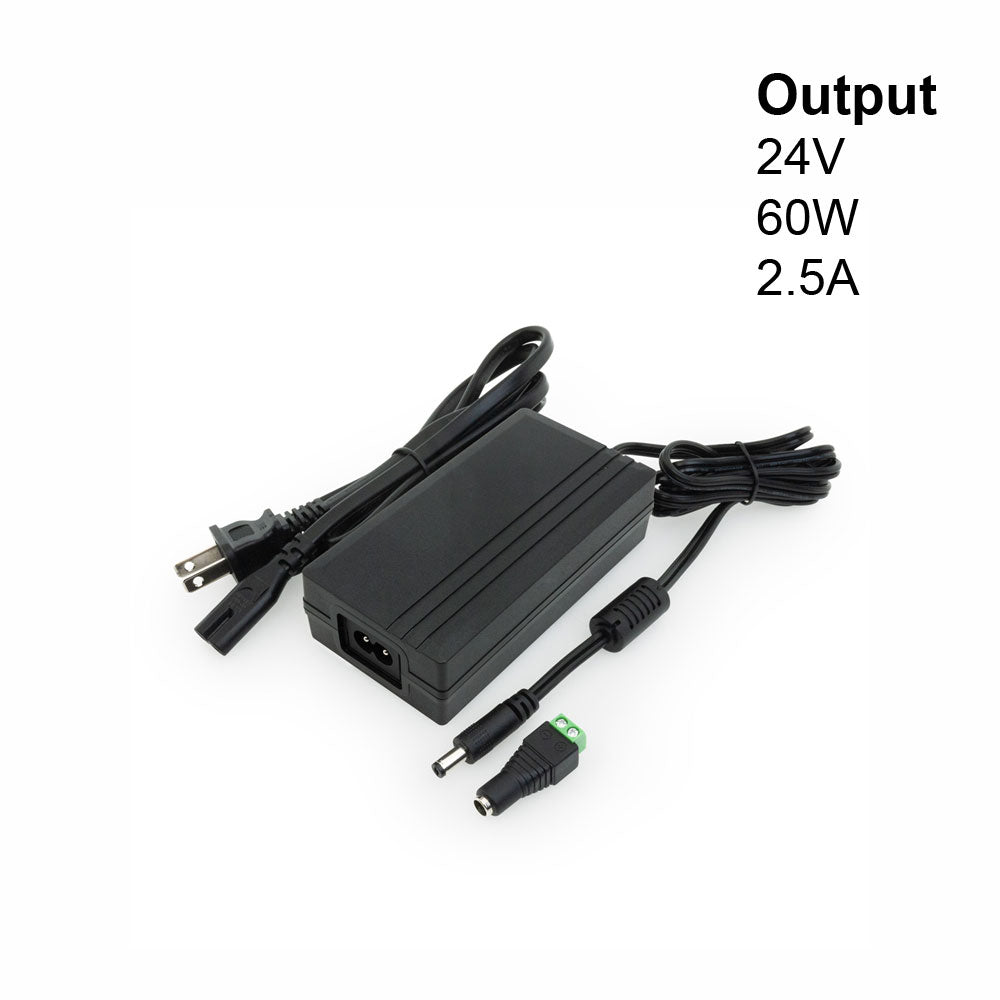

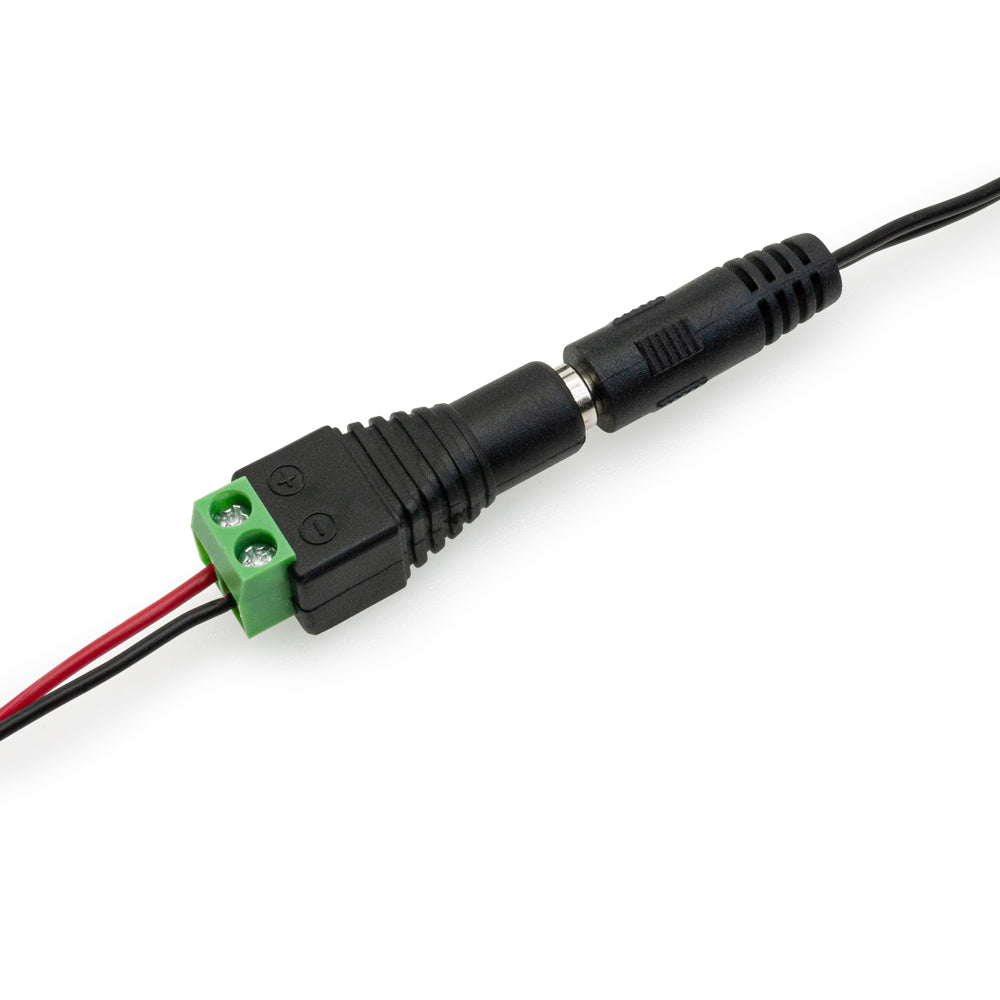

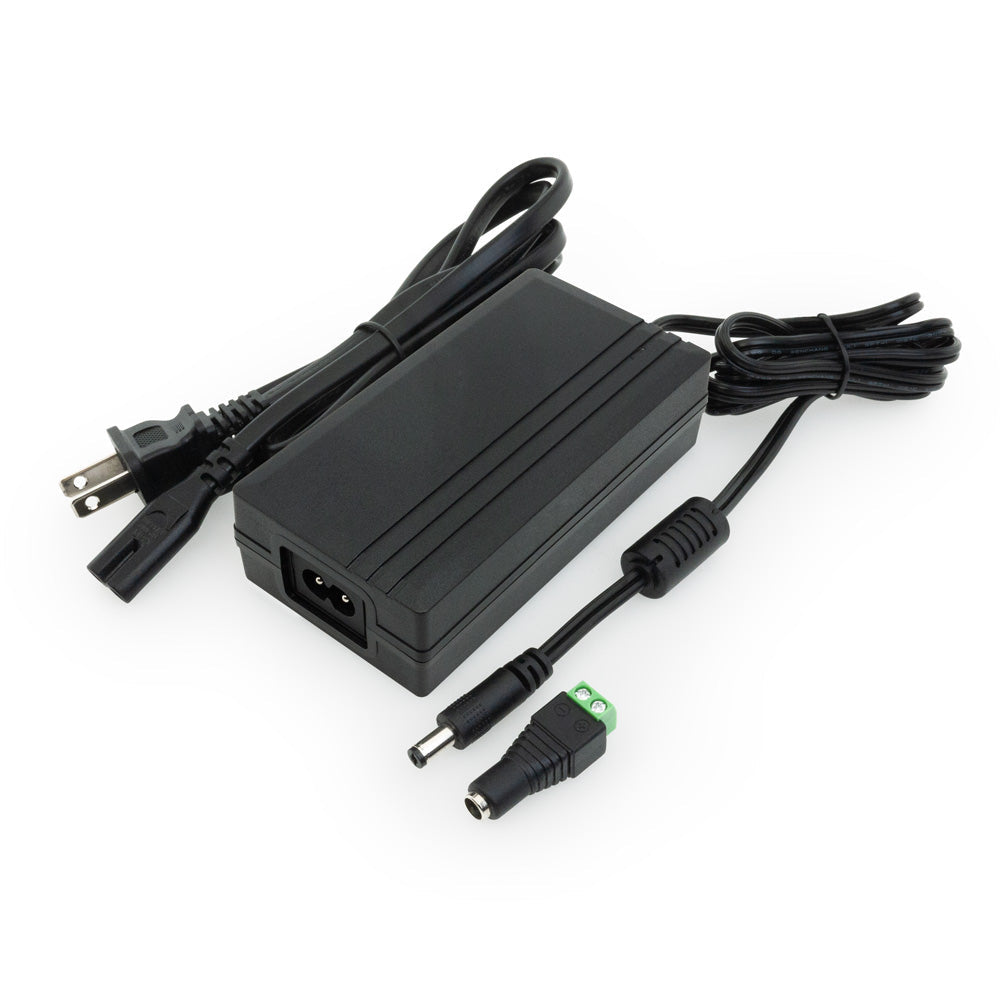

- Comes with a power cord and a 2.1mm connector to wire
- Class 2/Class II certified for safety in areas where safety is a concern
- ETL certified, meeting safety and performance standards set by the electrical safety testing organization.
