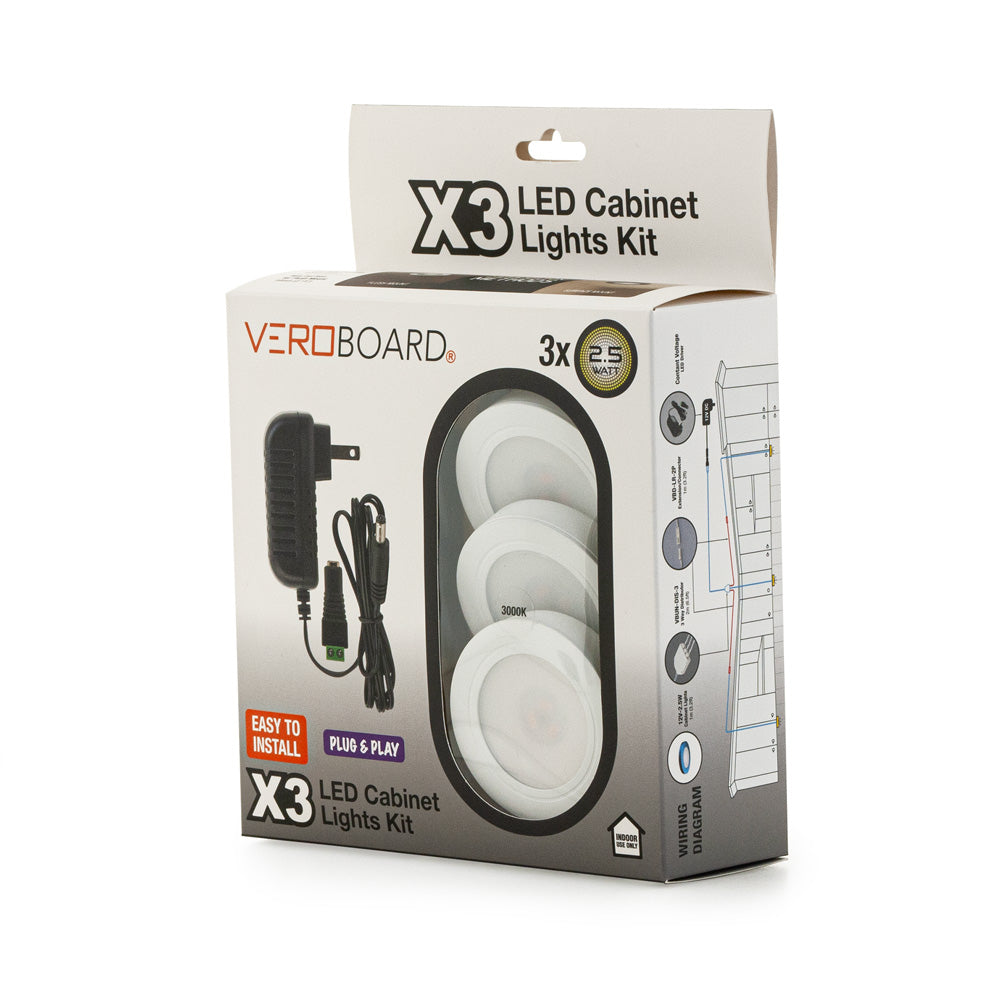

VBUN-25-12-W3K-X3P Retrofit Cabinet Light Kit Plug & Play 12V 2.5W 3000K (Pack of 3)

VBUN-25-12-W3K-X3P Retrofit Cabinet Light Kit Plug & Play 12V 2.5W 3000K (Pack of 3)

SKU: SKU:666561433437

Regular price $74.12 CAD
Regular price $101.25 CAD Sale price $74.12 CAD
Sale Sold out
Shipping calculated at checkout.

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25



Product Description

Package Model: VBUN-25-12-W3K-X3P

Product Under Cabinet Lights
Voltage 12V DC
Wattage 2.5W (each light)
LED Type 3 x 5730 SMD
Trim color White
Luminous Flux 230-250 Lumens
Beam Angle 120°
Color Temperature 3000K (Warm White)
Material Aluminum
IP Rating IP20 (Dry and Damp Locations)
Rendering Index CRI>90
Dimmable Yes
Wire length 39 inches (1 meter)
Installation Type Both Flush Mount/ Recessed and Surface Mount Installation

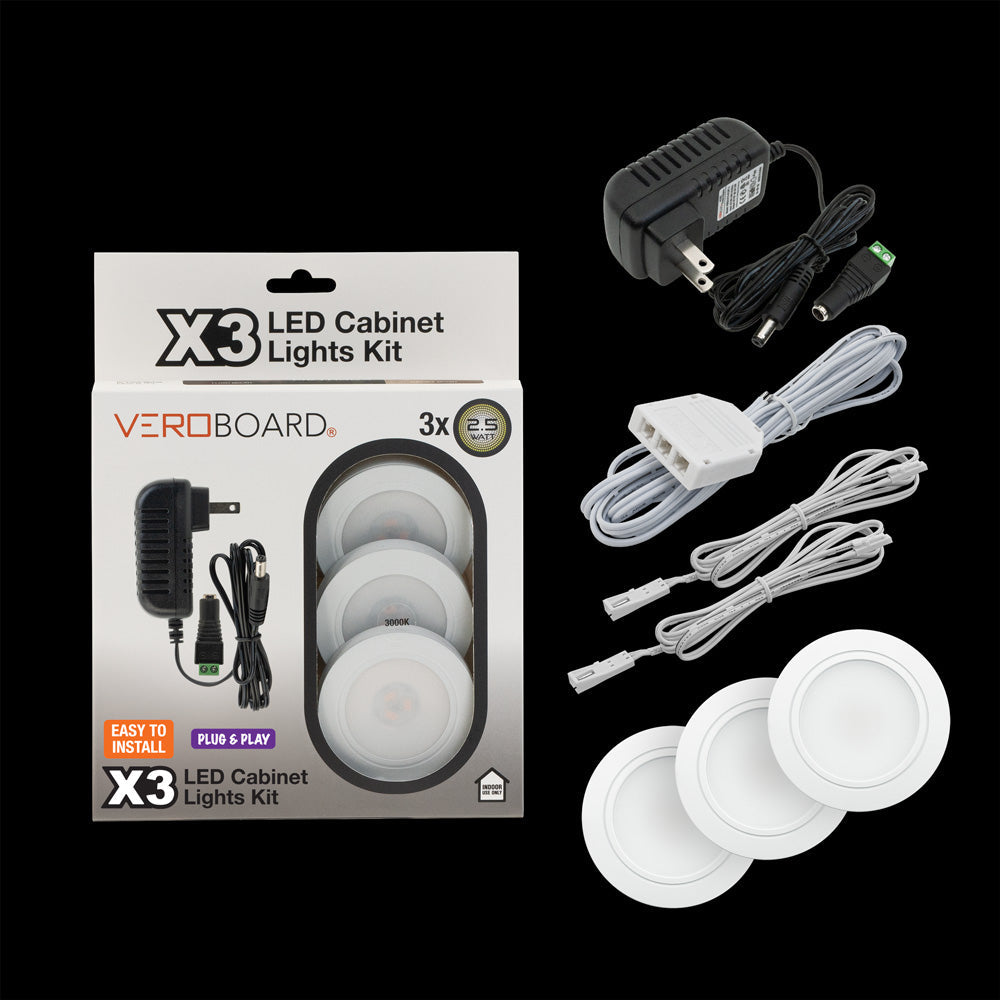

Package Content Three round Cabinet Lights
One 12V DC Non-Dimmable LED Driver

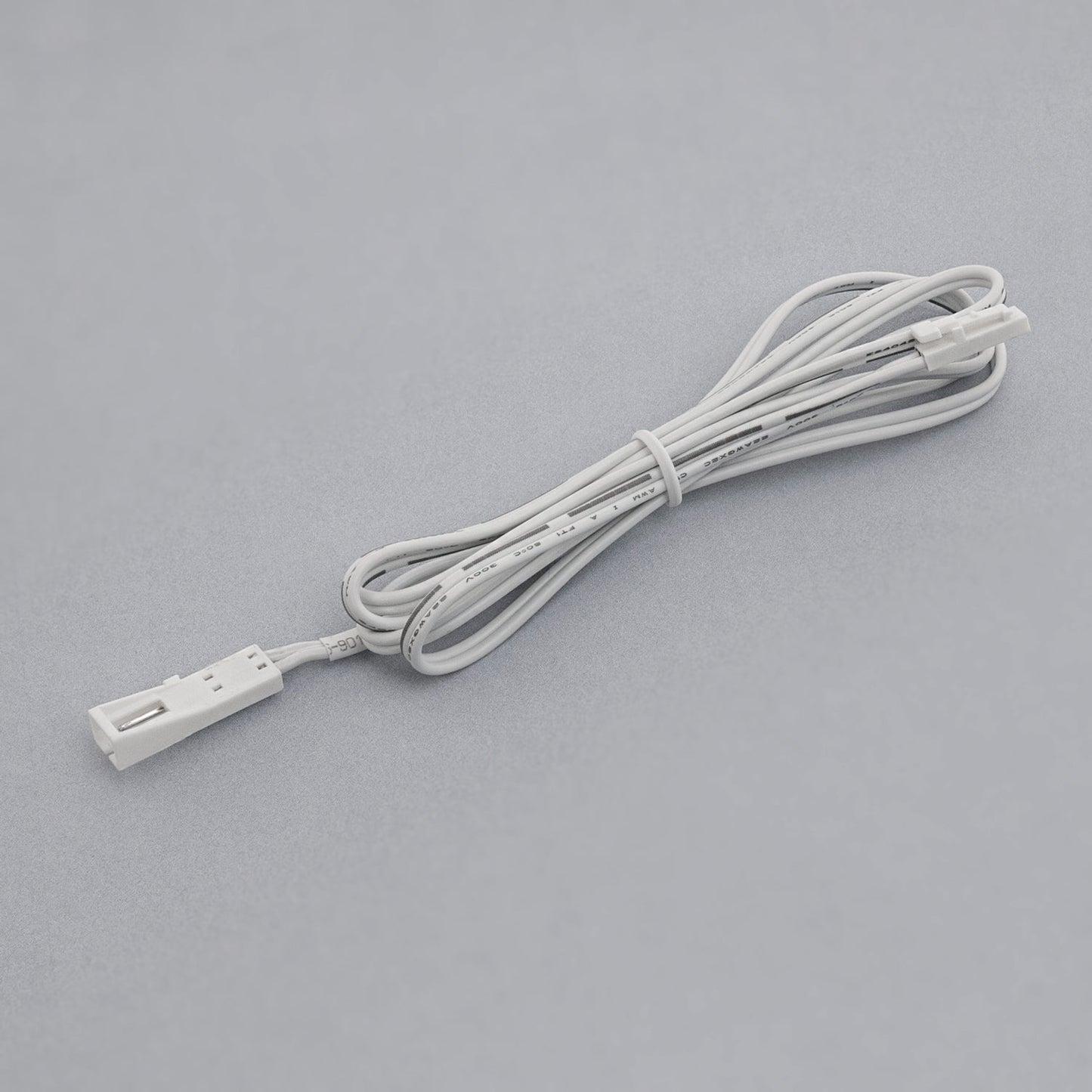

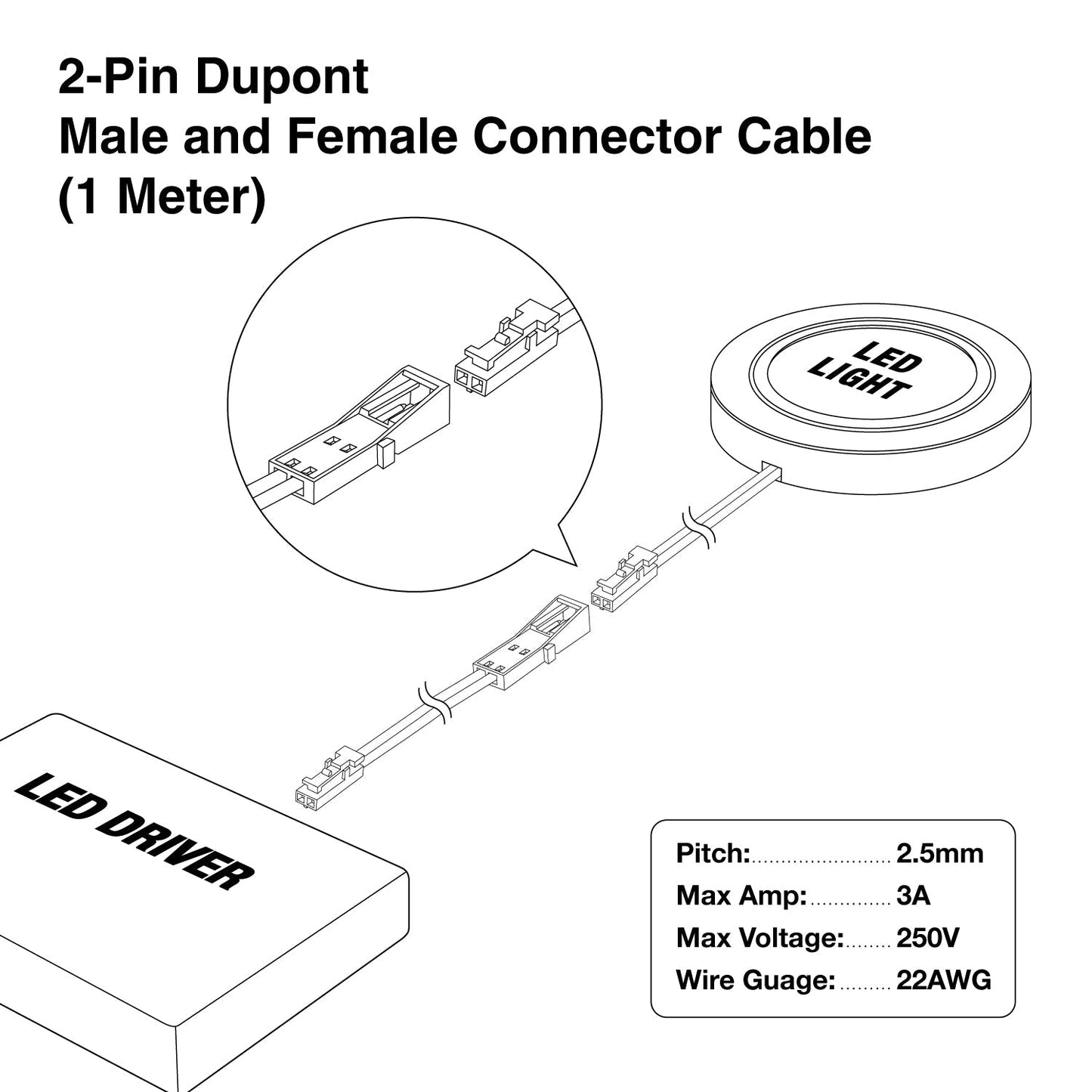

Two 2-pin Dupont Male and Female Extension/Connector Cable

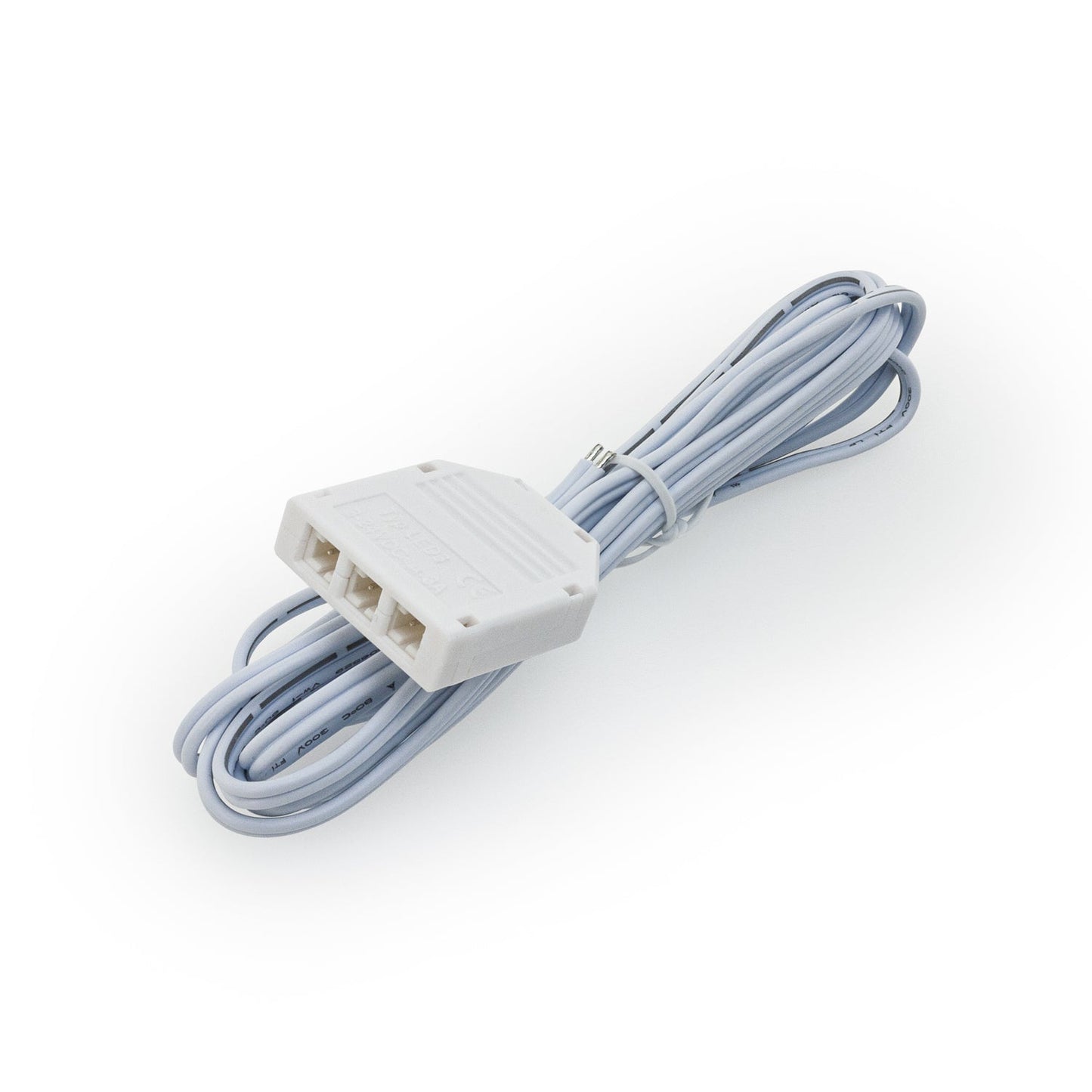

One 3-way Distributor Terminal

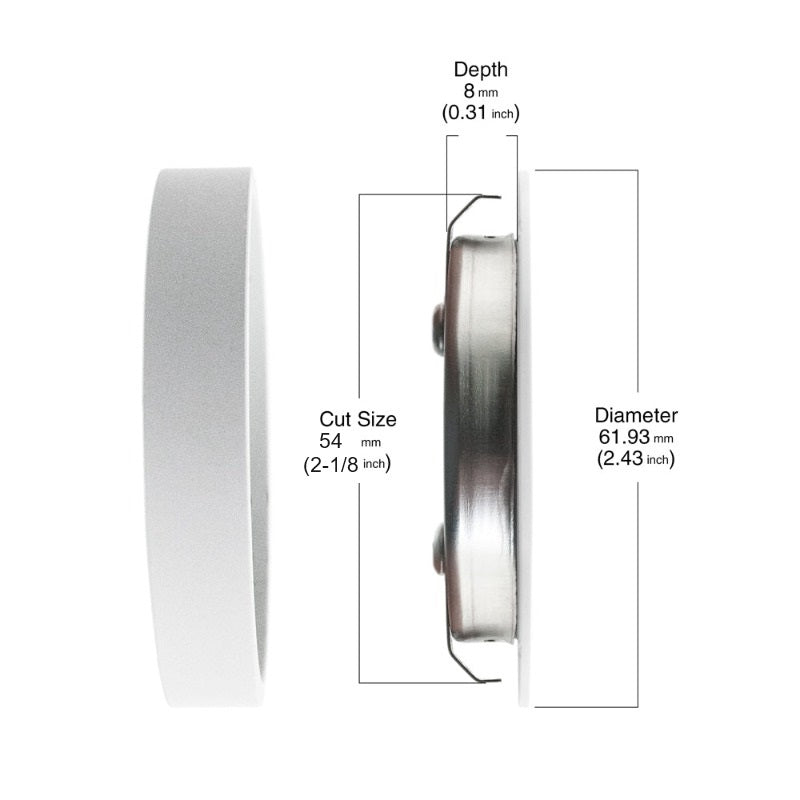

Dimensions 62 mm (2.43 in) Dia x 8 mm (0.31 in) Depth
Cut Size  54 mm (2-1/8 inch)
Certification

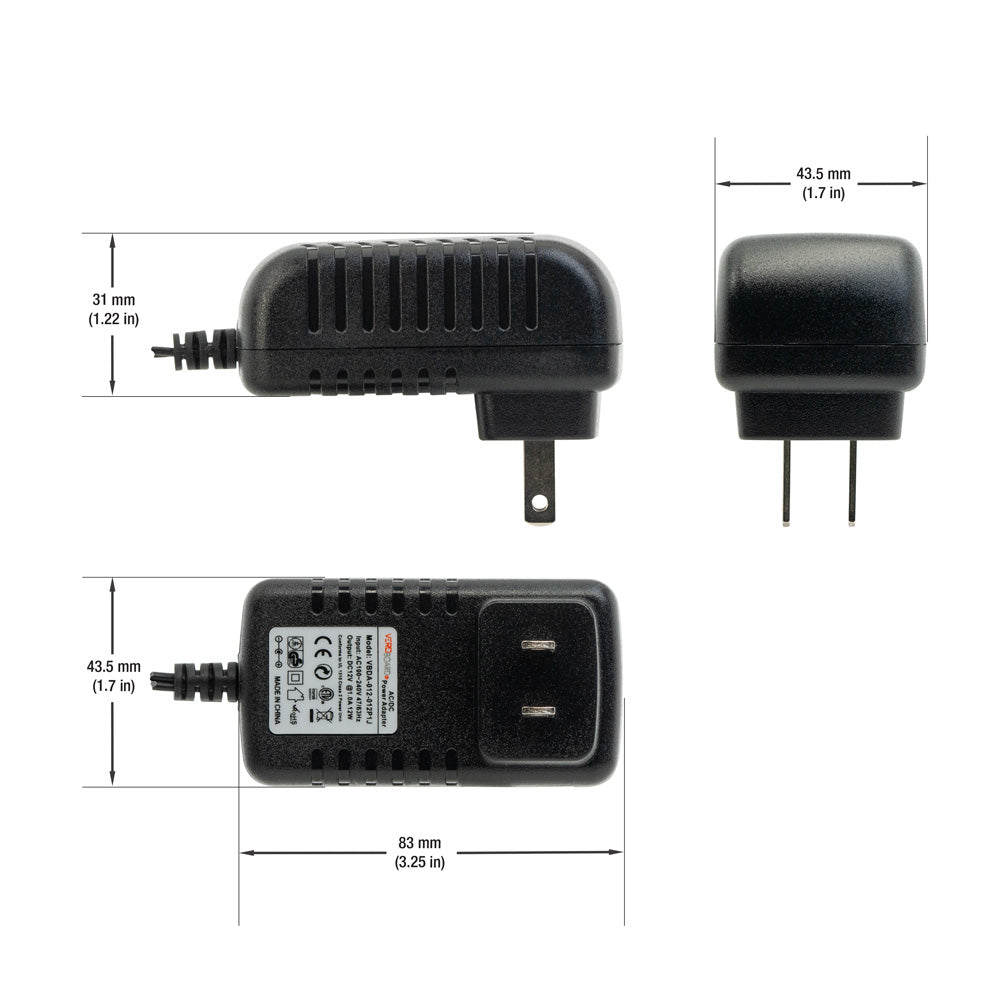

Product LED Driver
Input Voltage 100-240V AC
Input Current 0.5A
Frequently 47/63 Hz
Output Voltage 12V DC
Output regulated Current 1.0A
Output Power 12W
Installation Type Plug-In
IP Rating IP20 (Dry and Damp Locations)
Class Certification Class II
Dimmable No
Dimensions 120 x 34 x 34mm (4.7 x 1.3 x 1.3in)
Certification



The VBUN-25-12-W3K-X3P Round LED Cabinet Lights are a type of cabinet lighting or puck lights used in the wardrobe, cabinet, and shelves of a modern kitchen. These lights have a voltage of 12V DC and a wattage of 2.5W for each light, with an LED type of 3 x 5730 SMD.

The LED driver has six output channels with input voltages between 100-240V AC at 47/63 Hz frequency and an input current of 0.5A. And Dupont connector type, each providing a regulated output current of 1.0A at 12V DC. The device has a maximum output power of 12W.

These lights are available in different color trims with the same brightness of different color temperatures. They come with 3'9" feet of wire AWG 22. Overall, the VBUN-25-12-W3K-X3P White Round LED Cabinet Lights are a great replacement for a halogen light fixture with a cut size of 54 mm (2 1/8 inch), providing high-quality lighting for cabinets and shelves.

Features:

  • Type of cabinet lighting or cabinet puck lights suitable for modern kitchen cabinets, wardrobes, and shelves
  • Voltage of 12V DC and wattage of 2.5W, with 3 x 5730 SMD LEDs
  • Aluminum housing allows for efficient heat dissipation, with a long lifespan and low light decay
  • Can be used as both flush mount and surface mount, with a rated CRI >90 and meeting Canadian and United States standards with UL STD. C22.2
  • IP20 rating makes them suitable for dry and damp locations

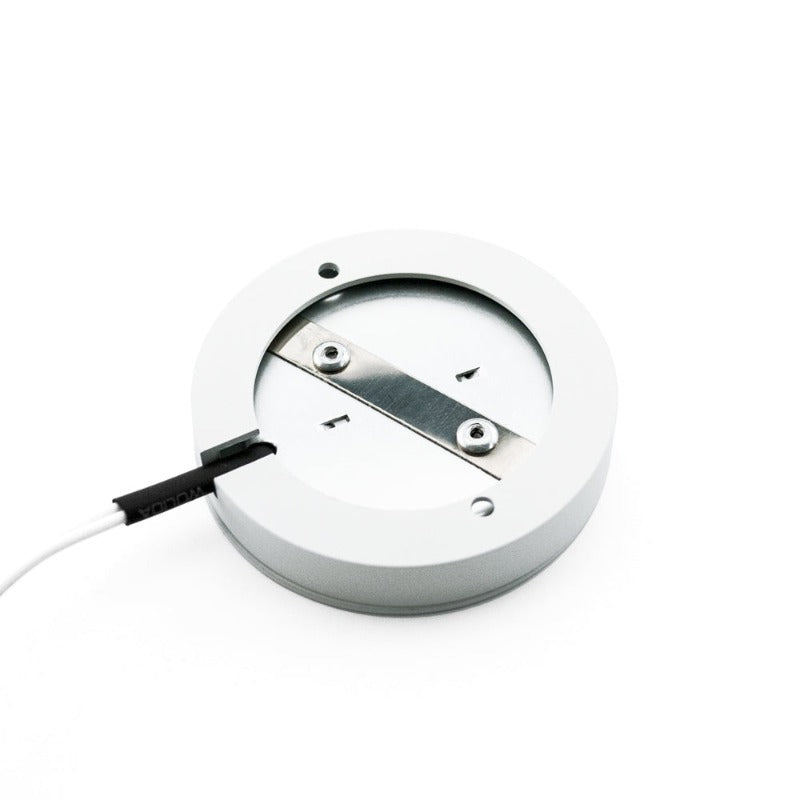

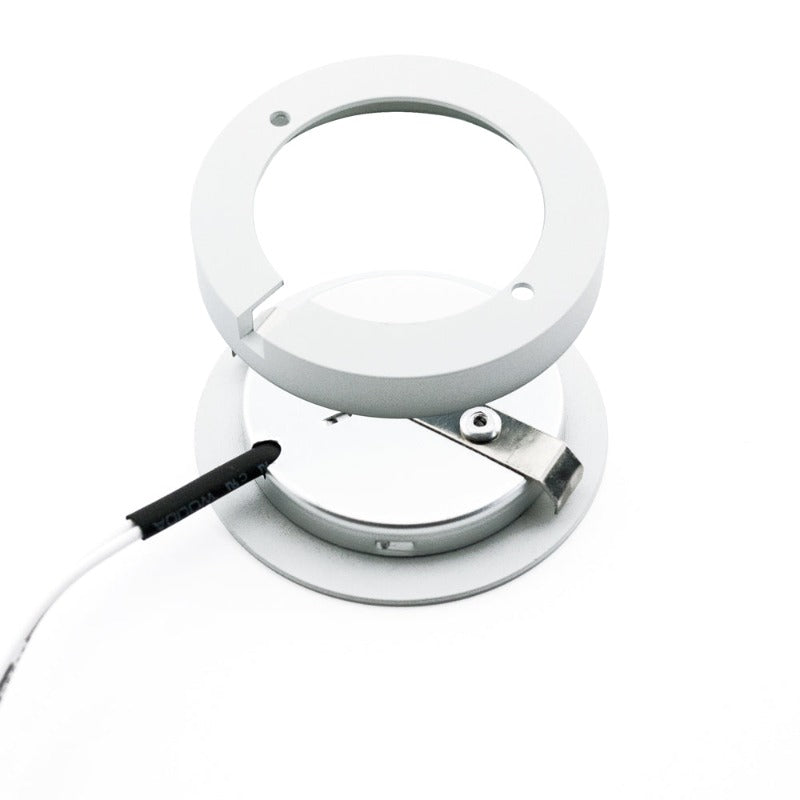

  • Easy to install with push springs for flush mount and direct screw-on surface mounting options
  • Great replacement for halogen light fixtures, with a cut size of 54 mm (2 1/8 inch), providing high-quality lighting for cabinets and shelves
