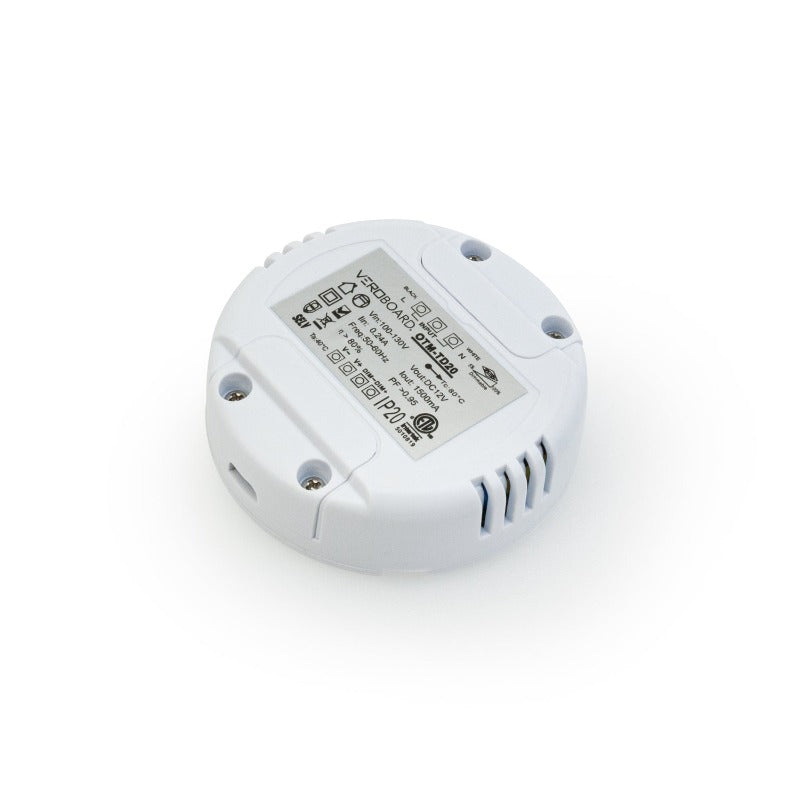

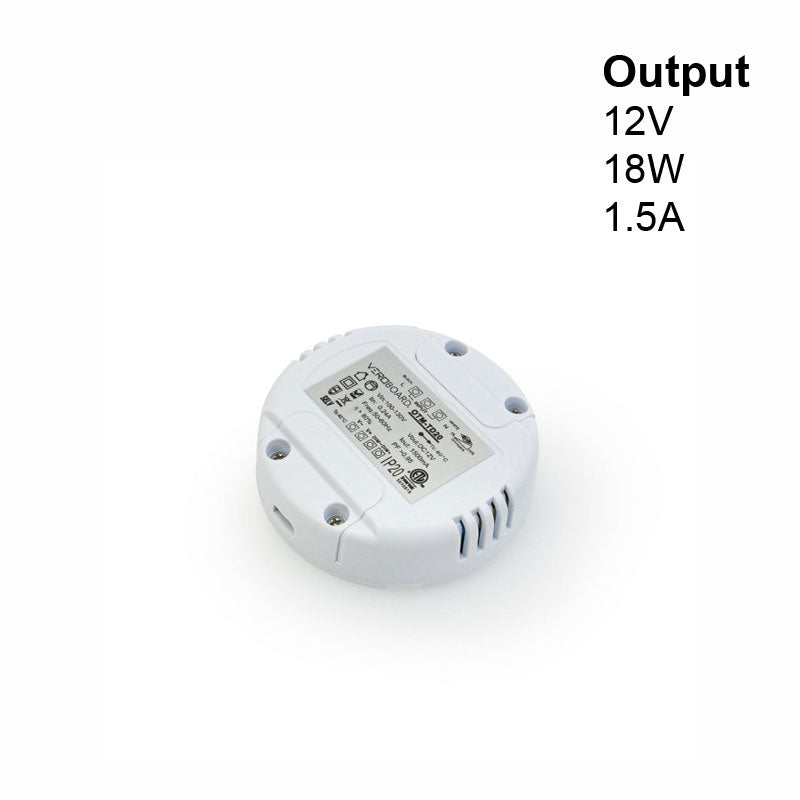

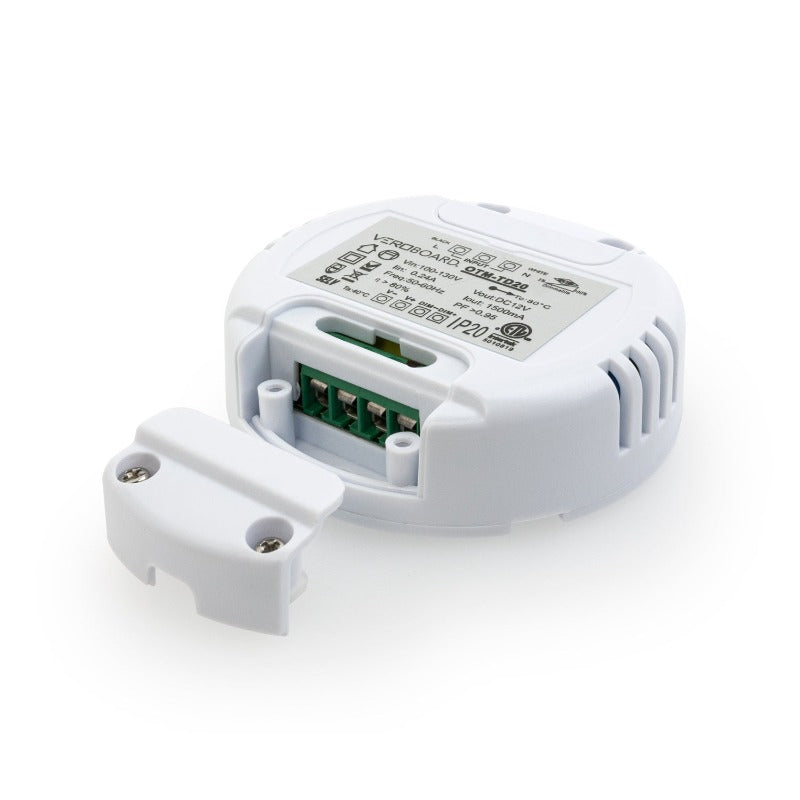

OTM-TD20 Constant Voltage Driver, 0-10V Dimming LED Driver 12V 18W

OTM-TD20 Constant Voltage Driver, 0-10V Dimming LED Driver 12V 18W

SKU: SKU:666561425517

Regular price $58.80 CAD
Regular price Sale price $58.80 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

Important Note:
We will ship your order  using a different courier during  the Canada Post strike

 How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25




Product Description

Model OTM-TD20
Input Voltage 100-130V AC
Input Current 0.24A
Frequency 50-60Hz
Efficiency >80%
Output Voltage 12V DC
Output regulated Current 1500mA
Output Power 18W max
Power Factor >0.95
Dimmable Yes (0-10V Dimming)
IP Rating IP20
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 80°C
Class Certification Class II/ SELV

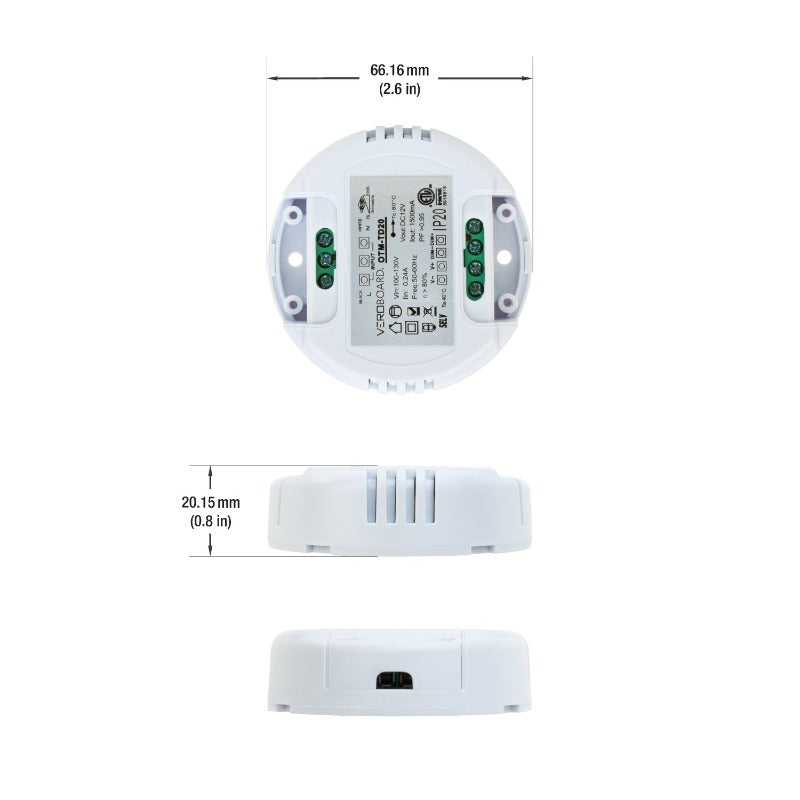

Dimensions Ø 66.16mm (2.6 in)
Depth 20.15mm (0.8 in)
Certification
Compatible with 0-10V Dimmers
Applicable for Dry and Damp locations
Short circuit and Overload Protected
Class II Power Supply, Double-layer insulation
Easily fits in a 1-Gang Standard Box or Single Gang Box



The OTM-TD20 is a constant voltage LED driver that supports 0-10V dimming. Its model number is OTM-TD20. The driver operates with an input voltage range of 100-130V AC and input current of 0.24A at a frequency of 50-60Hz. It has an efficiency of greater than 80%. The driver provides an output voltage of 12V DC with a regulated current of 1500mA and a maximum power output of 18W. The power factor of the driver is greater than 0.95. The OTM-TD20 is dimmable using 0-10V dimming and has an IP rating of IP20. It operates at an ambient temperature of 40°C and has a maximum case temperature of 80°C. The driver is Class II/ SELV certified and has dimensions of 66.16mm x 20.15mm (2.6 in) Dia x (0.8 in) Depth. It is certified by ETL.

Features:

  • Model number: OTM-TD20
  • Constant voltage LED driver with 0-10V dimming support
  • Input voltage range: 100-130V AC
  • Input current: 0.24A
  • Frequency: 50-60Hz
  • Efficiency >80%
  • Output voltage: 12V DC
  • Regulated current: 1500mA
  • Maximum power output: 18W
  • Power factor >0.95
  • IP rating: IP20
  • Ambient temperature: up to 40°C
  • Maximum case temperature: 80°C
  • Class II/SELV certified for protection against electric shock
  • Dimensions: 66.16mm x 20.15mm (2.6 in) diameter x (0.8 in) depth
  • ETL certified for safety and performance standards in the US and Canada.
