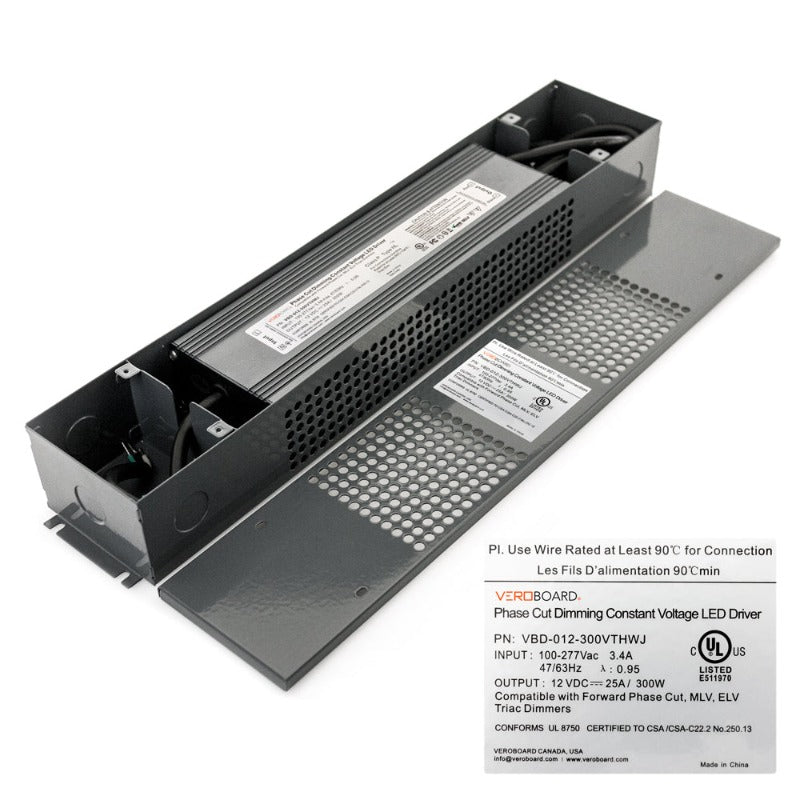

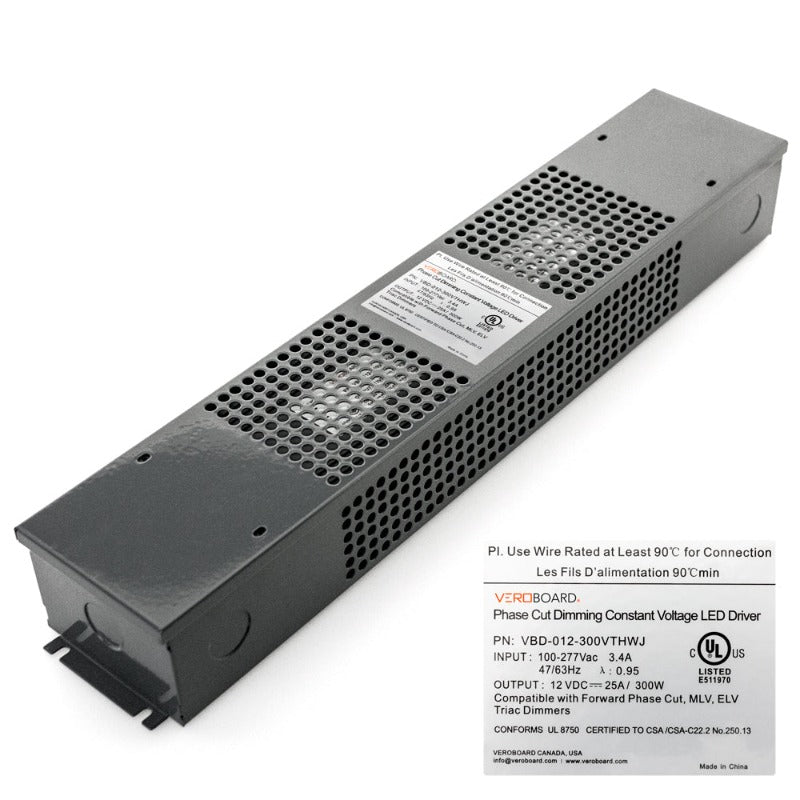

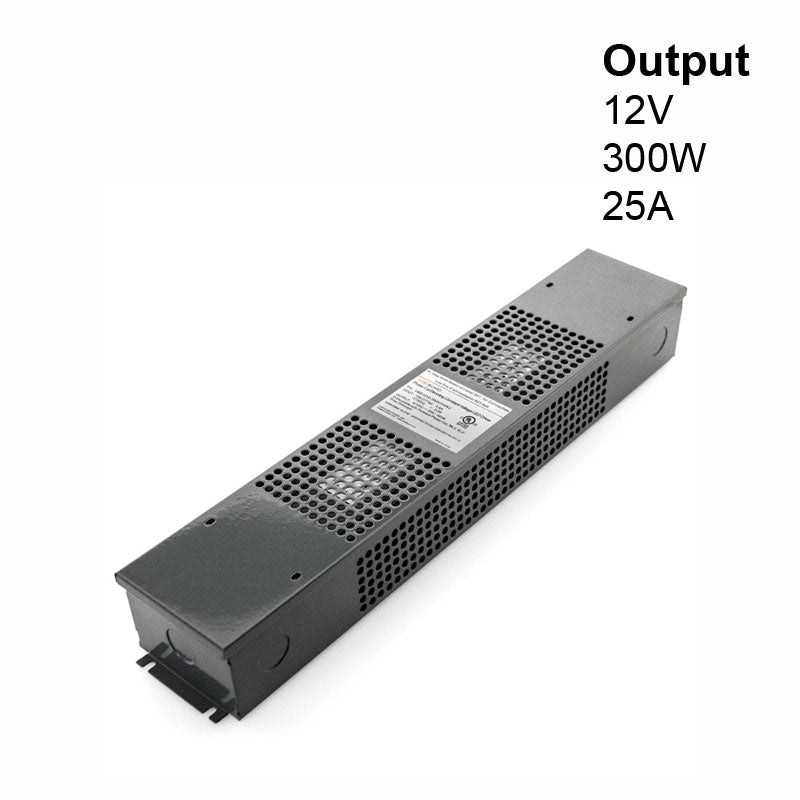

VBD-012-300VTHWJ Triac Dimmable Constant Voltage LED Driver, 12V 25A 300W
VBD-012-300VTHWJ Triac Dimmable Constant Voltage LED Driver, 12V 25A 300W
SKU: SKU:666561419790
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25
Product Description
| Model | VBD-012-300VTHWJ |
| Input Voltage | 100 – 277V AC |
| Input Current | 3.4A |
| Frequency | 47/63Hz |
| Power Factor | 0.95 |
| Output Voltage | 12V DC |
| Output regulated Current | 25A |
| Output Power | 300W max |
| Dimmable | Yes (Phase/ Triac/ Magnetic Low Voltage Dimming) |
| Class Certification | Class P Type HL/ SELV |
| IP Rating | IP65 |
| Dimensions (Without Box) | 254x 77.5x 45.5mm(10 x 3 x 1.8 in) |
| Dimensions (Box) | 440 x 86 x 59.4mm (17.31 x 3.38 x 2.34 in) |
| Certifications |    |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
| Suitable for Dry, Damp, and Wet locations. |
The VBD-012-300VTHWJ Triac Dimmable Constant Voltage LED Driver Model is a power supply unit designed for use with LED lighting systems. It operates with an input voltage range of 100 – 277V AC and an input current of 3.4A, with a frequency range of 47/63Hz. The power factor of this LED driver is 0.95, indicating high energy efficiency.
This model provides a regulated output voltage of 12V DC, with a maximum output power of 300W. The output regulated current of this LED driver is 25A, making it suitable for powering a variety of LED lights.
One of the notable features of this LED driver is its dimming capability, which allows for Phase, Triac, and Magnetic Low Voltage dimming. This allows for greater flexibility in controlling the brightness of LED lights.
The VBD-012-300VTHWJ LED driver is designed to be used in outdoor environments, with an IP65 rating. This makes it suitable for use in locations where it may be exposed to moisture, dust, or other outdoor elements.

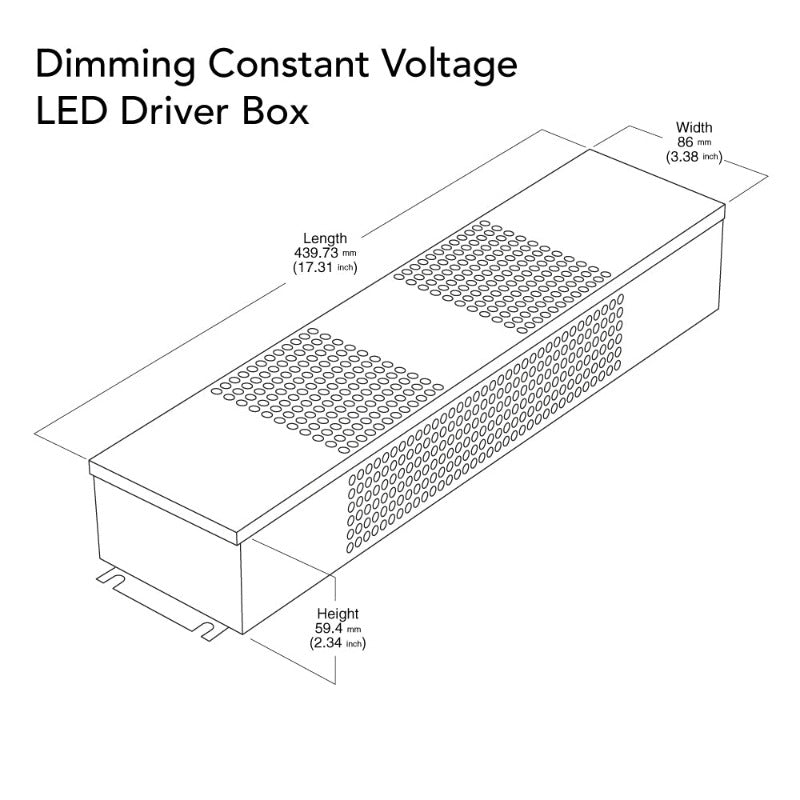

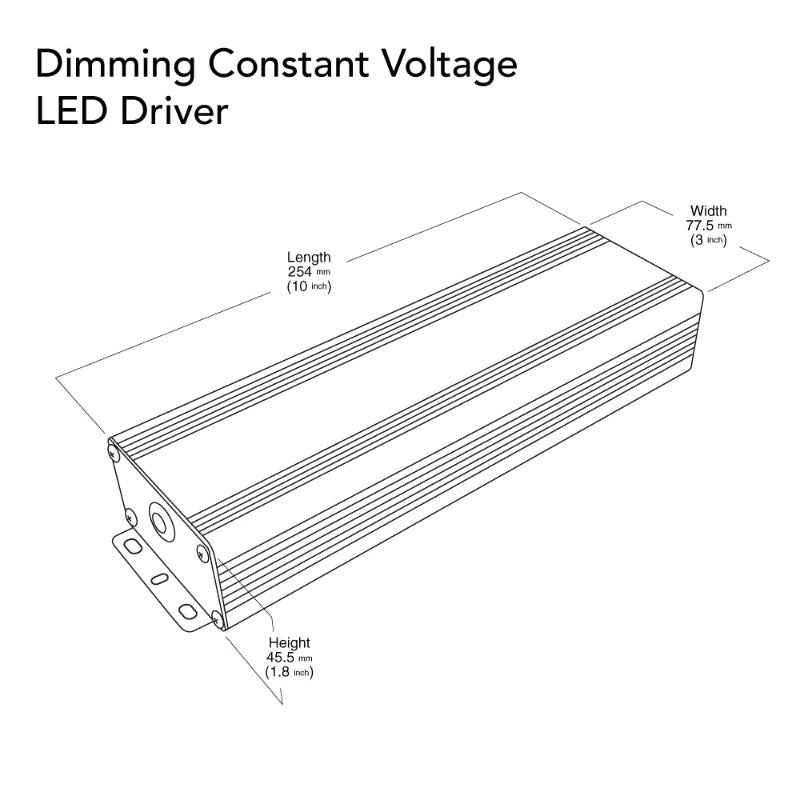

The dimensions of this LED driver are 254x 77.5x 45.5mm(10 x 3 x 1.8 in) without the box, and 440 x 86 x 59.4mm (17.31 x 3.38 x 2.34 in) with the box. Additionally, it has Class P Type HL/ SELV certification, which indicates that it meets certain safety standards for use in hazardous locations, and ETL certification, which is a safety certification for electrical products in North America.
Features:
- The VBD-012-300VTHWJ Triac Dimmable Constant Voltage LED Driver Model is a power supply unit designed for use with LED lighting systems.
- It operates with an input voltage range of 100 – 277V AC and an input current of 3.4A, with a frequency range of 47/63Hz.
- The power factor of this LED driver is 0.95, indicating high energy efficiency.
- This model provides a regulated output voltage of 12V DC, with a maximum output power of 300W.
- The output regulated current of this LED driver is 25A, making it suitable for powering a variety of LED lights.
- It has dimming capability, allowing for Phase, Triac, and Magnetic Low Voltage dimming.
- The VBD-012-300VTHWJ LED driver is designed for outdoor use, with an IP65 rating, making it suitable for use in locations where it may be exposed to moisture, dust, or other outdoor elements.
- The dimensions of this LED driver are 254x 77.5x 45.5mm(10 x 3 x 1.8 in) without the box, and 440 x 86 x 59.4mm (17.31 x 3.38 x 2.34 in) with the box.
- It has Class P Type HL/ SELV certification, indicating that it meets certain safety standards for use in hazardous locations.
- It also has ETL certification, which is a safety certification for electrical products in North America.
