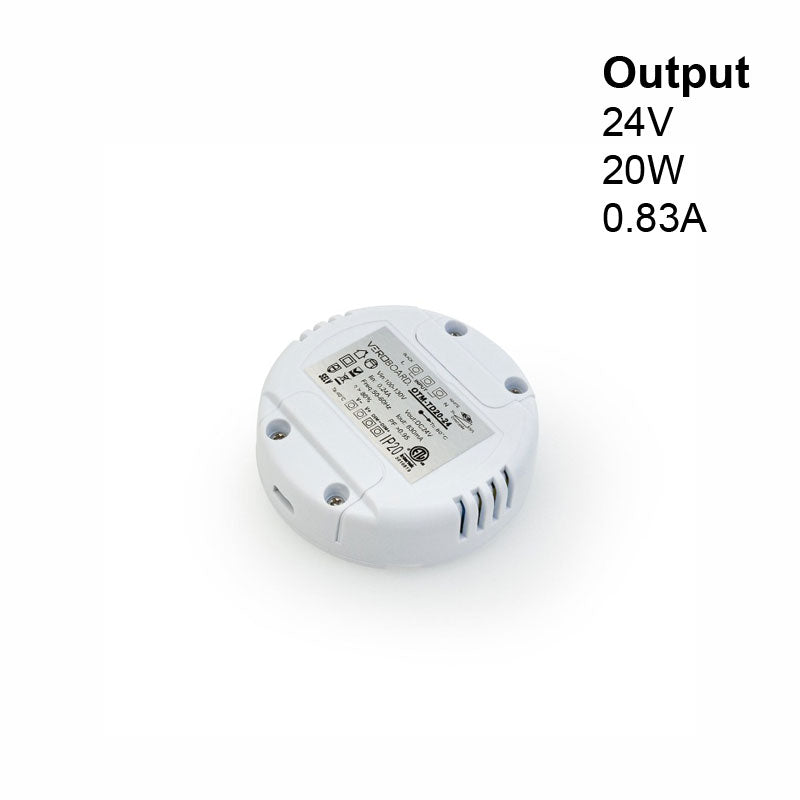

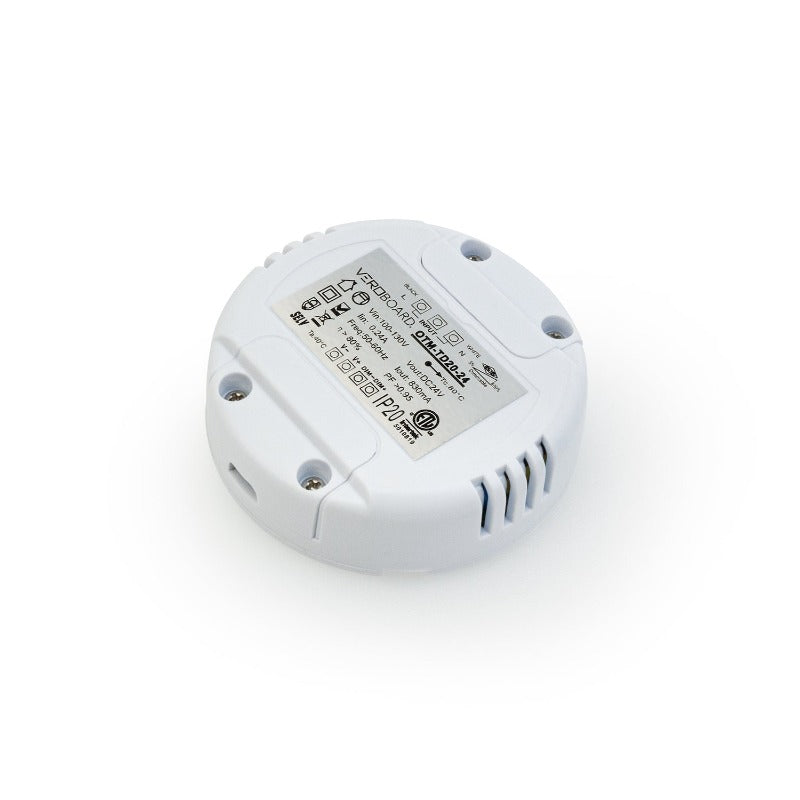

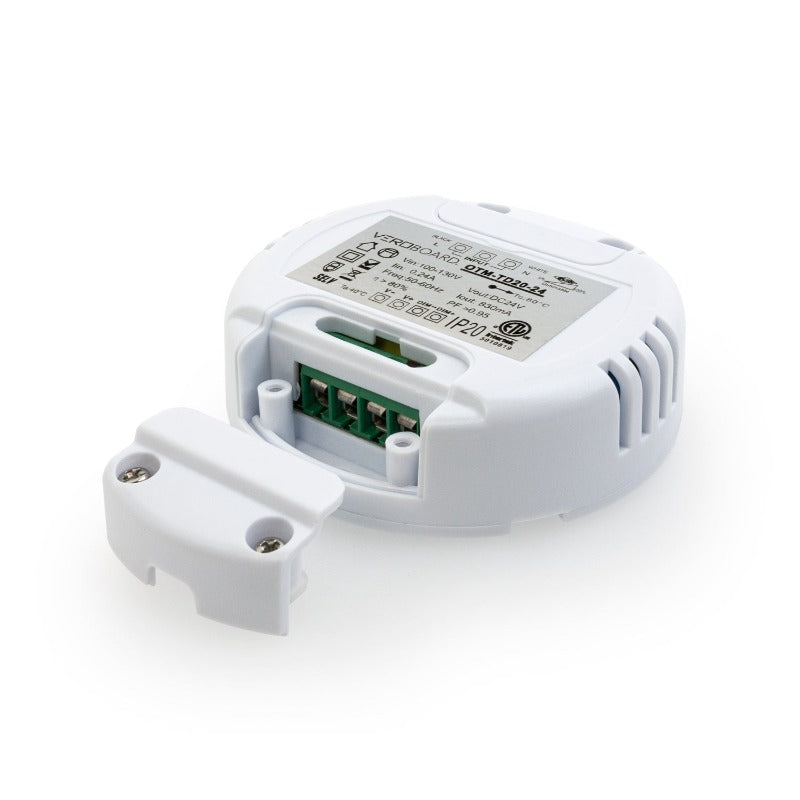

OTM-TD20-24 0-10V Dimmable Constant Voltage LED Driver, 24V 0.83A 20W

OTM-TD20-24 0-10V Dimmable Constant Voltage LED Driver, 24V 0.83A 20W

SKU:666561425524

$58.80 CAD
$58.80 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25




Product Description

Model OTM-TD20-24
Input Voltage 100-130V AC
Input Current 0.24A
Frequency 50-60Hz
Efficiency >80%
Output Voltage 24V DC
Output regulated Current 830mA
Output Power 20W max
Power Factor >0.95
Dimmable Yes (0-10V Dimming)
IP Rating IP20
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 80°C
Class Certification Class II/ SELV

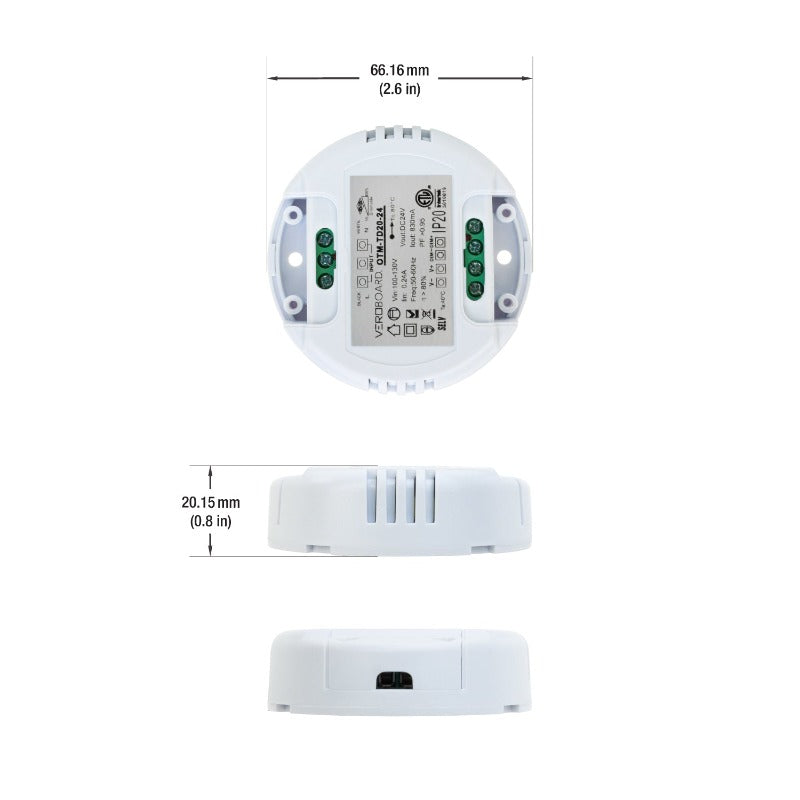

Dimensions Ø66.16mm (2.6in)
Depth 20.15mm (0.8 in)
Certification
Compatible with 0-10V Dimmers
Applicable for Dry and Damp locations
Short circuit and Overload Protected
Class II Power Supply, Double-layer insulation
Easily fits in a 1-Gang Standard Box or Single Gang Box



The OTM-TD20-24 LED driver is a dimmable constant voltage driver designed for use with LED lighting systems. It has an input voltage range of 100-130V AC, an input current of 0.24A, and a frequency of 50-60Hz. The driver has an efficiency rating of greater than 80% and an output voltage of 24V DC. It can regulate output current up to 830mA and has a maximum output power of 20W. The power factor is greater than 0.95, indicating high power efficiency. The driver is dimmable, allowing for 0-10V dimming control. The driver is rated IP20 for indoor use only and can operate in ambient temperatures up to 40°C, with a case temperature limit of 80°C. It is Class II/SELV certified for electrical safety and has dimensions of 66.16mm x 20.15mm, making it a compact driver. The driver is ETL certified, indicating it has met relevant safety standards.

Features:

  • Dimmable constant voltage LED driver
  • Input voltage range: 100-130V AC, input current: 0.24A, frequency: 50-60Hz
  • Efficiency rating: >80%, output voltage: 24V DC
  • Output current regulation up to 830mA, maximum output power: 20W
  • Power factor: >0.95, indicating high power efficiency
  • Dimming control: 0-10V
  • Rated IP20 for indoor use only, operating temperature: up to 40°C, case temperature limit: 80°C
  • Class II/SELV certified for electrical safety
  • Compact dimensions: 66.16mm x 20.15mm
  • ETL certified, meeting relevant safety standards.
