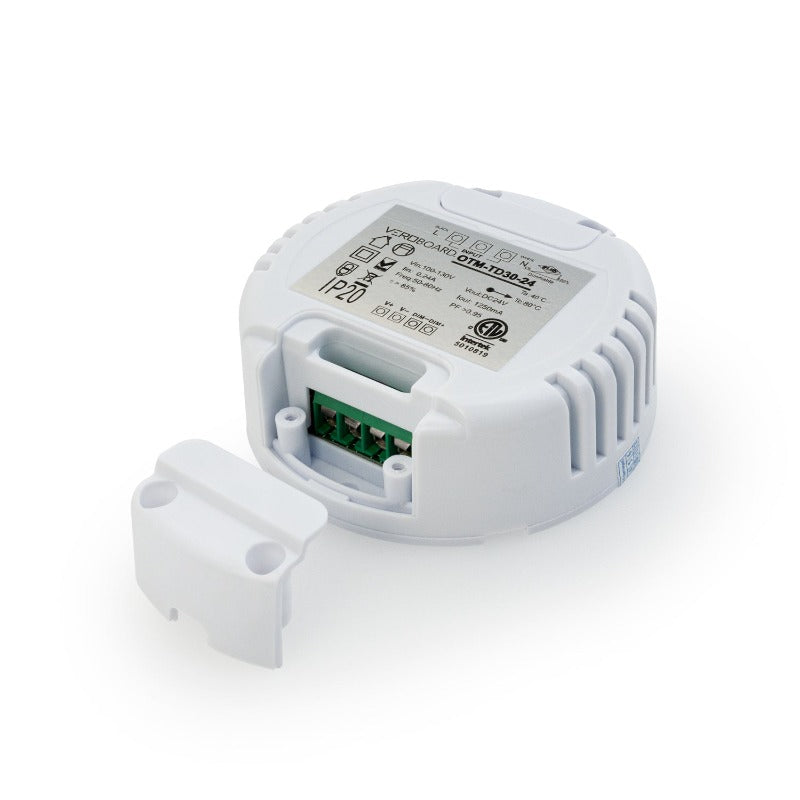

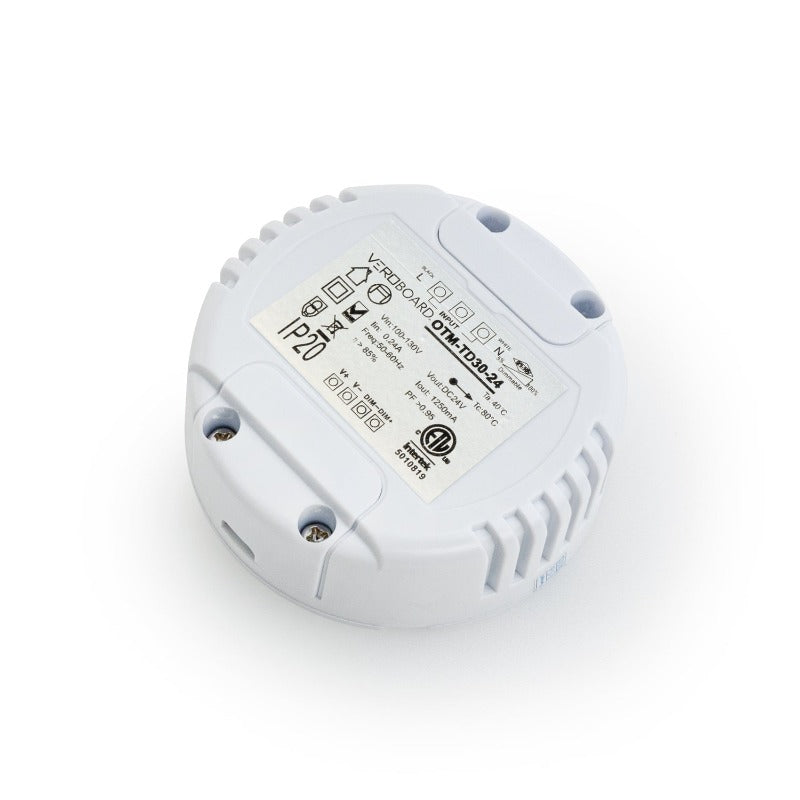

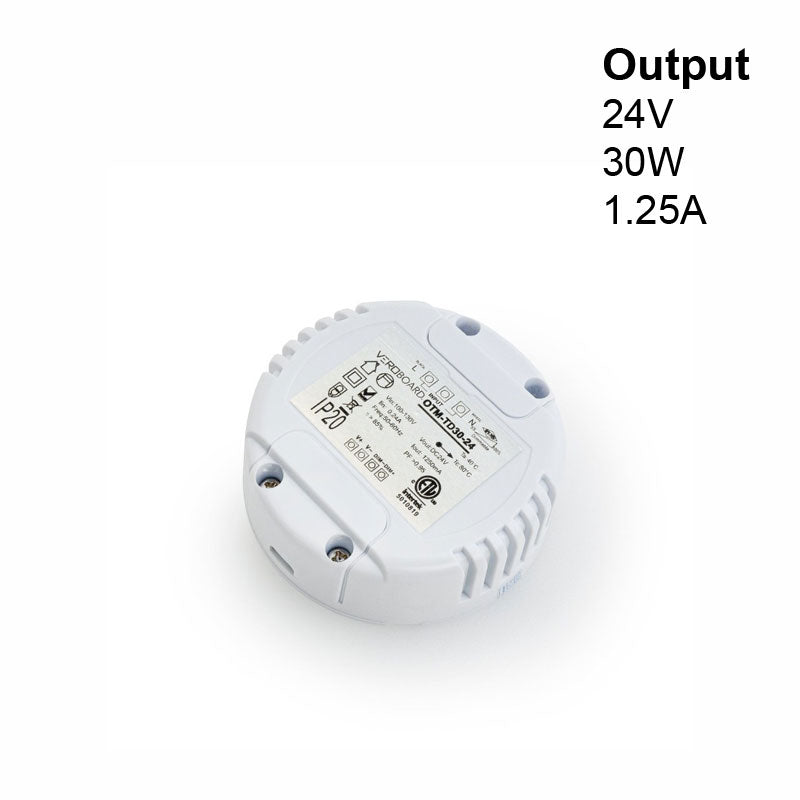

OTM-TD30-24 0-10V Dimmable Constant Voltage LED Driver, 24V 1.25A 30W

OTM-TD30-24 0-10V Dimmable Constant Voltage LED Driver, 24V 1.25A 30W

Ask Question!

SKU: SKU:666561425548

Regular price $58.43 CAD
Regular price Sale price $58.43 CAD
Sale Sold out
Shipping calculated at checkout.

BUY MORE, SAVE MORE

The more you buy, the more you save!

MIX & MATCH — ALL PRODUCTS COUNT!

Combine different products in your cart to unlock bigger discounts.

5 LED modules + 5 LED drivers = 10 items → 15% off your order (preview only).

Proposed cart-wide discounts · preview only

Estimated cart subtotal after adding—
Bulk-tier savings estimate—

Estimates only; other offers may give a better price. Your cart and checkout confirm the final discount.

Checking your cart quantity…

Free Shipping

Free shipping on eligible orders of $99 CAD or more. Some products are excluded; checkout confirms eligibility and any shipping charges.

Available Discounts

Buy more, save more across your cart:

  • 10–24 items: 15% off
  • 25–49 items: 18% off
  • 50+ items: 20% off

Shipping & Return Policy

Orders ship within one business day, Monday–Friday, excluding Canadian statutory holidays. Weekend orders ship the following week. Delivery timing depends on the courier and service selected at checkout.

Eligible orders of $99 CAD or more qualify for free shipping. Product exclusions and oversized-item surcharges may apply; checkout confirms shipping charges.

Eligible returns and exchanges are accepted within 30 days of purchase. Items must be new, resellable and in their original packaging. A 30% restocking fee and shipping charges apply; product exclusions apply.

View full shipping, return and exclusion policies

View full details




Product Description

Model OTM-TD30-24
Input Voltage 100-130V AC
Input Current 0.24A
Frequency 50-60Hz
Efficiency >85%
Output Voltage 24V DC
Output regulated Current 1.25A
Output Power 30W max
Power Factor >0.95
Dimmable Yes (0-10V Dimming)
Weight 0.2 kg
IP Rating IP20
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 80°C
Class Certification Class II/ SELV

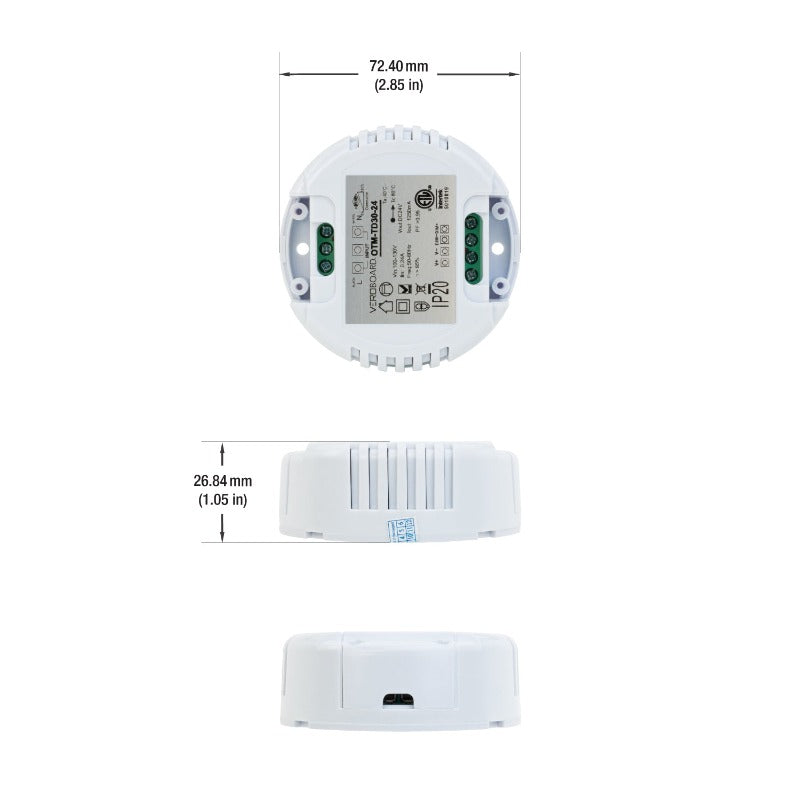

Dimensions Ø72.40mm (2.85 in)
Depth 26.84mm (1.05 in)
Certification
Compatible with 0-10V Dimmers
Applicable for Dry and Damp locations
Short circuit and Overload Protected
Class II Power Supply, Double-layer insulation
Easily fits in a 1-Gang Standard Box or Single Gang Box



Features:

  • Dimmable constant voltage LED driver
  • Input voltage range: 100-130V AC, input current: 0.24A, frequency: 50-60Hz
  • Efficiency rating: >85%, output voltage: 24V DC
  • Output current regulation up to 1.25A, maximum output power: 30W
  • Power factor: >0.95, indicating high power efficiency
  • Dimming control: 0-10V
  • Rated IP20 for indoor use only, operating temperature: up to 40°C, case temperature limit: 80°C
  • Class II/SELV certified for electrical safety
  • Compact dimensions: 72.40mm x 26.84mm (2.85 in) diameter x (1.05 in) depth
  • ETL certified, meeting relevant safety standards.
