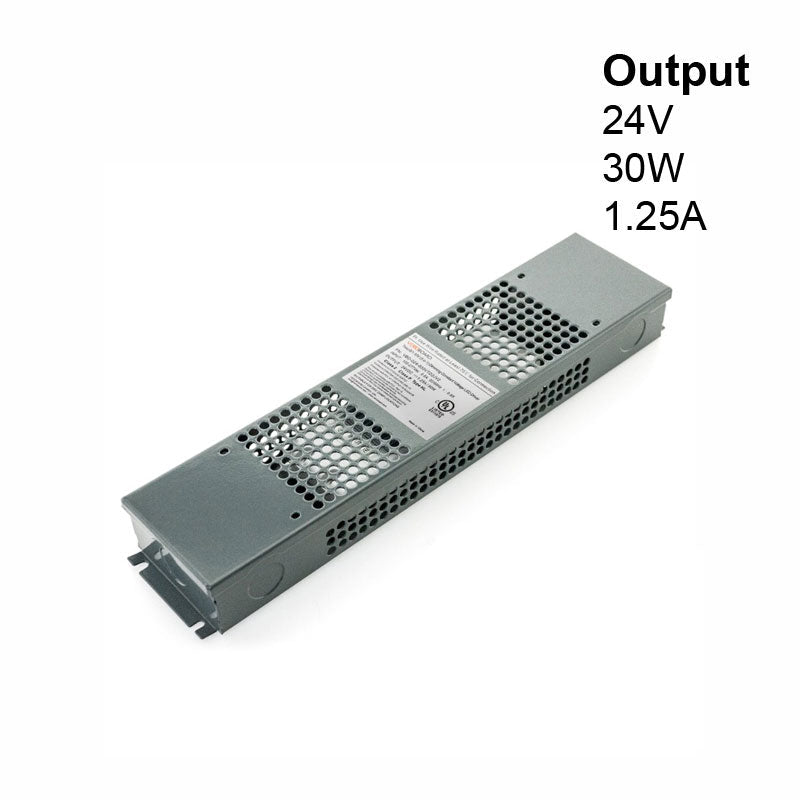

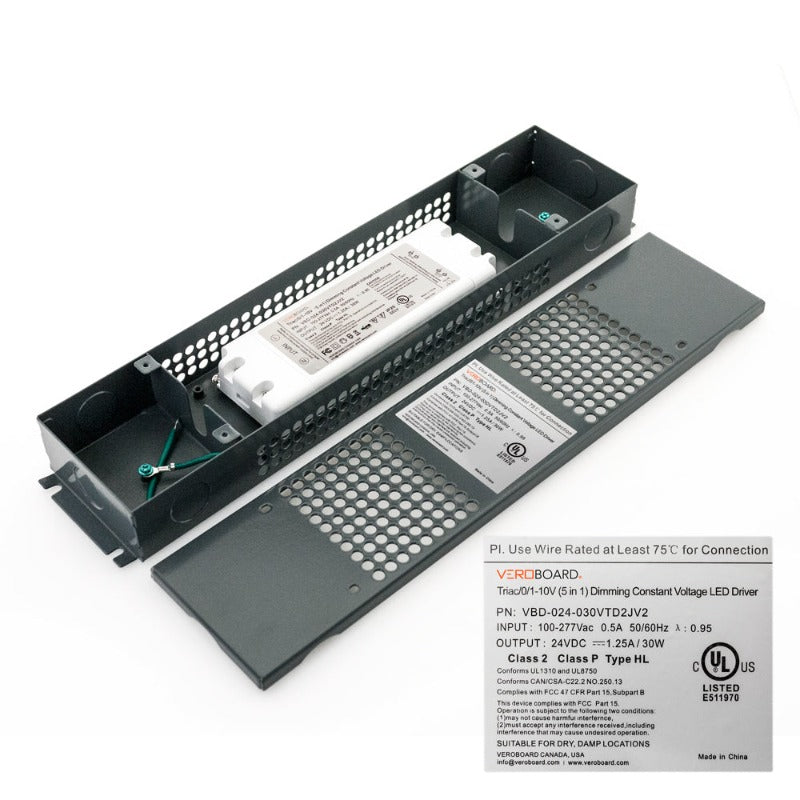

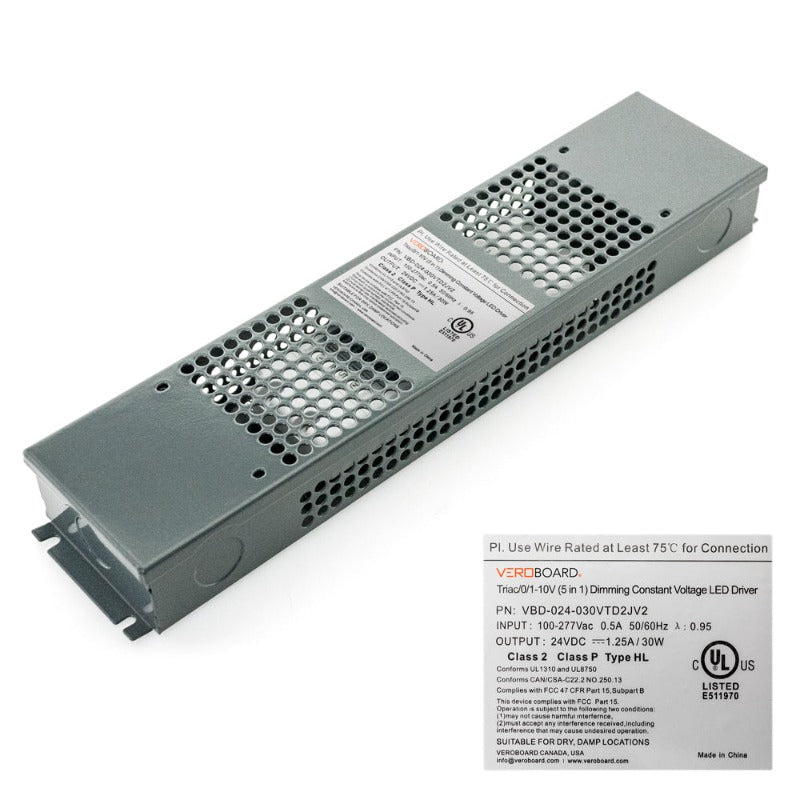

VBD-024-030VTD2JV2 Triac/0-10V Dimmable Constant Voltage LED Driver, 24V 30W 100-277V AC

VBD-024-030VTD2JV2 Triac/0-10V Dimmable Constant Voltage LED Driver, 24V 30W 100-277V AC

SKU:666561419202

$77.00 CAD
$77.00 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25

Product Description

Model VBD-024-030VTD2JV2
Input Voltage 100-277V AC
Input Current 0.5A
Frequency  50/60Hz
Power Factor 0.95
Output voltage 24V DC
Output regulated current 1.25A
Output max Power 30W max
Dimmable Yes (Triac/0/10V Dimming)
Class Certification Class 2/ Class P/ Type HL/ Class II
IP Rating: IP20

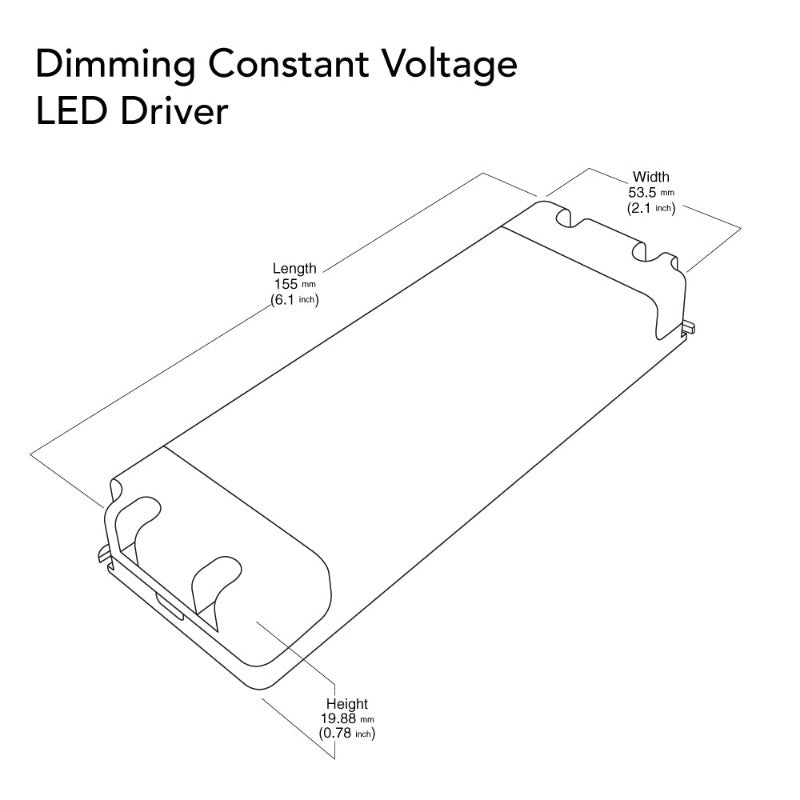

Dimensions (Without Box) 155 x 53.5 x 19.88mm (6.1 x 2.1 x 0.78 in)

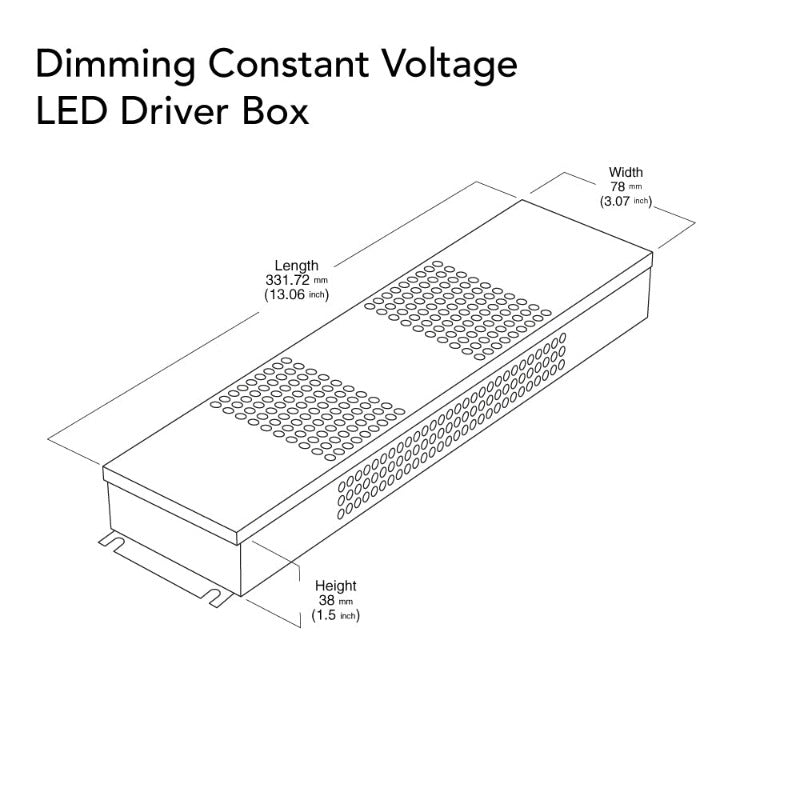

Dimensions (Box) 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in)
Certifications
Suitable for DRY and DAMP locations
Compatible with Forward-Phase, 0-10V, Magnetic low Voltage, ELV & Triac dimmers



The VBD-024-030VTD2JV2 is a Triac/0-10V dimmable constant voltage LED driver designed to convert 100-277V AC input voltage to 24V DC output voltage, with an output regulated current of 1.25A and a maximum output power of 30W.

This LED driver features 5-in-1 dimming, allowing it to be controlled via a variety of dimming methods including Triac, ELV, 0-10V, PWM, and resistor. It has a high power factor of 0.95, indicating that it is efficient in converting input power to output power.

The driver has Class 2, Class P, Type HL, and Class II certifications, which means that it meets safety standards for electrical insulation, fire safety, and hazardous location installations. It has an IP20 rating, making it suitable for indoor use only. The dimensions of the driver without the box are 155 x 53.5 x 19.88mm (6.1 x 2.1 x 0.78 in), and with the box, they are 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in).

The driver is certified with UL and FCC certifications, indicating that it has been tested and certified to meet certain safety and performance standards set by these organizations.

Features:

  • Triac/0-10V dimmable constant voltage LED driver
  • Input voltage range: 100-277V AC, output voltage: 24V DC, regulated output current: 1.25A, maximum output power: 30W
  • 5-in-1 dimming compatibility with Triac, ELV, 0-10V, PWM, and resistor control
  • High power factor of 0.95 for efficient power conversion
  • Class 2, Class P, Type HL, and Class II certifications for electrical insulation, fire safety, and hazardous location installations
  • IP20 rating for indoor use only
  • Dimensions without box: 155 x 53.5 x 19.88mm (6.1 x 2.1 x 0.78 in), with box: 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in)
  • UL and FCC certified for safety and performance standards
