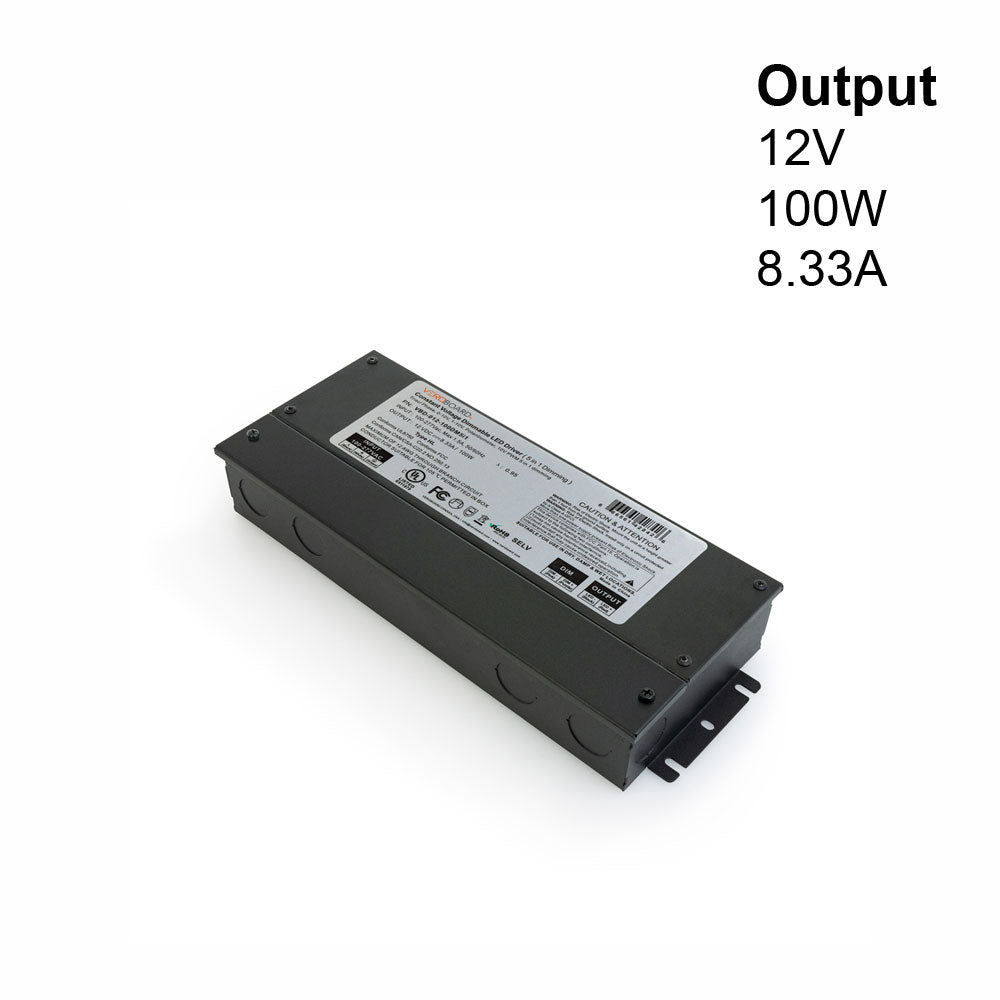

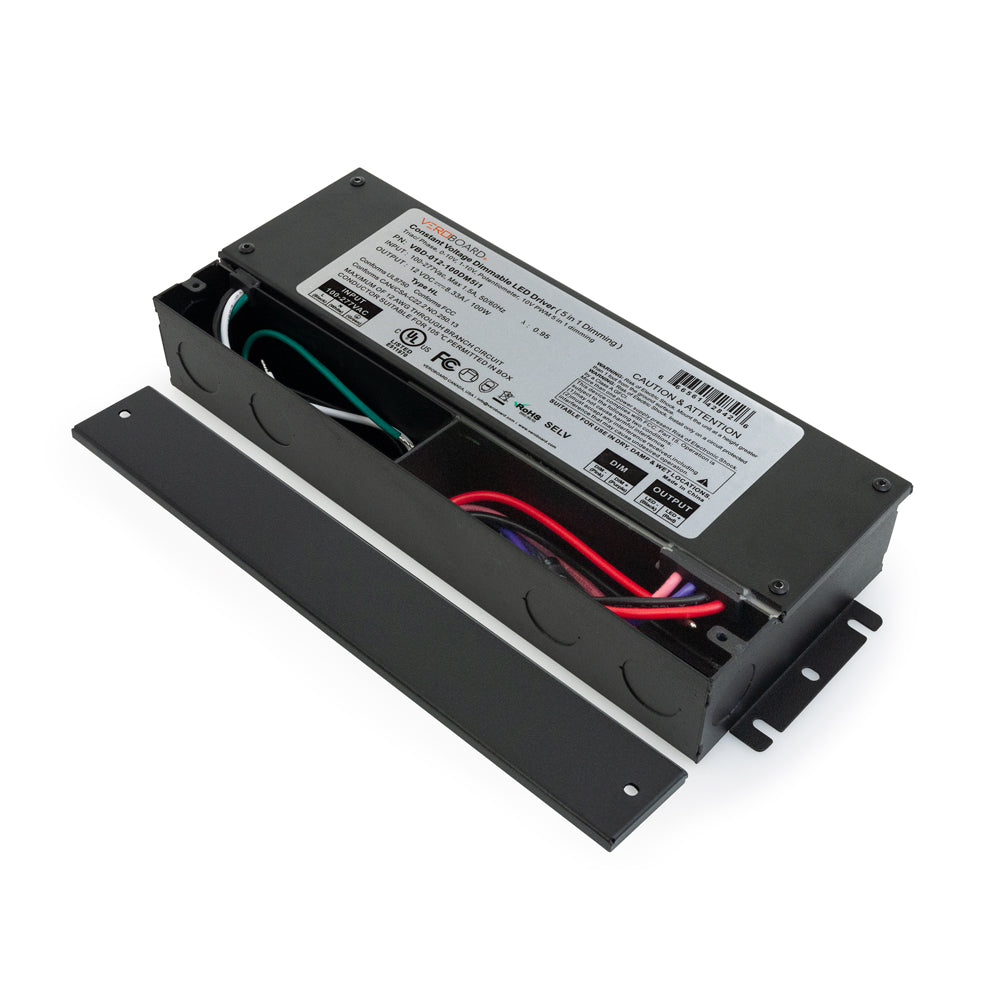

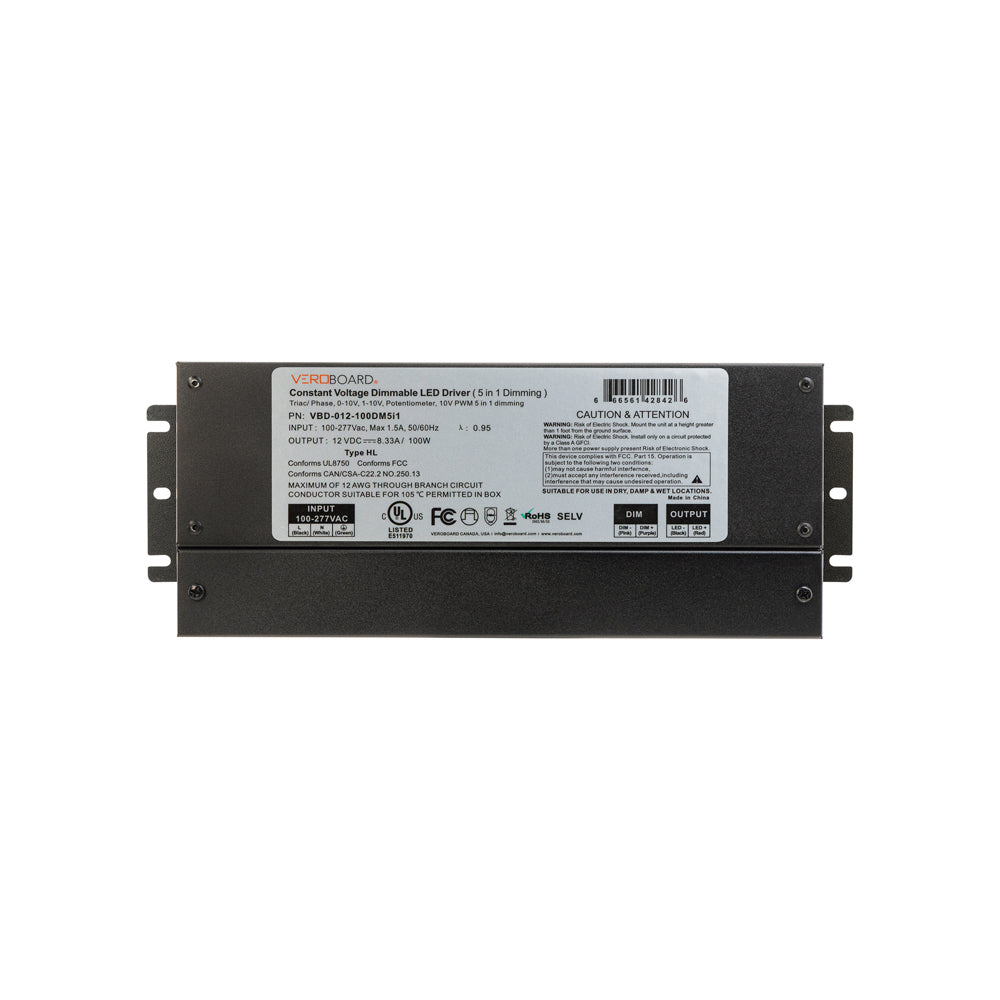

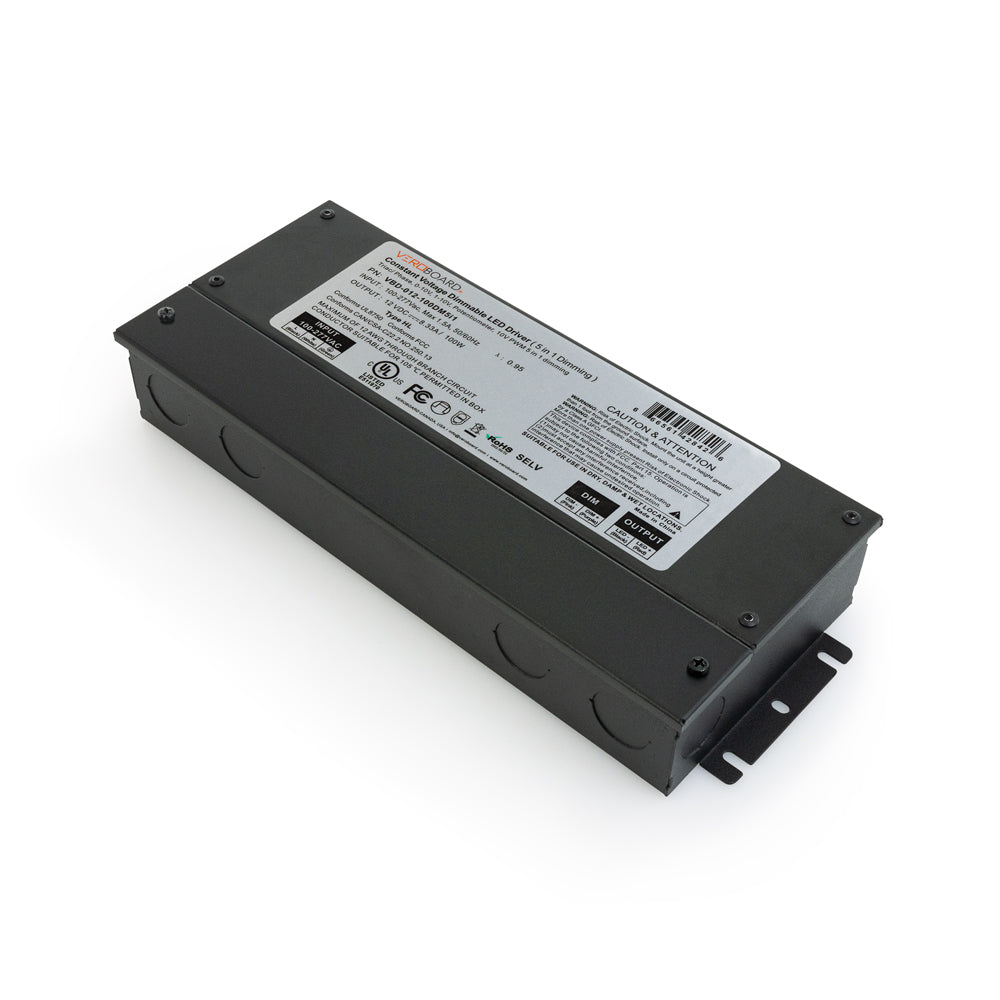

5 in 1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM, LED Driver VBD-012-100DM5i1

5 in 1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM, LED Driver VBD-012-100DM5i1

SKU:666561428426

$273.00 CAD
$273.00 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25

Product Description

Model VBD-012-100DM5i1
Input Voltage 100-277V AC
Input Current 1.5A
Frequency 50-60 Hz
Power Factor >0.95
Output Voltage 12V DC
Output regulated Current 8.33A
Output Power 100W max
Dimmable Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM)
IP Rating IP67 (Dry, Damp and Wet Locations)

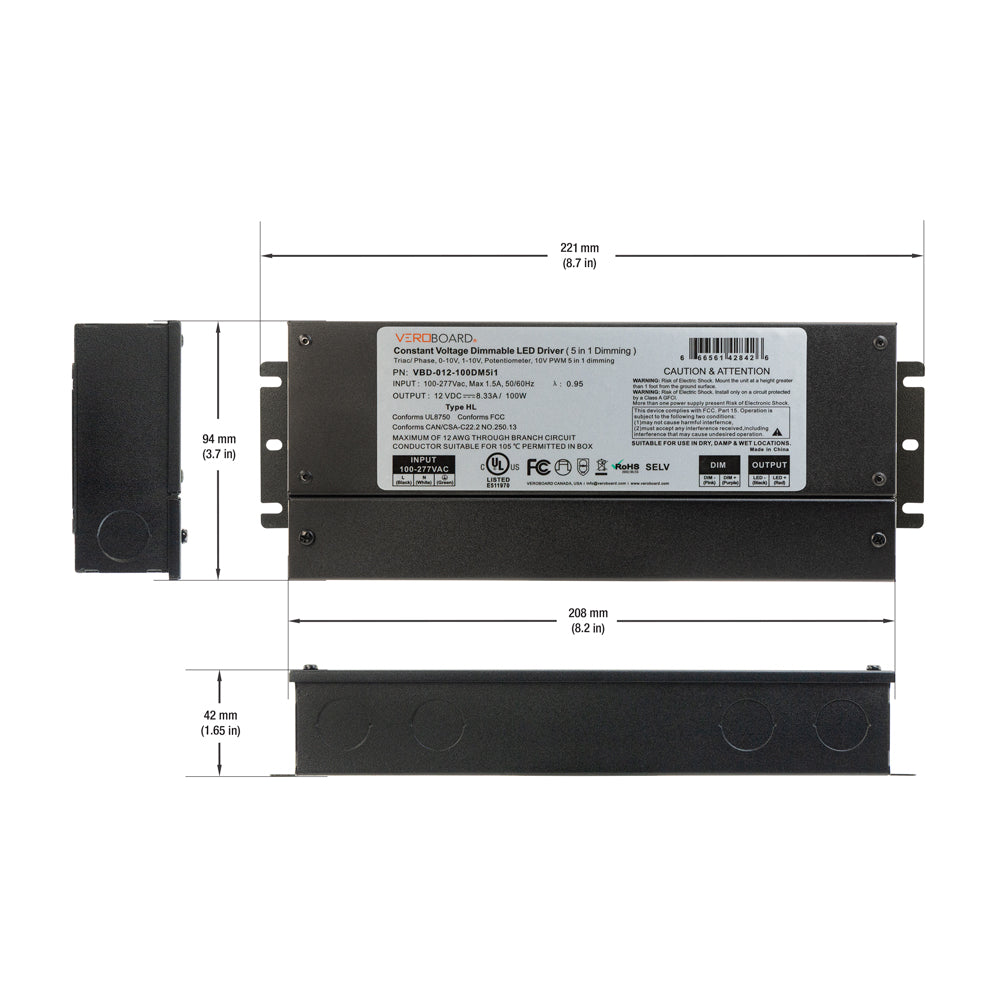

Dimensions  221mm x 94mm x 42mm (8.7in x 3.7in x 1.6 in)
Certifications:
Applicable for dry, damp, and wet locations
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers


The VBD-012-100DM5i1 is a 5-in-1 dimming LED driver that supports multiple types of dimming protocols including Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM. It has an input voltage range of 100-277V AC and a maximum output power of 100W. The output voltage is 12V DC and the output current is regulated at 8.33A. The driver has a high power factor of >0.95 and is dimmable using various types of dimming systems. It has an IP67 rating for use in dry, damp, and wet locations. The dimensions of the driver are 221mm x 94mm x 42mm (8.7in x 3.7in x 1.6 in) and it is certified by UL and FCC.

Features:

  • The LED driver is a 5-in-1 dimming driver that supports Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM dimming protocols.
  • It has an input voltage range of 100-277V AC and a maximum output power of 100W.
  • The output voltage is 12V DC and the output current is regulated at 8.33A.
  • The driver has a high power factor of >0.95 and is dimmable using various types of dimming systems, providing flexibility in dimming options.
  • The driver has an IP67 rating, making it suitable for use in dry, damp, and wet locations.
  • The dimensions of the driver are 221mm x 94mm x 42mm (8.7in x 3.7in x 1.6 in).
  • The driver is certified by UL and FCC, ensuring its safety and quality.
