Product Description
| Product | Constant Current LED Driver |
| Model | OTM-TD203500-1200-38 |
| Input Voltage | 90-130V AC |
| Input Current | 0.9A |
| Input Frequency | 50-60Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 1200mA |
| Output Power | 38W |
| Output Voltage | 24-36V DC |
| Dimmable | Yes (Triac Dimming) |
| Weight | 0.2 kg |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| IP Rating | IP20 (Dry and Damp Locations) |

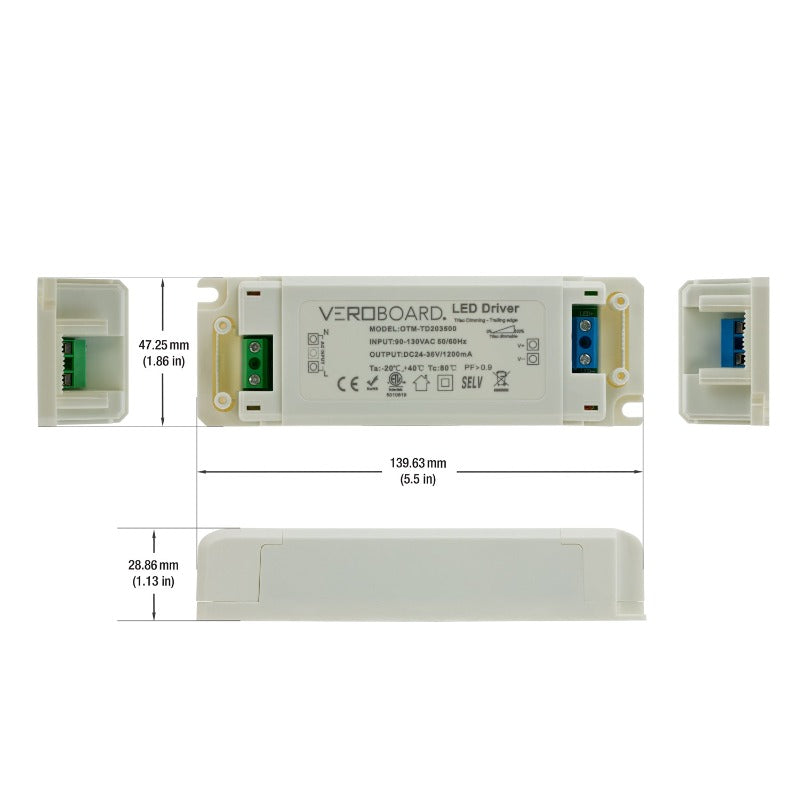

| Dimensions | 139.63mm x 47.25mm x 28.86mm (5.5in x 1.86in x 1.13in) |
| Class Certification | Class 2 |
| Certification |

|
Features:

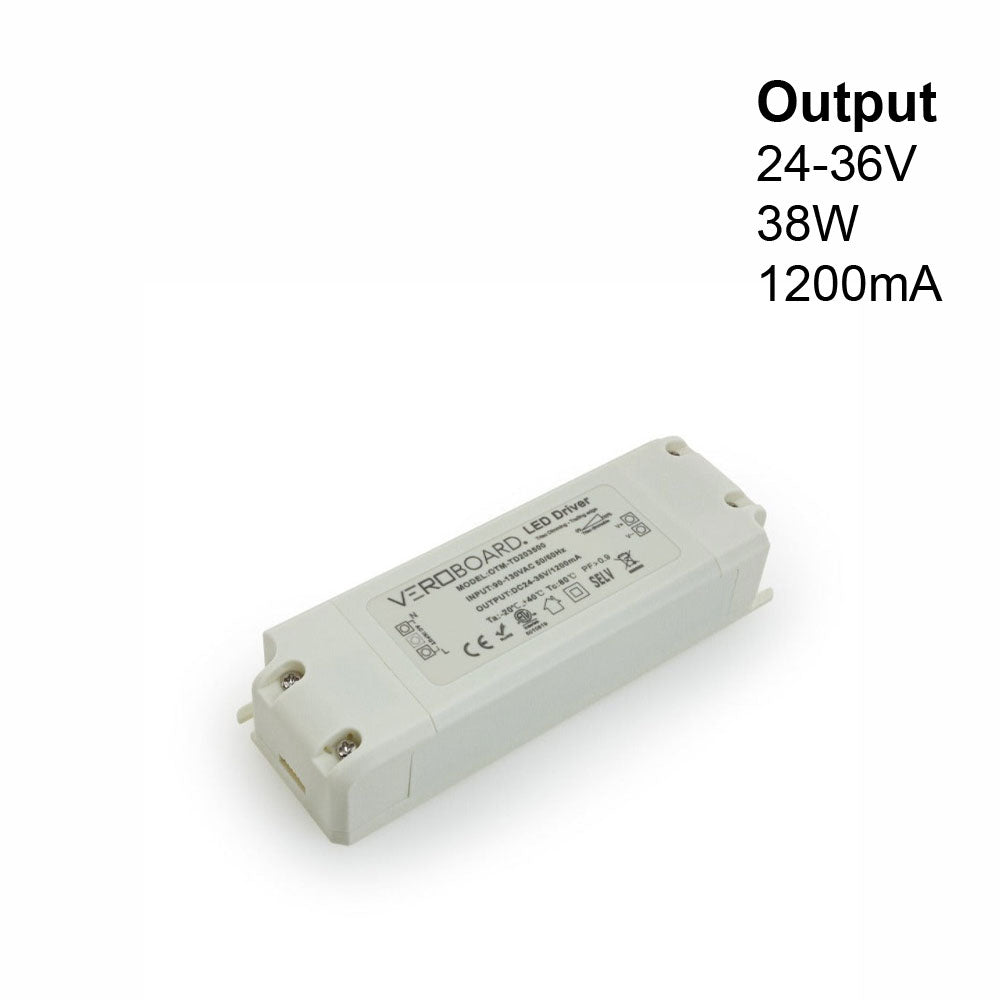

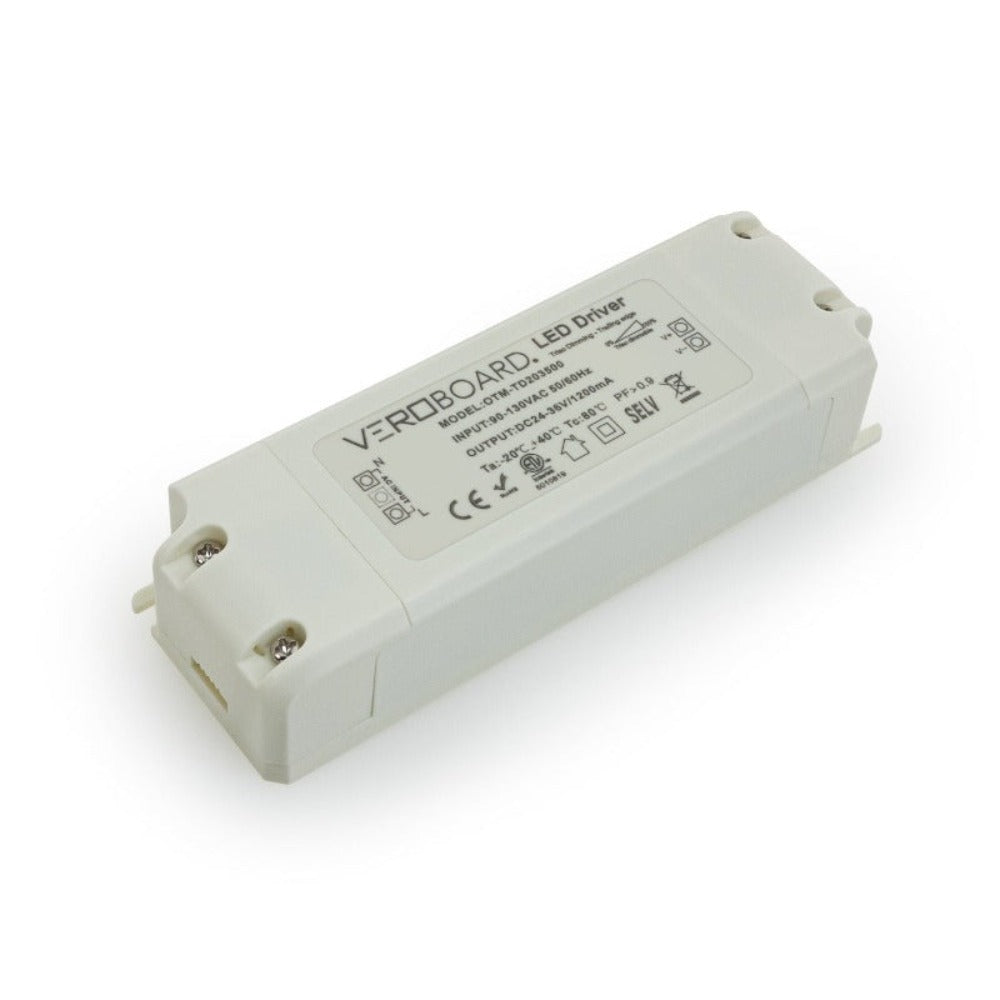

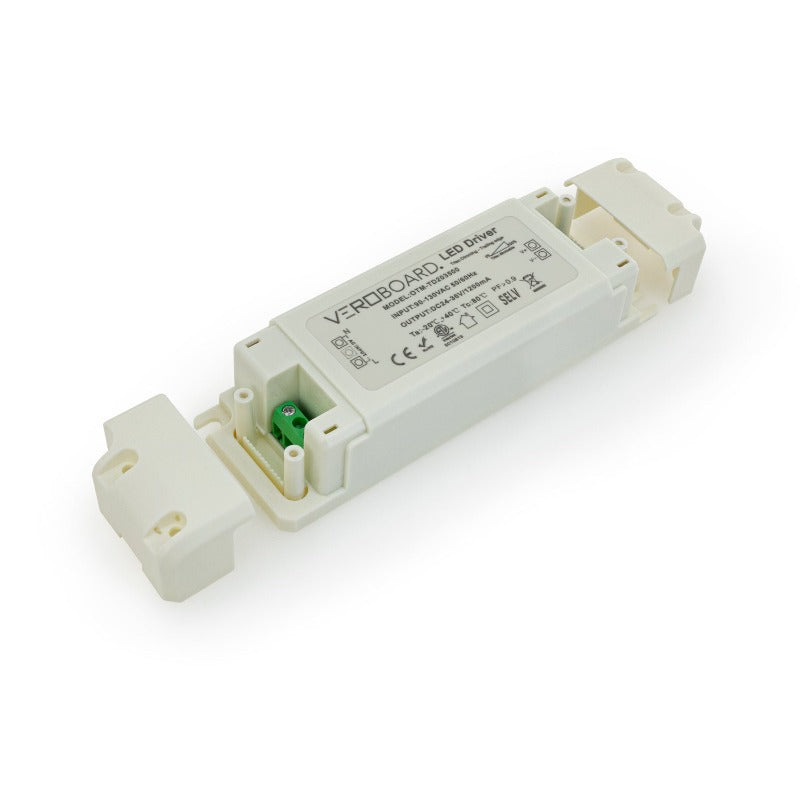

- The OTM-TD203500-1200-38 is a constant current LED driver designed for LED lighting fixtures.
- It has an input voltage range of 90-130V AC with a power factor greater than 0.95, ensuring efficient power delivery.
- The LED driver has an output regulated current of 1200mA with a maximum output power of 38W.
- The output voltage range is 24-36V DC, making it suitable for a wide range of LED lighting applications.
- It is dimmable using Triac Dimming, providing flexibility in controlling the lighting output.
- The LED driver has a high efficiency of over 85%, ensuring minimal energy wastage during operation.
- It has an IP20 rating, making it suitable for use in dry and damp locations.
