OTM-TD252500-280 Constant Current LED Driver, 280mA 24-48V 12W Dimmable
OTM-TD252500-280 Constant Current LED Driver, 280mA 24-48V 12W Dimmable
SKU: SKU:666561426408
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25Â
Â
Product DescriptionÂ
Product | Constant Current LED Driver |
Model | OTM-TD252500-280 |
Input Voltage | 90-130V AC |
Input Current | 0.9A |
Input Frequency | 50-60Hz |
Power Factor | PF>0.95 |
Efficiency | >85% |
Output Regulated Current | 280mA |
Output Power | 12W |
Output Voltage | 24-48V DC |
Dimmable | Yes (Triac Dimming) |
Ambient Temperature (Ta) | 40°C |
Case Temperature (Tc) | 90°C |
IP Rating | IP20 (Dry and Damp Locations) |

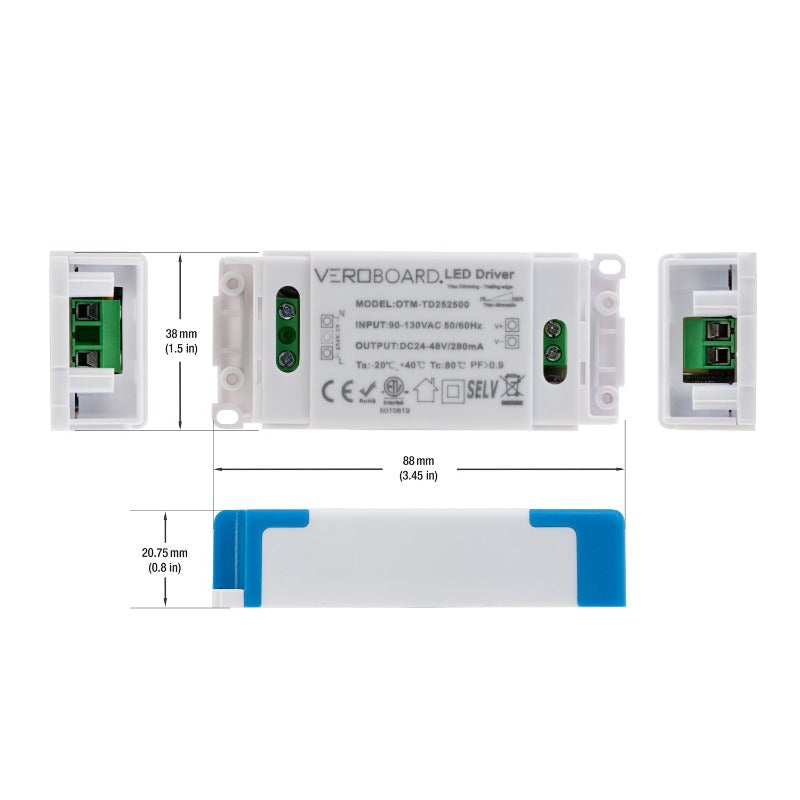

Dimensions | 88mm x 38mm x 20.75mm(3.45in x 1.5in x 0.8in) |
Class Certification | Class 2 |
Certification |
![]() ![]() |
The OTM-TD252500-280 Constant Current LED Driver is a product designed to provide a regulated current of 280mA and an output power of 12W for LED lighting applications. The input voltage range is between 90-130V AC and the input current is 0.9A with a power factor greater than 0.95 and efficiency above 85%. The output voltage range is between 24-48V DC, and the driver is dimmable with triac dimming.
The driver has an ambient temperature rating of 40°C and a case temperature rating of 90°C, and is suitable for use in dry and damp locations with an IP20 rating. It has dimensions of 88mm x 38mm x 20.75mm (3.45in x 1.5in x 0.8in) and is certified as Class 2.
Features:
- Designed for LED lighting applications
- Provides regulated current of 280mA and output power of 12W
- Input voltage range: 90-130V AC, input current: 0.9A
- Power factor > 0.95, efficiency > 85%
- Output voltage range: 24-48V DC
- Dimmable with triac dimming
- Ambient temperature rating: 40°C, case temperature rating: 90°C
- Suitable for use in dry and damp locations with IP20 rating
- Dimensions: 88mm x 38mm x 20.75mm (3.45in x 1.5in x 0.8in)
- Certified as Class 2 product
