Product Description
| Product | Constant Current LED Driver |
| Model | OTM-TD253100-370-20 |
| Input Voltage | 90-130V AC |
| Input Current | 0.9A |
| Input Frequency | 50-60Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 370mA |
| Output Power | 20W |
| Output Voltage | 32-54V DC |
| Dimmable | Yes (Triac Dimming) |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| IP Rating | IP20 (Dry and Damp Locations) |
| Weight | 0.08 kg |

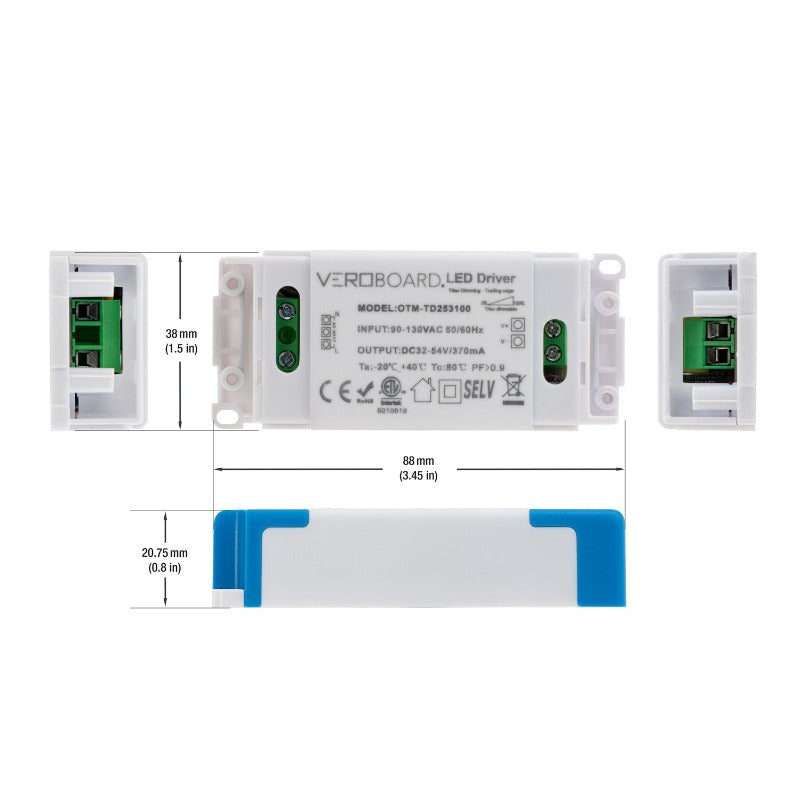

| Dimensions | 88mm x 38mm x 20.75mm (3.45in x 1.5in x 0.8in) |
| Class Certification | Class 2 |
| Certification |

|
Features:
- The OTM-TD253100-370-20 is a Constant Current LED Driver for LED lighting applications.
- It provides a regulated output current of 370mA and an output power of 20W.
- The driver is designed to be dimmable, allowing for brightness control and flexibility in lighting design.
- It operates with an input voltage of 90-130V AC, input current of 0.9A, and input frequency of 50-60Hz.
- The driver has a power factor of more than 0.95 and an efficiency of greater than 85%.
- The output voltage of the LED driver is 32-54V DC, making it suitable for most LED lighting applications.
- It has an IP20 rating, making it suitable for indoor lighting applications in dry and damp locations.
- The dimensions of the LED driver are 88mm x 38mm x 20.75mm (3.45in x 1.5in x 0.8in).
- It is classified as a Class 2 device, which means it has limited power output and is safe to use.
- The driver can operate at an ambient temperature of up to 40°C and has a case temperature of up to 90°C.
