Product Description
| Product | Constant Current LED Driver |
| Model | OTM-TD252800-430-18 |
| Input Voltage | 90-130V AC |
| Input Current | 0.9A |
| Input Frequency | 50-60Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 430mA |
| Output Power | 18W |
| Output Voltage | 36-42V DC |
| Dimmable | Yes (Triac Dimming) |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| IP Rating | IP20 (Dry and Damp Locations) |
| Weight | 0.08 kg |

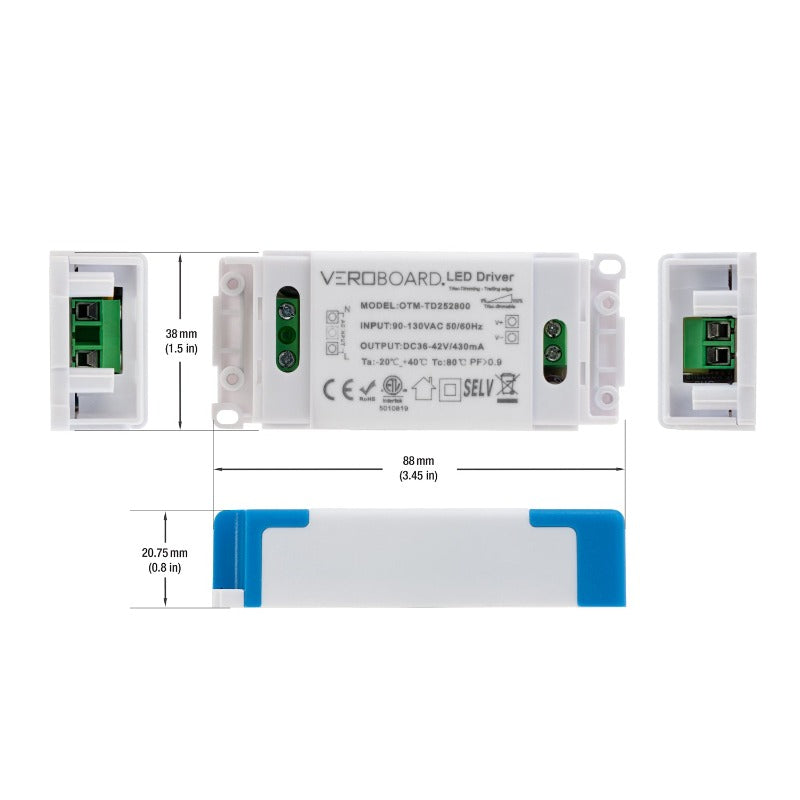

| Dimensions | 88mm x 38mm x 20.75mm (3.45in x 1.5in x 0.8in) |
| Class Certification | Class 2 |
| Certification |

|
Features:
- The OTM-TD252800-430-18 is a Constant Current LED Driver.
- It provides a regulated output current of 430mA and an output power of 18W.
- It has dimming capability, making it suitable for various lighting applications.
- The input voltage range is 90-130V AC, with an input current of 0.9A, and an input frequency of 50-60Hz.
- It has a power factor of more than 0.95 and an efficiency of greater than 85%.
- The output voltage range is 36-42V DC.
- It is designed to be used in dry and damp locations with an IP20 rating.
- The dimensions of the driver are 88mm x 38mm x 20.75mm (3.45in x 1.5in x 0.8in).
- It is classified as a Class 2 device.
- The LED driver can operate at an ambient temperature of up to 40°C and has a case temperature of up to 90°C.
