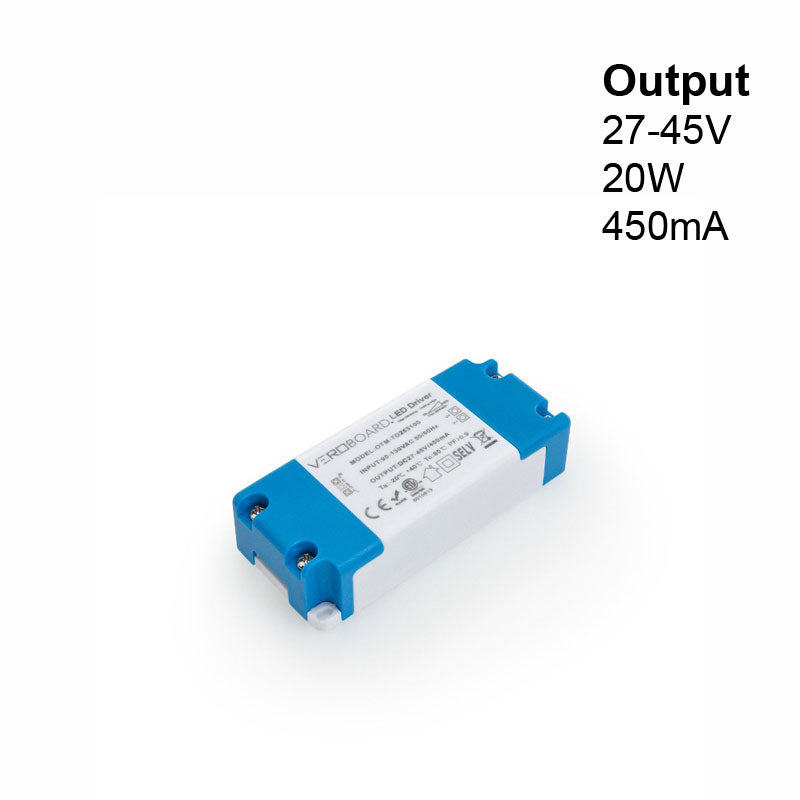

OTM-TD253100-450-20 Constant Current LED Driver, 450mA 27-45V 20W Dimmable

OTM-TD253100-450-20 Constant Current LED Driver, 450mA 27-45V 20W Dimmable

SKU:666561426453

$44.80 CAD
$44.80 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25



Product Description

Product Constant Current LED Driver
Model OTM-TD253100-450-20
Input Voltage 90-130V AC
Input Current 0.9A
Input Frequency 50-60Hz
Power Factor PF>0.95
Efficiency >85%
Output Regulated Current 450mA
Output Power 20W
Output Voltage 27-45V DC
Dimmable Yes (Triac Dimming)
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 90°C
IP Rating IP20 (Dry and Damp Locations)

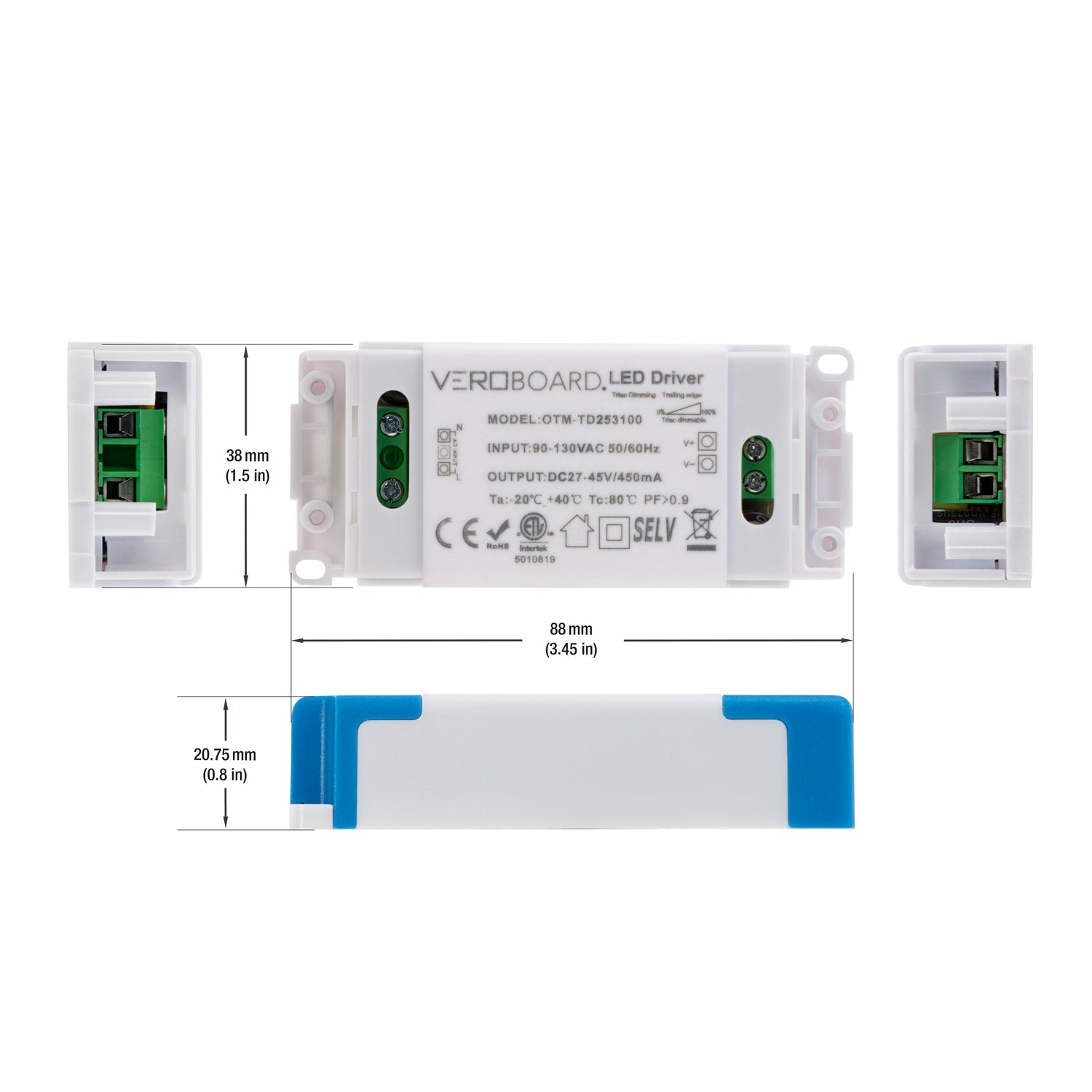

Dimensions 88mm x 38mm x 20.75mm
(3.45in x 1.5in x 0.8in)
Class Certification Class 2
Certification



The OTM-TD253100-450-20 is a Constant Current LED Driver that provides a regulated output current of 450mA and an output power of 20W to LED lighting applications. It is designed to be dimmable, allowing for brightness control and flexibility in lighting design.

The LED driver operates with an input voltage of 90-130V AC, input current of 0.9A, and input frequency of 50-60Hz. It has a power factor of more than 0.95 and an efficiency of greater than 85%, which ensures high energy efficiency and reduces power losses.

The output voltage of the LED driver is 27-45V DC, making it suitable for use with most LED lighting applications. The driver is designed to be used in dry and damp locations, with an IP20 rating, making it suitable for indoor lighting applications.

Features:

  • The OTM-TD253100-450-20 is a Constant Current LED Driver for LED lighting applications.
  • It provides a regulated output current of 450mA and an output power of 20W.
  • The driver is designed to be dimmable, allowing for brightness control and flexibility in lighting design.
  • It operates with an input voltage of 90-130V AC, input current of 0.9A, and input frequency of 50-60Hz.
  • The driver has a power factor of more than 0.95 and an efficiency of greater than 85%.
  • The output voltage of the LED driver is 27-45V DC, making it suitable for most LED lighting applications.
  • It has an IP20 rating, making it suitable for indoor lighting applications in dry and damp locations.
  • It is classified as a Class 2 device, which means it has limited power output and is safe to use.
  • The driver can operate at an ambient temperature of up to 40°C and has a case temperature of up to 90°C.
  • It is dimmable using Triac Dimming, which allows the brightness to be adjusted to the desired lighting conditions.
