OTM-TD252800-480-18 Constant Current LED Driver, 480mA 24-30V 18W Dimmable

OTM-TD252800-480-18 Constant Current LED Driver, 480mA 24-30V 18W Dimmable

SKU:666561426415

$40.60 CAD
$40.60 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25

 Product Description

Product Constant Current LED Driver
Model OTM-TD252800-480-18
Input Voltage 90-130V AC
Input Current 0.9A
Input Frequency 50-60Hz
Power Factor PF>0.95
Efficiency >85%
Output Regulated Current 480mA
Output Power 18W
Output Voltage 24-30V DC
Dimmable Yes (Triac Dimming)
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 90°C
IP Rating IP20 (Dry and Damp Locations)

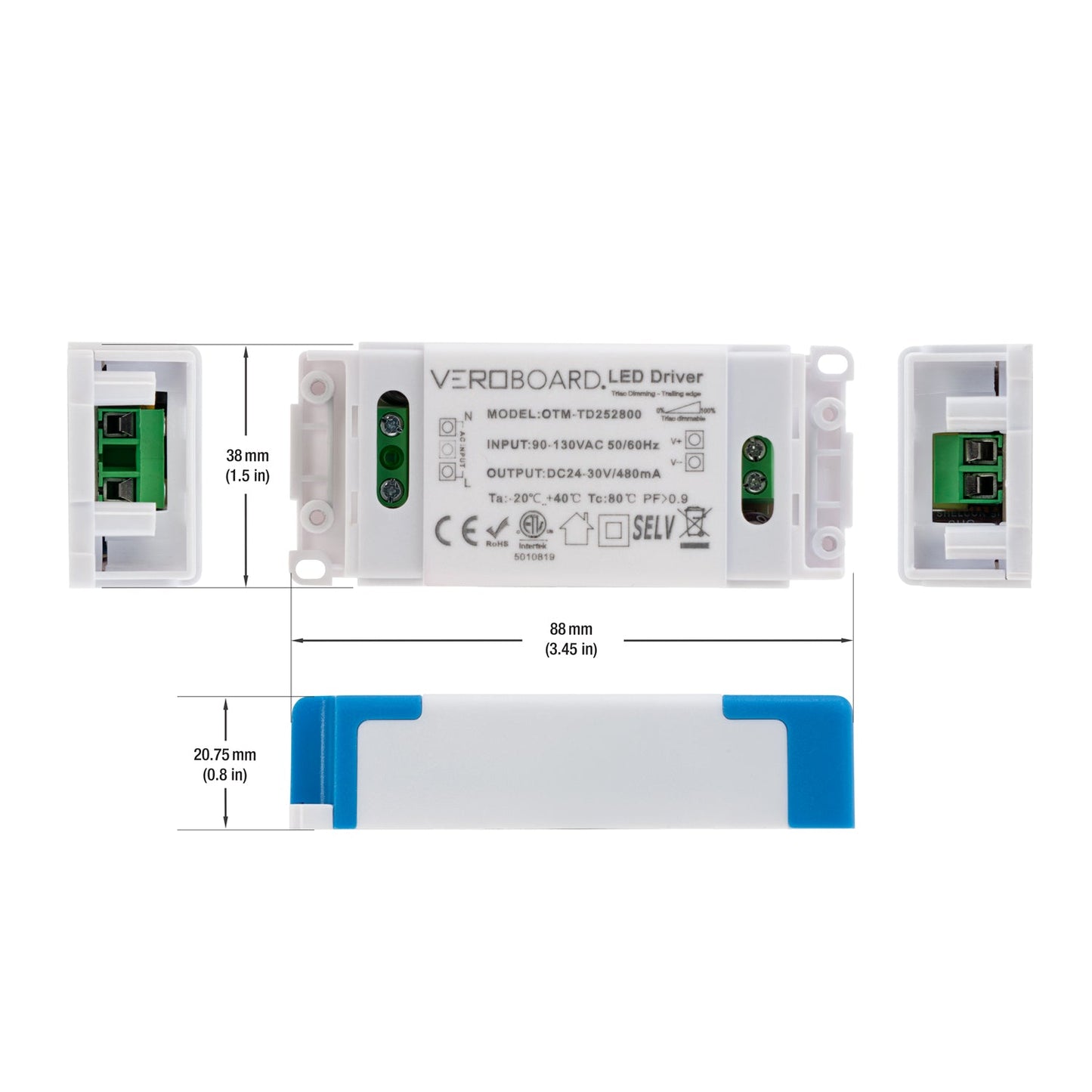

Dimensions 88mm x 38mm x 20.75mm
(3.45in x 1.5in x 0.8in)
Class Certification Class 2
Certification




The OTM-TD252800-480-18 is a Constant Current LED Driver designed for use in dry and damp locations with an input voltage of 90-130V AC and input current of 0.9A. It has a power factor of PF>0.95 and an efficiency of >85%. The output regulated current is 480mA with an output power of 18W and an output voltage range of 24-30V DC. This driver is also dimmable with Triac dimming. The ambient temperature (Ta) is 40°C with a case temperature (Tc) of 90°C. The IP Rating is IP20 and it has dimensions of 88mm x 38mm x 20.75mm (3.45in x 1.5in x 0.8in). It has Class 2 certification.

Features:

  • The OTM-TD252800-480-18 is a Constant Current LED Driver.
  • It is designed for use in dry and damp locations.
  • The input voltage range is 90-130V AC, and the input current is 0.9A.
  • It has a power factor of PF>0.95.
  • The efficiency of the driver is >85%.
  • The output regulated current is 480mA.
  • The output power of the driver is 18W.
  • The output voltage range is 24-30V DC.
  • The driver is dimmable with Triac dimming technology.
  • The ambient temperature (Ta) of the driver is 40°C.
  • The case temperature (Tc) can go up to 90°C.
  • The IP Rating of the driver is IP20.
