Product Description
| Product | Constant Current LED Driver |
| Model | OTM-TD203100-550-30 |
| Input Voltage | 90-130V AC |
| Input Current | 0.9A |
| Input Frequency | 50-60Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 550mA |
| Output Power | 30W |
| Output Voltage | 32-54V DC |
| Dimmable | Yes (Triac Dimming) |
| Weight | 0.2 kg |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| IP Rating | IP20 (Dry and Damp Locations) |

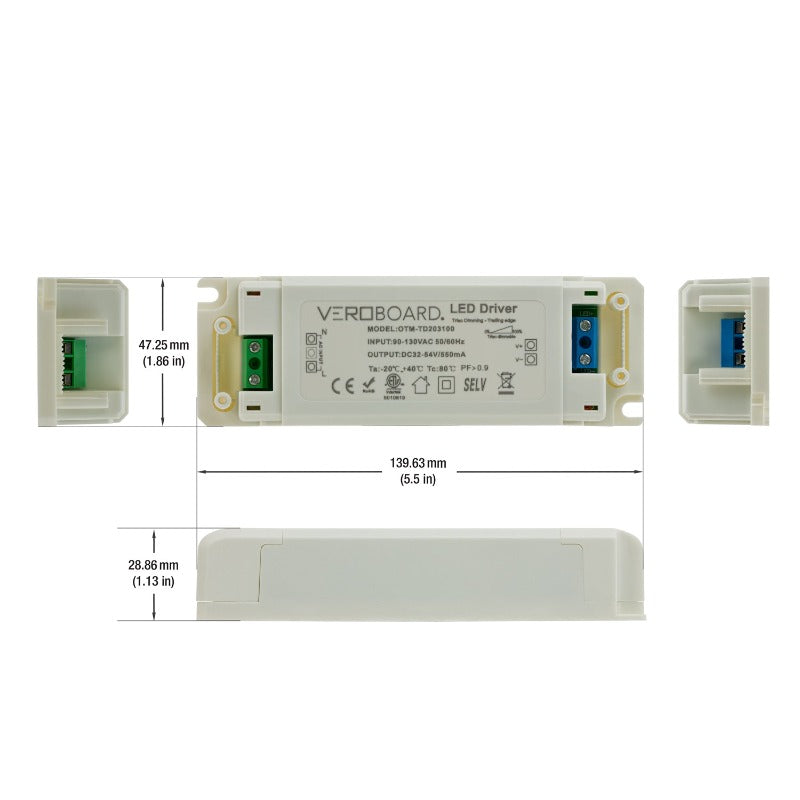

| Dimensions | 139.63mm x 47.25mm x 28.86mm (5.5in x 1.86in x 1.13in) |
| Class Certification | Class 2 |
| Certification |

|
Features:
- The OTM-TD203100-550-30 is a constant current LED driver with Triac dimming feature.
- It has an input voltage range of 90-130V AC, input current of 0.9A, and input frequency of 50-60Hz.
- The driver has a high power factor (>0.95) and efficiency (>85%).
- It delivers a regulated output current of 550mA and a power output of 30W.
- The output voltage ranges from 32-54V DC, making it compatible with various LED lighting fixtures.
- It can operate in ambient temperatures up to 40°C and has an IP20 rating for dry and damp locations.
