Product Description
| Product | Constant Current LED Driver |
| Model | OTM-TD253100-550-20 |
| Input Voltage | 90-130V AC |
| Input Current | 0.9A |
| Input Frequency | 50-60Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 550mA |
| Output Power | 20W |
| Output Voltage | 22-42V DC |
| Dimmable | Yes (Triac Dimming) |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| IP Rating | IP20 (Dry and Damp Locations) |
| Weight | 0.15 kg |

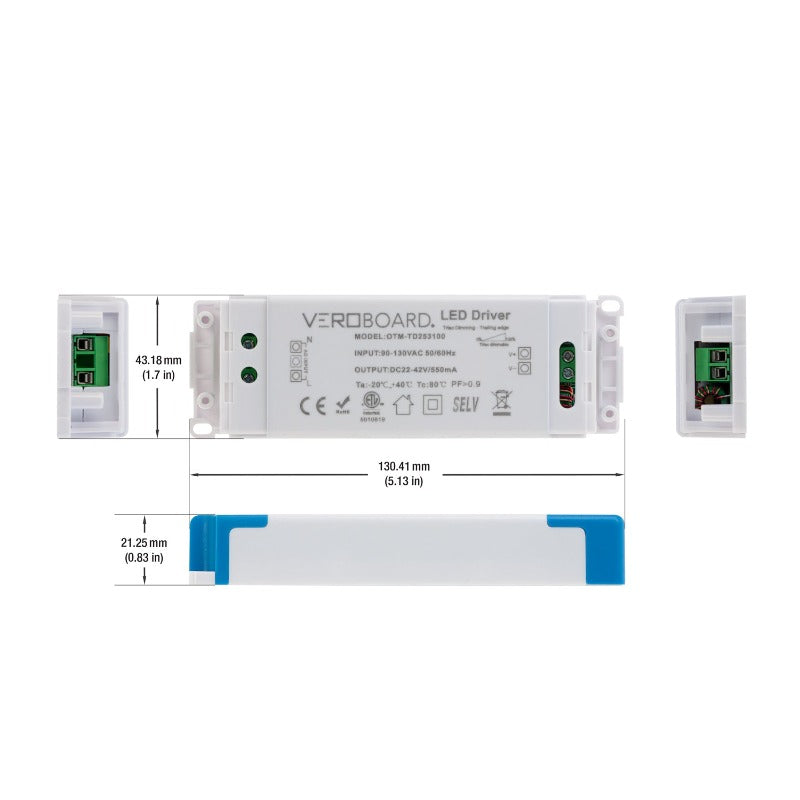

| Dimensions | 130.41mm x 43.18mm x 21.25mm (5.13in x 1.7in x 0.83in) |
| Class Certification | Class 2 |
| Certification |

|
Features:
- The OTM-TD253100-550-20 is a Constant Current LED Driver with a regulated output current of 550mA and an output power of 20W.
- The driver is designed to be dimmable, providing flexibility in lighting design and allowing for brightness control.
- It operates with an input voltage of 90-130V AC, input current of 0.9A, and input frequency of 50-60Hz.
- The LED driver has a power factor of more than 0.95 and an efficiency of greater than 85%, ensuring high energy efficiency and reducing power losses.
- The output voltage of the driver is 22-42V DC, making it suitable for most LED lighting applications.
- It has an IP20 rating and can be used in dry and damp locations, making it ideal for indoor lighting applications.
- The LED driver has dimensions of 130.41mm x 43.18mm x 21.25mm (5.13in x 1.7in x 0.83in), making it easy to install in various lighting fixtures.
- It is classified as a Class 2 device and is safe to use, with limited power output.
- The driver can operate at an ambient temperature of up to 40°C and has a case temperature of up to 90°C, making it suitable for use in a wide range of lighting applications.
- The driver is dimmable using Triac Dimming technology, allowing the brightness to be adjusted to the desired lighting conditions.
