OTM-TD203100-830-30 Constant Current LED driver, 830mA 24-42V 30W Dimmable

OTM-TD203100-830-30 Constant Current LED driver, 830mA 24-42V 30W Dimmable

SKU:666561426545

$65.80 CAD
$65.80 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25

 Product Description

Product Constant Current LED Driver
Model OTM-TD203100-830-30
Input Voltage 90-130V AC
Input Current 0.9A
Input Frequency 50-60Hz
Power Factor PF>0.95
Efficiency >85%
Output Regulated Current 830mA
Output Power 30W
Output Voltage 24-42V DC
Dimmable Yes (Triac Dimming)
Ambient Temperature (Ta) 40°C
Case Temperature (Tc) 90°C
IP Rating IP20 (Dry and Damp Locations)

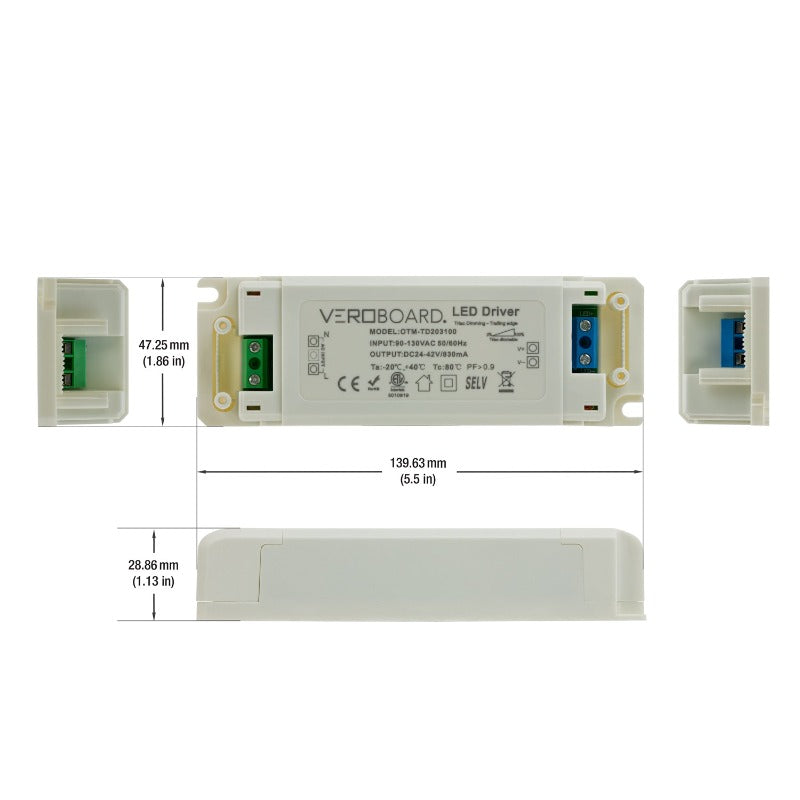

Dimensions 139.63mm x 47.25mm x 28.86mm
(5.5in x 1.86in x 1.13in)
Class Certification Class 2
Certification




The OTM-TD203100-830-30 is a constant current LED driver designed for use with LED lighting systems. It has an input voltage range of 90-130V AC, an input current of 0.9A, and an input frequency of 50-60Hz. The power factor is greater than 0.95, and the efficiency is greater than 85%. The output is a regulated current of 830mA and a power output of 30W, with an output voltage range of 24-42V DC.

This LED driver is dimmable with triac dimming, allowing for customized lighting options. It has an ambient temperature (Ta) rating of 40°C and a case temperature (Tc) rating of 90°C, ensuring that it can withstand high operating temperatures. The driver has an IP20 rating, making it suitable for use in dry and damp locations.

Features:

  • The OTM-TD203100-830-30 is a constant current LED driver designed for use with LED lighting systems.
  • It has an input voltage range of 90-130V AC, an input current of 0.9A, and an input frequency of 50-60Hz.
  • The power factor is greater than 0.95, and the efficiency is greater than 85%.
  • The output is a regulated current of 830mA and a power output of 30W, with an output voltage range of 24-42V DC.
  • This LED driver is dimmable with triac dimming, allowing for customized lighting options.
  • It has an ambient temperature (Ta) rating of 40°C and a case temperature (Tc) rating of 90°C, ensuring that it can withstand high operating temperatures.
  • The driver has an IP20 rating, making it suitable for use in dry and damp locations.
