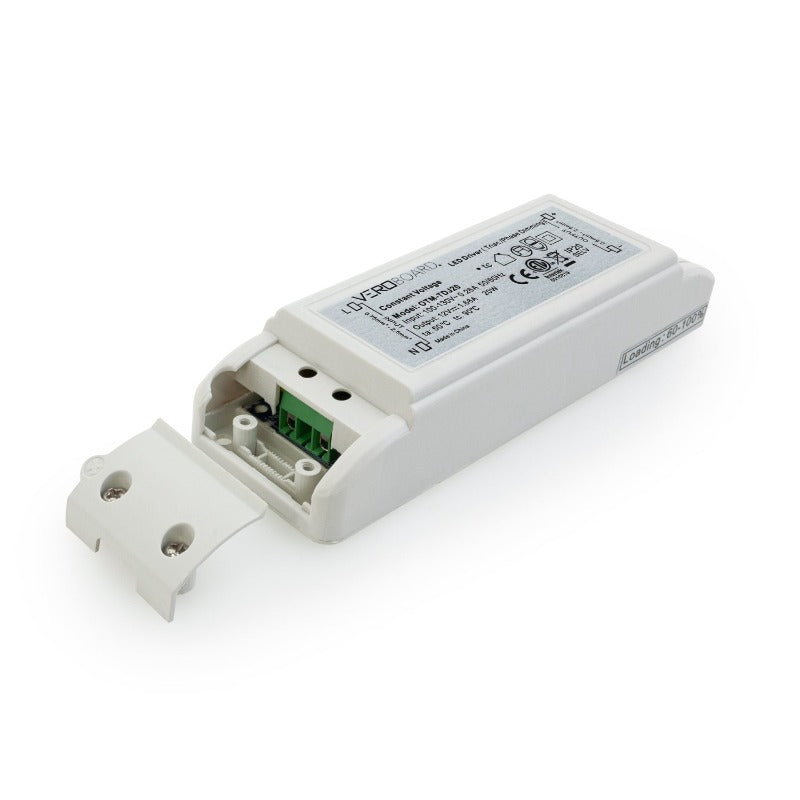

OTM-TDJ20 Triac dimmable Constant Voltage LED Driver, 12V 1.66A 20W

OTM-TDJ20 Triac dimmable Constant Voltage LED Driver, 12V 1.66A 20W

SKU: SKU:666561425456

Regular price $47.25 CAD
Regular price Sale price $47.25 CAD
Sale Sold out
Shipping calculated at checkout.

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25

Product Description

Model OTM-TDJ20
Input Voltage 100-130V AC
Input Frequency 50-60Hz
Output Voltage 12V DC
Input Current 0.26A
Output regulated Current 1.66A
Output max Power 20W
Dimmable Yes (Triac/Phase Dimming)
IP Rating IP20 (Indoor Rated)
Ambient Temperature (Ta) 50°C
Case Temperature (Tc) 90°C
Class Certification Class II/ SELV
Dimensions 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in)
Certification
Compatible with Forward-Phase & Triac dimmers
Short circuit and overload protected
Applicable for Dry and Damp locations
Class II certified, Double-layer insulation



The OTM-TDJ20 is a Triac dimmable constant voltage LED driver that is designed to convert 100-130V AC input voltage to 12V DC output voltage. It has an input current of 0.26A and an output regulated current of 1.66A, which allows it to provide a maximum output power of 20W.

The driver is dimmable using Triac/Phase Dimming technology and has an IP20 rating, making it suitable for indoor use only. It has a Class II/ SELV certification and can operate in an ambient temperature of up to 50°C while maintaining a case temperature of 90°C. The dimensions of the driver are 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in), and it is ETL certified.

Features:

  • The OTM-TDJ20 is a Triac dimmable constant voltage LED driver designed for converting 100-130V AC input voltage to 12V DC output voltage.
  • It has an input current of 0.26A and an output regulated current of 1.66A, providing a maximum output power of 20W.
  • The driver is dimmable using Triac/Phase Dimming technology and has an IP20 rating, suitable for indoor use only.
  • It has a Class II/ SELV certification and can operate in an ambient temperature of up to 50°C while maintaining a case temperature of 90°C.
  • The dimensions of the driver are 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in).
  • It is ETL certified for safety and compliance.
