Product description
| Model | OTM-TDJ12 |
| Input Voltage | 100-130V AC |
| Input Current | 0.26A |
| Frequency | 50/60Hz |
| Output Voltage | 12V DC |
| Output regulated Current | 1.0A |
| Output Power | 12W |
| Dimmable | Yes (Triac/Phase Dimming) |
| Weight | 0.2 kg |
| IP Rating | IP20 (Indoor Rated) |
| Ambient Temperature (Ta) | 50°C |
| Case Temperature (Tc) | 90°C |
| Class Certification | Class II/ SELV |
| Dimensions | 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in) |
| Certification |

|
|
Compatible with Forward-Phase & Triac dimmers |
| Short circuit and overload protected |
| Applicable for Dry and Damp locations |
| Class II certified, Double-layer insulation |
Features:

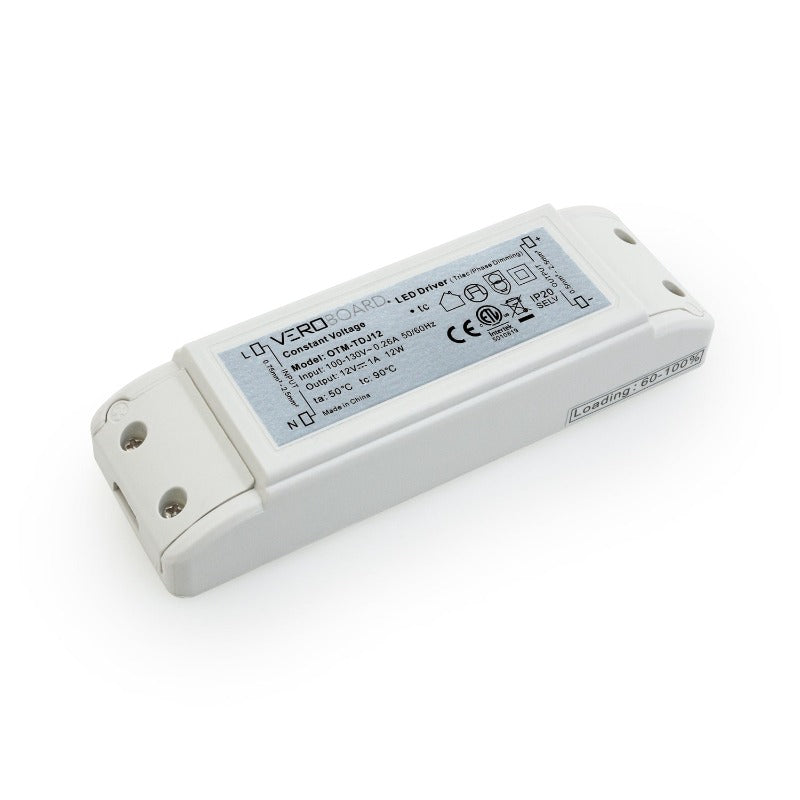

- The OTM-TDJ12 Triac Dimmable Constant Voltage LED Driver is a compact and efficient power supply designed for use with LED lighting systems.
- Input voltage range of 100-130V AC, an input current of 0.26A, and a frequency of 50/60Hz, making it suitable for use in various locations.
- Output voltage of 12V DC and can regulate an output current of up to 1.0A, ideal for low-power LED lighting applications.
- Maximum output power of 12W, capable of powering a single LED light or a small array of lights.
- Dimmable using Triac/Phase dimming technology, allowing for adjustable brightness levels.
- IP rating of IP20, indicating that it is suitable for indoor use only.
- Maximum ambient temperature (Ta) of 50°C and a case temperature (Tc) of 90°C, ensuring safe temperature range during operation.
- Class II and SELV certifications, indicating compliance with specific safety standards for low-voltage applications.
- Dimensions of 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in), making it easy to install in a variety of locations.
- ETL certified for safety and compliance, indicating rigorous testing and certification by Intertek, ensuring it meets stringent safety standards and has been tested for reliability and performance.
