Product Description
| Model | OTM-TDJ20-24 |
| Input Voltage | 100-130V AC |
| Input Frequency | 50-60Hz |
| Output Voltage | 24V DC |
| Input Current | 0.24A |
| Output regulated Current | 0.83A |
| Output max Power | 20W |
| Dimmable | Yes (Triac/Phase Dimming) |
| Weight | 0.15 kg |
| IP Rating | IP20 (Indoor Rated) |
| Ambient Temperature (Ta) | 50°C |
| Case Temperature (Tc) | 90°C |
| Class Certification | Class II/ SELV |
| Dimensions | 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in) |
| Certification |

|
|
Compatible with Forward-Phase & Triac dimmers |
| Short circuit and overload protected |
| Applicable for Dry and Damp locations |
| Class II certified, Double-layer insulation |
Features:

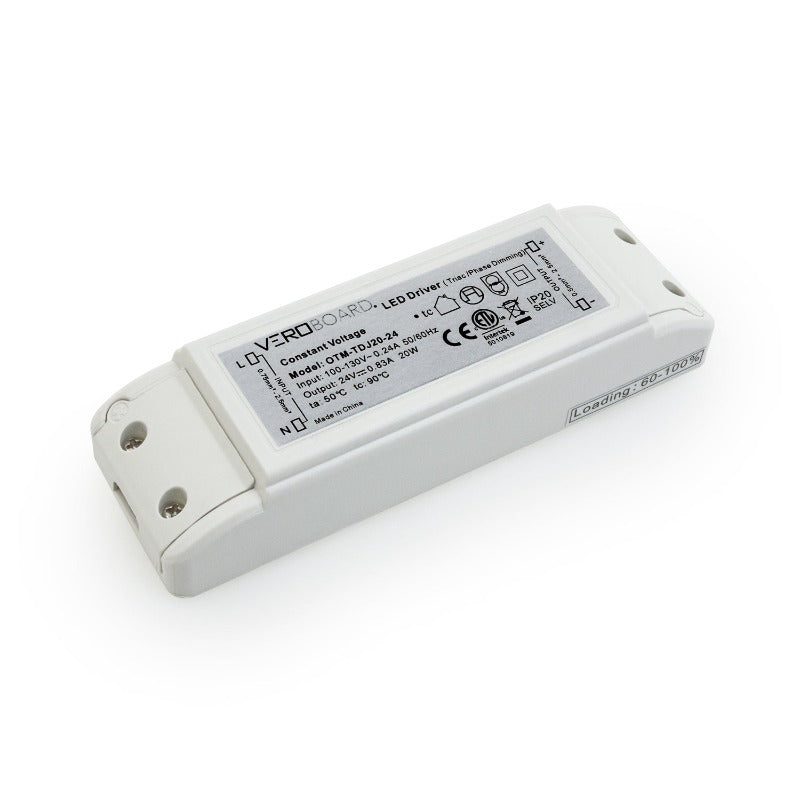

- The OTM-TDJ20-24 is a Triac Dimmable Constant Voltage LED Driver
- It converts 100-130V AC input voltage and 50-60Hz frequency to 24V DC output voltage
- It has an input current of 0.24A and an output regulated current of 0.83A
- The driver has a maximum output power of 20W
- It is dimmable using Triac/Phase Dimming method
- The driver has an IP20 rating, suitable for indoor use and protection against solid objects larger than 12.5mm
- The ambient temperature (Ta) it can withstand is up to 50°C, while the case temperature (Tc) should not exceed 90°C
- It has a Class II/ SELV certification for double insulation protection and operates at Safety Extra Low Voltage (SELV) levels for additional safety
- The dimensions of the driver are 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in)
- It is certified by ETL.
