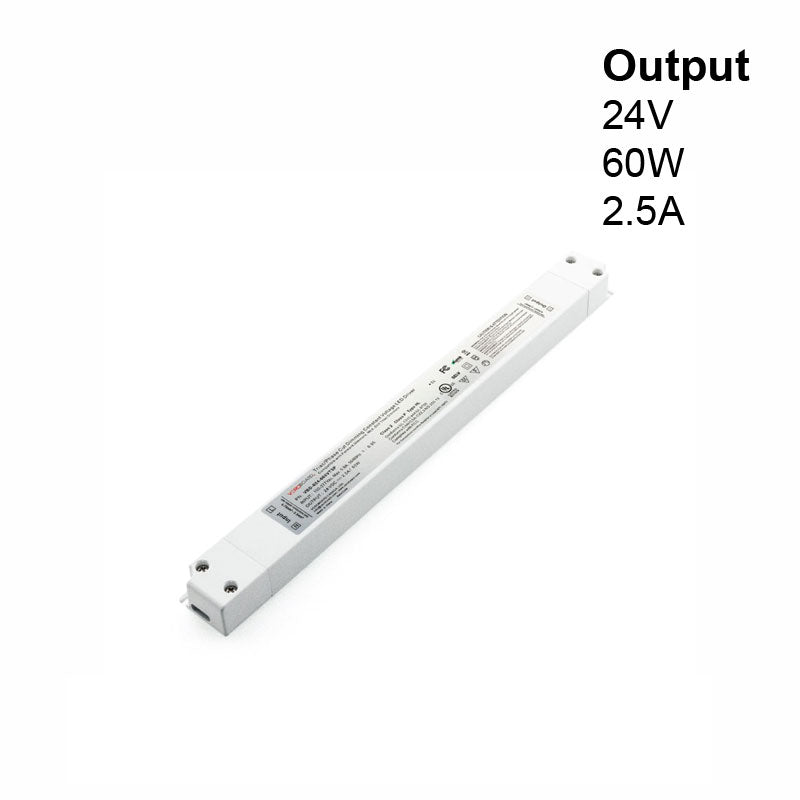

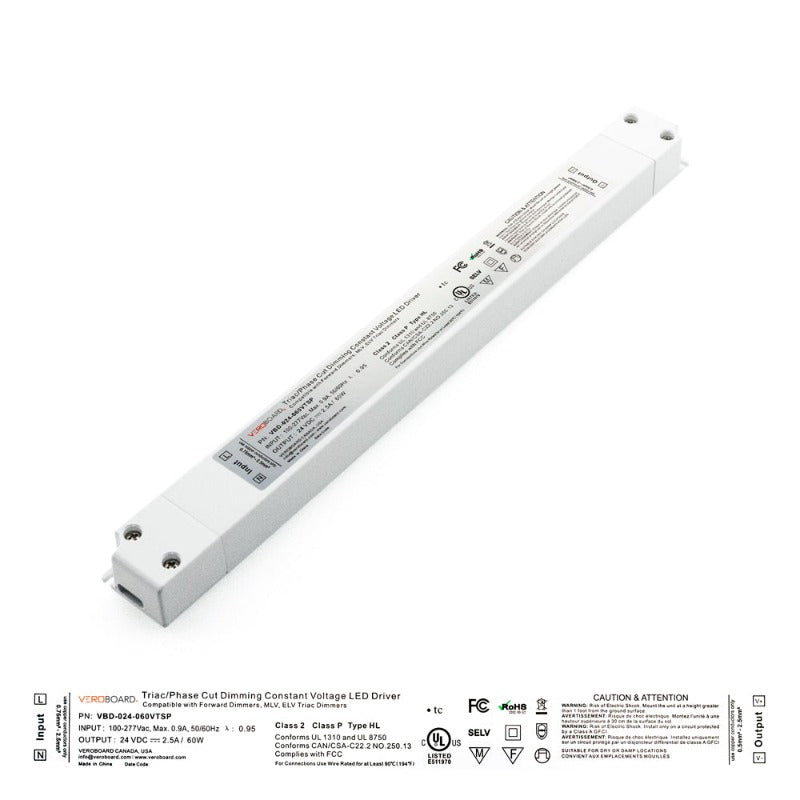

Super Slim VBD-024-060VTSP Triac Dimmable Constant Voltage LED Driver, 24V 2.5A 60W
Super Slim VBD-024-060VTSP Triac Dimmable Constant Voltage LED Driver, 24V 2.5A 60W
SKU: SKU:666561419769
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25Â
Â
Product Description
Model | VBD-024-060VTSP |
Input Voltage | 100-277V AC |
Input Current | 0.9A |
Frequency | 50/60Hz |
Power Factor | 0.95 |
Output Voltage | 24V DC |
Output regulated Current | 2.5A |
Output Power | 60W |
Dimmable | Yes (Triac/Phase-cut Dimming) |
Waterproof | No |
IP Rating | IP20 |
Class Certification | Class 2/ Class P/ Type HL. Class II |

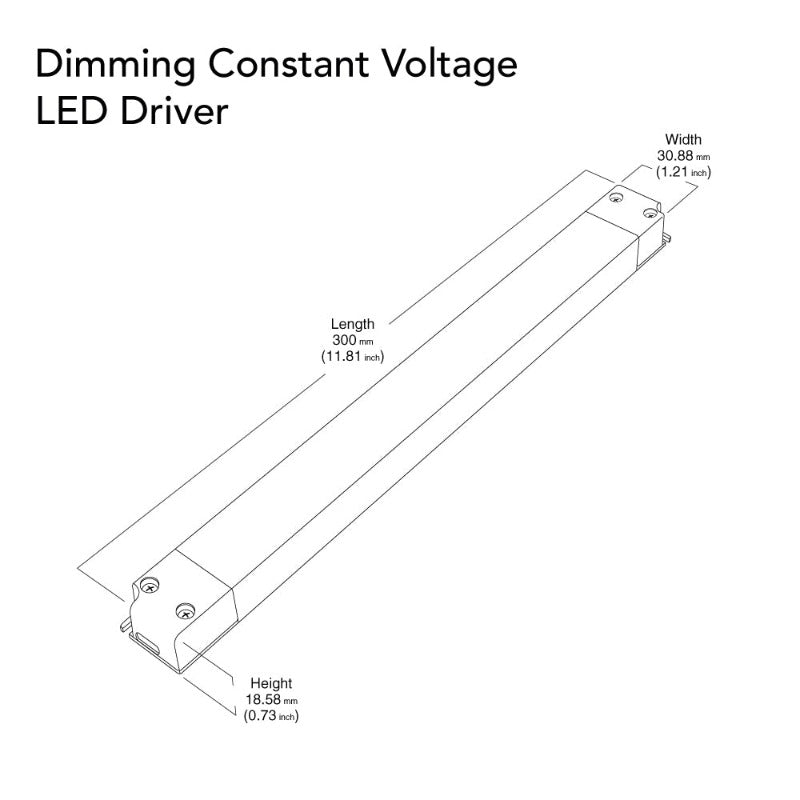

Dimensions | 300 x 30.88 x 18.58mm (11.81 x 1.21 x 0.73 in) |
Certifications |
Suitable for DRY and DAMP Locations |
Compatible with Forward-Phase, MLV, ELV, & Triac dimmers |
Â
The Super Slim VBD-024-060VTSP Triac Dimmable Constant Voltage LED Driver is a compact and efficient power supply designed for use with LED lighting systems. With an input voltage range of 100-277V AC and input current of 0.9A, this driver can be used with a wide range of power sources. The power factor of 0.95 indicates that it operates at high efficiency.
The output voltage of the driver is 24V DC, and it can regulate an output current of up to 2.5A, making it suitable for a range of LED lighting applications. With a maximum output power of 60W, it can power multiple LED lights at once. The driver is also dimmable, using Triac/Phase-cut dimming technology, allowing for adjustable brightness levels as required.
The driver is UL listed for safety and compliance, meaning that it has been tested and certified by Underwriters Laboratories, a global safety consulting and certification company. This ensures that it meets stringent safety standards and has undergone rigorous testing to ensure its reliability and performance.
Features:
- The Super Slim VBD-024-060VTSP Triac Dimmable Constant Voltage LED Driver is a compact and efficient power supply designed for use with LED lighting systems.
- It has an input voltage range of 100-277V AC and input current of 0.9A, which makes it suitable for a wide range of power sources.
- The power factor of 0.95 indicates that it operates at high efficiency.
- The output voltage of the driver is 24V DC, and it can regulate an output current of up to 2.5A, making it suitable for a range of LED lighting applications.
- With a maximum output power of 60W, it can power multiple LED lights at once.
- The driver is dimmable, using Triac/Phase-cut dimming technology, allowing for adjustable brightness levels as required.
- The driver has several class certifications, including Class 2, Class P, Type HL, and Class II, indicating that it is designed to meet specific safety and performance standards.
- The driver is not waterproof, with an IP rating of IP20, so it is suitable for indoor use only.
- The compact dimensions of 300 x 30.88 x 18.58mm (11.81 x 1.21 x 0.73 in) make it easy to install in a variety of locations.
- The driver is UL listed for safety and compliance, meaning that it has been tested and certified by Underwriters Laboratories, a global safety consulting and certification company, to ensure its reliability and performance.
