Super Slim VBD-024-096VTSP Triac Dimmable Constant Voltage LED Driver, 24V 4A 96W
Super Slim VBD-024-096VTSP Triac Dimmable Constant Voltage LED Driver, 24V 4A 96W
SKU: SKU:666561419783
Free Shipping
Free Shipping
- Get free shipping on purchases over $99!
Available Discounts
Available Discounts
- 10% off for a minimum qty of 10
- 15% off on purchases over $200
Shipping & Return Policy
Shipping & Return Policy
- 30 Days Return Policy
How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.
How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.
Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.
When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.
What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.
How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:
- All returned products must be in new, resellable condition and in their original packaging to be accepted.
- The customer is responsible for return shipping fees.
- Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
- A 15% restocking fee will apply.
- Processing time is approximately two weeks.
- For returns, please use Canada Post. Other shipping companies are not acceptable.
- To submit a request for a return or exchange, email sales@gekpower.com
Undelivered Orders:
- If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.
Statutory Holidays in British Columbia, Canada 2025
January 1 - February 17 - April 18 - May 19 - July 1 - August 4 - September 1 - September 30 - October 13 - November 11 - December 25Â
Product Description
| Model | VBD-024-096VTSP |
| Input Voltage | 100-277V AC |
| Input Current | 1.3A |
| Frequency | 50/60Hz |
| Power Factor | 0.95 |

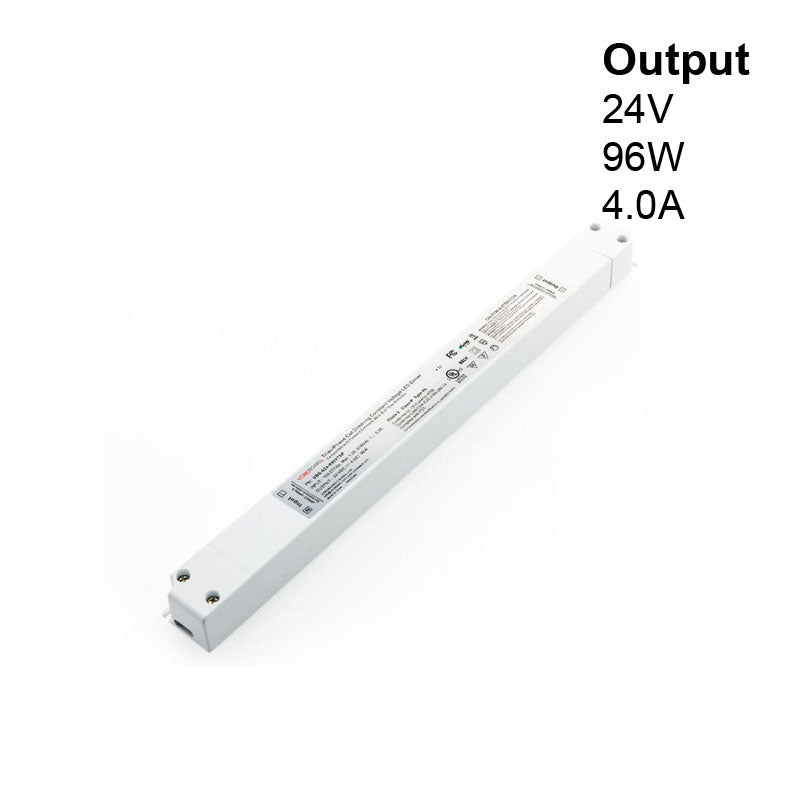

| Output voltage | 24V DC |
| Output regulated Current | 4.0A |
| Output Power | 96W |
| Dimmable | Yes (Triac/ Phase-cut Dimming) |
| Waterproof | No |
| IP Rating | IP20 |
| Class Certification | Class 2/ Class P/ Type HL/ Class II |

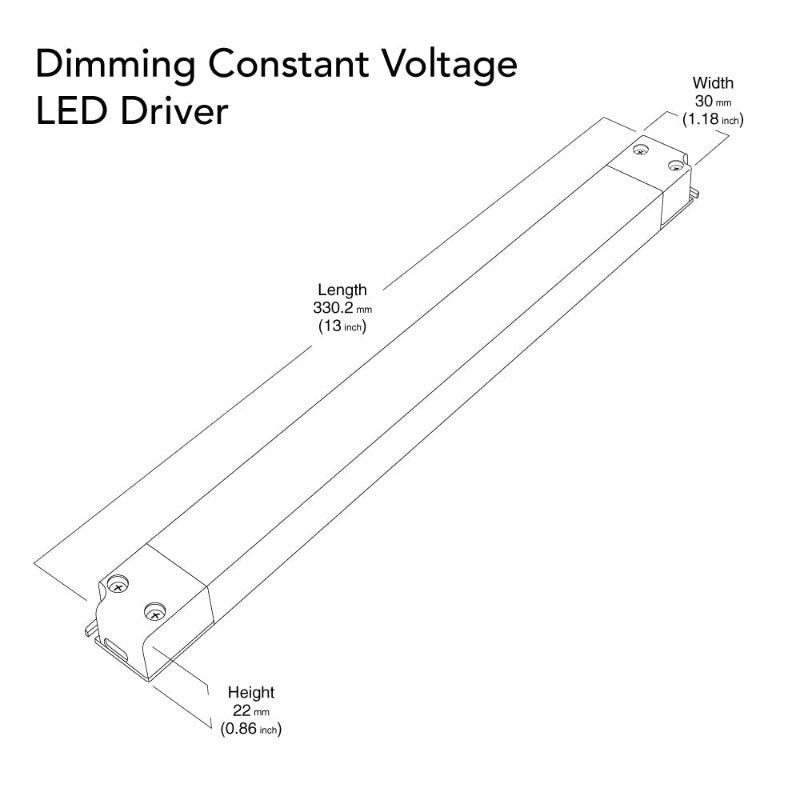

| Dimensions | 330 x 30 x 22mm (13 x 1.18 x 0.86 in) |
| Certifications |

|
Â
| Suitable for Dry and Damp Locations |
| Compatible with Forward-Phase, MLV, ELV, & Triac dimmers |
| Class II certification, double insulation layer. |

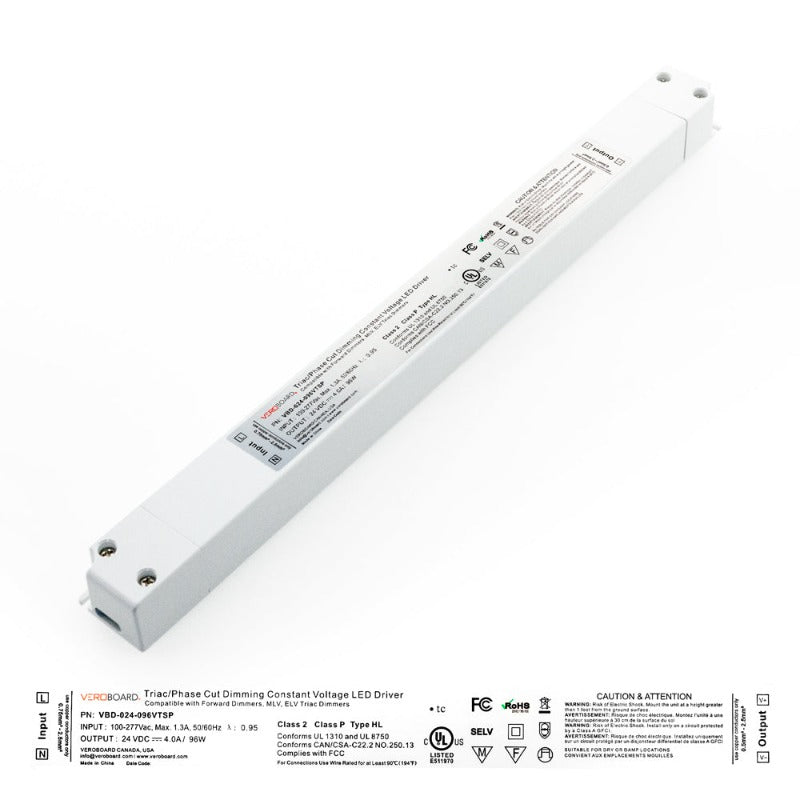

The Super Slim VBD-024-096VTSP Triac Dimmable Constant Voltage LED Driver is a compact and reliable power supply designed for use with LED lighting systems. With an input voltage range of 100-277V AC and an input current of 1.3A, this driver can be used with a variety of power sources. Its high power factor of 0.95 indicates efficient operation.
The output voltage of the driver is 24V DC, and it can regulate an output current of up to 4.0A, making it suitable for powering a range of LED lighting applications. With a maximum output power of 96W, it can power multiple LED lights simultaneously. The driver is also dimmable, using Triac/Phase-cut dimming technology, allowing for adjustable brightness levels as required.
The driver is not waterproof, with an IP rating of IP20, so it is designed for indoor use only. It has several class certifications, including Class 2, Class P, Type HL, and Class II, indicating that it meets specific safety and performance standards. The dimensions of 330 x 30 x 22mm (13 x 1.18 x 0.86 in) make it easy to install in a variety of locations.
The driver is UL listed for safety and compliance, which means that it has undergone rigorous testing and certification by Underwriters Laboratories, a global safety consulting and certification company. This ensures that it meets stringent safety standards and has been tested for reliability and performance.
Features:
- The Super Slim VBD-024-096VTSP Triac Dimmable Constant Voltage LED Driver is a compact and reliable power supply designed for use with LED lighting systems.
- Input voltage range of 100-277V AC and an input current of 1.3A, making it compatible with a variety of power sources.
- High power factor of 0.95 indicates efficient operation.
- Output voltage of 24V DC and can regulate an output current of up to 4.0A, suitable for powering various LED lighting applications.
- Maximum output power of 96W, capable of powering multiple LED lights simultaneously.
- Dimmable using Triac/Phase-cut dimming technology, allowing for adjustable brightness levels as required.
- Not waterproof, with an IP rating of IP20, designed for indoor use only.
- Class certifications include Class 2, Class P, Type HL, and Class II, indicating compliance with specific safety and performance standards.
- Dimensions of 330 x 30 x 22mm (13 x 1.18 x 0.86 in) make it easy to install in a variety of locations.
- UL listed for safety and compliance, indicating rigorous testing and certification by Underwriters Laboratories, ensuring it meets stringent safety standards and has been tested for reliability and performance.
Â
