Constant Current LED Light Receiver SR-1009FA3 (R-1.6A), 350MA 12-36VDC 16.8-50.4W

Constant Current LED Light Receiver SR-1009FA3 (R-1.6A), 350MA 12-36VDC 16.8-50.4W

SKU:666561430825

$189.00 CAD
$189.00 CAD
Sale Sold out
Shipping calculated at checkout.

Free Shipping

  • Get free shipping on purchases over $99!

Available Discounts

  • 10% off for a minimum qty of 10
  • 15% off on purchases over $200

Shipping & Return Policy

  • 30 Days Return Policy

How do we ship our products?
GekPower ships via the most reliable and time-efficient courier available, depending on the delivery location within Canada. Customers may provide their own courier preference and can include an account number, if applicable, by writing the courier information in the "special instructions for the seller" section at checkout.

How do we calculate the shipping cost?
Our prices are based on Canadian dollars.
Free Shipping: For orders totaling $99 CAD or above.
Please note that free shipping is not available for specific products; check availability during checkout.

Why is there a shipping cost, even after exceeding the flat rate for a few products?
Shipping costs are determined based on the quantity, size, and weight of the product. A surcharge will be applied to any oversized items.

When do we ship our products?
All orders are shipped through different couriers based on the priority selected at checkout. Orders are shipped within one business day of purchase from Monday to Friday, excluding Canadian statutory holidays (see below). Orders placed on Saturday or Sunday will be shipped the following week.

What if you want to cancel your order before it is shipped?
We accept cancellations and full refunds on all orders if the parcel has not been picked up by, or dropped off at, a courier.

How does our Return or Exchange Policy work?
Returns and exchanges are accepted within 30 days of the original purchase date.
Important Information:

  • All returned products must be in new, resellable condition and in their original packaging to be accepted.
  • The customer is responsible for return shipping fees.
  • Special orders, altered channels, strip lights, or assembled/disassembled products are not refundable.
  • A 15% restocking fee will apply.
  • Processing time is approximately two weeks.
  • For returns, please use Canada Post. Other shipping companies are not acceptable.
  • To submit a request for a return or exchange, email sales@gekpower.com

Undelivered Orders:

  • If an order is undelivered due to refusal, no mailbox, or any reason, return shipping costs will be deducted from your refund.

Statutory Holidays in British Columbia, Canada 2024
January 1 - February 19 - March 29 - May 20 - July 1 - August 5 - September 2 - September 30 - October 14 - November 11 - December 25

Product Description

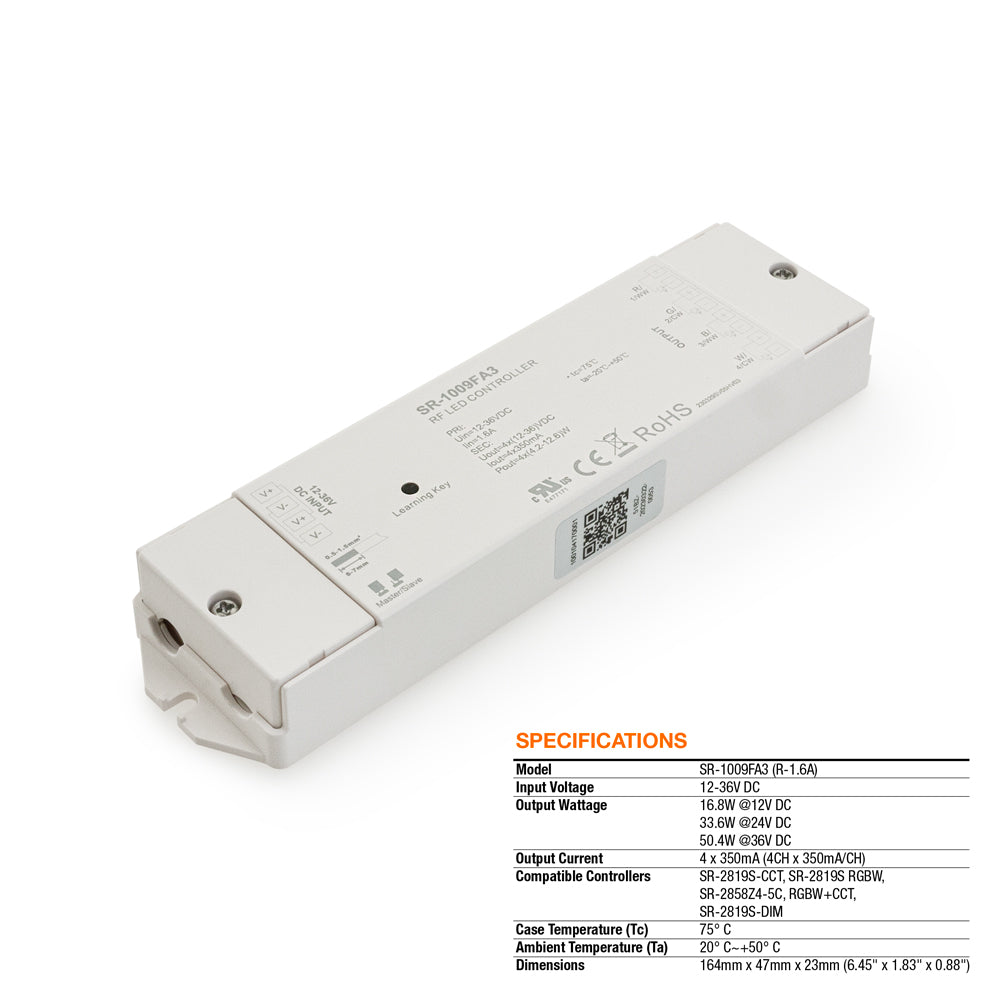

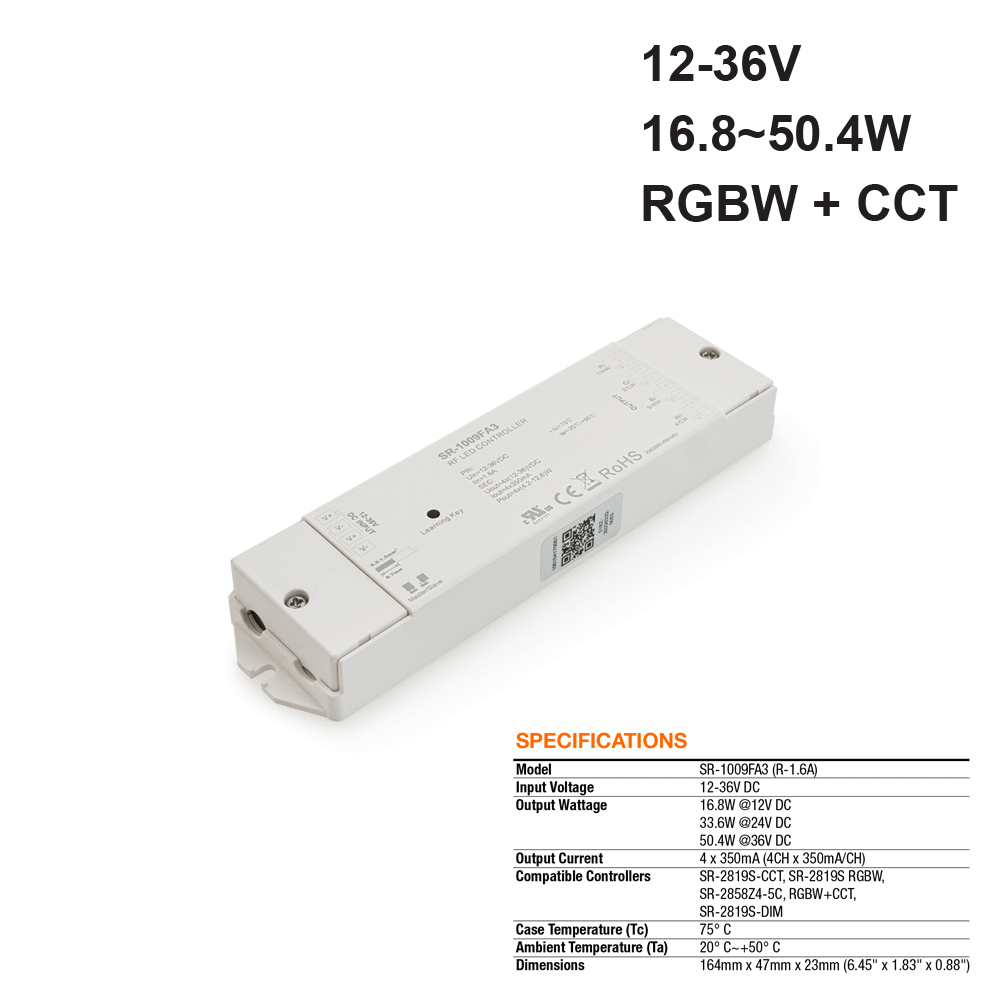

Product LED Receiver (Controller)
Model SR-1009FA3 (R-1.6A)
Input Voltage 12-36V DC
Output Wattage 16.8W @12V DC
33.6W @24V DC
50.4W @36V DC
Output Current 4 x 350mA
(4CH x 350mA/CH)
Compatible Remote Controllers (Sold Separately) SR-2819S-DIM (R1)
SR-2819S-CCT (R2)
SR-2819S RGBW (R3)
SR-2858Z4-5C RGBW+CCT (R4)
Case Temperature(Tc) 75℃
Ambient Temperature(Ta) 20℃-+50℃

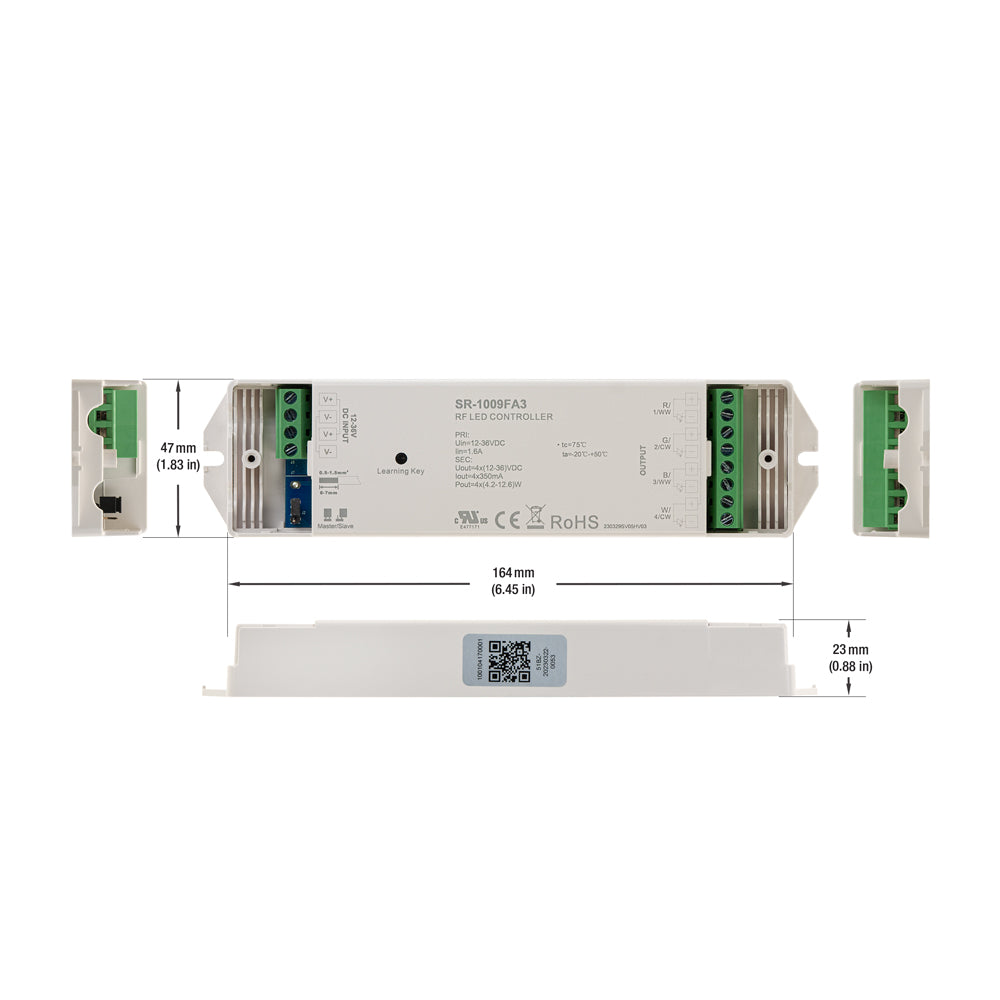

Dimensions 164 x 47 x 23mm (6.45 x 1.8 x 0.8in)
Certifications



The Constant Current Receiver SR-1009FA3 (R-1.6A) is a device designed to control LED lighting systems. It is a 4 channel controller with a constant current output of 350mA, and it can be used with a wide range of single color, dual color, and RGB/RGBW LED lights. The controller is compatible with various RF remotes, allowing for easy and flexible control of the lighting system.

The SR-1009FA3 (R-1.6A) has the ability to control multiple zones separately or synchronously, with endless receivers in each zone. Each receiver can be controlled by up to 8 different remotes, providing even greater flexibility in controlling the lighting system. The controller also has built-in changing patterns, which can be saved to each zone.

The SR-1009FA3 (R-1.6A) is a versatile and flexible LED controller, with a radio frequency available of 869.5/434/916.5MHz.

Features:

  • The SR-1009FA3 (R-1.6A) is a 4 channel constant current Receiver designed for LED lighting systems.
  • It is compatible with a wide range of single color, dual color, and RGB/RGBW LED lights.
  • The Receiver can be used with various RF remotes, allowing for easy and flexible control of the lighting system.
  • The SR-1009FA3 (R-1.6A) has the ability to control multiple zones separately or synchronously, with endless receivers in each zone.
  • Each receiver can be controlled by up to 8 different remotes, providing even greater flexibility in controlling the lighting system.
  • The Receiver can adjust the brightness of each R, G, B, and W channel separately, enabling millions of changing colors to be achieved.
  • Built-in changing patterns can be saved to each zone.
  • The controller operates on a radio frequency of 869.5/434/916.5MHz.
